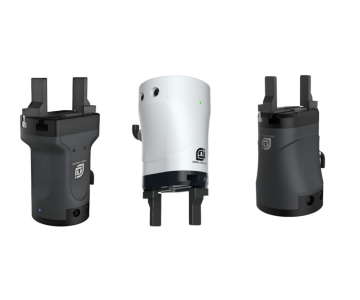

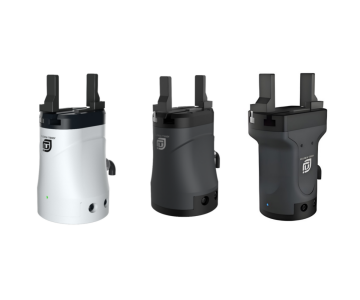

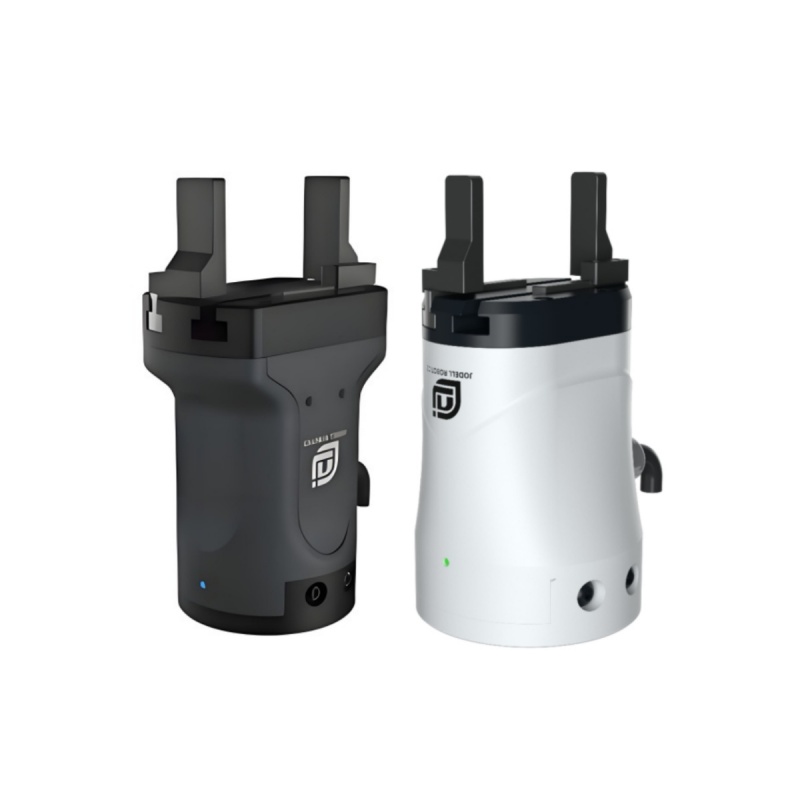

Product Description
Micro-driven and integrated electric grippers and integrated rotary clamping electric servo grippers have been used in many automated inspection equipment. The compact integrated structure greatly simplifies the cumbersome integrated design of the clamping equipment in the past. The RG series has the advantages of high protection level, plug and play, large load, etc., combining precision force control with industrial aesthetics.
Product parameters
Model | RG52-050 | RG75-300 |
Adjustable stroke | 0-52mm | 0-75mm |
Single finger gripping force | 2-50N | 40-300N |
Opening/closing time | 0.65s | 0.55s |
Position repetition accuracy | ±0.02mm | ±0.02mm |
*Maximum recommended load | 1Kg | 6kg |
Drop detection | support | support |
Power outage maintenance | support | support |
Usage environment | 5-40 ℃, below 85% RH | 5-40 ℃, below 85% RH |
Running noise | ＜40dB | ＜40dB |
Body weight | 0.75Kg | 1.5Kg |
IP level | IP54 | IP65 |
Rated voltage | DC 24V±10% | DC 24V±10% |
Maximum current | 0.8A | 1.5A |
Rated current | 0.5A | 0.55A |
communication protocol | Modbus RTU(RS 485) Digital I/O | Modbus RTU(RS 485) |
Compliant with international standards | CE、RoHS | CE、RoHS |
Vertical allowable static load Fz | 200N | 400 N |
Permissible static moment of slider Mx | 2.5N.m | 8 N·m |
The allowable static moment of the slider My | 2N.m | 8 N·m |
The allowable static moment Mz of the slider | 2.8N.m | 8 N·m |

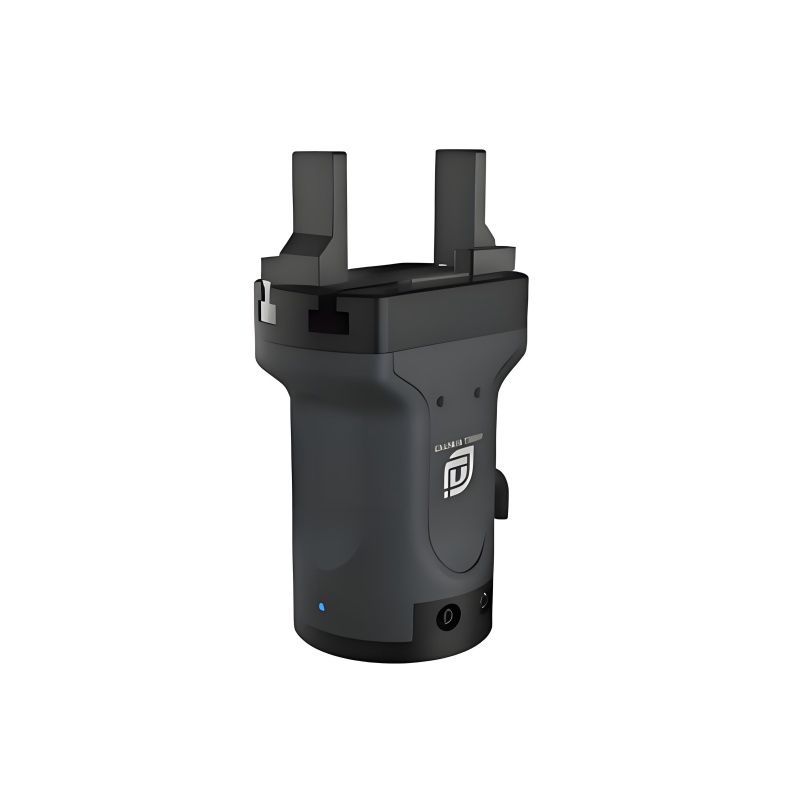

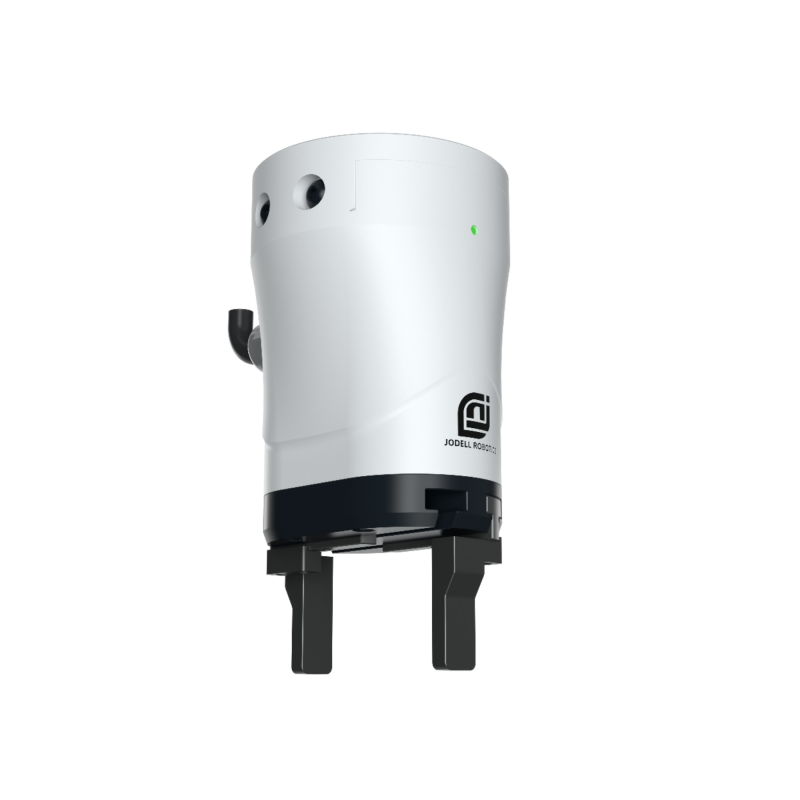

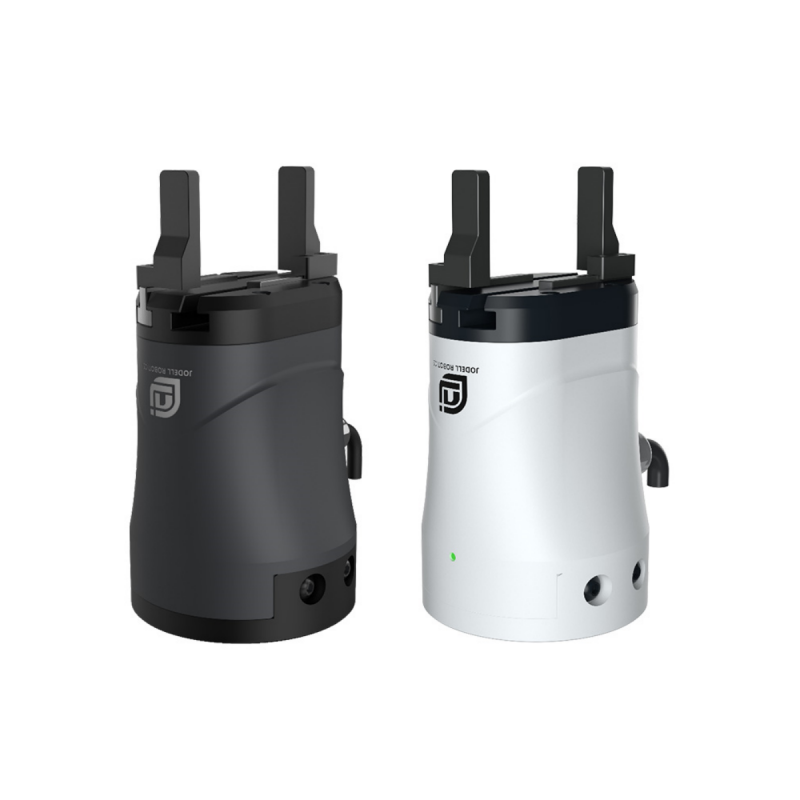

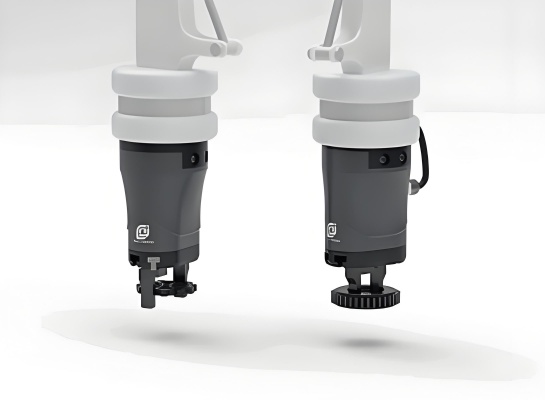

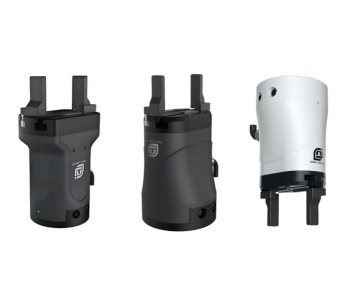

Product Display

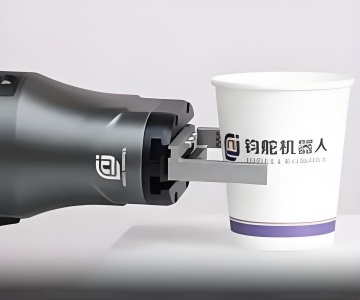

RG electric gripper, equipped with advanced intelligent control system, can precisely adjust and control the gripping force and position. The gripping force can be flexibly adjusted according to the weight and material of the object, from gently grasping fragile items to firmly grasping heavy objects. Position control is accurate to ±0.02mm, ensuring that each grasping and placement is accurate, and it is suitable for complex operations in multiple scenarios.
RG electric gripper is equipped with an advanced intelligent control system, and the gripping force and position are precisely adjustable and controllable. The gripping force can be flexibly adjusted according to the weight and material of the object, and it can be used for everything from gently grasping fragile items to firmly grasping heavy objects. The position control is accurate to ±0.02mm, ensuring that each grasping and placement is accurate, and it is suitable for complex operations in multiple scenarios.

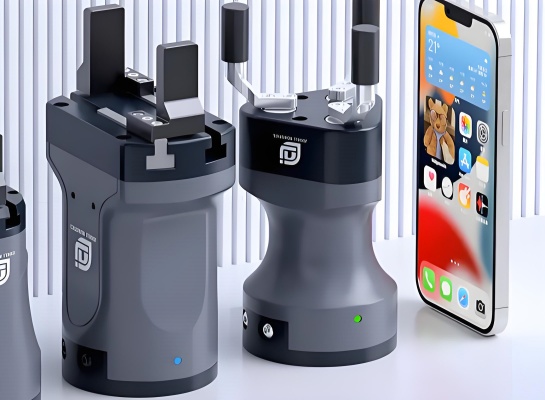

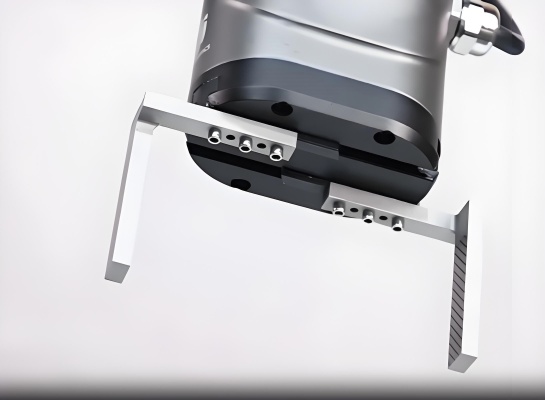

RG electric gripper is small and compact, with exquisite structure, takes up very little space, but contains powerful performance. It is easy to install and is suitable for a variety of automated equipment. It can accurately complete tasks such as grasping and handling, easily cope with narrow space operations, and efficiently empower production processes.

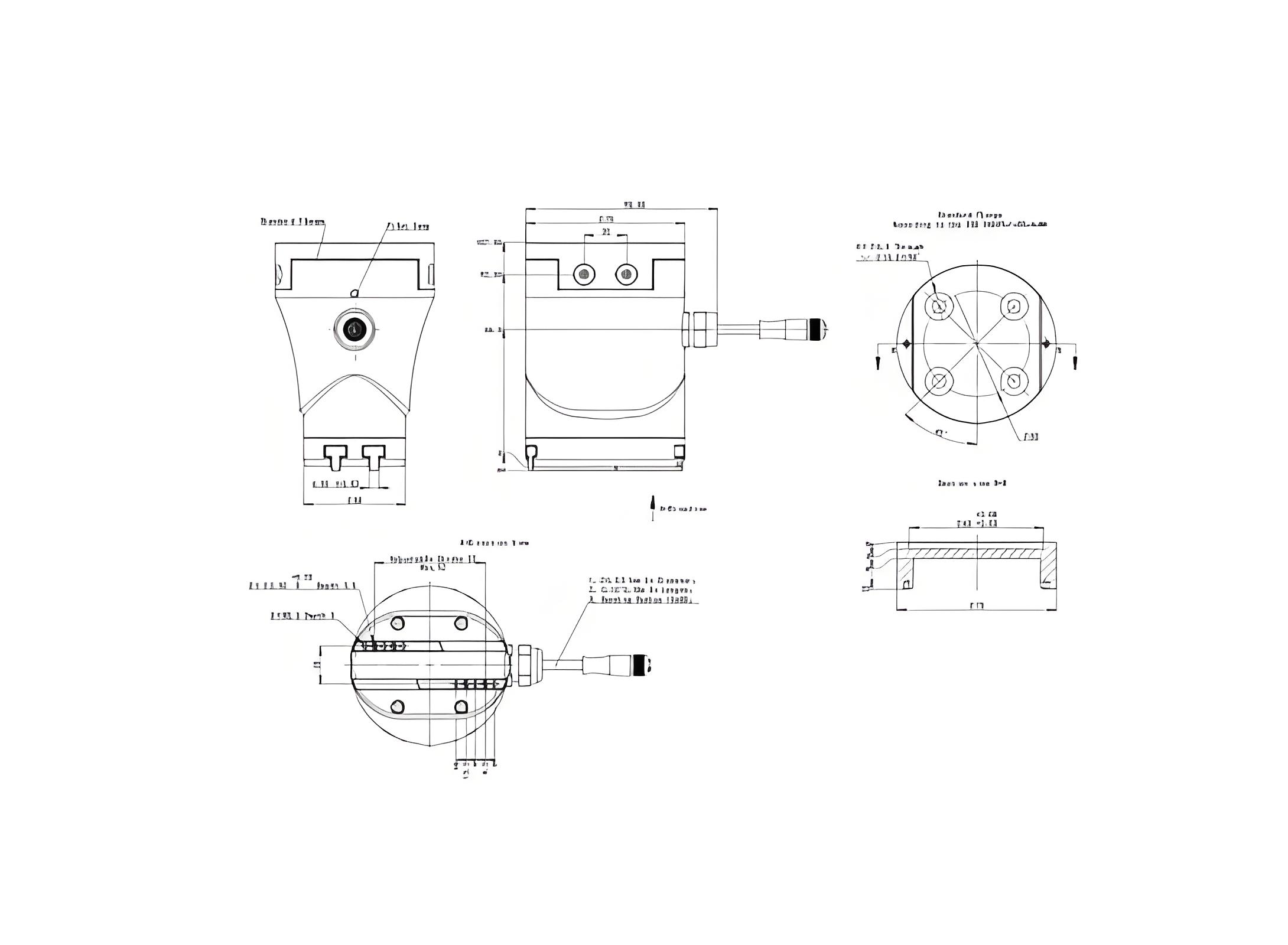

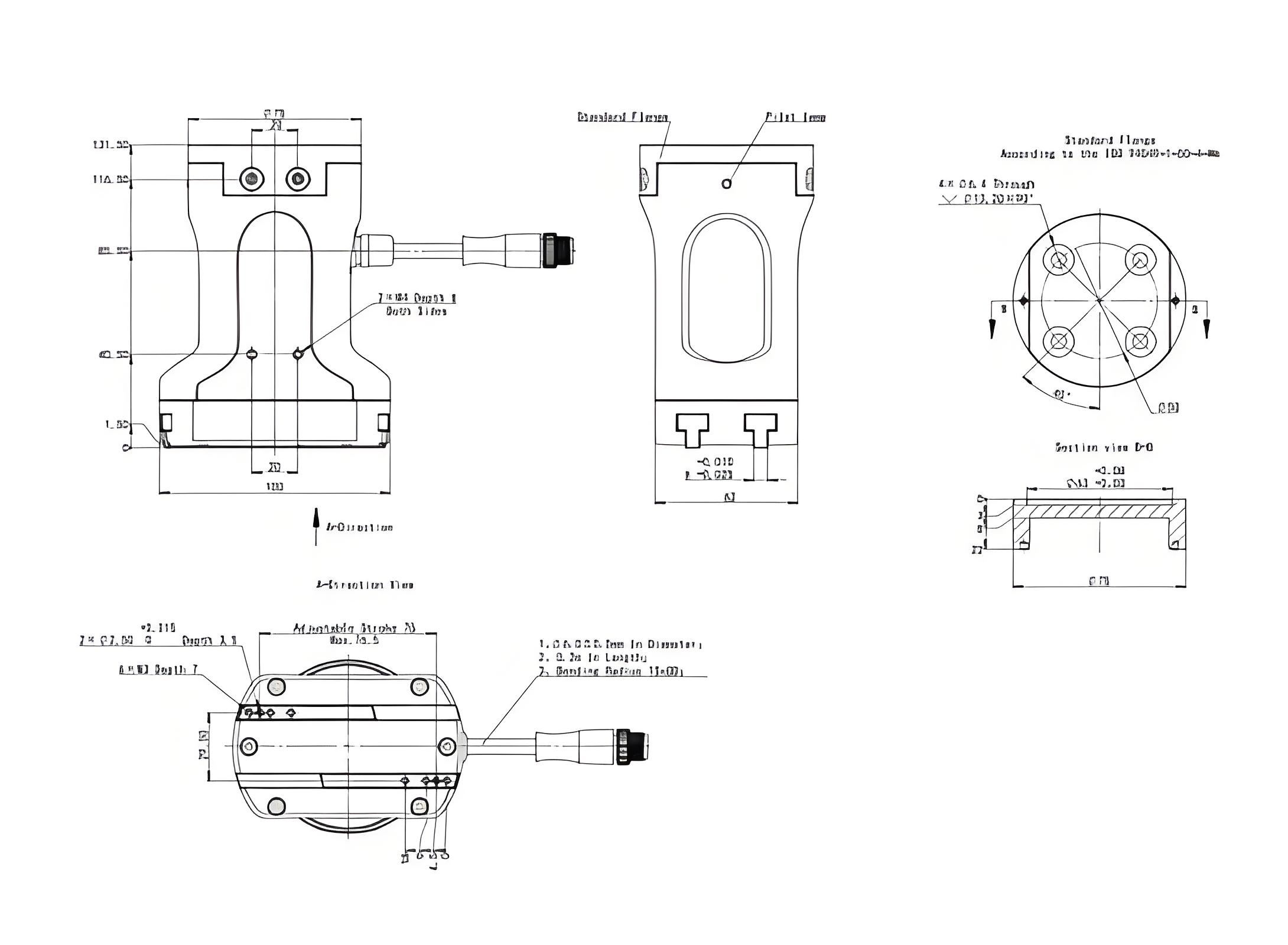

Size & Interface
Application Cases

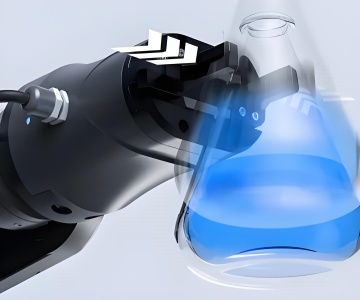

The RG series of collaborative parallel electric grippers are widely used. In 3C electronic manufacturing, they can accurately grasp tiny parts to assist assembly and testing. In lithium battery production, they can efficiently transport materials such as battery cells. In the medical industry, they can also operate precision instruments and reagent tubes with ease, greatly improving work efficiency and quality in various scenarios.
