Product Description

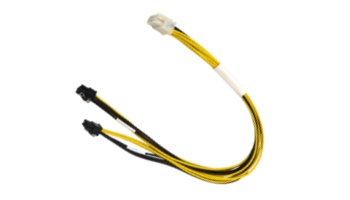

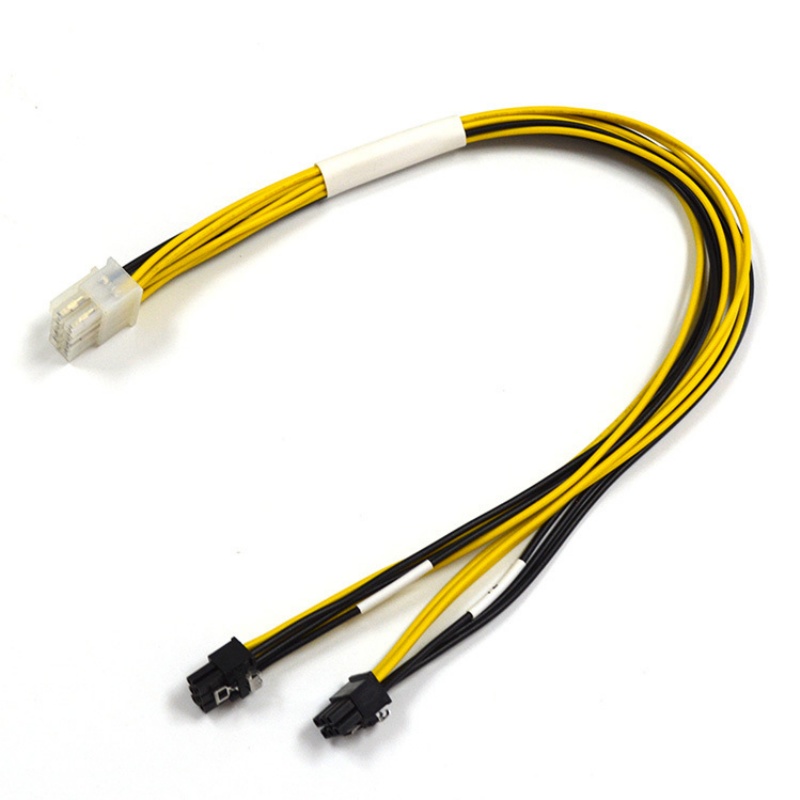

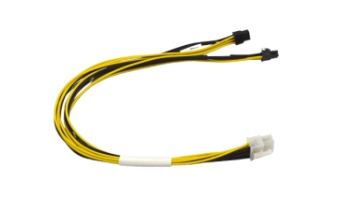

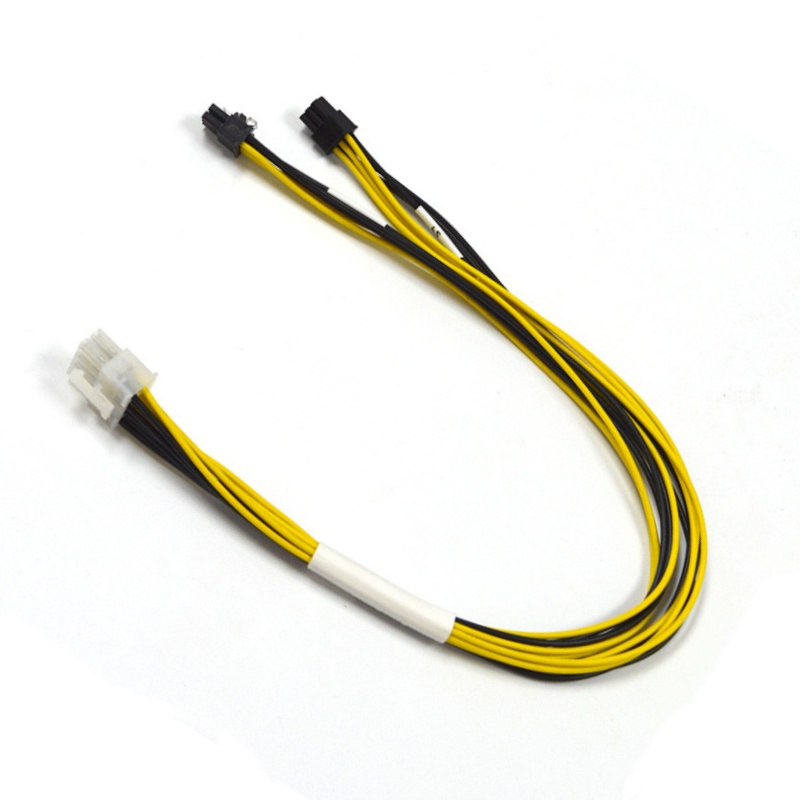

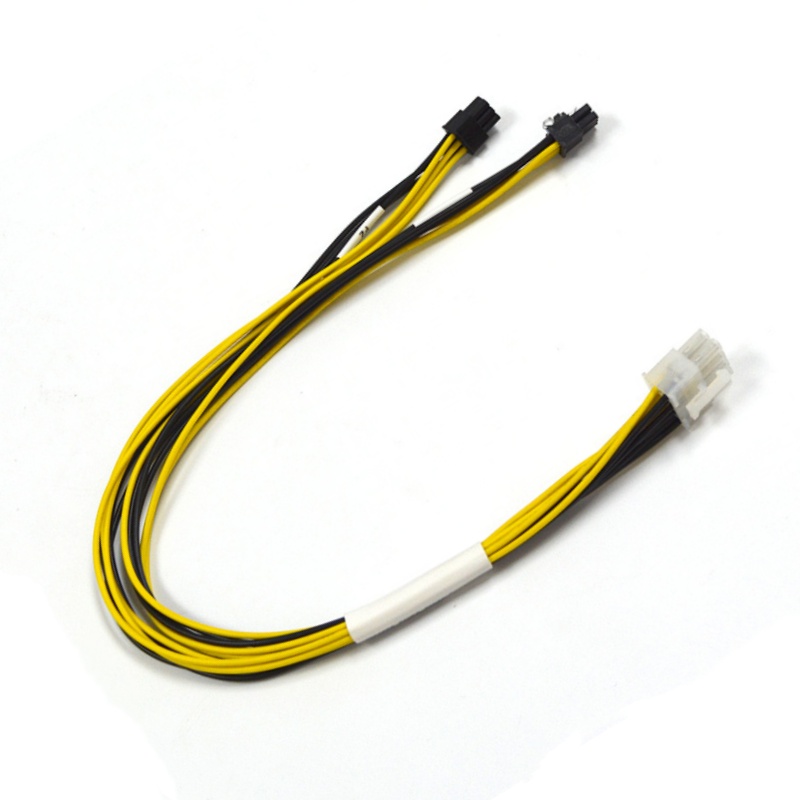

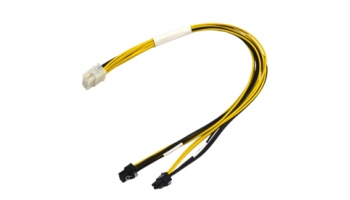

5557-2 *4P double terminal cable:
Structure design: double head design, reasonable layout from one end to the other. Each head has 4 Ps (pins or ports), a total of 2 groups, to meet specific connection needs.
Material characteristics: Excellent core material, good electrical conductivity, reliable insulation layer, durable terminal material, stable contact, to ensure signal and current transmission.
Functional use: Used to connect the corresponding equipment, to achieve stable electrical connection between devices, to ensure accurate signal transmission and normal power supply.
Product parameters
| specification | argument | specification | argument |
|---|---|---|---|
| Product name | 5557-2 *4P double-ended terminal cable | colour | Red, black, yellow |
| Connector specification | 5557-2*4P | Line length | 350mm customizable |
| Wire rod | UL1007 20AWG | Feature | Resistant to bending and rocking |
| quantity | 1000PCS, please consult customer service for special parts | All materials match | UL、ROHS、REACH+NP |
| Main component | UL4478 Ultra-soft multi-core cable, UL20276 high flexible shielded cable | Number of cores | 12 |
Custom Process
Demand communication
Firm offer
Proof making
Sign an order
Pay for goods
Mass production
Quality inspection delivery
After-sales service
Process Type
Terminal processing: stamping and forming of terminals to ensure dimensional accuracy and good contact performance.
Welding process: Weld the wire and terminal to ensure firm, no virtual welding, and ensure electrical connection.
Assembly process: The processed terminals and wires are assembled into a double-headed structure to ensure the overall stability.
Material
Wire material
Terminal material
Auxiliary material
Wire harness fixing material
Quality Control
Technical team: 20 senior product engineers to provide customers with perfect design solutions.

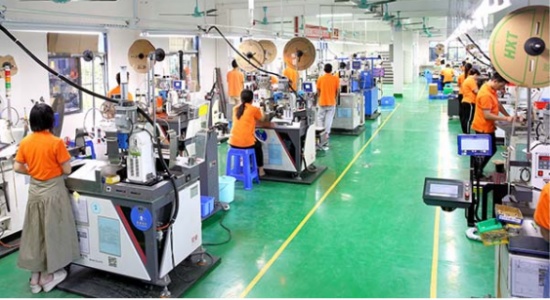

Production team: 30 experienced production management, 320 skilled first-line production personnel to ensure your order delivery time.
Quality team: 31 excellent quality specialists, for your product quality escort.
Processing capability
Precision manufacturing
Using high-precision equipment, the wire stripping, cutting length accuracy up to millimeter, stranding wire pitch and other parameters of the error is very small, to ensure the size of the wire harness accurate.

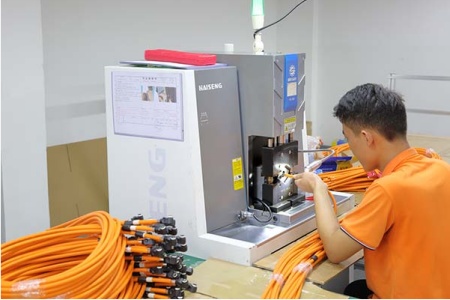

Efficient assembly
Automatic insertion of wires to connectors, fast and 99% accuracy, welding process to ensure solder joint quality, high assembly efficiency.
Reliable detection
With comprehensive testing capabilities, can quickly and accurately test wiring harness conduction, insulation, voltage resistance and other properties to ensure product quality.
Additional processes
Surface treatment
Gold plating and silver plating on metal contact parts, controlling thickness to enhance conductivity and oxidation resistance; The plastic shell is sprayed and frosted to improve the appearance, wear resistance and corrosion resistance.
Mask processing
Wrap the wire with copper foil or braided metal mesh as a shielding layer to ensure coverage of more than 90% and good grounding; The connector is shielded to reduce electromagnetic interference.
