Product Description

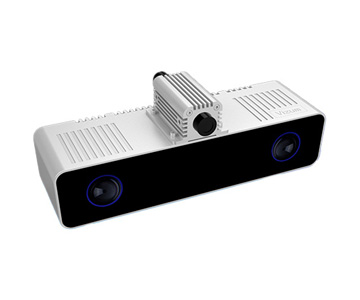

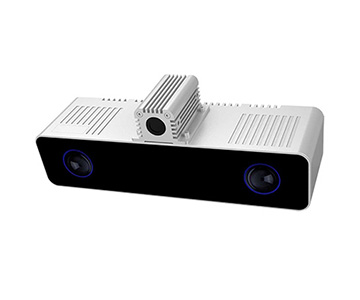

Smart eye adopts full terminal intelligent design, can directly access PLC, output standardized stereo point cloud data model, depth map, etc., and can embed a variety of application intelligent algorithms in the camera side, including stereo positioning, object counting, flow monitoring, object measurement, object surface detection and other algorithms, without additional integration of the main processing machine. In the wide field of vision detection, low processing delay, high precision positioning in the industry leading level, can be directly applied to warehousing logistics, tobacco industry logistics, sea salt measurement, coal mine measurement, sand measurement, tire detection and other industries intelligent system.
Product parameters
| specification | argument | specification | argument |
|---|---|---|---|
| Product model | VZ-ZHL-3000G | Maximum depth data generation speed | 3000 lines /s |
| Size (L×W×H) | 260*66*75mm | Point cloud data processing delay | <1ms |
| weight | 1kg | Result data processing delay | <10ms |
| Laser type | 450nm(blue), 850nm(infrared), other wavelength lasers can be selected | It can support the speed of the object | 6m/s real-time detection |
| External interface | Gigabit network port | Interpupillary distance | 160mm, 320mm(Pupil distance can be customized according to the application scenario) |
| Communication mode | TCP/IP communication protocol, Modbus Tcp communication protocol, SDK function call | Camera trigger mode | Soft trigger, level trigger, pulse trigger |
| Support system | Windows(7,10)/Linux | Depth of field | It can meet the depth of field of 2 meters with millimeter accuracy |
| Z-axis maximum detection accuracy +0.004mm | (±0.02mm)-(±0.13mm)@0.5m installation distance | Individual camera field width | With millimeter-level accuracy, the field of view can be 3 meters wide |
| (±0.07mm)-(±0.50mm)@1m Installation distance | Stereo camera lens Angle | 61°, interchangeable short and telephoto lenses | |
| (±0.14mm)-(±1.10mm)@2m Installation distance | Camera type | CMOS | |
| (±0.30mm)-(±2.35mm)@3m installation distance | Exposure mode | global shutter | |
| The maximum detection accuracy of Y-axis is ±0.022mm | (±0.05mm)-(±0.41mm)@0.5m installation distance | Lens interface | M12 |
| (±0.11mm)-(±0.80mm)@1m Installation distance | IP protection level | IP65 | |
| (±0.21mm)-(±1.62mm)@2m Installation distance | Voltage/power consumption | 12V/24W | |
| (±0.31mm)-(±2.42mm)@3m installation distance | Operating temperature | -20℃~70℃ |
Technological Innovation
Adaptable to a variety of complex scenes: highly accurate 3D reconstruction of both reflective and light-absorbing objects.
Industrial design: Aviation plug interface, IP65 shell design, to meet the needs of industrial scenarios.
Flexible customization: Hardware can be customized according to customer usage scenarios to meet customer requirements

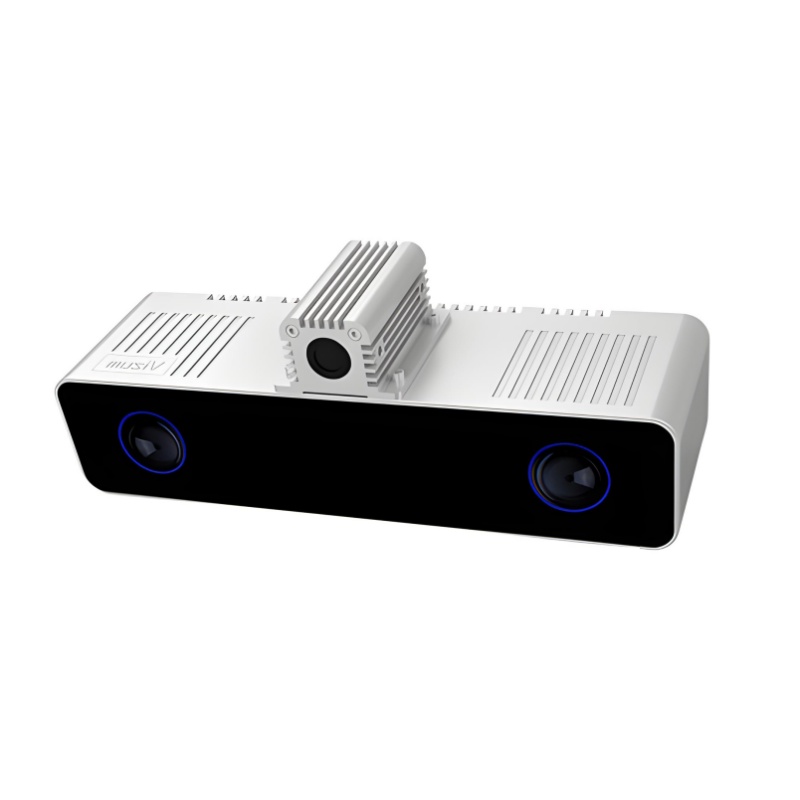

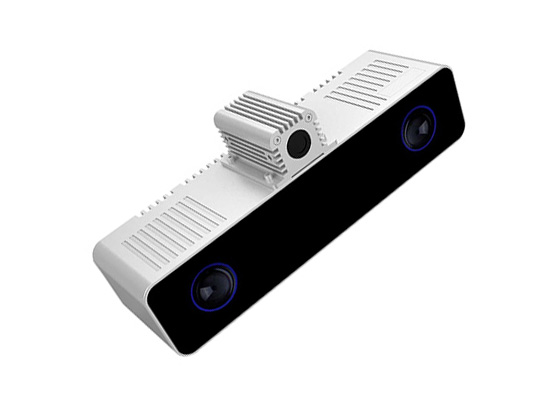

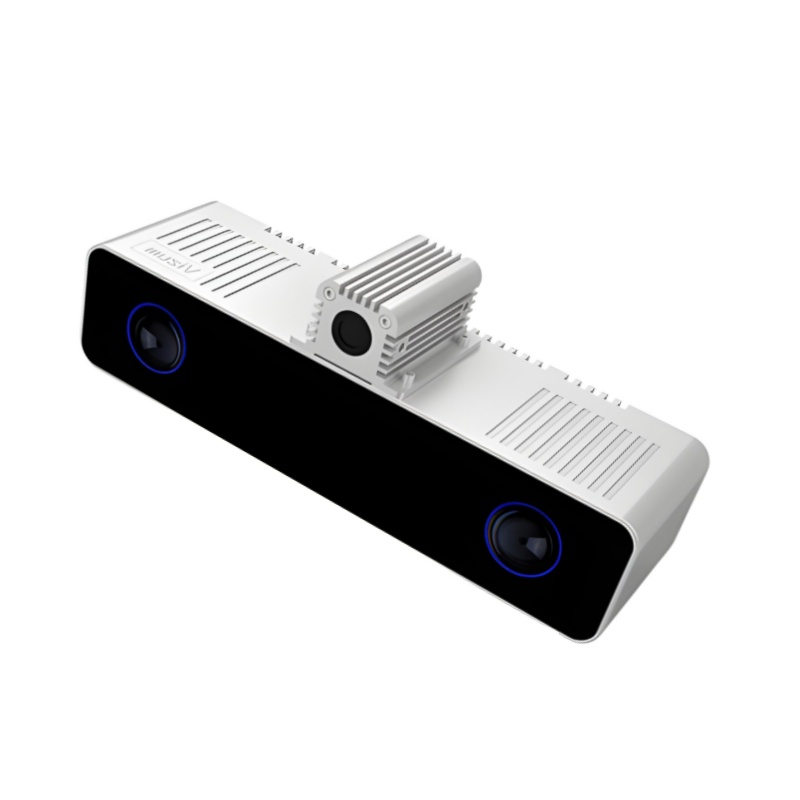

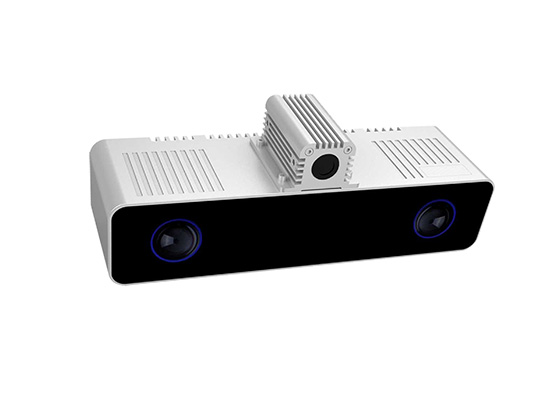

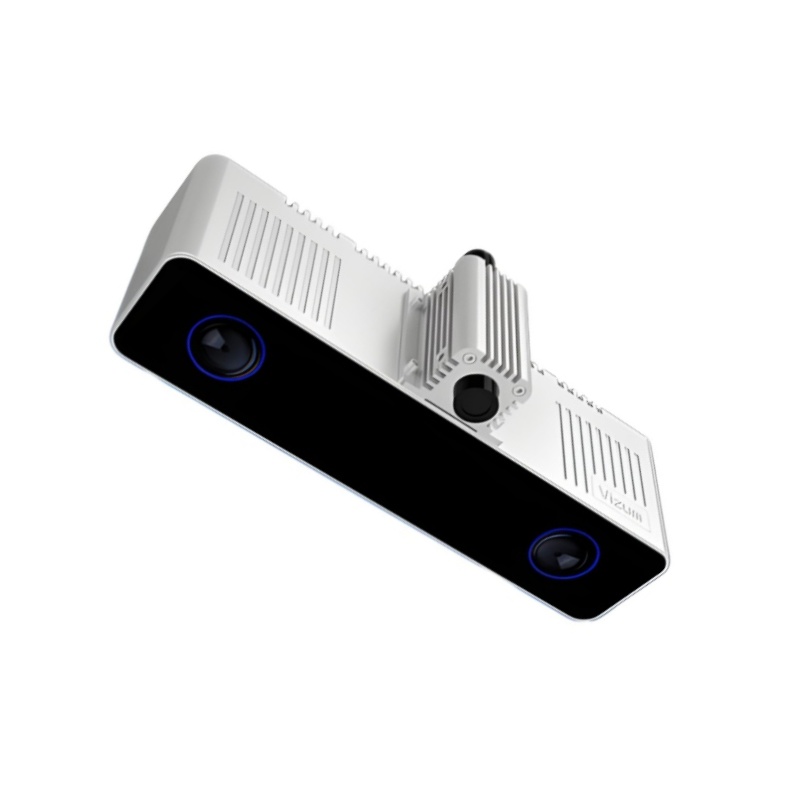

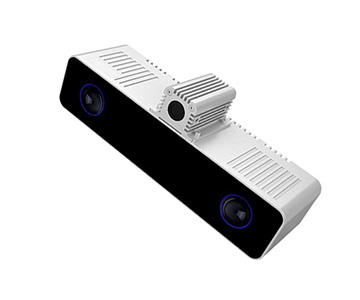

Product Display
Embedded algorithm
Can directly output the result data to connect with third-party systems or PLC.
Low processing delay
The output of point cloud data is less than 1ms, and the output of application result calculation is less than 10ms.
Large depth of field and large field of view
The single camera meets a 3-meter wide field of view and a 2-meter depth of field with millimeter accuracy.
High precision
The highest detection accuracy can reach 4um.
Support high-speed movement of objects

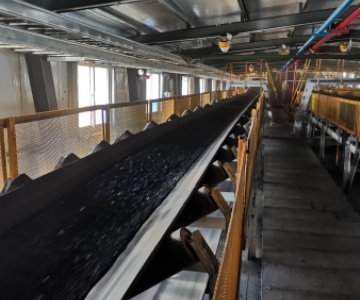

It can adapt to the real-time processing requirements of 6m/s moving conveyor belt.
Support variable motion scenarios
Support external pulse encoder signal access and speed interface soft trigger docking.
Support multi-camera fusion
Two or more cameras can be fused to meet the large field of view 3D modeling.
Strong environmental adaptability
It can also be used in indoor and outdoor, dim environment.
Support multiple work trigger modes
Soft trigger, level trigger, pulse trigger to adapt
Quality Control
In the production of industrial cameras, quality control has been started from the raw material link. We only use raw materials from quality suppliers who have undergone rigorous qualification audits and long-term assessments. For each batch of raw materials, such as optical lenses, sensor chips, circuit board materials, etc., a comprehensive test should be carried out. Through high-precision inspection equipment, we check the physical properties, chemical stability, electrical properties and other key indicators of raw materials to ensure that they meet the high standards we set. Any raw materials that are defective or do not meet specifications will be rejected, ensuring the quality of industrial cameras from the source.
Application Cases
With Zhiguang Eye products, a variety of applications can be developed, including three-dimensional point cloud model reconstruction, stereopositioning, object counting, conveyor object flow monitoring, object size measurement, object surface defect detection and other secondary applications.
Service
Professional technical support team
We have a professional after-sales technical support team, team members have deep knowledge of industrial camera technology and rich practical experience. Whether it's camera hardware failures, software anomalies or complex system integration issues, they are able to diagnose and analyze quickly and accurately. These professionals are rigorously trained and familiar with various industrial camera models and configurations, and are able to provide users with targeted solutions.
