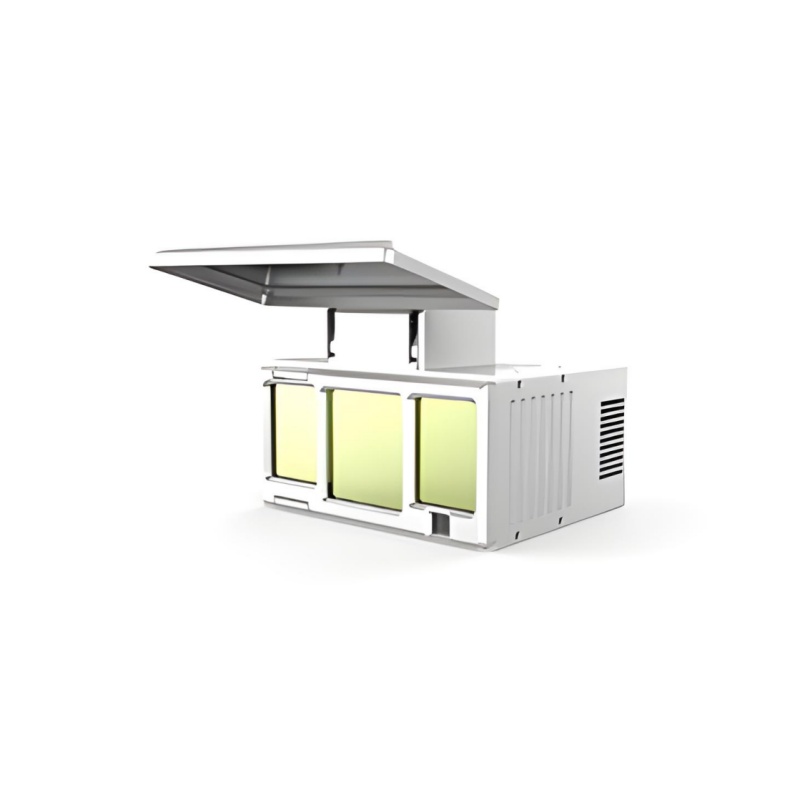

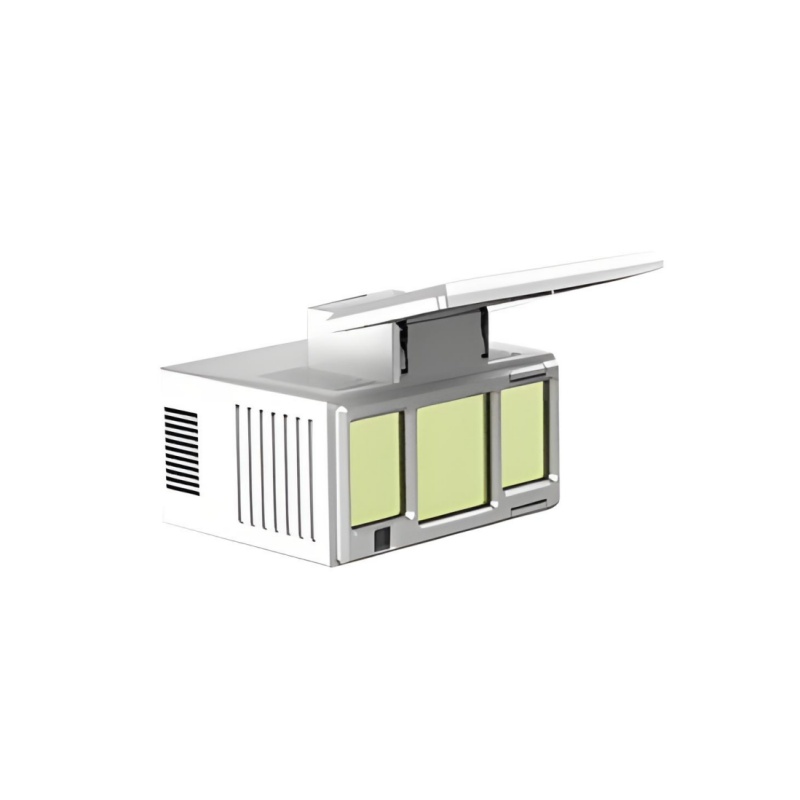

Product Description
Intelligent welding special RGBD stereo camera, used in industrial welding field. It uses 3D vision technology to realize precise positioning of workpiece, relies on image recognition and feature extraction algorithm to complete weld extraction, and realizes weld tracking function through real-time visual feedback and dynamic tracking algorithm.
Product Features
Job positioning
The overall positioning of the welding workpiece
The workpiece attitude and position information are given
Find weld origin

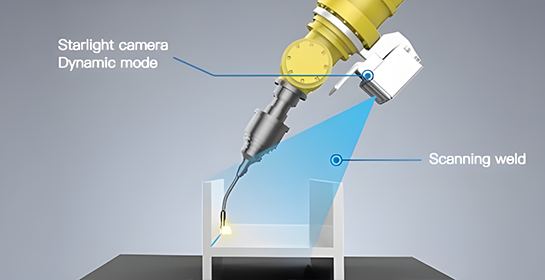

Weld tracking
Real-time detection of weld position
Correct welding path
Make the torch always weld along the weld
Guarantee welding quality

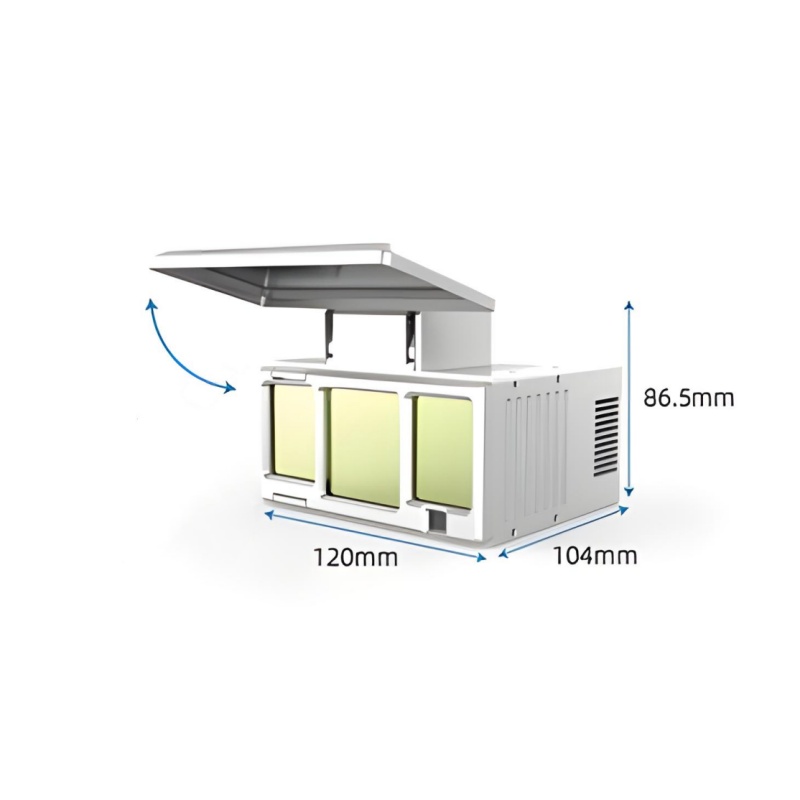

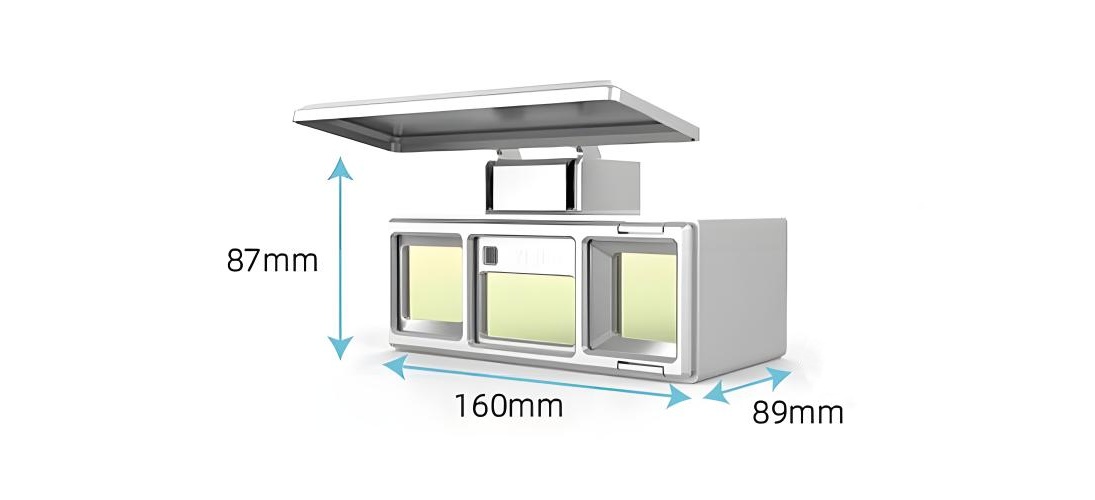

Structure Diagram
Product parameters
| specification | argument | specification | argument |
|---|---|---|---|
| Model number | SVersion-HJ-RGBD-130 | Typical full frame acquisition time | 0.2~0.8s |
| Feature | Weld extraction + weld tracking +RGB original | Maximum line sweep rate | 3000 lines /s |
| Intelligent development platform | Tiger ® Platform | Color image resolution | RGB 4096*3000 |
| Interpupillary distance | 130mm | Output data format | RGB+ point Cloud data (Pcd, Las, Txt) |
| weight | 1.165kg | Front-end operation | Output results directly, without the need for other hardware platforms |
| dimension | 160*89*87mm | Resistance to ambient light | 180000Lux |
| Working distance | 300~800mm | Operating ambient temperature | -20℃~50℃ |
| Near field of view | 461 x255mm @300mm | Communication interface | Gigabit Ethernet |
| Far field of view | 1150x660mm @800mm | illuminant | Blue laser (450nm), infrared laser (808, 850nm) |
| Z-direction single point repetition accuracy *1 | 0.015mm @300mm 0.1mm @800mm | Power input | 24V DC，1.1A |
| VDI/VDE measurement accuracy *2 | 0.24mm @300mm 0.75mm @800mm | Class of protection | IP65 |
Customer Case

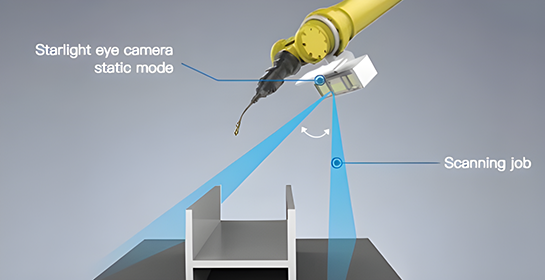

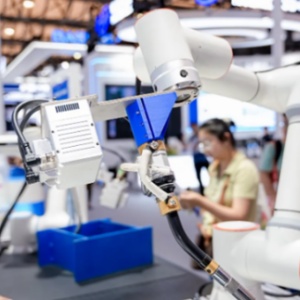

3D camera for smart welding
Industrial intelligent welding field

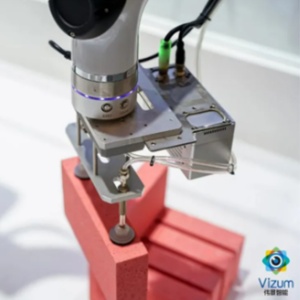

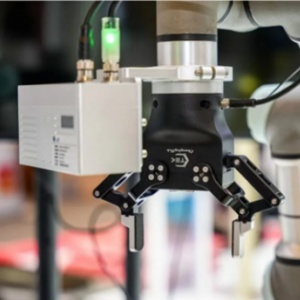

Smart light eye for grasping fields

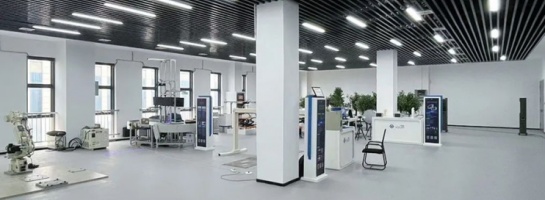

Our Factory
Product Certificate
Exhibition & Strength
Service
We have an experienced technical team to provide you with comprehensive advice on intelligent welding dedicated RGBD stereo cameras in industrial welding applications. Whether it is workpiece positioning accuracy requirements, weld extraction complexity analysis, or weld tracking stability issues, we can draw on our extensive industry knowledge and technical experience to give you an in-depth look at how the camera can meet your specific welding needs.
