Product Description

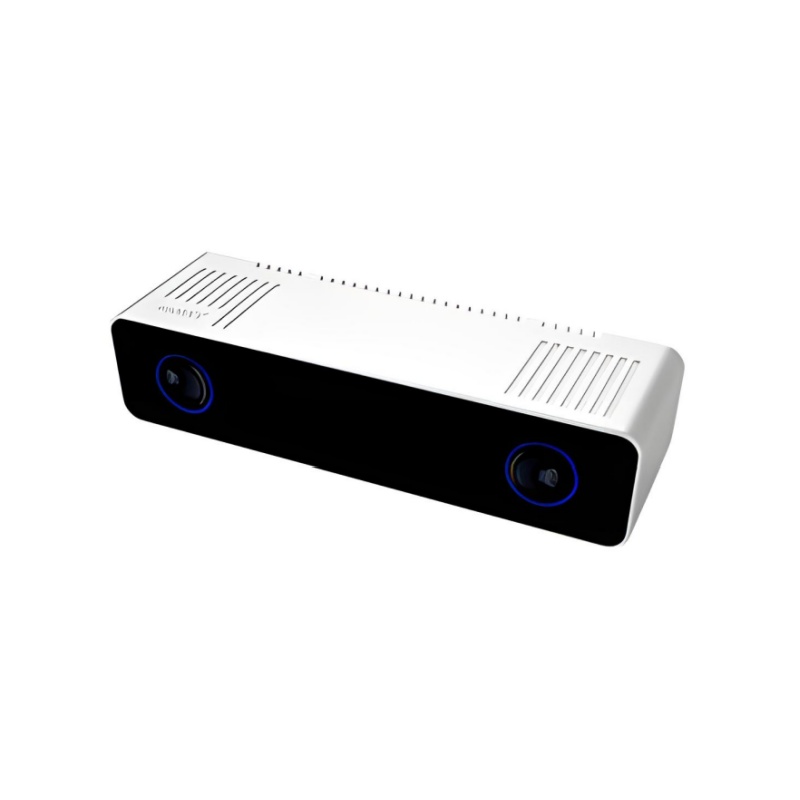

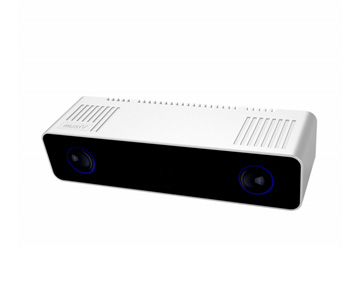

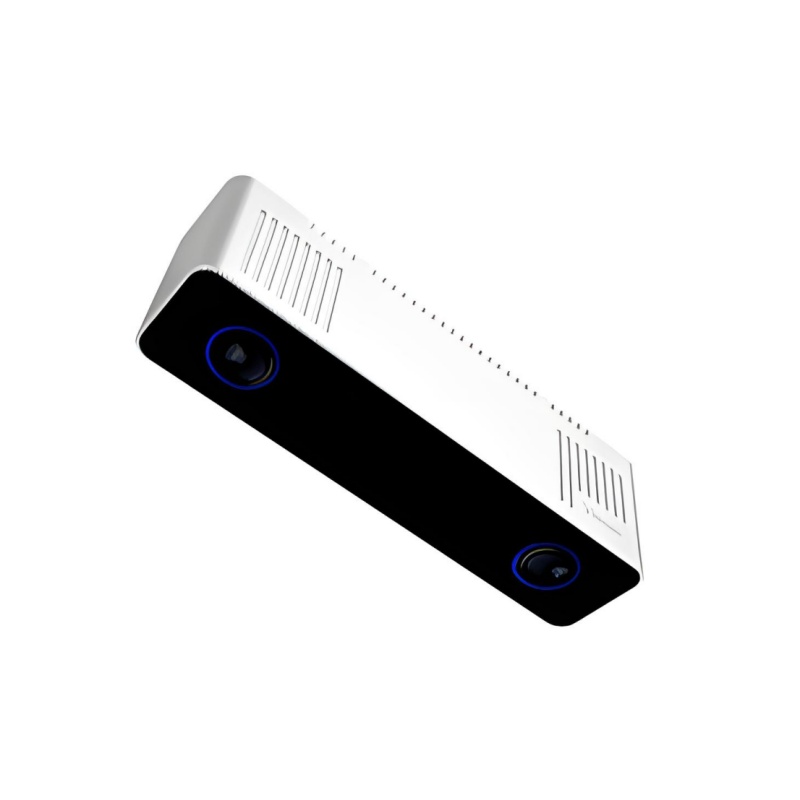

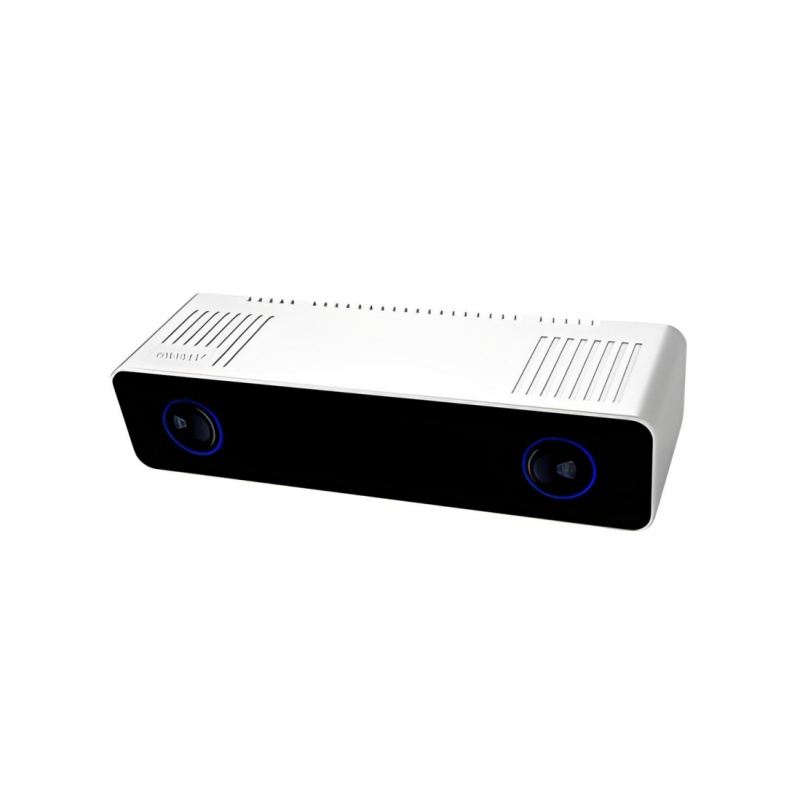

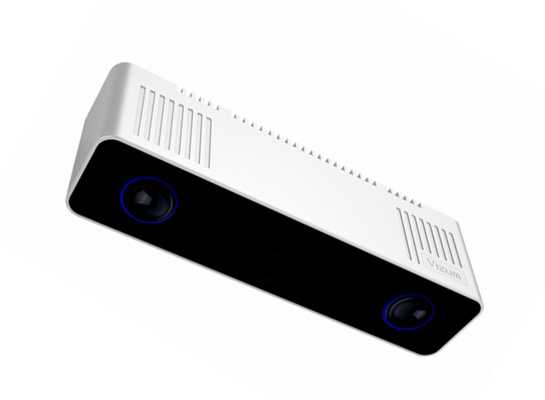

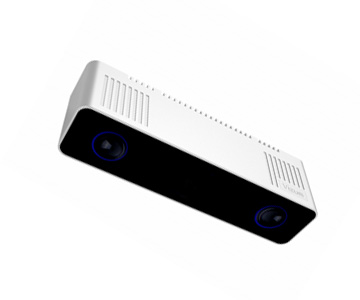

The smart eye uses high pixel visible binocular design to provide a pair of eyes with perception and cognitive ability for robots and intelligent devices. Through the company's self-developed "Natural The "Learning" core algorithm system can quickly recognize and track infrared active identification points, passive identification points, circle, rectangle, square, triangle and other objects, and has the characteristics of high-speed acquisition, fast recognition, high dynamic range, ultra-long distance photography, strong environmental adaptability, industrial standards and so on.
Product parameters
| specification | argument | specification | argument |
|---|---|---|---|
| Model number | VZ-NHL-300G | Output data | Binocular HD color image synchronous output, infrared active identification points, passive identification points, circle, rectangle, square, triangle and other standard items identification and positioning API interface |
| Camera size (L×W×H) | 234*54*60mm | Support system | Windows(7,10)/Linux |
| External interface | Gigabit network port | Signal trigger mode | Soft trigger/level trigger/pulse trigger |
| Communication mode | SDK function call | Lens focal length | Commonly used 3.6mm, 4.5mm, 6mm, 8mm, 12mm lenses, and customized according to the actual scene |
| Baseline distance | 160mm(customizable base line) | Field of view (D/H/V) | 3.6mm:90.5°/82.5°/52.2° |
| Resolution | 300w(2048*1536) | 4.5mm:90°/79°/63° | |
| Exposure mode | Global exposure | 6mm:57°/46.8°/35.7° | |
| Image processing speed | <30 frames /s | 8mm:54°/44.6°/33.8° | |
| Maximum working distance | 10m | 12mm:37.6°/30.6°/23° | |
| Positioning accuracy | Maximum positioning accuracy: ±0.1mm | 24V DC，0.85A | |
| ±2mm@2m Installation distance | Voltage/power consumption | 12V/24W | |
| ±5mm@5m Installation distance | Operating temperature | -20℃~70℃ | |
| ±12mm@10m Installation distance | Whether multiple machines can work together | is |
Technological Innovation
Good convenience: the product is small, flexible, easy to install and integrate.
Flexible customization: Hardware can be customized according to customer usage scenarios to meet customer requirements.
Product Display
Strong cognitive ability
It can have deep cognition ability of surface characteristics, color, shape and space state of objects.
High pixel image detection
Using 300w HD pixel acquisition to ensure high-precision feature information matching.
Multiple algorithm matching
It can build a variety of recognition and positioning algorithms to achieve object recognition and positioning tracking functions.
Global exposure
It can quickly detect objects moving at high speed without tailing.

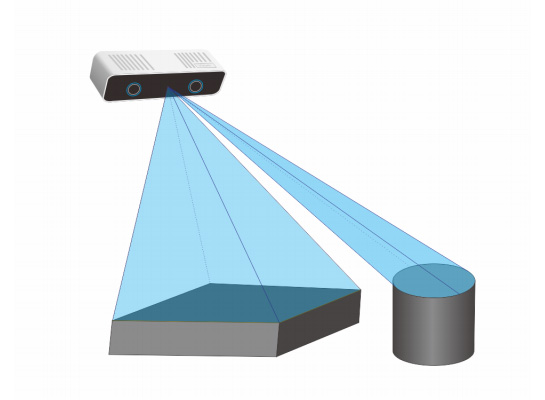

Array image generation
The binocular images of the whole field of view can be acquired by using the area array field of view.
High processing speed
High-speed image acquisition and preprocessing function, image acquisition speed up to 30 frames /s.
Multiple triggering methods
Support soft trigger, level trigger, pulse trigger and other trigger modes.
Factory calibration
Camera factory directly calibrate internal parameters, directly capture distortion-free images.
Clear imaging from a distance
It can locate and detect the feature coordinates of objects 10m away.
Application Cases
With the use of smart eye products, a variety of applications can be developed, including robot V-Slam, robot positioning guidance, recognition, positioning and tracking, object edge contour extraction, visual vision motion capture and other secondary application development.
Service
Professional technical support team
We have a professional after-sales technical support team, team members have deep knowledge of industrial camera technology and rich practical experience. Whether it's camera hardware failures, software anomalies or complex system integration issues, they are able to diagnose and analyze quickly and accurately. These professionals are rigorously trained and familiar with various industrial camera models and configurations, and are able to provide users with targeted solutions.
