Product Description

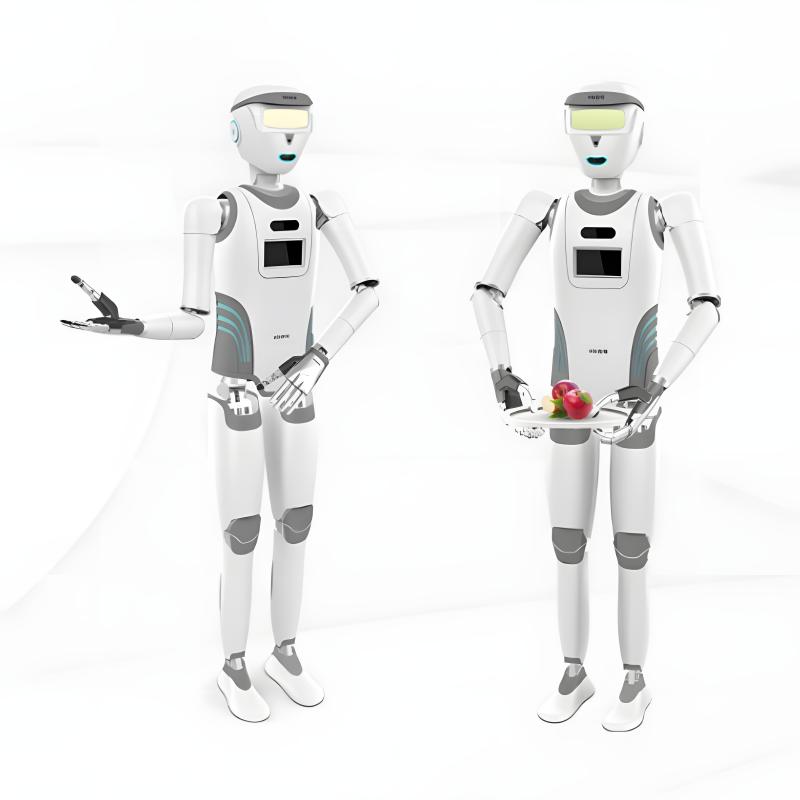

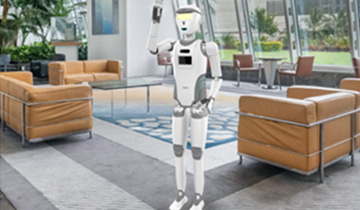

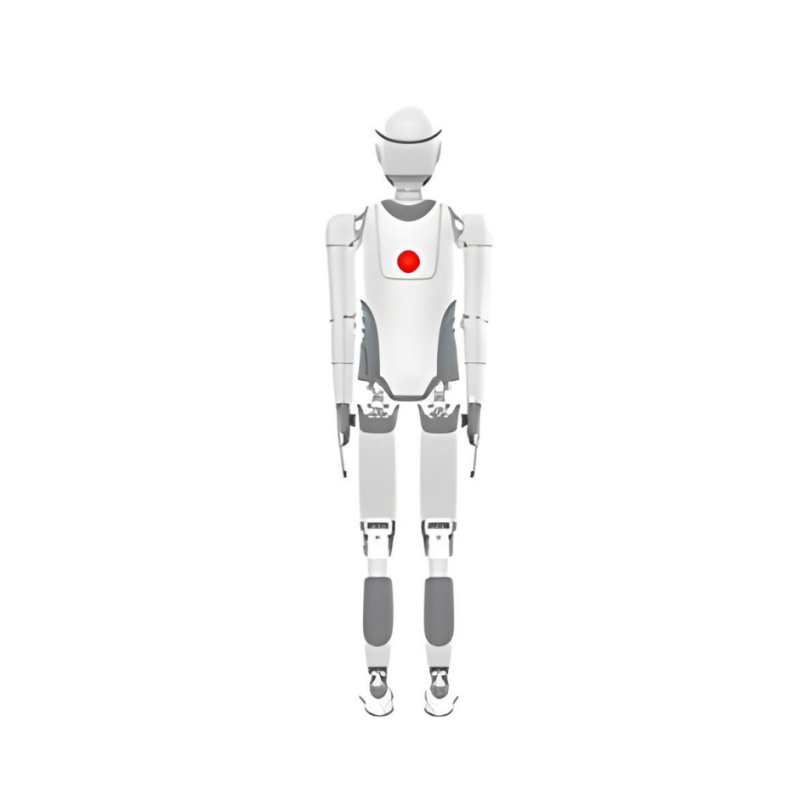

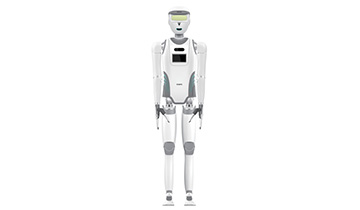

Xiao Wei is a new generation of bipedal walking humanoid robot, with the powerful characteristics of "natural learning + embodied intelligence". In the home, hotel, supermarket and hospital and other occasions, Xiaowei can provide a variety of support, collaboration and information interaction service functions. In addition, it can also play an important role in the field of industrial collaboration for assembly production, material handling and production collaboration.
Product Features
stereovision
| face recognition |
Recognition speed within 2s; 2000 face data can be recorded locally
| Item identification |

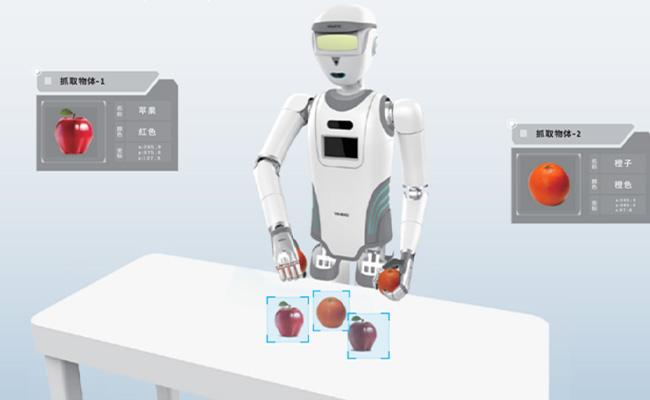

Identify the type and spatial location of items
| Environmental identification |
Identify the characteristics of the environment, obstacles, object orientation and other information
Intelligent learning
| Questions and Answers |
Learn unfamiliar questions and their answers phonetically
| Object cognition |
Quickly recognize the types and characteristics of common items through natural learning algorithms
| Personnel cognition |
Input face information, input personnel preferences, names, addresses and other information
| Skills learning |
Learn new grasping moves and learn a new map of the environment
Application Cases

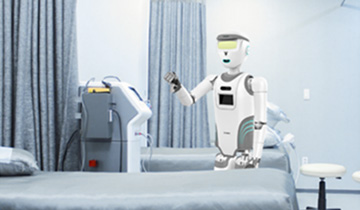

Humanoid robots are widely used in the fields of hotel welcome, medical escort, industrial collaboration, children's companionship, family assistance, agricultural picking, government services and life assistants.
Technical Parameter
| argument | Detailed description | argument | Detailed description |
|---|---|---|---|
| height | 170mm | Supply voltage/power consumption | 24V/600W(Max) |
| weight | 55kg | Operating temperature | -20~45℃ |
| Endurance time | ≥2h | RGBD stereo camera | Attitude tracking; Positioning and recognition; Face recognition |
| Travel speed | 2.5km/h | Binocular camera | Identification and location |
| Angle of climb | 5° | Laser radar | Obstacle identification, path planning |
| Neck freedom | 2DoF | Net interface | RJ45 connector |
| Lumbar freedom | 2DoF | Charging port | AC 220V input |
| Leg freedom | 2x4DoF | WiFi | 802.11a /b/g/n 5G/ 2.4GHz dual-band |
| Arm freedom | 2x7DoF | Touch screen | 10.1inch Highlights 1000nit |
| Hand freedom | 2x9DoF | Scram switch | Stop in case of emergency |
| Arm span | 585mm | Start-stop switch | System power switch |
| End of arm repetition accuracy | ±1mm | microphone | The maximum pickup distance is 3m |
| Arm end load | 2kg | Breathing lamp | Red, green and blue light |
| How fast the end of the arm moves | 1m/s | loudspeaker | 6W |
Product protection
Strict quality testing and reliability verification: In the process of product development and production, we follow strict quality standards and processes, and carry out comprehensive and meticulous testing and verification of every part and function of the robot. From the selection of raw materials to the assembly of finished products, every link is checked by professional quality control personnel to ensure the stable and reliable quality of the robot. At the same time, we also conducted a long-term reliability test on the robot to simulate a variety of complex use environments and working conditions to ensure that the robot can maintain good performance during long-term use.
