Product Description

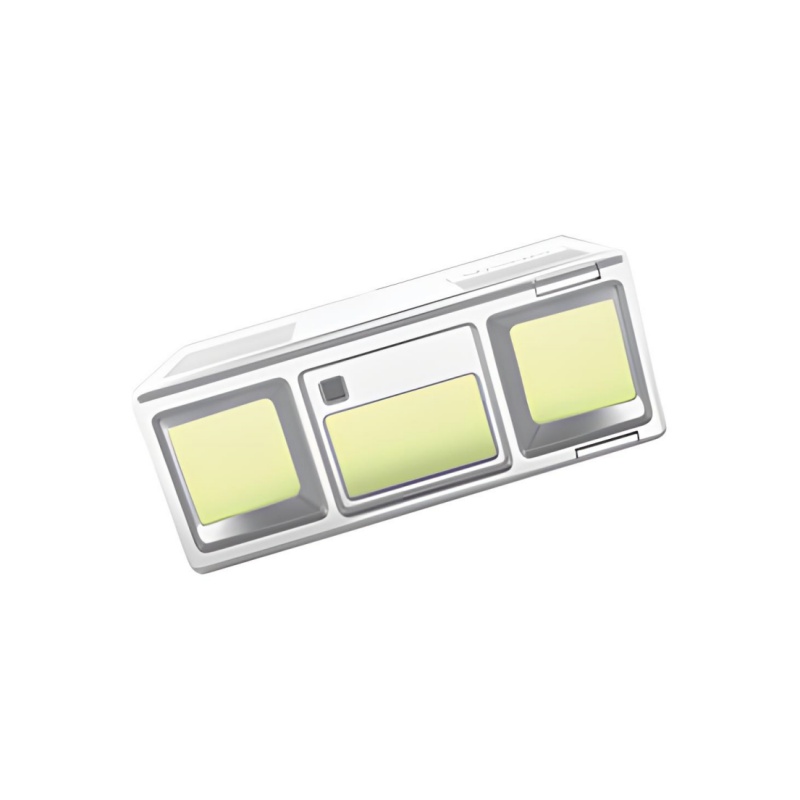

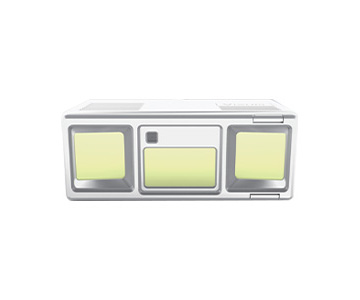

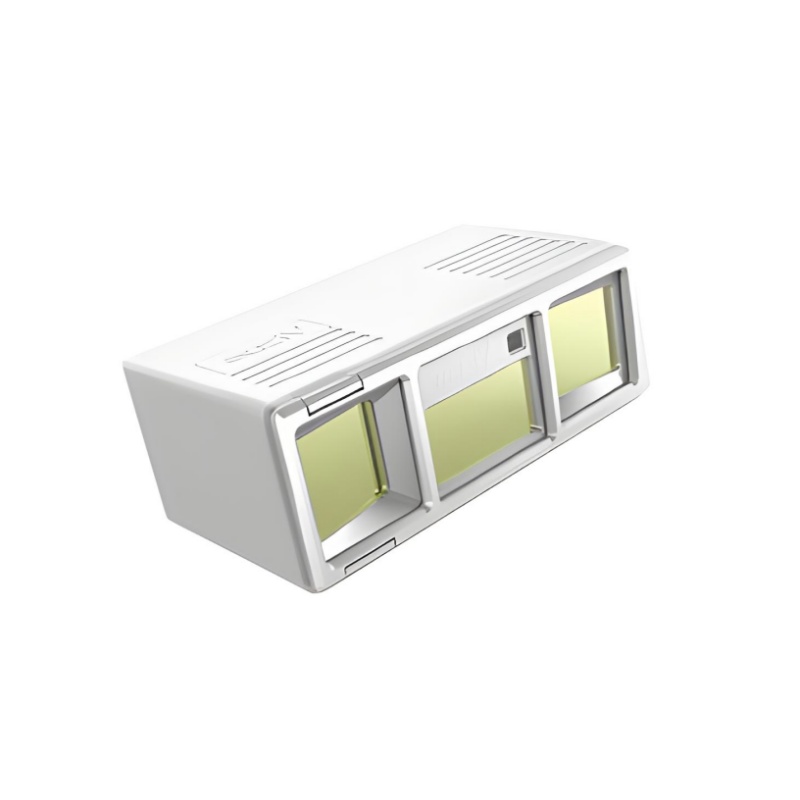

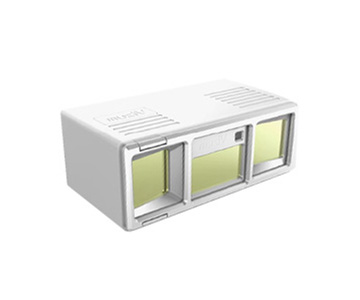

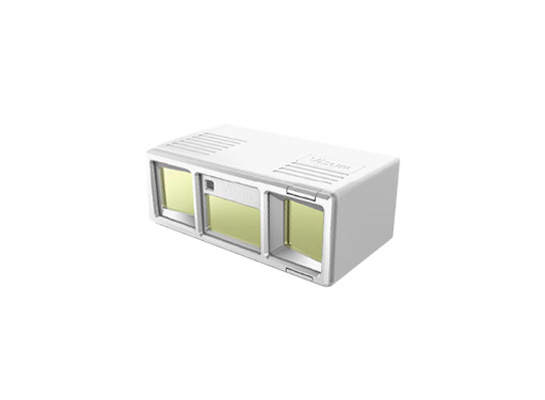

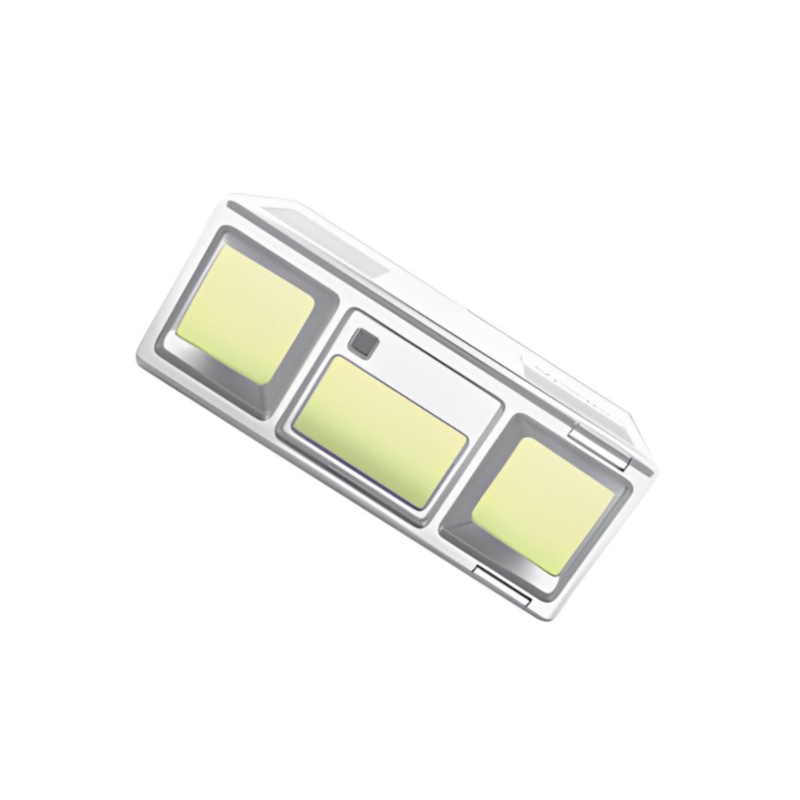

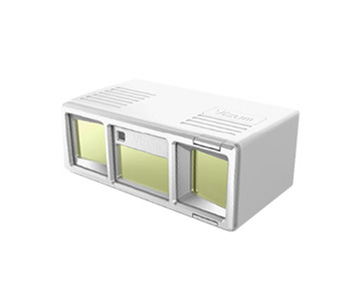

Zhiguang Eye Industrial line laser 3D camera (Zhiguang Eye Camera for short) is an active binocular stereo vision 3D camera product designed for machine vision applications, which can quickly generate point cloud data model, RGBD data, depth map, gray level map, color map and other result data information. At the same time, it can adapt to a variety of complex environments, and still support high-precision modeling in scenarios such as strong light, reflection, and black object absorption.
Product parameters
| specification | argument | specification | argument |
|---|---|---|---|
| Camera model | SVersion-ZQ-RGBD-130 | Camera size | 160×87.5×63mm |
| Base line length | 130mm | Color image resolution | RGB 4096*3000 |
| Camera weight | 1.06kg | Output data format | RGB+ point Cloud data (Pcd, Las, Txt) |
| Camera function | 3D data +RGB original | Front-end operation | Direct output results, no need for other hardware platform calculation |
| Working distance | 500~1500mm | Intelligent development platform | Flying Tiger ® platform |
| Near field of view | 740 x 410mm @ 500mm | Resistance to ambient light | 150000Lux |
| Far field of view | 2200 x1100mm @ 1500mm | Operating ambient temperature | -20℃~50℃ |
| Z-direction single point repetition accuracy *1 | 0.03mm @500mm 0.17mm @1500mm | Communication interface | Gigabit Ethernet |
| VDI/VDE measurement accuracy *2 | 0.4mm @500mm 1.3mm @1500mm | illuminant | Blue laser (450nm), infrared laser (808, 850nm) optional |
| Typical acquisition time | 0.2~0.8s (frame rate Max: 6FPS) | Power input | 24V DC，0.85A |
| Maximum line sweep rate | 3000 lines /s | Class of protection | IP65 |
Technological Innovation
Anti-glare, anti-reflective, anti-light absorption, adapt to a variety of complex environments
Supports high precision modeling in 150000Lux light environment
Noise-free modeling of object surface reflections and polished materials supports leak-free modeling of black light-absorbing materials on object surfaces
Product Display
Target location
Support object corner point and center point positioning, circular edge and center coordinate positioning.
Attitude positioning
The Angle attitude of the object can be positioned with normal vector to guide the grasp Angle of the robot arm. At the same time, the size of the standard shape can be checked.

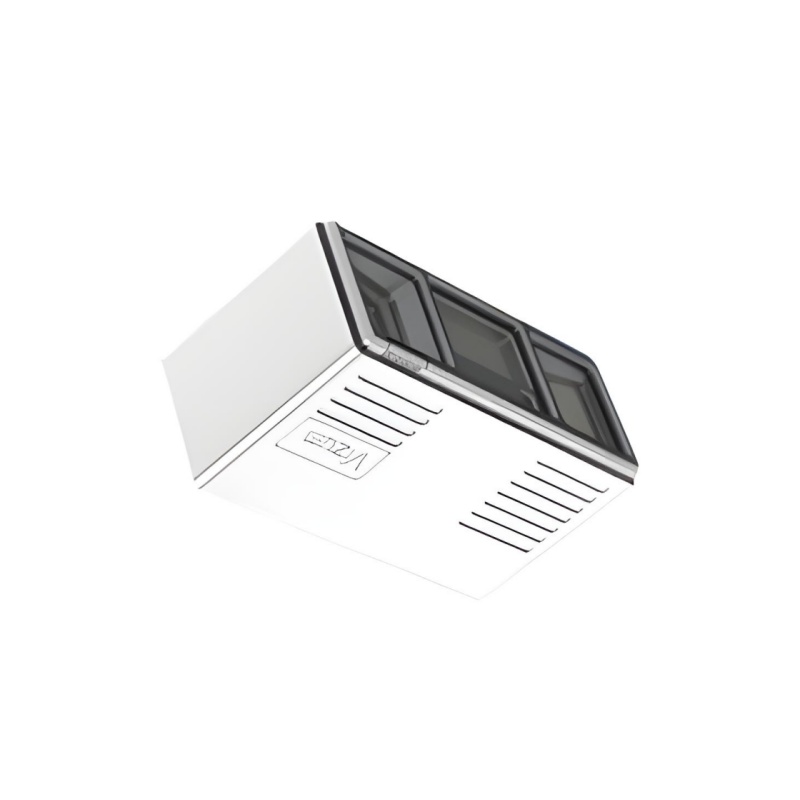

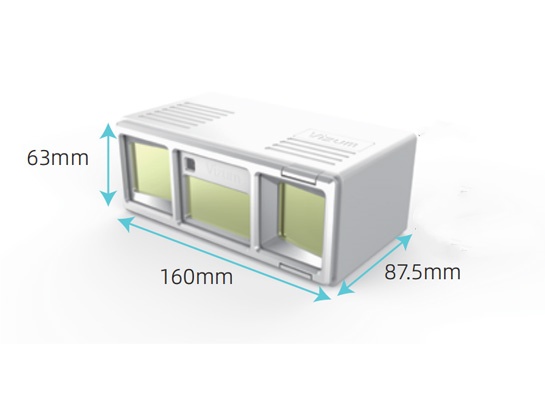

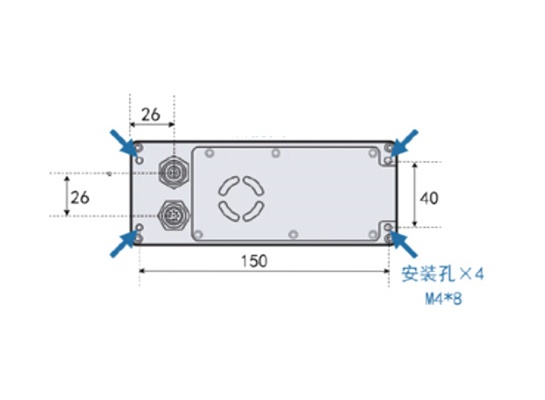

Size & Interface
Application Cases

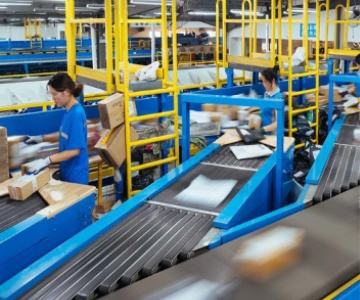

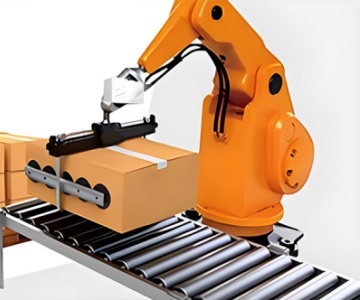

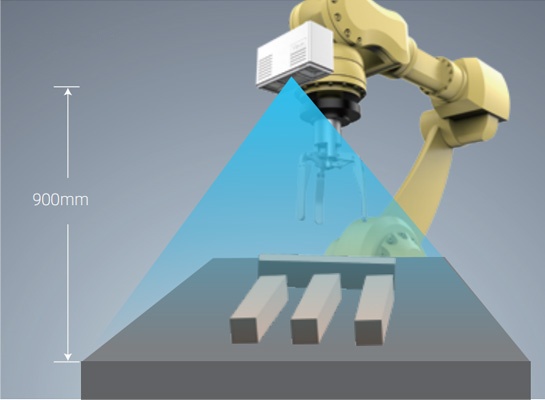

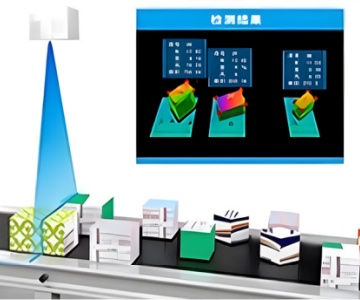

Zhiguang eye camera is used in industrial intelligent dismantling, palletizing, loading and unloading and other scenes, as a visual input of the work system, powerful function, Zhiguang eye camera with its high precision, anti-glare, small size and other characteristics, become the right assistant for positioning and grabbing. It can realize the functions of item scanning, item positioning, size detection, attitude recognition and so on. With the help of the Zhiguang eye camera, users can easily complete operations such as grasping path planning, and successfully complete workpiece grasping, item sorting and other actions according to the established process.
