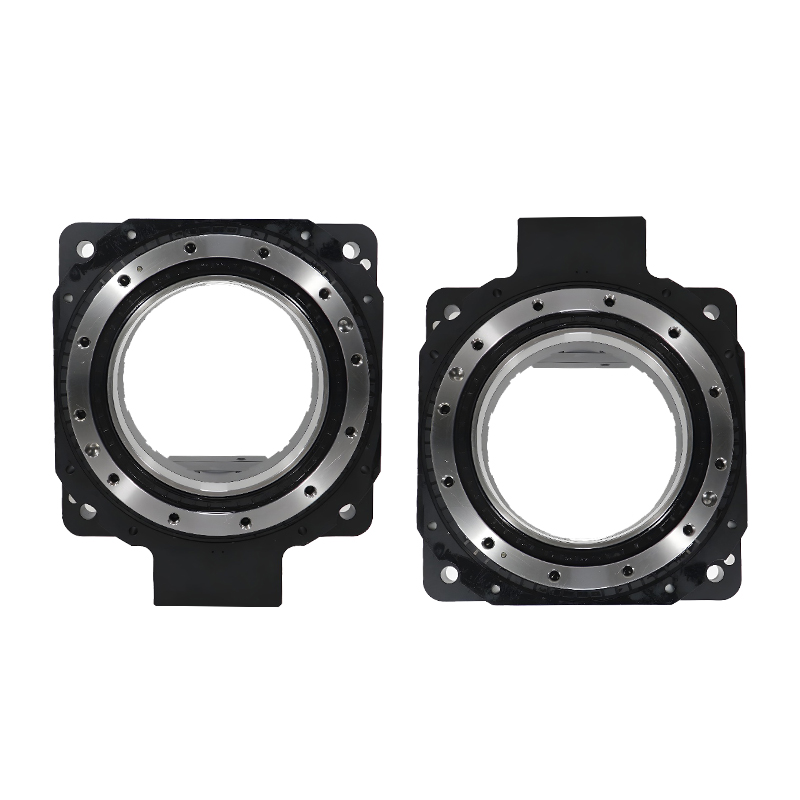

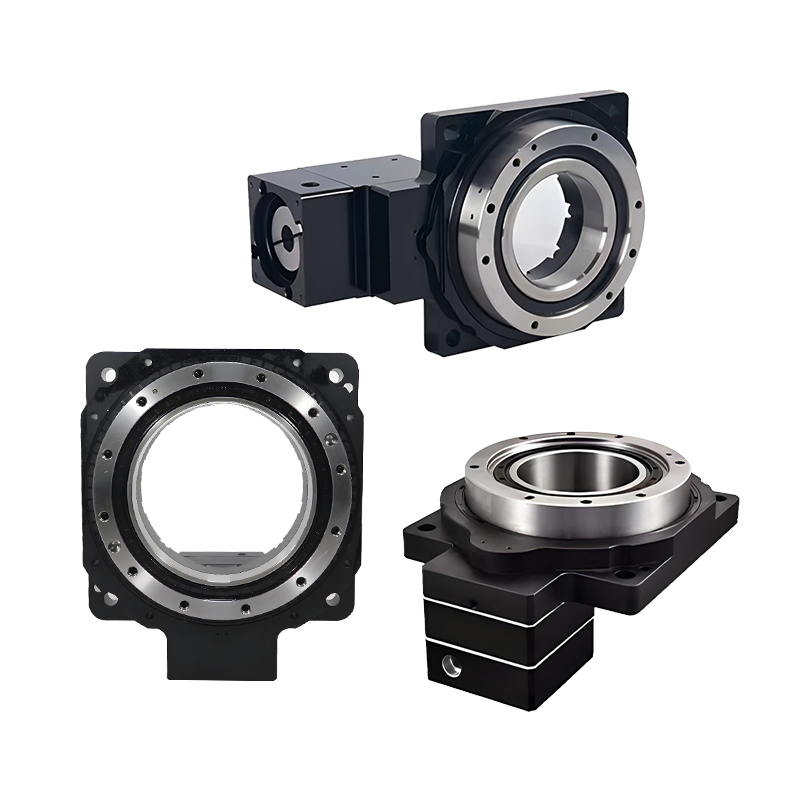

Hollow rotating platform

The turm-table of the hollow rotating platform is a hollow structure, and the motor is connected to the side, which is convenient for the installation of the gas pipe and the wire in the jig. Same as the divider and the DD motor, the heavy objects can be directly fixed on the platform for transmission.

Specification

Model	TN170-10K
Motor model	Each brand 200-400W servo motor
Rotary platform bearing	crossed roller bearing
Reduction ratio	1:10
Allowable input torque	≤48Nm
Allowable platform speed	200rpm
Positional accuracy	±8arcsec
Repeated positioning accuracy	±5arcsec
Allowable axial load	300N
Allowable inertia moment load	68N
Rotating platform flatness	±0.005mm
Rotating platform concentricity	±0.005mm
Protection level	IP40
Precision life	10000hrs

Product Features

The motor of any configuration, arbitrarily selected ratio

Hollow rotating platform can flexibly change the size of the interface by customizing the flange and input shaft hole, which is suitable for connecting servo motors and stepping motors of any brand.

High repeat positioning accuracy

The precision level of some gears of hollow rotating platform reaches level 4, which makes the hollow return of the hollow rotating platform extremely small, and our company uses the design of adjustable gear center distance to compensate for the error generated during assembly. The repeat positioning accuracy can reach 10 arc seconds.

Suitable for multiple working conditions

Taking into account the lateral force when the product is in use, our design adopts cross-roller bearings, and there is an anti-overturning stability ring in the middle. In order to better bear the lateral load during use. According to the working conditions of side mounting, hoisting and large overturning force, our company separately designed the hollow rotating platform reducer to suitable for multiple working conditions.

Direct connection-save design time

The working table and mechanical arm of the device can be directly installed on the hollow rotating platform turntable.Compared with the use of belt pulleys and other mechanical parts, it can reduce the man-hours and costs of mechanism design,parts allocation, and belt state adjustment.
