Hollow Shaft Rotary Table Servo Rotary Gearbox Actuator
Hollow Shaft Rotary Table Servo Rotary Gearbox Actuator Hollow Rotating Platform
- Model：TN60-05K/10K
- Motor model：Each brand 50-100W servo motor
- Rotary platform bearing：crossed roller bearing
- Allowable torque：≤5Nm
- Allowable speed：200RPM
- Reduction ratio：1:5/1:10
- Allowable axial load：200Nm
- Positional accuracy：±30arcsec
- Repeated positioning accuracy：±15arcsec
- Rotating platform parallelism：±0.01
- Rotating platform concentricity：±0.01
- Protection level：IP40
- Precision life：20000hours
- Weight：1.2kg
USD： 129
- Penerangan Produk
- Product Params
Penerangan Produk

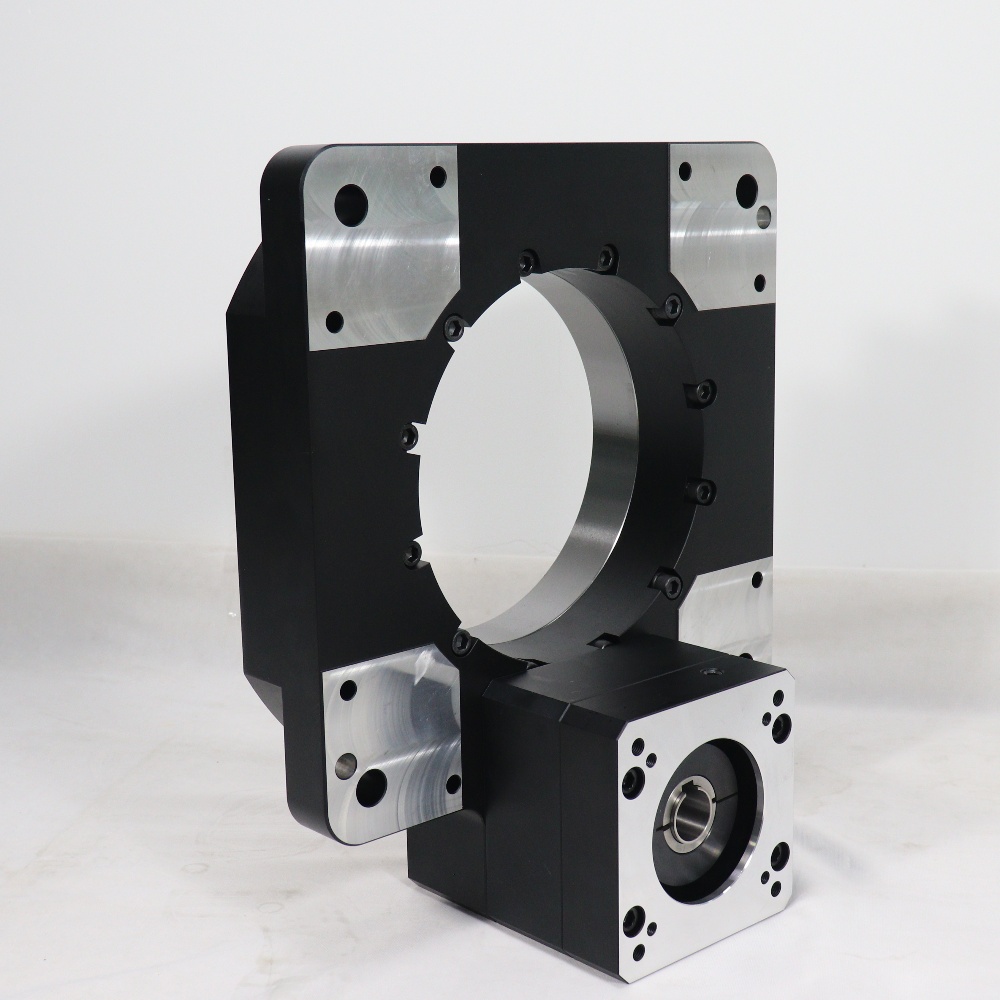

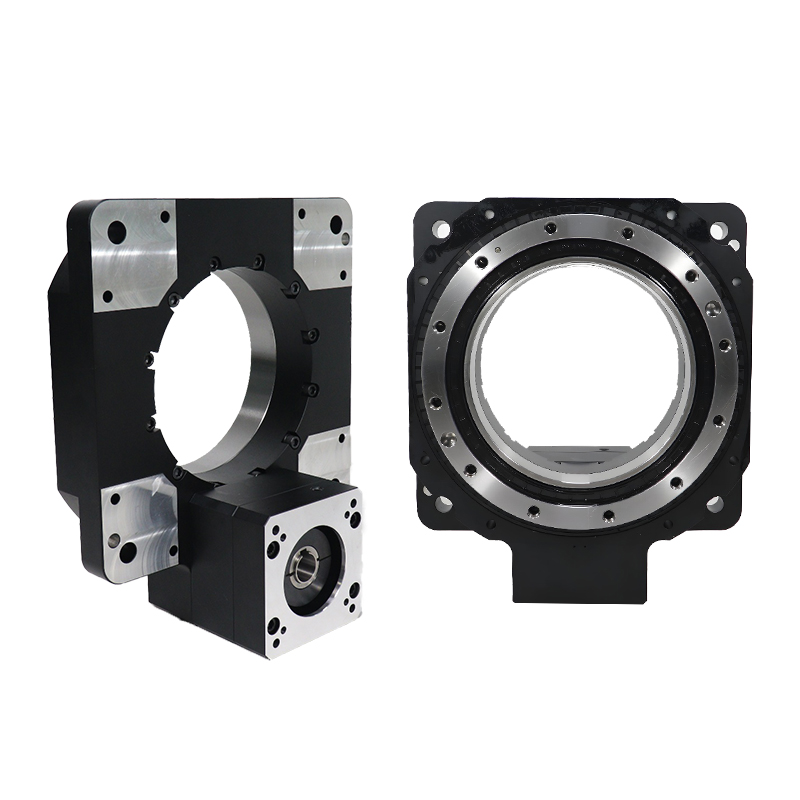

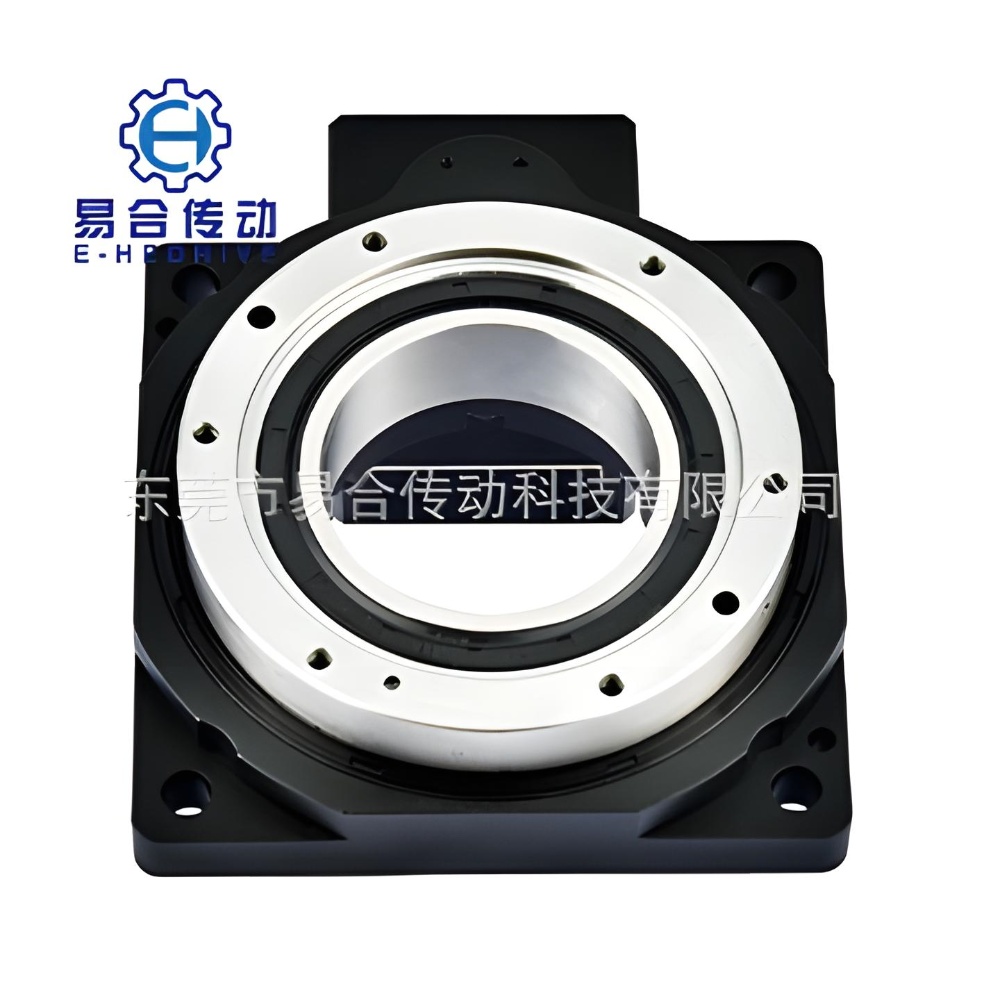

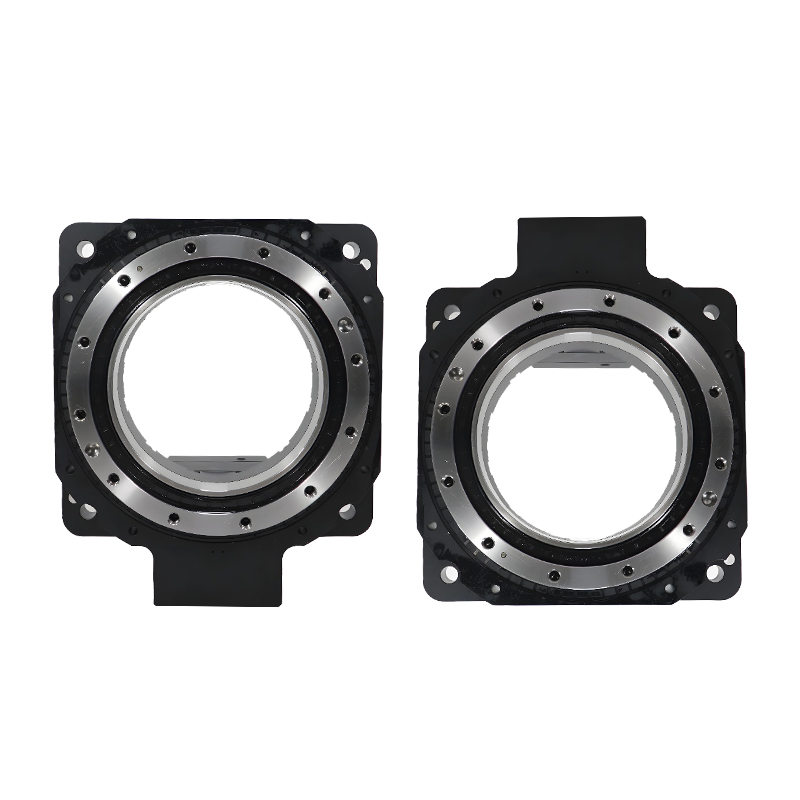

Hollow rotating platform
The turm-table of the hollow rotating platform is a hollow structure, and the motor is connected to the side, which is convenient for the installation of the gas pipe and the wire in the jig. Same as the divider and the DD motor, the heavy objects can be directly fixed on the platform for transmission.
Specification
Product FeaturesThe motor of any configuration, arbitrarily selected ratio
Hollow rotating platform can flexibly change the size of the interface by customizing the flange and input shaft hole, which is suitable for connecting servo motors and stepping motors of any brand.High repeat positioning accuracy
The precision level of some gears of hollow rotating platform reaches level 4, which makes the hollow return of the hollow rotating platform extremely small, and our company uses the design of adjustable gear center distance to compensate for the error generated during assembly. The repeat positioning accuracy can reach 10 arc seconds.Suitable for multiple working conditions
Taking into account the lateral force when the product is in use, our design adopts cross-roller bearings, and there is an anti-overturning stability ring in the middle. In order to better bear the lateral load during use. According to the working conditions of side mounting, hoisting and large overturning force, our company separately designed the hollow rotating platform reducer to suitable for multiple working conditions.Direct connection-save design time
The working table and mechanical arm of the device can be directly installed on the hollow rotating platform turntable.Compared with the use of belt pulleys and other mechanical parts, it can reduce the man-hours and costs of mechanism design,parts allocation, and belt state adjustment.Detail picturesPacking & DeliveryHollow rotating platform will be package with standard export package , we adopt thick foam inside the carton and most often choice wooden boxes, DHL, FEDEX, TNT, EMS are ok for sample order. We also could provide sea transport for large quantity orders of hollow rotating platform.
Company ProfileZhengzhou Defy Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of hollow rotating platform. Our factory dedicates to the research of hollow rotating platform since 2010s, more than 10 years’ experience makes our product quality rank in the leading position in China. With an annual output of 10,000 sets of various products for the market, with high precision and stable performance, our hollow rotating platforms are welcomed by customers all over the world.Recommend Products
Hollow rotating platform
The turm-table of the hollow rotating platform is a hollow structure, and the motor is connected to the side, which is convenient for the installation of the gas pipe and the wire in the jig. Same as the divider and the DD motor, the heavy objects can be directly fixed on the platform for transmission.Specification
Product FeaturesThe motor of any configuration, arbitrarily selected ratio
Hollow rotating platform can flexibly change the size of the interface by customizing the flange and input shaft hole, which is suitable for connecting servo motors and stepping motors of any brand.High repeat positioning accuracy
The precision level of some gears of hollow rotating platform reaches level 4, which makes the hollow return of the hollow rotating platform extremely small, and our company uses the design of adjustable gear center distance to compensate for the error generated during assembly. The repeat positioning accuracy can reach 10 arc seconds.Suitable for multiple working conditions
Taking into account the lateral force when the product is in use, our design adopts cross-roller bearings, and there is an anti-overturning stability ring in the middle. In order to better bear the lateral load during use. According to the working conditions of side mounting, hoisting and large overturning force, our company separately designed the hollow rotating platform reducer to suitable for multiple working conditions.Direct connection-save design time
The working table and mechanical arm of the device can be directly installed on the hollow rotating platform turntable.Compared with the use of belt pulleys and other mechanical parts, it can reduce the man-hours and costs of mechanism design,parts allocation, and belt state adjustment.Detail picturesPacking & DeliveryHollow rotating platform will be package with standard export package , we adopt thick foam inside the carton and most often choice wooden boxes, DHL, FEDEX, TNT, EMS are ok for sample order. We also could provide sea transport for large quantity orders of hollow rotating platform.
Company ProfileZhengzhou Defy Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of hollow rotating platform. Our factory dedicates to the research of hollow rotating platform since 2010s, more than 10 years’ experience makes our product quality rank in the leading position in China. With an annual output of 10,000 sets of various products for the market, with high precision and stable performance, our hollow rotating platforms are welcomed by customers all over the world.Recommend Products
Hollow rotating platform
The turm-table of the hollow rotating platform is a hollow structure, and the motor is connected to the side, which is convenient for the installation of the gas pipe and the wire in the jig. Same as the divider and the DD motor, the heavy objects can be directly fixed on the platform for transmission.
Specification
Product Features
The motor of any configuration, arbitrarily selected ratio
Hollow rotating platform can flexibly change the size of the interface by customizing the flange and input shaft hole, which is suitable for connecting servo motors and stepping motors of any brand.
High repeat positioning accuracy
The precision level of some gears of hollow rotating platform reaches level 4, which makes the hollow return of the hollow rotating platform extremely small, and our company uses the design of adjustable gear center distance to compensate for the error generated during assembly. The repeat positioning accuracy can reach 10 arc seconds.
Suitable for multiple working conditions
Taking into account the lateral force when the product is in use, our design adopts cross-roller bearings, and there is an anti-overturning stability ring in the middle. In order to better bear the lateral load during use. According to the working conditions of side mounting, hoisting and large overturning force, our company separately designed the hollow rotating platform reducer to suitable for multiple working conditions.
Direct connection-save design time
The working table and mechanical arm of the device can be directly installed on the hollow rotating platform turntable.Compared with the use of belt pulleys and other mechanical parts, it can reduce the man-hours and costs of mechanism design,parts allocation, and belt state adjustment.
Detail pictures
Packing & Delivery
Hollow rotating platform will be package with standard export package , we adopt thick foam inside the carton and most often choice wooden boxes, DHL, FEDEX, TNT, EMS are ok for sample order. We also could provide sea transport for large quantity orders of hollow rotating platform.
Company Profile
Zhengzhou Defy Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of hollow rotating platform. Our factory dedicates to the research of hollow rotating platform since 2010s, more than 10 years’ experience makes our product quality rank in the leading position in China. With an annual output of 10,000 sets of various products for the market, with high precision and stable performance, our hollow rotating platforms are welcomed by customers all over the world.
