Product Description
Purpose:
This series of electromagnetic power-off brake is a type of electromagnetically drawn, power-off friction brake. A new YEJ series electromagnetic braking three-phase asynchronous motor is mainly generated by matching with Y series motors. Widely used in metallurgy, construction, chemical industry, food, machine tools, packaging and other machinery, to achieve rapid stop and accurate positioning, can be used in the power off safety (hazard) braking and other occasions.
Product parameters
| Model number item | SDZ1- 04Y | SDZ1- 08Y | SDZ1- 15Y | SDZ1- 30Y | SDZ1- 40Y | SDZ1- 80Y | SDZ1- 150Y | SDZ1- 200Y | SDZ1- 300Y | SDZ1- 450Y |
|---|---|---|---|---|---|---|---|---|---|---|
| Matching motor frame number | 71 | 80 | 90 | 100 | 112 | 132 | 160 | 180 | 200 | 225 |
| Braking torque Me(Nm) | 4 | 7.8 | 15 | 30 | 40 | 75 | 150 | 200 | 300 | 450 |
| Rated voltage (V) | 99 | 170 | ||||||||
| Rated power P20℃(W) | 30 | 40 | 50 | 65 | 70 | 95 | 110 | 150 | 200 | |
| Braking time (ms) | 180 | 200 | 250 | 350 | 450 | |||||
| Maximum working air gap (mm) | 0.8 | 1 | 1.2 | 1.5 | ||||||
| Maximum allowable speed (rpm) | 3000 | |||||||||
| dimension Model number | D1 | D2 | D3 | D4 | L | L1 | L2 | L3 | L4 | L5 | H1 | H2 | M | d | Φ | h | b | δ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDZ1-04Y | 77 | 53 | 90 | 103 | 44 | 20 | 2 | 9 | 9 | 55 | 60 | 15 | 3-M5 | M6 | 14.8 | 16.2 | 5 | 0.2 |
| SDZ1-08Y | 92 | 65 | 105 | 119 | 53 | 20 | 3 | 9 | 13 | 70 | 70 | 20 | 3-M5 | M8 | 19.8 | 22.6 | 6 | 0.3 |
| SDZ1-15Y | 97 | 65 | 114 | 128.5 | 54.5 | 25 | 3.5 | 10 | 13 | 71 | 75 | 20 | 3-M6 | M8 | 24.8 | 28.1 | 8 | 0.4 |
| SDZ1-30Y | 117 | 80 | 133 | 148.5 | 56.5 | 30 | 3.5 | 12 | 15 | 75 | 88 | 20 | 3-M6 | M10 | 29.5 | 32.8 | 8 | 0.4 |
| SDZ1-40Y | 130 | 90 | 150 | 169.5 | 57.5 | 30 | 3.5 | 12 | 16 | 79 | 99 | 30 | 3-M8 | M10 | 29.5 | 32.8 | 8 | 0.5 |
| SDZ1-80Y | 150 | 104 | 170 | 188.5 | 68 | 30 | 3.5 | 14 | 18 | 90 | 108 | 30 | 3-M8 | M10 | 39.5 | 42.8 | 12 | 0.5 |
| SDZ1-150Y | 180 | 120 | 202 | 222 | 81 | 35 | 4 | 15 | 20 | 106 | 128 | 30 | 4-M10 | M10 | 44.5 | 47.8 | 12 | 0.6 |
| SDZ1-200Y | 220 | 150 | 244 | 265 | 94 | 40 | 4 | 16 | 20 | 109 | 152 | 30 | 4-M10 | M10 | 49 | 52.8 | 14 | 0.6 |
| SDZ1-300Y | 248 | 155 | 280 | 310 | 111.5 | 50 | 4 | 18 | 20.5 | 127 | 172 | 30 | 4-M12 | M10 | 59 | 63.4 | 18 | 0.8 |
| SDZ1-450Y | 268 | 165 | 300 | 330 | 113.5 | 56 | 4 | 18 | 20.5 | 132 | 132 | 40 | 4-M12 | M10 | 65 | 69.4 | 18 | 0.8 |
Technological innovation and advantages
The brake has the advantages of compact structure, easy installation, wide applicability, low noise, high working frequency, sensitive action, reliable braking, etc. It is an ideal automatic execution element in industrial modernization.

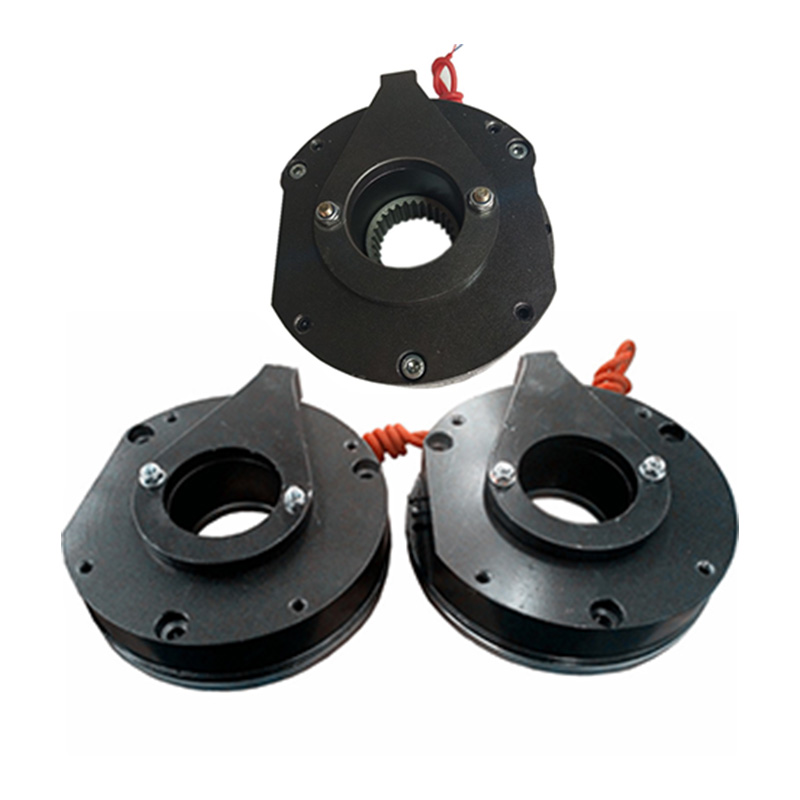

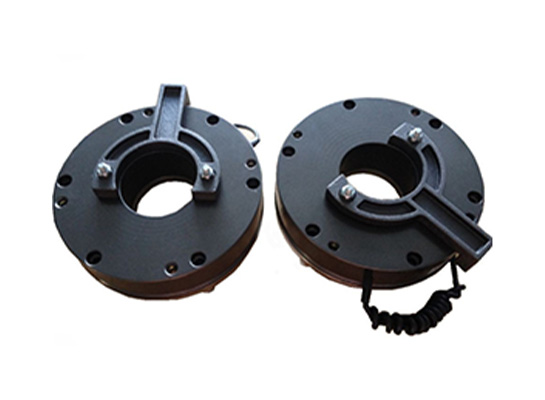

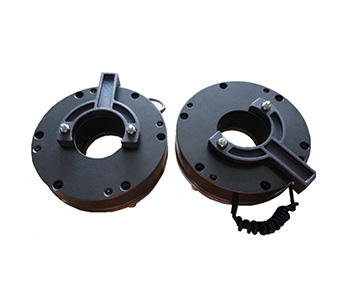

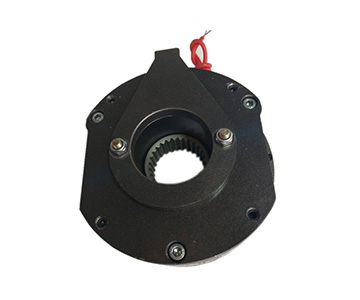

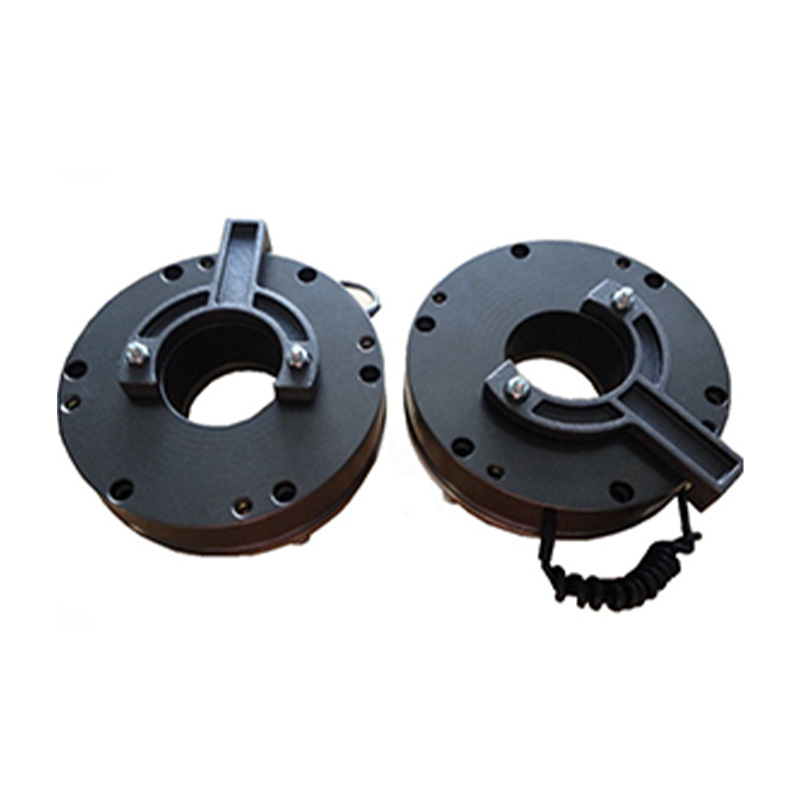

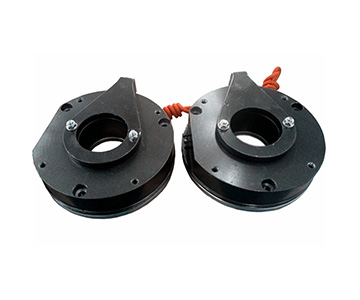

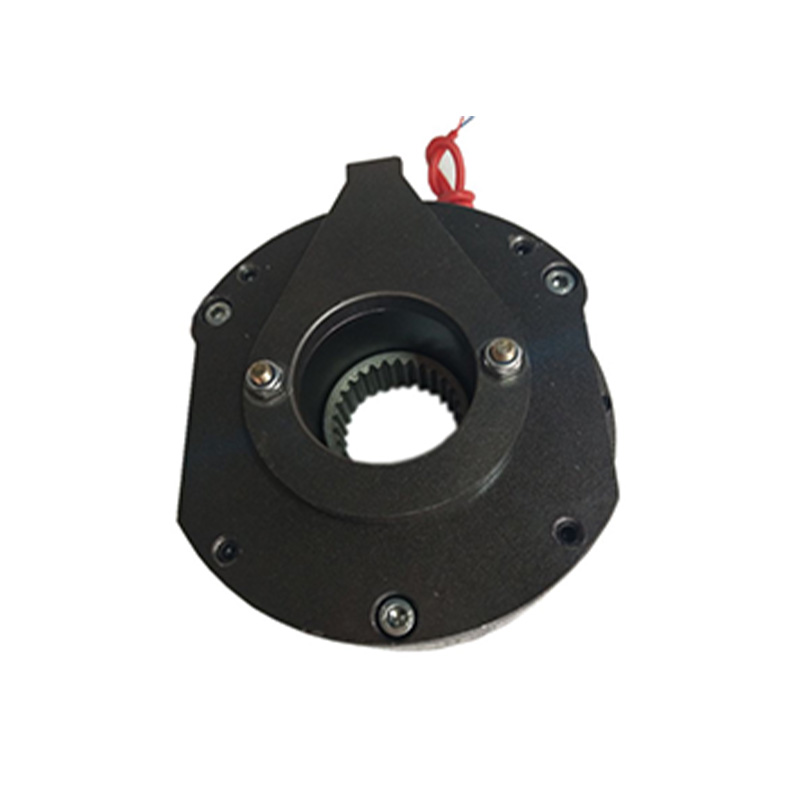

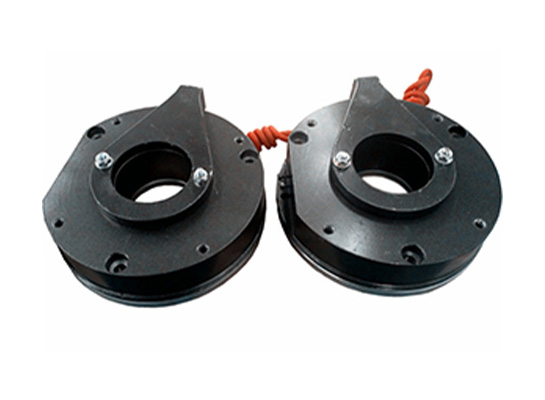

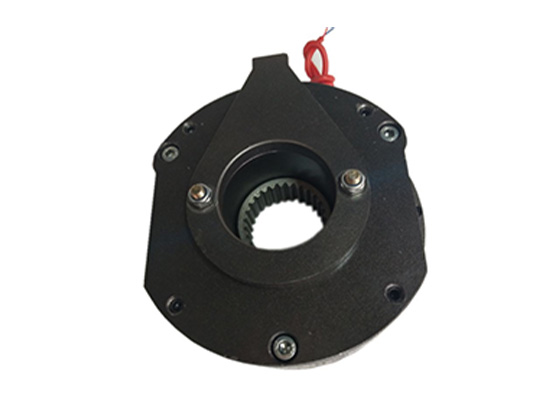

Product Display
Compact design
The overall structure is compact and occupies small space, which is convenient for installation in various industrial equipment. It can be installed at the tail of the motor or other suitable locations without causing too much interference to the overall layout of the device.
Rugged case
The shell is generally made of high-quality metal materials, such as cast iron or cast steel, which has high strength and good heat dissipation performance. This rugged housing protects the internal solenoid coils, springs and brake components from external environmental impacts such as dust, moisture and mechanical collisions.

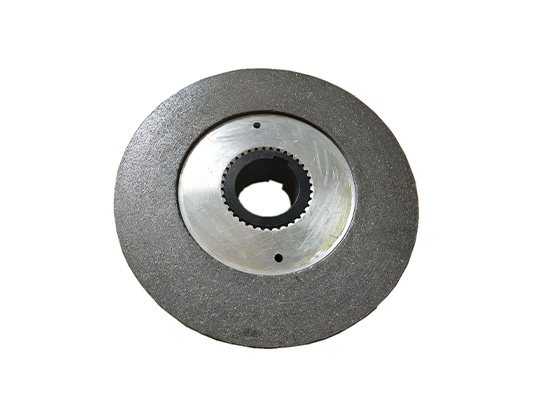

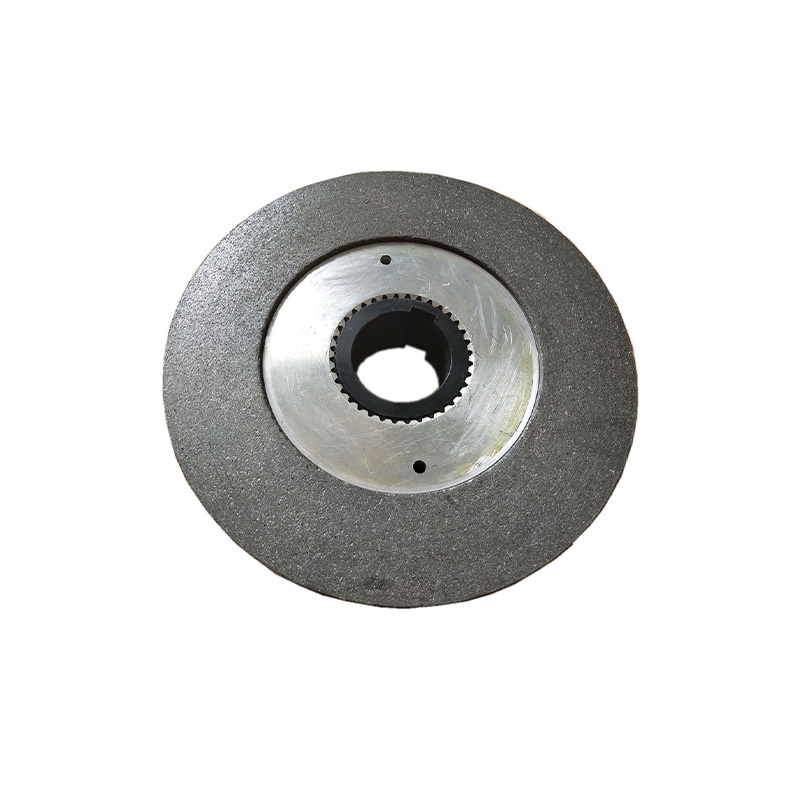

Brake shoe
Brake shoe is a part directly in contact with the brake wheel, usually made of friction materials with good wear resistance, such as asbestos-based friction materials or semi-metallic friction materials. These materials can provide enough friction to ensure that the equipment can be effectively stopped during braking, and have a certain wear resistance, extending the service life of the brake shoe.
Electromagnetic coil
The electromagnetic coil is one of the key components of the brake, which determines the electromagnetic performance of the brake. The electromagnetic coil of the brake is made of high quality enameled wire, which has good insulation performance and electromagnetic induction ability. When energized, it can quickly generate enough magnetic field to make the armature move, and can maintain stable performance in a long time of work.

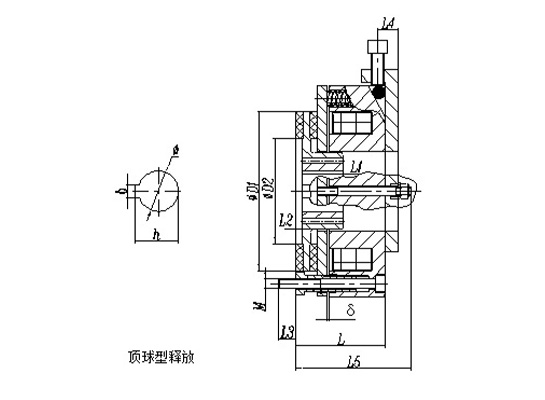

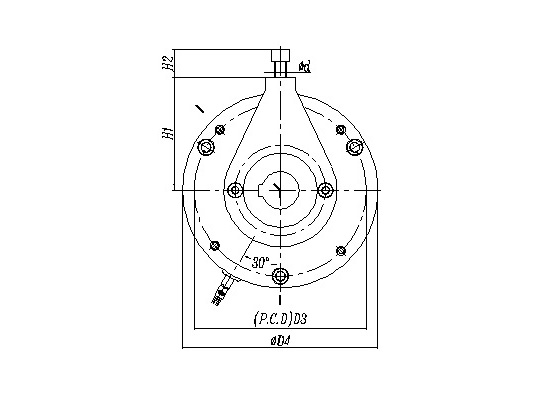

Size & Interface

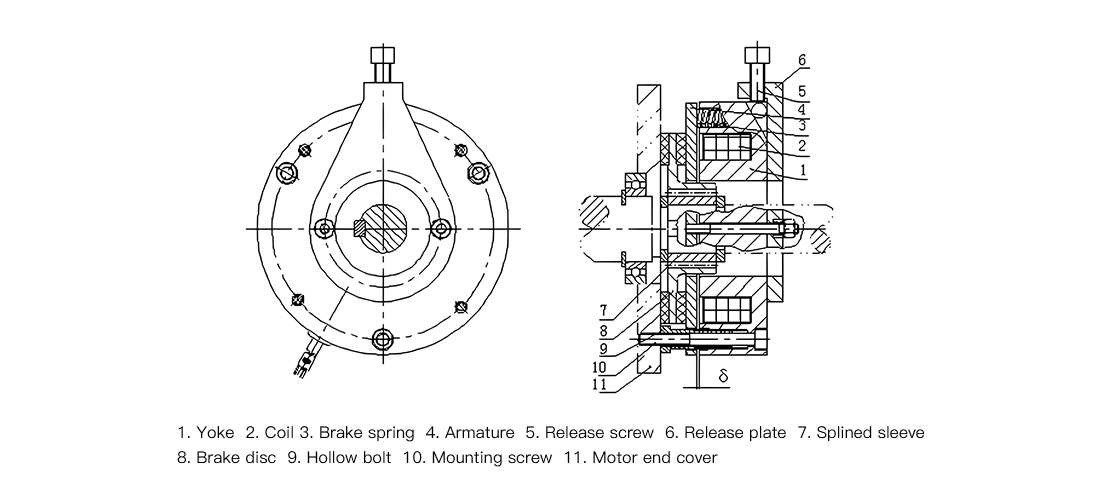

Product working principle diagram
Quality Control
YSDZ1-150 electromagnetic brake Solenoid brake in the production process to follow a strict and comprehensive quality control system, from raw material procurement to finished products, every link is carefully controlled and strict testing to ensure that products always maintain excellent quality and reliable performance to meet the needs of diverse industrial applications.
Application Cases

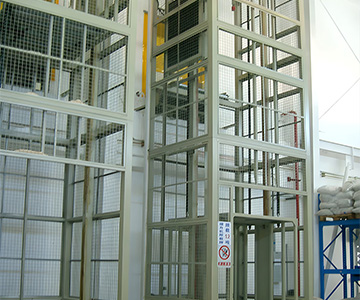

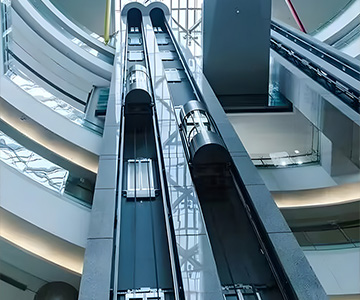

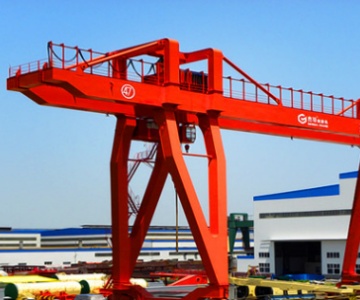

Lifting machinery: In cranes, elevators and other equipment, YSDZ1-150 electromagnetic loss brake can be used to control the braking of lifting mechanism and walking mechanism. When the equipment stops running or there is an emergency, it can brake in time to prevent heavy objects from falling or equipment from losing control, and ensure the safety of personnel and equipment.
