Product Description

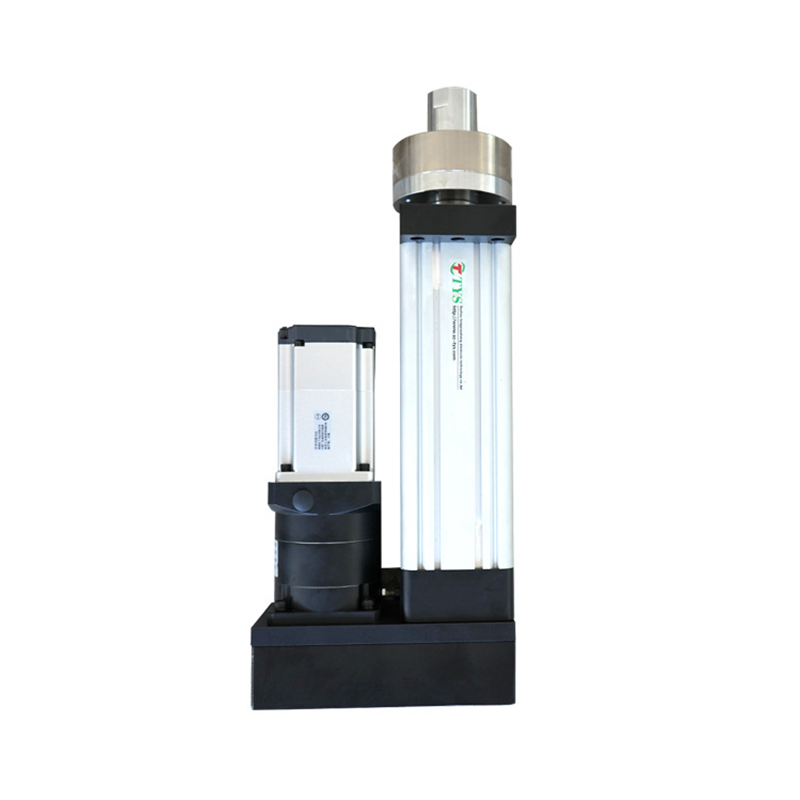

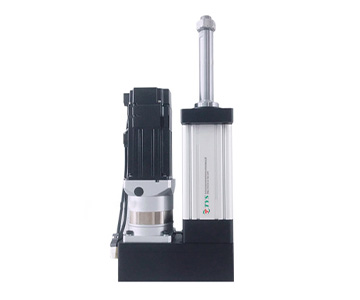

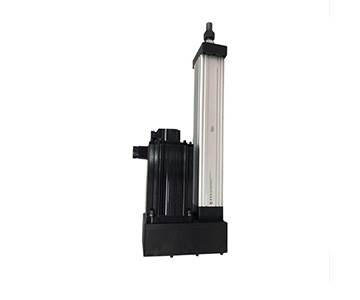

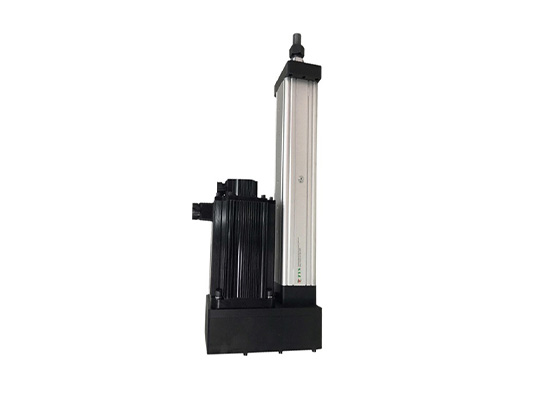

A servo motor cylinder is a device that converts the rotating motion of a servo motor into a linear motion. It integrates the precise control performance of the servo motor and the function of the linear motion mechanism, and can realize the linear displacement control of high precision, high speed and high load capacity. It can achieve accurate linear displacement control, and the positioning accuracy can reach the micron or even nanometer level, which is very key in precision machining, semiconductor manufacturing and other fields.
Product parameters
| Model number | TYSC065 | |||||||
|---|---|---|---|---|---|---|---|---|
| Motor mounting mode | Directly connected type | reentrant | ||||||
| Screw diameter (mm) | 16 | |||||||
| Screw lead (mm) | 5 | 10 | 16 | 20 | 5 | 10 | 16 | 20 |
| Effective travel (mm) | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| Rated output (KN) | 3 | |||||||
| Reduction ratio | 1:1/1:3/1:4/1:5 | |||||||
| Motor Power (W) | 0.1/0.2/0.4 | |||||||
| Rated speed (mvs) | 250 | 500 | 500 | 500 | 250 | 500 | 500 | 500 |
| Internal anti-turning mechanism | Yes/no | |||||||
| Limit switch | Yes/no | |||||||
| Repeated positioning accuracy (mm) | ±0.02 | |||||||
| Electric cylinder installation mode | Bottom thread hole | |||||||
| Bottom plate | ||||||||
| Front flange | ||||||||
| Tail flange | ||||||||
| Tail pin | ||||||||
| Tail pin hole | ||||||||
| custom | ||||||||
| Load connection mode | Male thread | |||||||
| Internal thread | ||||||||
| Rod end joint bearing | ||||||||
| Double bolt hole at rod end | ||||||||
| custom | ||||||||
| Class of protection | Ip65 | |||||||
Product Display
High accuracy: repeated positioning accuracy, ±0.02MM
Safety and energy saving: Long service life, simple maintenance
Taiwan TBI imported screw: The use of high-precision ball screw, the service life of more than 30,000 kilometers, smooth, long life, stable performance
Japan original NSK bearing: high-quality raw materials, fine process casting good bearing, high limit speed, high load resistance, low noise
Stroke speed: controllable and adjustable, maximum stroke, 0-3000MM, maximum load 0-30T
● Characteristics of servo electric cylinder: energy saving and environmental protection, low noise, high speed, high precision, fast response, long life, can work in harsh environment without trouble for a long time stable.
● In performance, the electric cylinder is more stable. It operates at an increased speed and power range, and can provide greater position accuracy. One of the drawbacks of the hydraulic system is that the viscosity of the hydraulic oil can change with time and temperature, affecting the performance of the machine. Electric cylinders, on the other hand, can always maintain precise tolerances over long periods of operation, and because their moving parts are based on recognized rolling element bearing technology, their service life can be predicted under a given set of operating conditions.
● The electric cylinder mainly saves costs from six aspects: improving energy efficiency, reducing heat loss, improving production speed, improving material utilization, extending uptime, and simplifying maintenance processes.
