Product Description
High-power farm machine tracks are generally wider and thicker than small farm machine tracks. This is because high-power agricultural machinery needs to carry a heavier fuselage and supporting equipment, but also to deal with a more complex operating environment. The connecting parts of the track, such as dowels and bushings, are also more robust. The diameter of these parts may reach 3-5 cm, and the precision of the coordination between them is very high, which can ensure that the track will not loosen or break during a long time and high intensity operation.
Product specifications
| Track Size(WidthxPitch) | Inner Guide Width(A) | Outer Guide Width(B) | Inner Height (C) | Outer Height(D) | Track Thickness(E) | Lug Pattern | Section View | Gude Type | Rangeof Link No. | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|

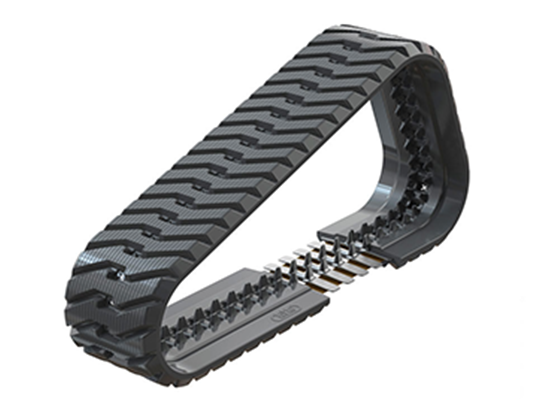

| 320x86TK | 38 | 84 | 41 | 30 | 60 | B/C | Fig 2 | C | 48-52 | Takeuchi-type |
| 320x86B | 47 | 96 | 43 | 33 | 71 | B/C/Z/L | Fig 1 | B | 49-60 | Bobcat-type |
| 400x86B | 48 | 97 | 44 | 33 | 75 | B/C/Z/L | Fig 1 | B | 49-60 | Bobcat-type |
| 450x86B | 48 | 97 | 44 | 33 | 76 | B/C/Z/L | Fig 1 | B | 50-65 | Bobcat-type |
| 450x100TK | 47 | 102 | 48 | 44.5 | 77 | B/C | Fig 2 | C | 48-52 | Takeuchi-type |
Product parameters
| Track Size(WidthxPitch) | Inner Guide Width(A) | Outer Guide Width(B) | Inner Height (C) | Outer Height(D) | Track Thickness(H) | Section View | Gude Type | Traditional | Seismic typeAVT |
|---|---|---|---|---|---|---|---|---|---|

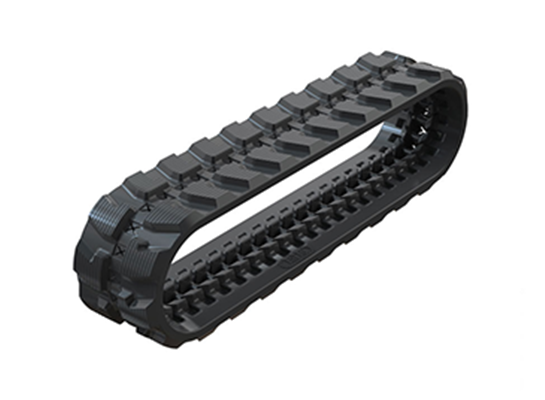

| 180x72 | 23 | 64 | 29 | 26.5 | 59 | Fig 1 | A/B | █ | |
| 180x72K | 23 | 65.5 | 29 | 27 | 65 | Fig 2 | C | █ | |
| 190x72 | 23 | 66 | 28.5 | 26 | 67 | Fig 1 | A/B | █ | |
| 200x72 | 23 | 66 | 29 | 26 | 64 | Fig 1 | A/B | █ | |
| 200x72K | 23 | 65.5 | 29 | 27 | 65 | Fig 2 | C | █ | |
| 230x72 | 24 | 74 | 29 | 27 | 70 | Fig 1 | A/B | █ | |
| 230x72K | 23 | 71 | 29 | 28 | 70 | Fig 2 | C | █ | |
| 230x48 | 25 | 68.5 | 21.5 | 24 | 68 | Fig 3 | D | □ | █ |
| 230x48K | 25 | 64 | 19 | 19.6 | 61 | Fig 4 | K | █ | |
| 230x96 | 25 | 68 | 21.5 | 23 | 68 | Fig 3 | D | █ | |
| 250x48.5Y | 27 | 65 | 20 | 18.5 | 74 | Fig 3 | K | █ | |
| 250x52.5 | 30 | 79 | 23.5 | 22 | 75 | Fig 3 | D | █ | |
| 250x72 | 23 | 78 | 30 | 27 | 71 | Fig 1 | A/B | █ | |
| 250x72K | 23 | 71 | 29 | 28 | 70 | Fig 2 | C | █ | |
| 265x72 | 23 | 78 | 30 | 26 | 72.5 | Fig 1 | A/B | █ | |
| 300x52.5N | 29 | 80 | 24 | 20 | 74 | Fig 3 | D | □ | █ |
| 300x52.5W | 39 | 92 | 23 | 21 | 76 | Fig 3 | D | □ | █ |
| 300x53K | 31 | 85 | 24 | 21.5 | 76 | Fig 4 | K | █ | |
| 300x55 | 28 | 82 | 24 | 25.5 | 83 | Fig 3 | D | █ | |
| 300x109 | 36 | 93 | 25 | 27 | 87 | Fig 3 | D | █ | |
| 320x52.5N | 29 | 80 | 24 | 19 | 74 | Fig 3 | D | █ | |
| 350x52.5W | 39 | 92 | 23 | 21 | 76 | Fig 3 | D | █ | |
| 350x54.5K | 40 | 93 | 23.5 | 21.5 | 85 | Fig 4 | K | █ | |
| 400x72.5N | 36.5 | 95 | 26 | 24.5 | 90 | Fig 3 | E | □ | █ |
| 400x72.5W | 49 | 106 | 24 | 22.5 | 89 | Fig 3 | D/E | □ | █ |
| 400x72.5K | 47 | 107 | 23.5 | 22 | 87 | Fig 4 | K | █ | |
| 450x71 | 40 | 112 | 30 | 25 | 100 | Fig 3 | D/E | □ | █ |
| 450x76 | 49 | 118 | 28.5 | 30 | 106 | Fig 3 | D/E | □ | █ |
| 450xB1N | 42 | 110 | 29.5 | 28 | 100 | Fig 3 | D/E | □ | █ |
| 450x81W | 53.5 | 136 | 29 | 33 | 106 | Fig 3 | D/E | □ | █ |
| 450x81.5N | 42 | 109 | 30.5 | 27 | 97.5 | Fig 3 | D | □ | █ |
| 450x83.5K | 41 | 110 | 23 | 26 | 105 | Fig 4 | K | █ | |
| 500x92 | 61 | 152 | 31.5 | 34.5 | 129 | Fia 3 | D/E | █ |
Product Display

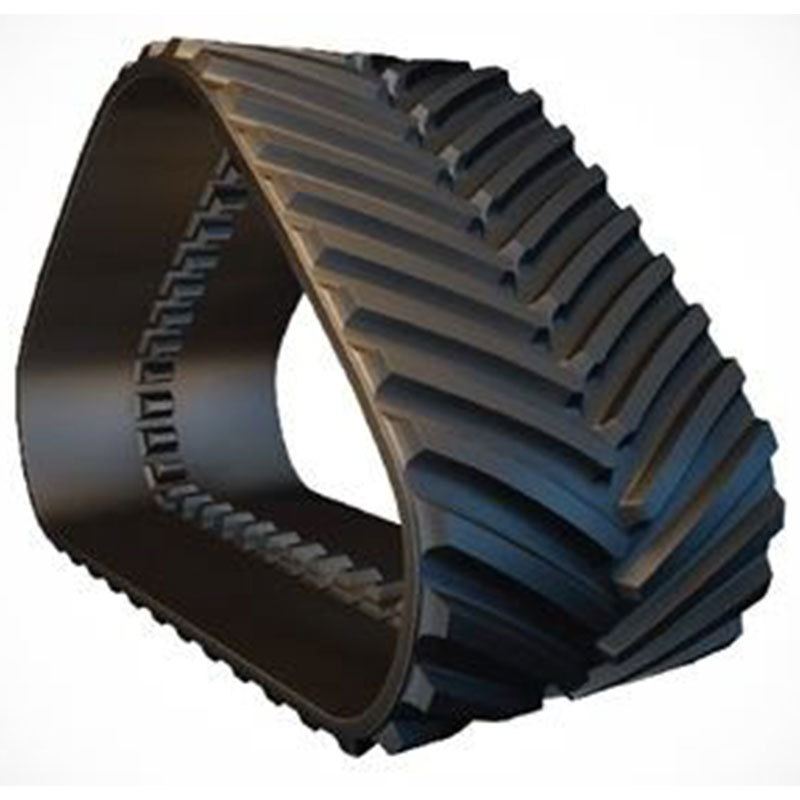

In order to adapt to different farmland terrain and operation requirements, the shape and pattern of high-power agricultural machinery track plate have a variety of designs. The track plate of the agricultural machine working in the paddy field usually has some special bumps and grooves on the surface, which can effectively prevent the agricultural machine from slipping in the muddy paddy field.
The pattern of the track plate of agricultural machinery operating in dry land may be more inclined to increase the friction with hard soil, and have better soil discharge performance. The edge of some track plates is also designed with an anti-slip structure to ensure the safety of agricultural machinery on slopes and other terrain.
When high-power agricultural machinery is working, it often needs to carry a large amount of fuel, seeds, fertilizers and other materials, and at the same time, it also needs to mount various agricultural tools. The large area of the track contact with the ground characteristics, so that agricultural machinery can carry heavy loads. A large caterpillar silage harvester, for example, can carry tons of silage in addition to its own weight and drive steadily through the field without getting stuck in the dirt because of overloading.
Application Cases
Due to the elastic characteristics of the rubber track, the vehicle equipped with it can absorb part of the vibration from the ground during the driving process. This makes the driver and the passenger feel less bumps in the car, improving the comfort of the ride. Just like after the installation of high-performance rubber shock-absorbing tracks on the off-road vehicle, even when driving on the rugged mountain road, the occupants of the car will not feel too strong vibrations.
Company Introduction
Tate Rubber is a professional manufacturer of rubber parts for the chassis of construction machinery and agricultural machinery. We are committed to providing our customers with professional technical services, quality products and timely and thoughtful service to help them achieve success in their respective fields.
For OEM customers, Tate's excellent technical team provides one-stop technical support. Customers can either use our existing specifications or customize according to their needs. During the design process, we fully communicate with the customer's technical team, design the structure of the track according to the customer's chassis frame and wheel train selection, and design the rubber formula according to the weight, speed and working conditions of the machine. This not only ensures a good match between the chassis and the track, but also ensures the stable and reliable performance and quality of the product.
Service
- Customized design: According to the needs of different customers, research and development and design of specific specifications and performance of rubber tracks. For example, in order to adapt to different types of construction machinery, agricultural machinery, etc., rubber tracks of different sizes, patterns and strengths are designed to meet the requirements of customers in various working conditions.
- Quality control: Establish a strict quality inspection system, from raw material procurement, production and processing to finished products, the whole process of quality control. For example, the hardness, tensile strength, wear resistance of rubber, as well as the strength and toughness of skeleton materials are tested to ensure that products meet relevant standards and customer quality expectations.
