Product Description

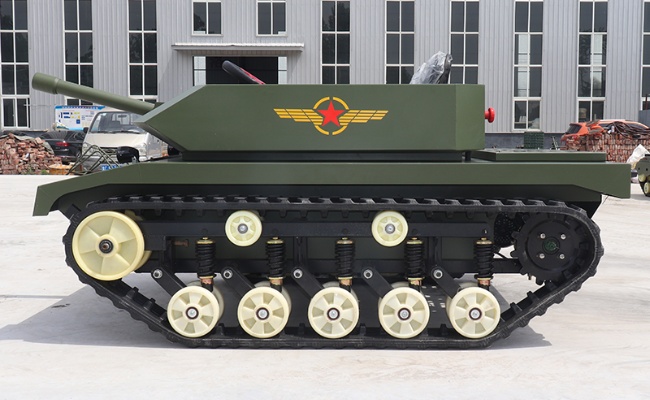

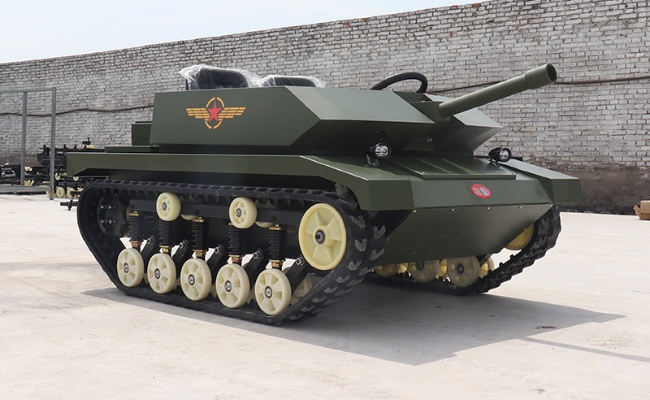

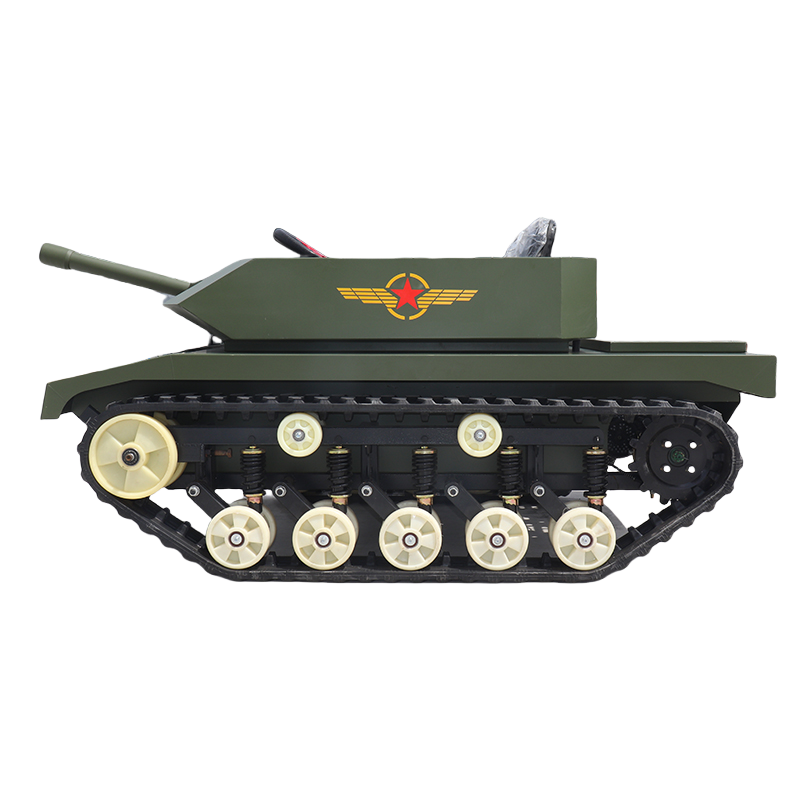

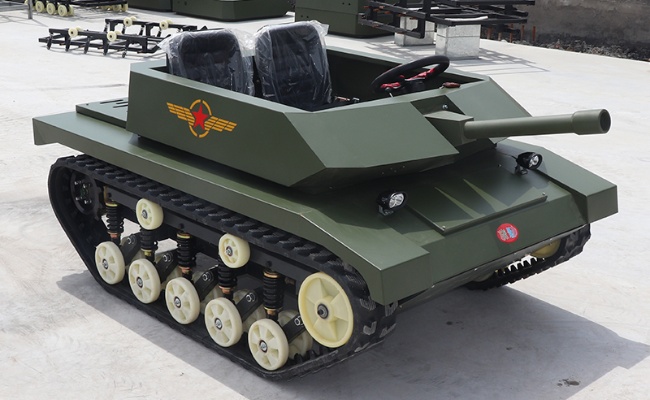

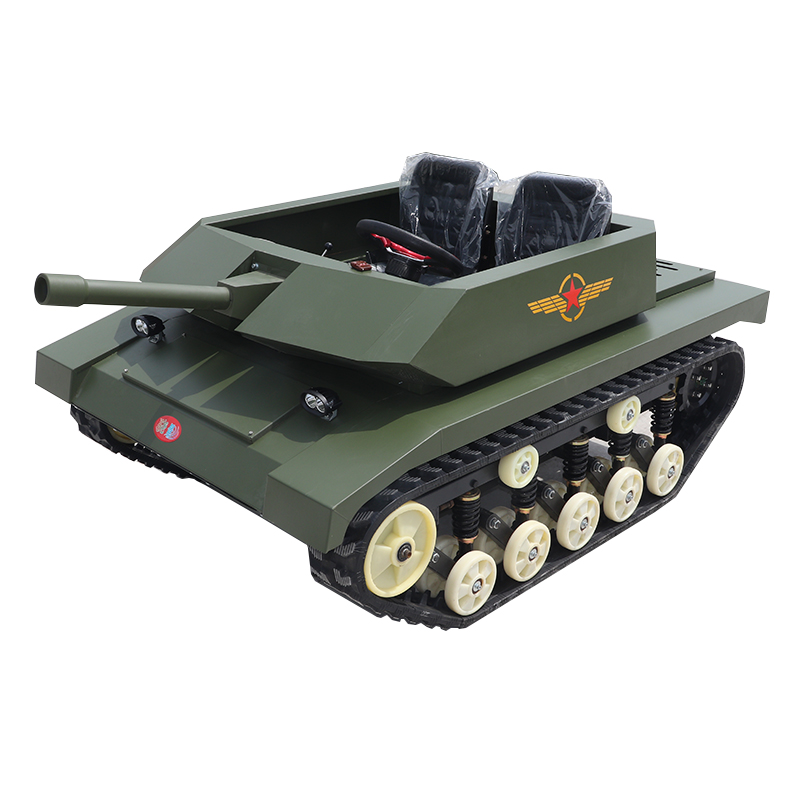

It is designed by scaling down the real tank, retains the appearance of the real tank, which is very eye-catching. According to specifications, it can be divided into single person version and double person version. The single person version is mainly suitable for children over 8 years old and adults to drive alone, while the double person version is usually driven and played by parents with their children.
Product Features

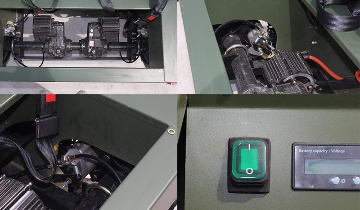

1. Use high efficiency and energy saving DC brushless motors, lithium batteries with strong endurance and no exhaust emissions.

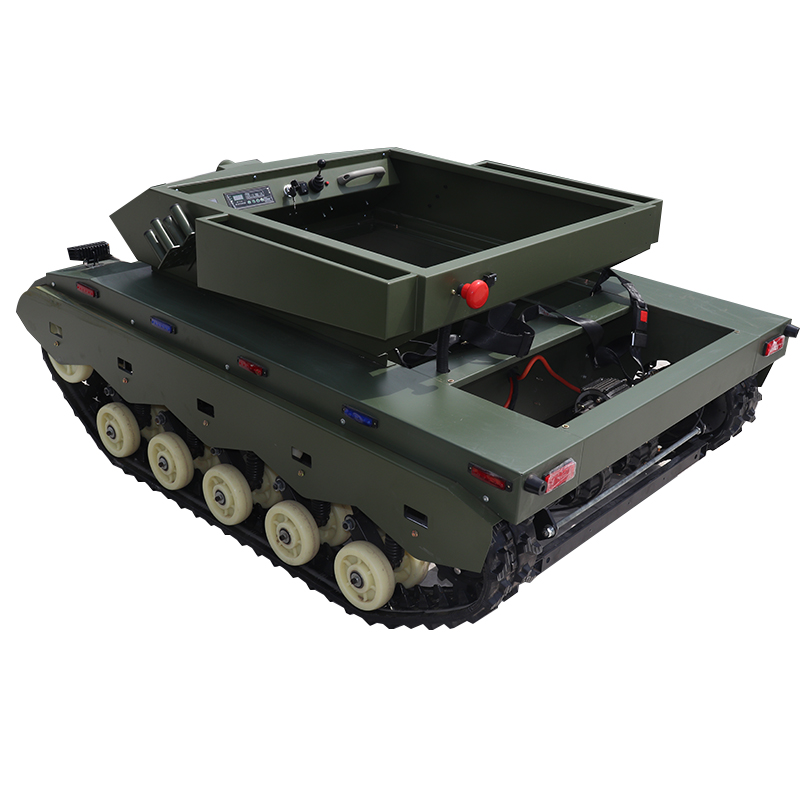

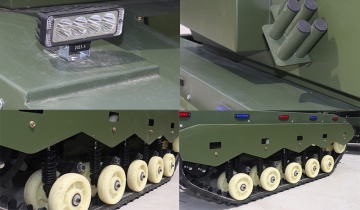

2. Dual-motor dual-drive gearbox transmission bridge drives rubber tracks to walk, novel and unique shape.
3. With advantages of easy operation, good flexibility, good stability, strong power, good passability, small turning diameter (can turn around 360 °in zero radius), strong climbing ability, and comfortable driving.

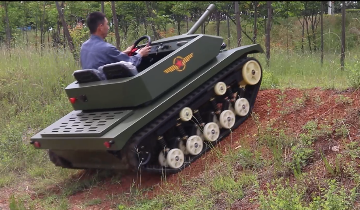

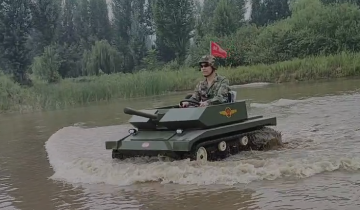

4. All terrain driving, good driving stability and passability on the beach, snow, and soft grasslands.

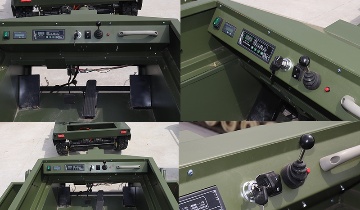

Steering wheel and steering system: The controller induction device is driven by rotating the steering wheel, so as to change the speed of the left and right motors to achieve differential steering. When turning the steering wheel to the left until it stops moving, the left motor stops rotating and supplemented by the left drive wheel hydraulic brake, so that the vehicle turns towards the left in small radius. When turning the steering wheel to the right until it stops moving, the right motor stops rotating and supplemented by the right drive wheel hydraulic brake, so that the vehicle turns towards the right in small radius.
Application Cases

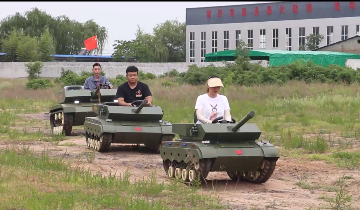

In tourist attraction, field exercise area, youth summer camps, science and technology museums, large-scale exhibitions, amusement parks and other places.
It is designed by scaling down the real tank, retains the appearance of the real tank, which is very eye-catching. According to specifications, it can be divided into single person version and double person version. The single person version is mainly suitable for children over 8 years old and adults to drive alone, while the double person version is usually driven and played by parents with their children.
Technical Parameter
| Model | ERI-A3 |
| Payload | 260kg |
| Dimension | L2000*W1380*H1030mm (not include barrel and roll cage) |
| Motor | 60V 1.2kw*2 |
| Track type | 180*72*56mm engineering tracks with track grounding of 1.15 m |
| Battery | 60V 150A lithium battery |
| Duration | 6-8 hours |
| Control system | Steering wheel tracked vehicle |
| Speed | 5-15km/h can adjusted, Max. 20km/h |
| Features | Remote timing |
| Climbing Ability | ≤30° |
| Maximum dynamic roll angle | 30° |
