Product Description

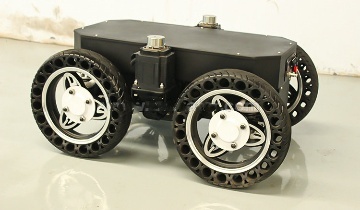

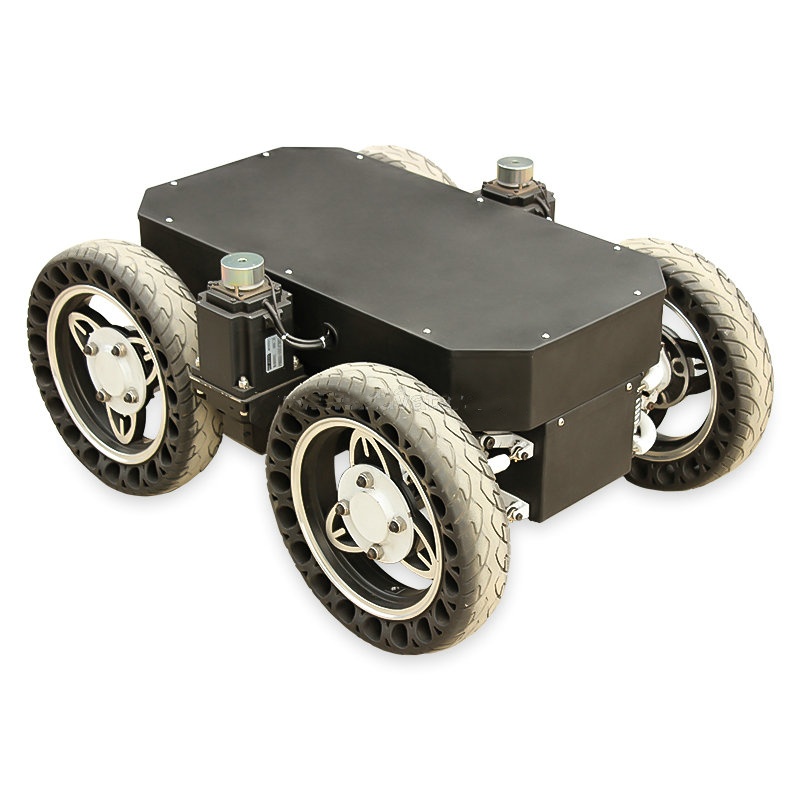

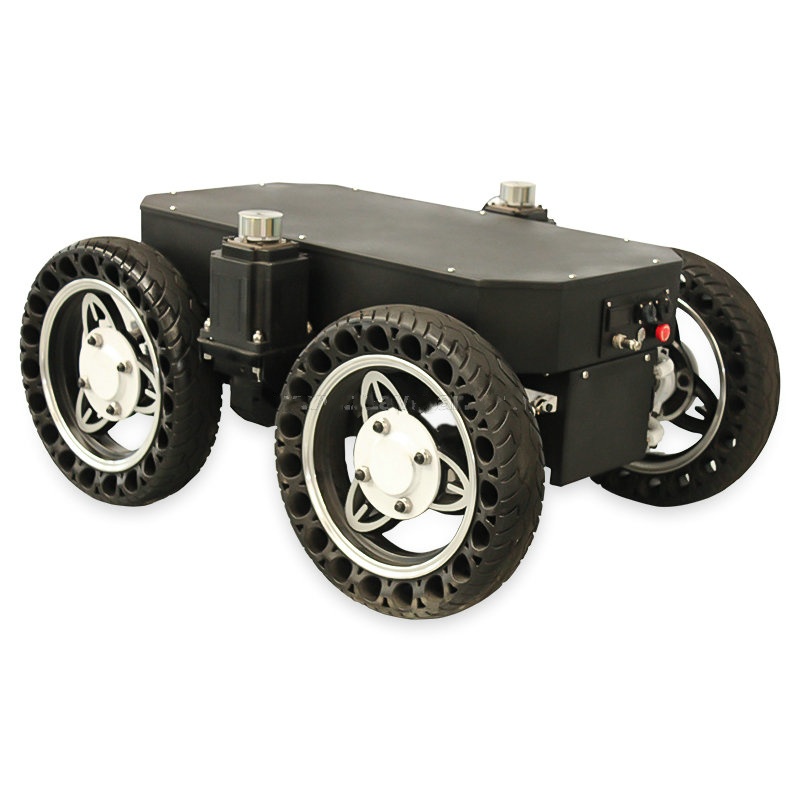

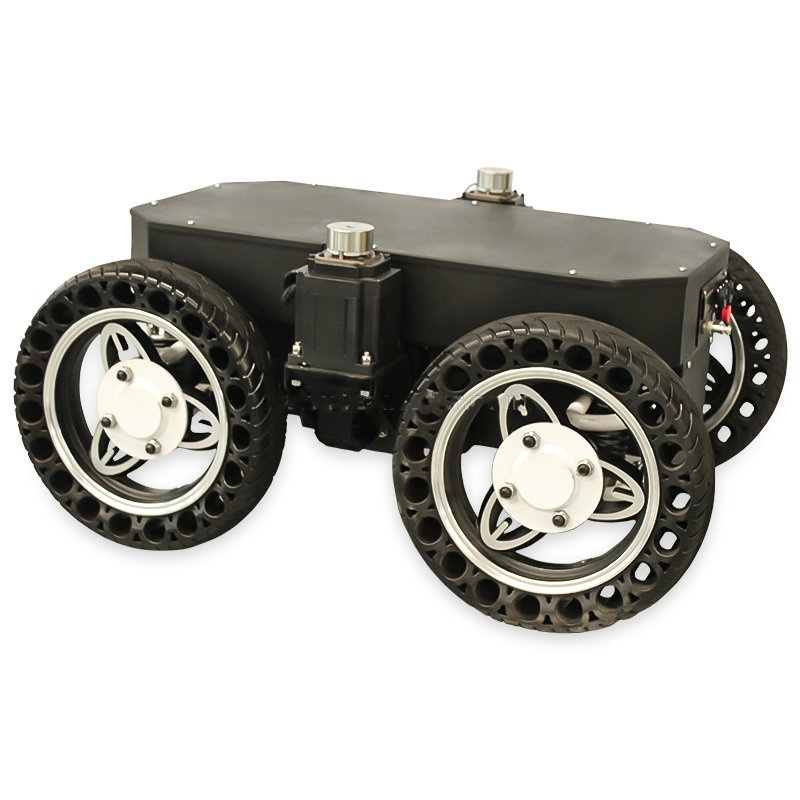

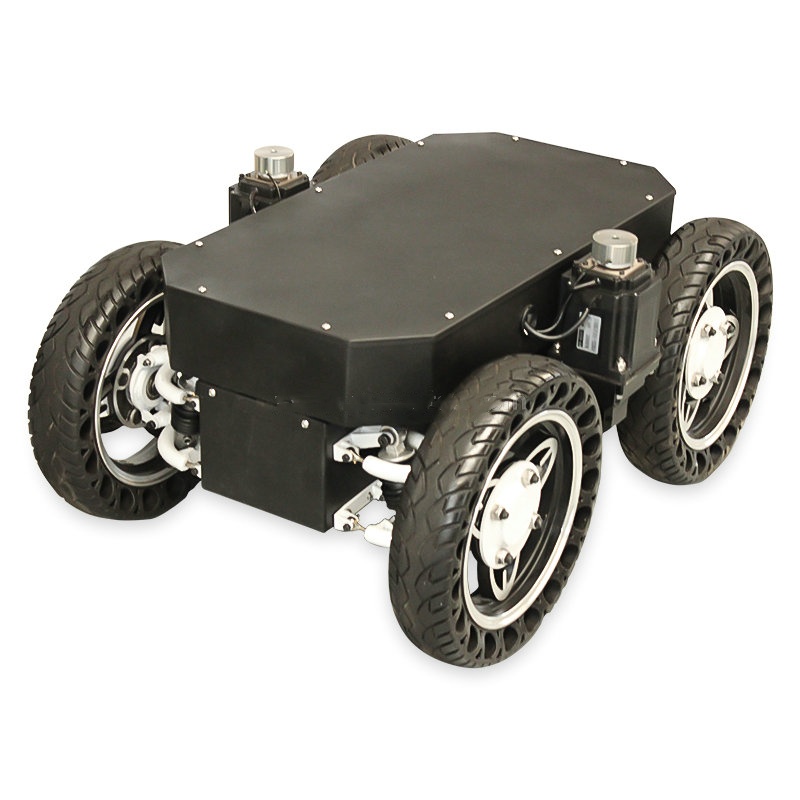

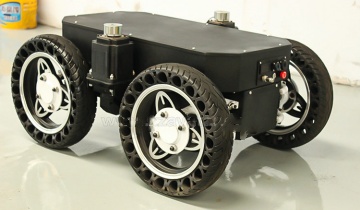

ERIK-W9D, complete vehicle will set the battery and BMS system, power supply module (24 V, 12 V, 5 V output), dc brushless motor, high-precision encoder, driver and brake components in the chassis power assembly, which is equipped for universal type wheel robot chassis.
Compact layout can provide a wide development space and imagination space for users, helping you to build unique robot products.
Product Features
1. Low ground clearance, stable transportation.
2. 9.8km/hour high speed, excellent transportation speed.
3. ERIK-W9D wheeled robot chassis has a variety of customizable configurations, can be competent for various working conditions.

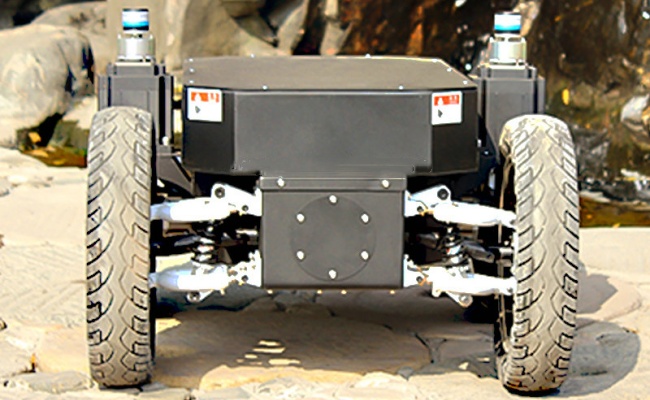

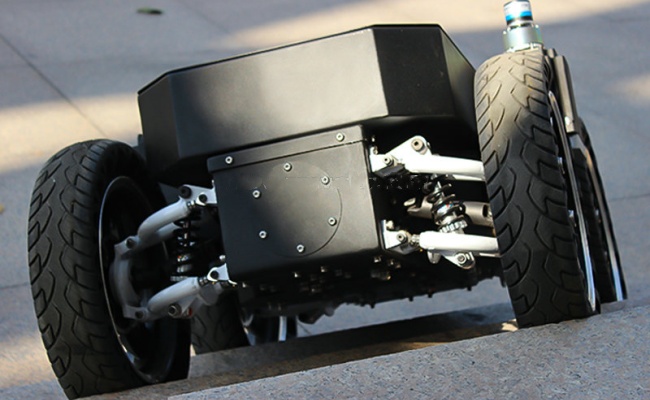

4.It’s equipped with 4 sets of shock absorption and independent suspension structure, the stability and load are greatly improved.
5.It uses differential steering method, the steering is very easy.

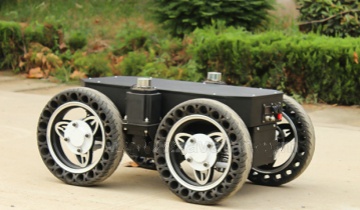

6.The explosion-proof tires reduces the body weight, it’s particularly suitable for outdoor operations.
Application Cases

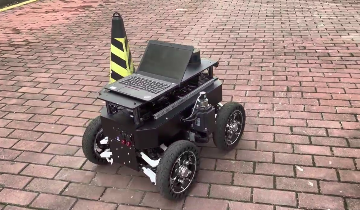

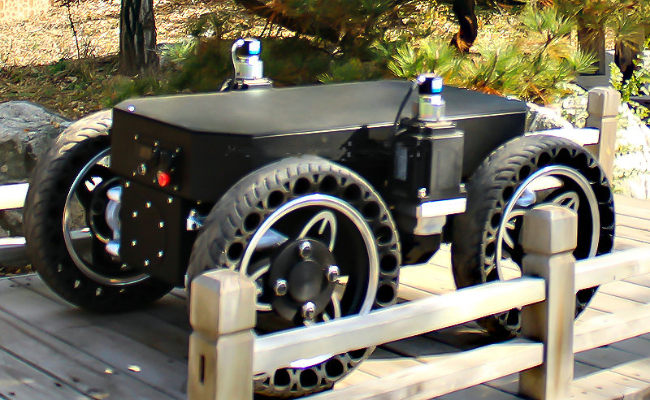

This kind of robot can be used on exploration of inspection, the rescue vehicle, scientific research and education, fire control security guard, special photography, special transport .
Technical Parameter
| Dimension | 931*654*465mm | Internal size | 764 * 405mm |
| Self weight | 122kg | Design load | 100kg |
| Tyre type | Non-inflatable explosion-proof solid rubber tire | Motor | 48V DC Brushless |
| Chassis height | 150mm | Protection Grade | IP64 |
| Vibration reduction | Four-wheel independent suspension shock absorption | Surface treatment | Spray paint/plastic spray |
| Maximum obstacle | 100mm | Turning radius | Pivot steering |
| Climbing Ability | 30 Degree | Reduction Ratio | 01:22.3 |
| Body Material | Stainless steel/alloy steel plate | Running Speed | 0-9.8km/h |
| Main control | VCU (differential steering) | Battery | 48V 30Ah /48V 50Ah |
