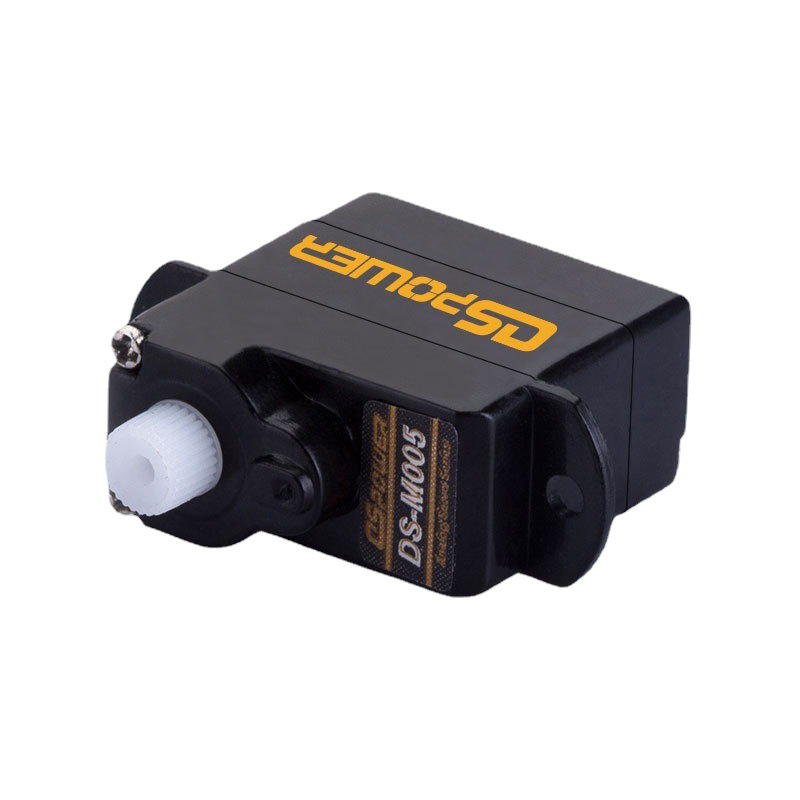

Product Description

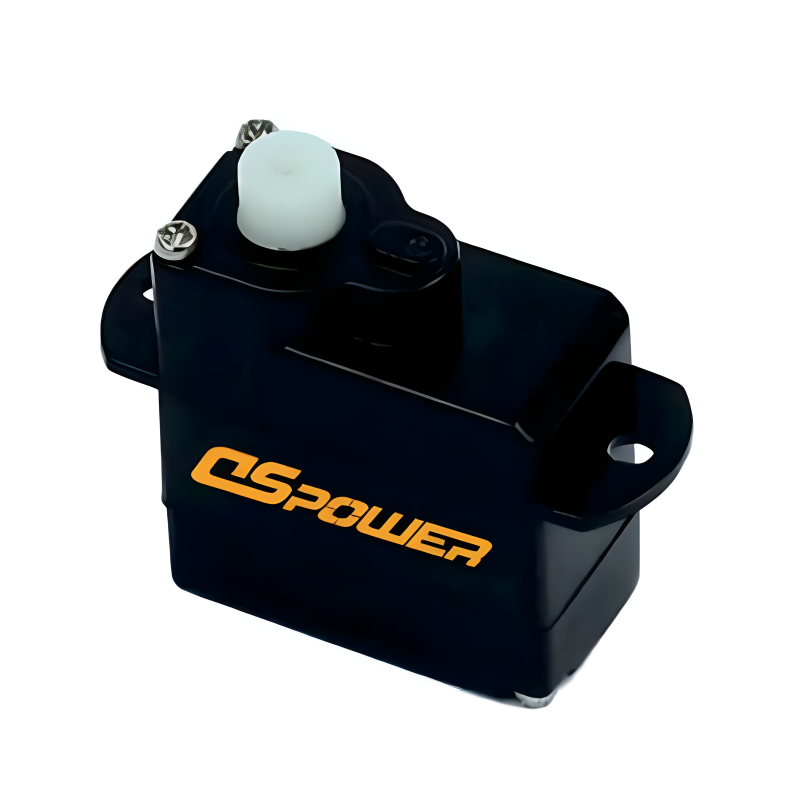

The DS-M005 2g plastic gear micro servo has powerful energy in its light body. The fuselage is made of high-quality plastic material, and the gears are precisely matched. While ensuring the stability of the structure, it also achieves an ultra-light weight of only 2g, which greatly expands the possibility of its application scenarios. It has precise angle control capabilities and can respond to commands quickly and accurately. Whether it is in the subtle attitude adjustment of model aircraft or the fine action execution of small robots, it can perform stably, providing reliable and efficient power support and motion control solutions for various miniaturized and lightweight smart devices. It is a powerful choice in the field of precision micro-control.
Product parameters
Parameter name | Parameter value |
Operating voltage range | 2.8V-4.2VDC |
Quiescent current | ≤20mA |
Lock current | ≤350mA |
Lock torque | 0.10kgf.cm at 2.8V;0.12kgf.cm at 4.2V |
Direction of rotation | CCW(1000→2000μs) |
No-load speed | 0.08s/60° at 2.8V;0.06s/60° at 4.2V |
Operating frequency | 1520μs/333Hz |
Signal width range | 500~2500μs(180°) |
Operable angle | 90°(1000~2000μs) |
Back to center angle difference | ≤1° |
Weight | 2.0g(0.07oz) |
Dimensions | 16.7*8.2*17mm (0.65*0.32*0.66inch) |
Communication method | PWM |
Wire length | 150mm |
Output shaft specification | 28T/Ф3.90mm |
Plug | JR2.54 |
Motor type | DC motor |
Gear type | Plastic gear |
Bearing Type | No |

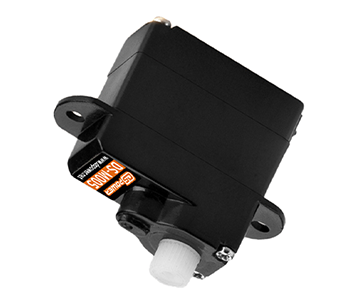

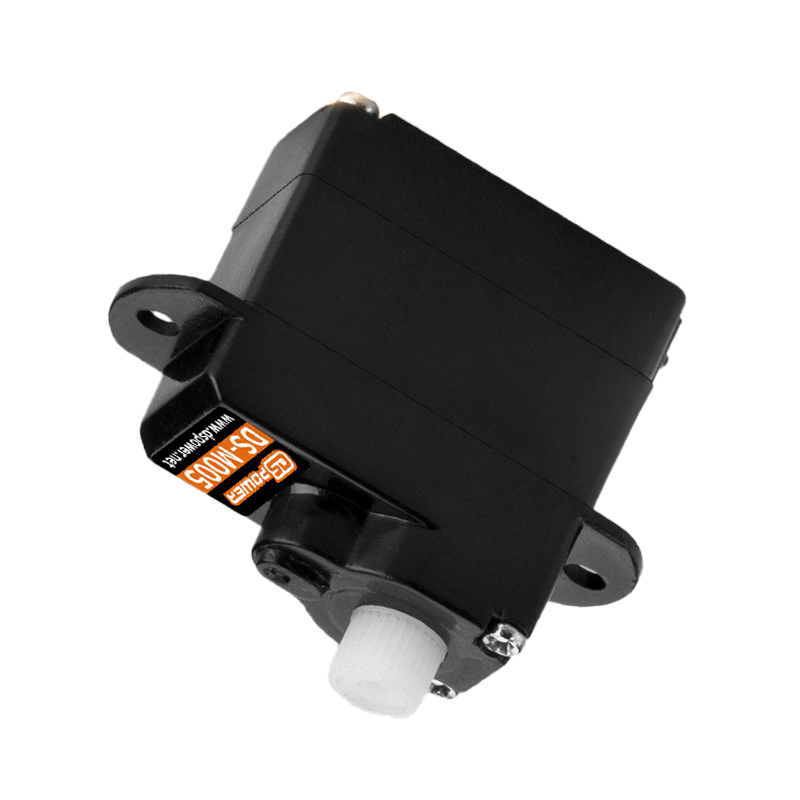

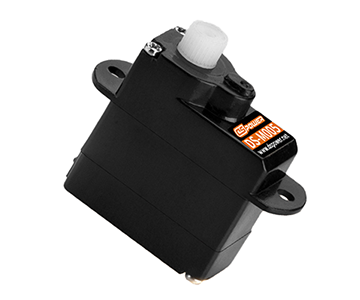

Product Display

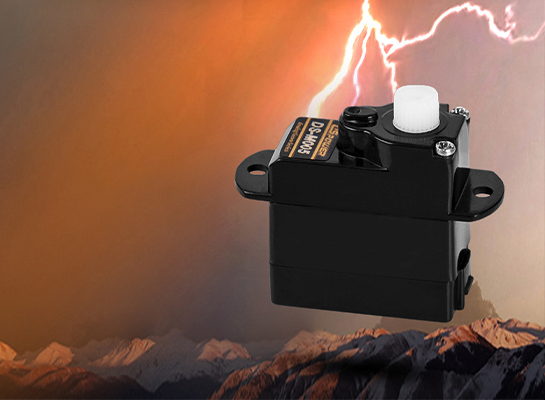

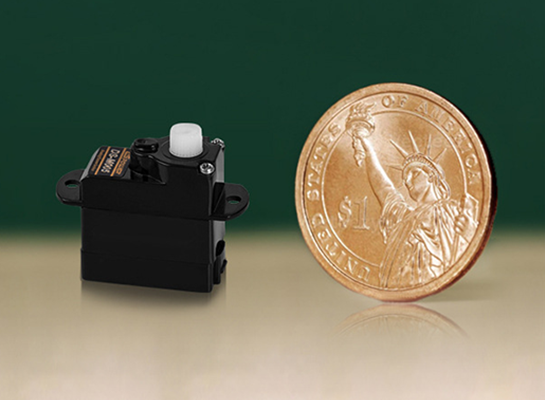

2g hollow cup mini body, small and powerful
- Electronic protection
- Anti-blocking and anti-burning
- Anti-sweep teeth
- Light weight
- Low noise
- Fast speed

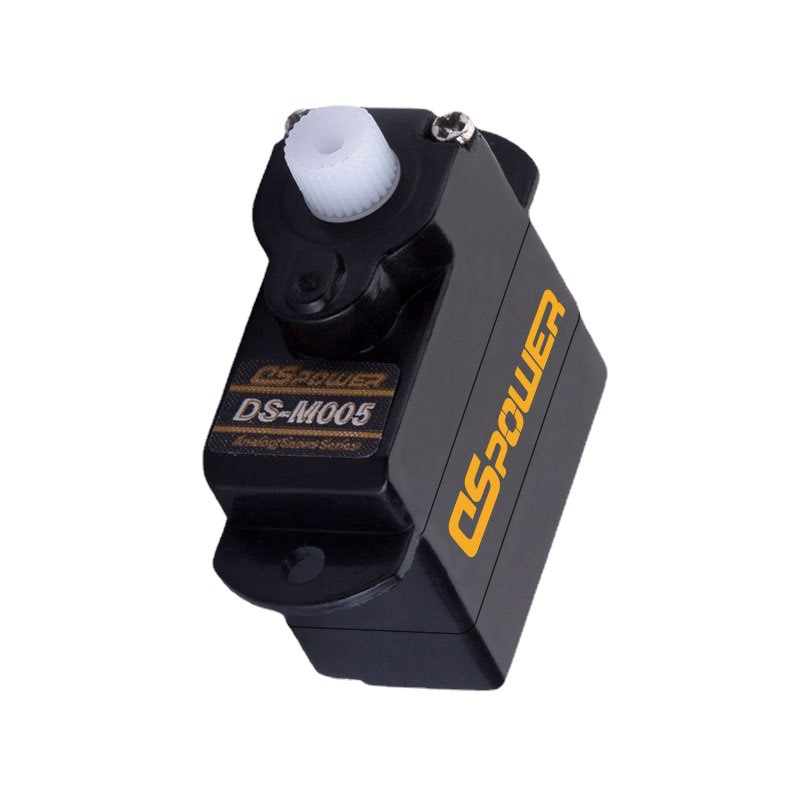

High-precision plastic gears
Precision machining, good gear meshing
High-performance heat dissipation shell
No recycled materials, heat dissipation and more heat-resistant
- Silent coreless motor
- Smooth high-precision plastic gears
- CE, ROHS, FCC certification

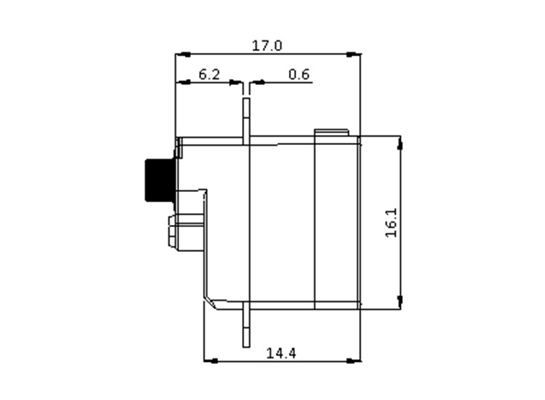

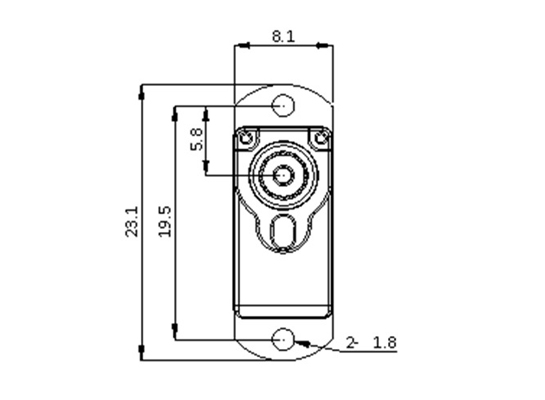

Size & Interface

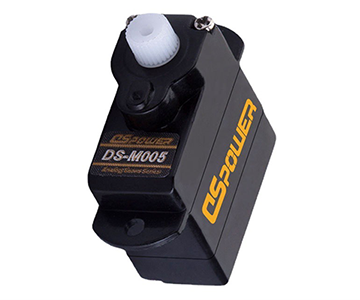

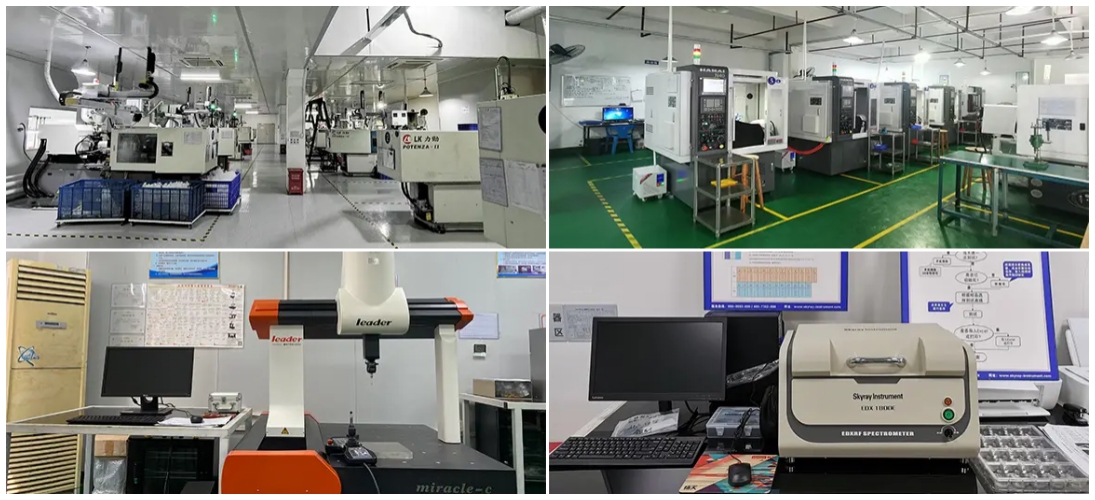

Quality Control
- Quality control is the foundation of our company. From the strict selection of raw materials, to the meticulous management of the production process, to the all-round testing of finished products before delivery, every step embodies the persistent pursuit of quality, just to present impeccable products to the market.
- In our company, quality control runs through every link of production and operation. Advanced testing equipment and professional quality inspectors work closely together to accurately control product quality, and ensure that products always maintain excellent quality from the production line to the hands of customers with high standards and strict requirements.
- The company always adheres to the strict quality control concept, starting from the source, optimizing the production process, strengthening quality testing, and carving each product with ingenuity, so that high quality and reliability become the distinctive label of the company's products, winning the trust of customers and the recognition of the market.
Application Cases
In the current era of rapid technological development, the DS-M005 2g plastic gear micro servo has demonstrated its unique value.
In the flight control system of small drones, it effectively reduces the load on the body with its ultra-light weight advantage. At the same time, its precise steering control capability allows the drone to quickly and stably adjust its posture during flight, easily cope with complex airflow environments, and achieve a smooth flight trajectory.
In the desktop mini robot project, its precise angle adjustment function makes the robot's movements more delicate and realistic. Whether it is raising hands, turning heads or bending over, it can be accurately executed, bringing users a very interesting and technological experience. It is widely used in education, entertainment and other fields, and has become a star product in micro-power control scenarios.
Service
Adhere to self-production and self-research
Strictly control from design to production process
Adhere to 100% full inspection
Ensure the stability and consistency of shipment quality
Insist on using good materials
Good craftsmanship + good materials + good quality, the ultimate cost-effectiveness
Adhere to customer-centricity
Match the appropriate solution according to the needs, and refuse performance redundancy
Modular R&D thinking, product functions can be matched at will
Reduce customization and shorten the R&D cycle
