Product Description
Manufacturing and designing JIG grinding fixtures for metalwork using high-precision CNC machines, ensuring accuracy and top-quality performance. These fixtures securely hold workpieces during grinding, offering stability and precision for complex metalworking processes. Ideal for industries like aerospace, automotive, and precision engineering, they improve efficiency, reduce setup time, and enhance production quality
Product parameters
| Item code | stainless steel cs001 |

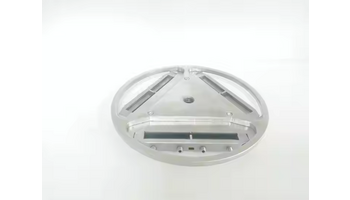

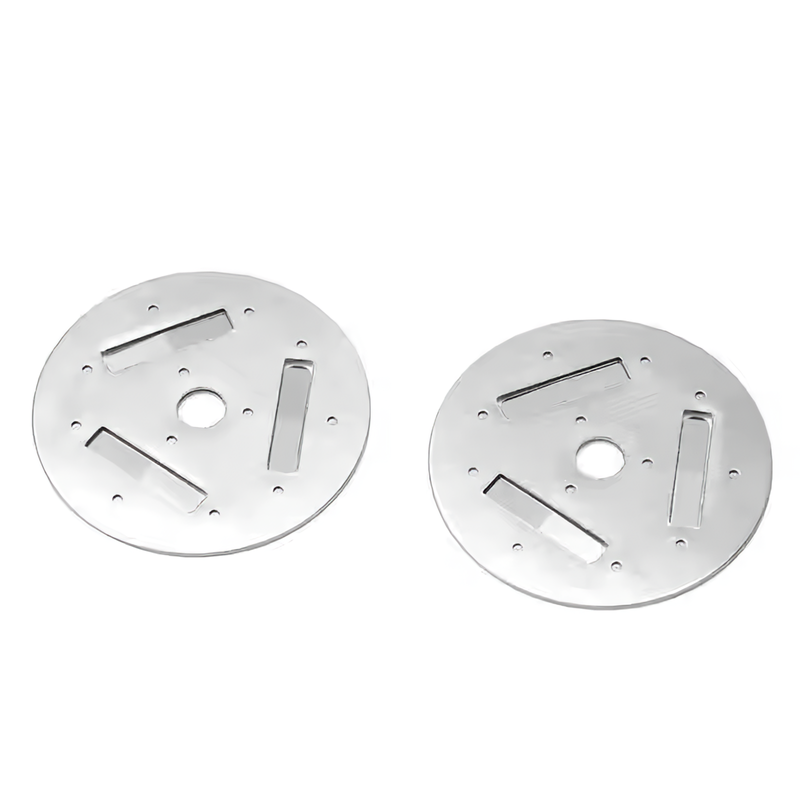

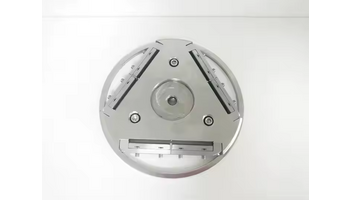

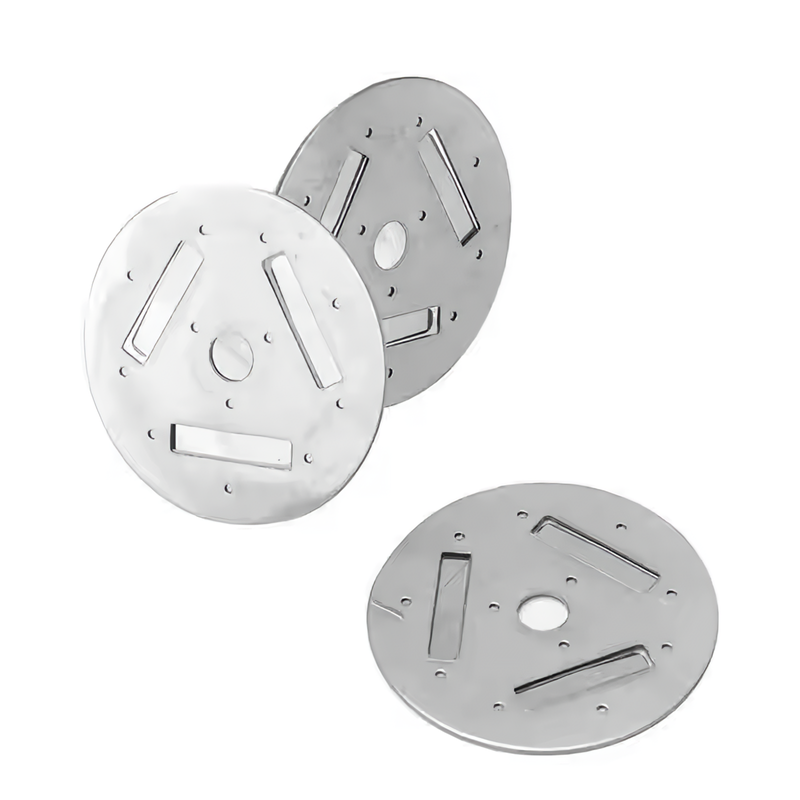

| Product name | Electroplate custom cnc machining stainless steel 60 connectors Polishing JIG Grinding fixture Fiber optic connector holder custom |
| Material | 7075 Aluminum |
| Main processing | CNC Micro Machining |
| CNC Tapping/Turning/ drilling/Milling/cutting/stamping/extrusion/extrusion profile/die casting |
Custom Process
1.send inquiries
2.drawings or samples
3. Quotation
4.customer confirmation
5. places order and pays
6.Mass production
7.Test before packaging
8.Shipping & confirmation
Process Type
Automotive Parts
Example Product: Brake Discs
Reason: JIG grinding fixtures are used to maintain the flatness and precise dimensions of brake discs in vehicles. These fixtures ensure consistent performance and durability, which are critical for safety and optimal function of the braking system.

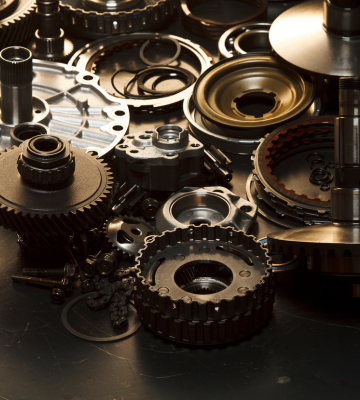

Industrial Machinery Components
Example Product: Gear Shafts
Reason: Gear shafts require precise grinding to ensure smooth operation in machinery. JIG grinding fixtures hold the shafts securely during the grinding process, ensuring tight tolerances and high-quality surface finishes for improved durability and performance.
Electronics Parts

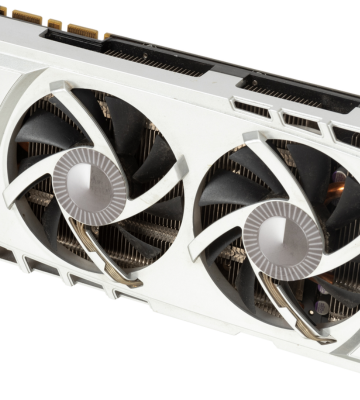

Example Product: Heat Sinks
Reason: JIG grinding fixtures are used to grind heat sinks with precise dimensions and smooth surfaces to ensure efficient heat dissipation in electronic devices. The fixtures help achieve the necessary accuracy to improve the thermal management and reliability of electronic components.
Material
Copper
Aluminum Alloy
Stainless Steel
Quality Control
Quality control for JIG grinding fixtures ensures precise dimensions, surface finish, and structural integrity. Each fixture is inspected using advanced measuring tools to verify tight tolerances and performance. Any defects are corrected to maintain consistency, and materials are tested for strength and wear resistance, ensuring reliable performance in demanding industrial applications.

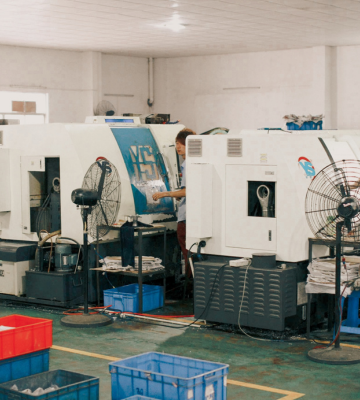

Processing capability
The processing capability of JIG grinding fixtures in metal CNC machining includes creating precise, custom fixtures with tight tolerances and smooth finishes. It supports various metals and ensures durability, offering both high-volume and custom production with flexibility and accuracy for demanding industrial applications.
Additional processes
Additional processes for JIG grinding fixtures in metal CNC machining may include milling, drilling, and tapping to create complex features or adjust fixture designs. Surface treatments like anodizing, coating, or plating can be applied for enhanced wear resistance and corrosion protection. These processes help improve the fixture's performance, durability, and aesthetic quality, ensuring they meet specific requirements for various industrial applications.
