Product Description
G3T-11 Ultra-compact harmonic gear is suitable for designs that require compact space, easy to integrate and suitable for many different applications.
Product parameters
| Model | G3T-11 |
| Ratio | 50.80.100 |
| Output Torque(Nm) | 4.2 (Ratio 50) 5( Ratio 80 ) 6( Ratio 100) |
| Largest Allowed Torque(Nm) | 10 (Ratio 50) 10.5( Ratio 80 ) 13.2( Ratio 100) |
| Average Allowed Torque(Nm) | 6.6 (Ratio 50) 8.6 ( Ratio 80 ) 10.5 ( Ratio 100) |
| Backash(Arcsec) | max 20 |
| Design life (Hour) | 10000 |
| Maximum Revolution(r/min) | 8500 |
| Average Revolution( r/ min) | 3500 |

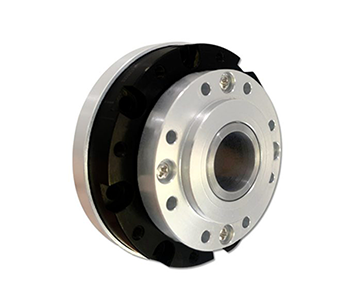

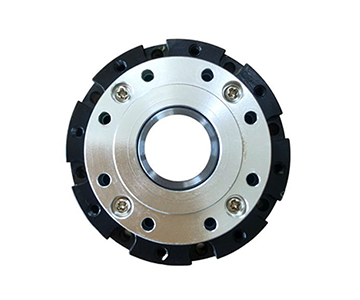

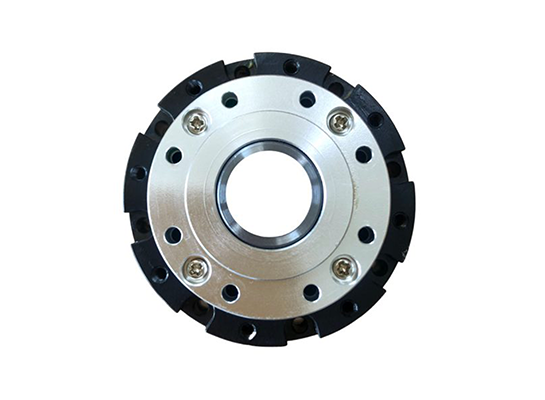

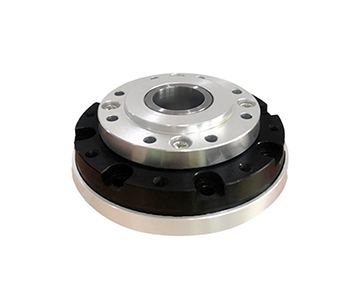

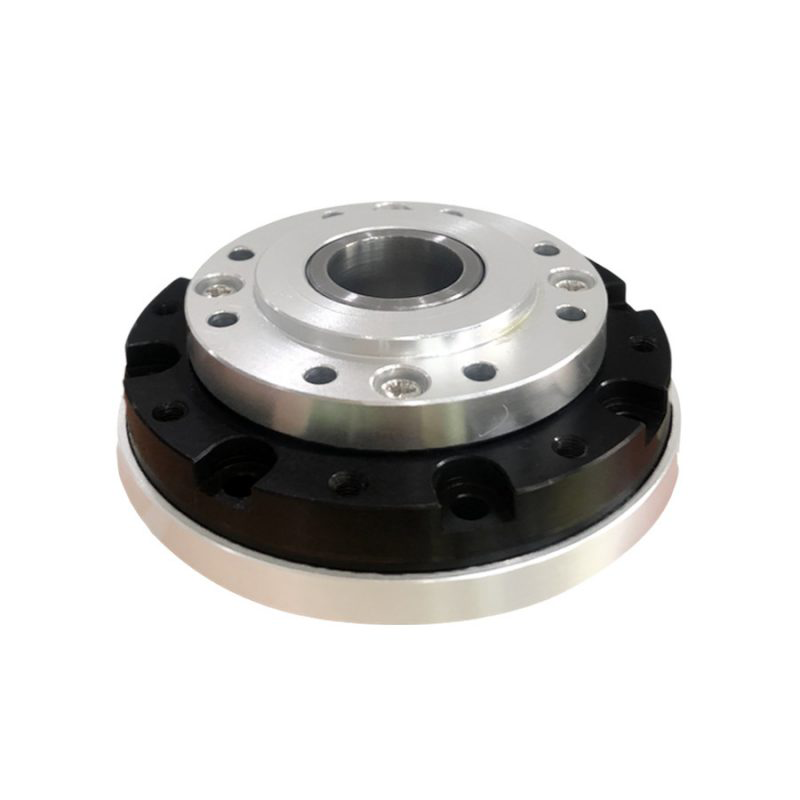

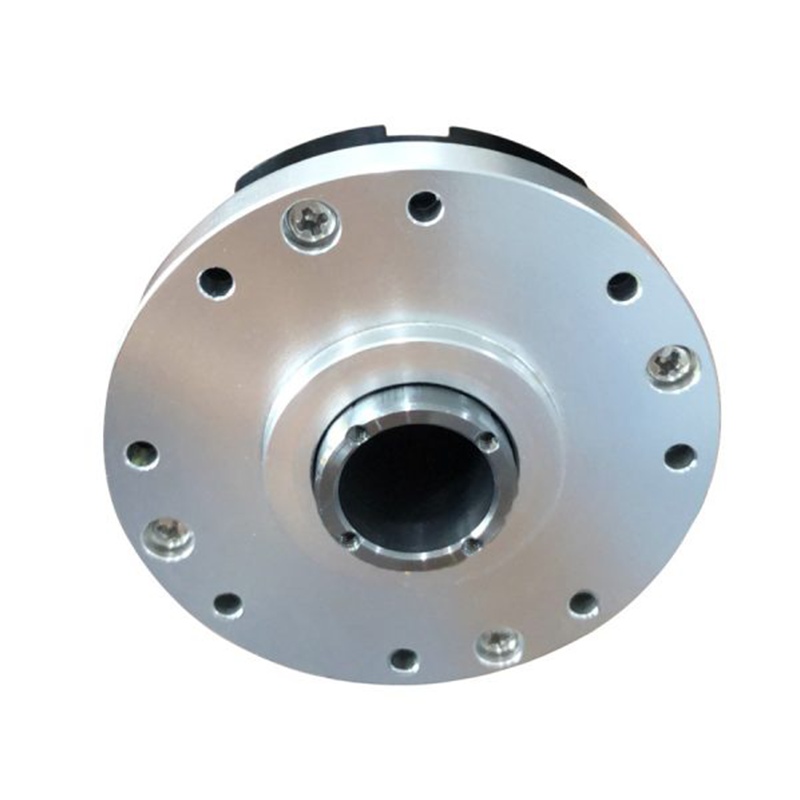

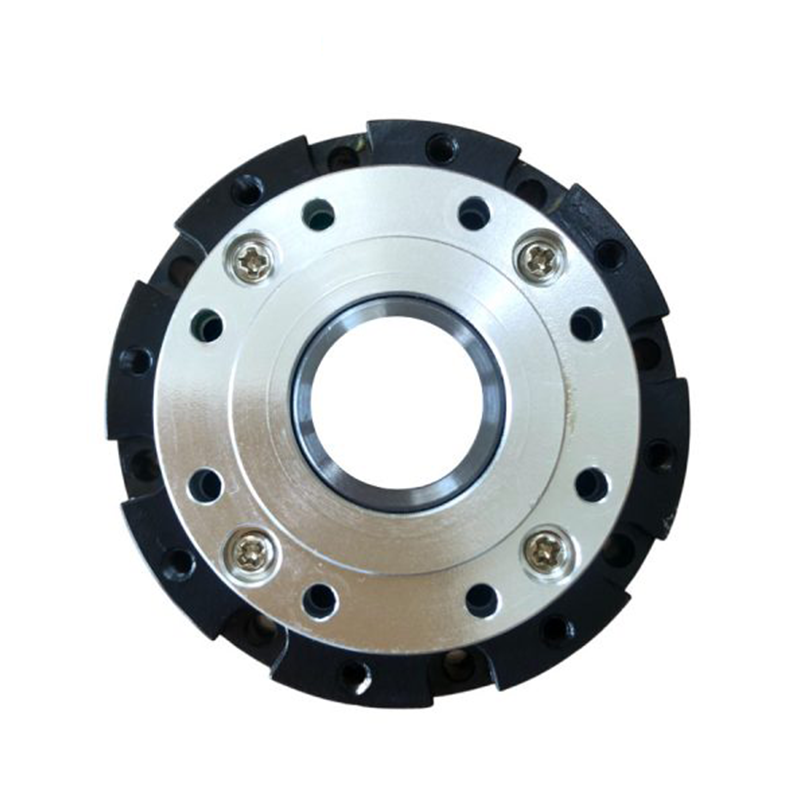

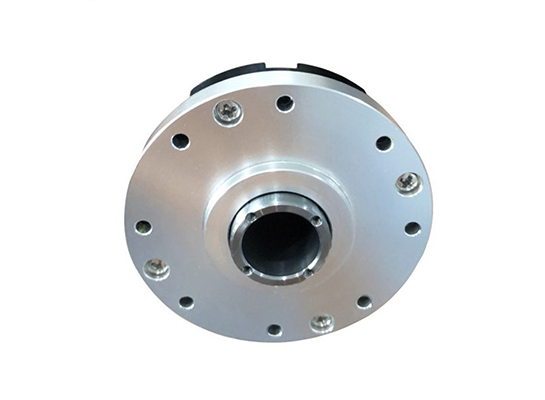

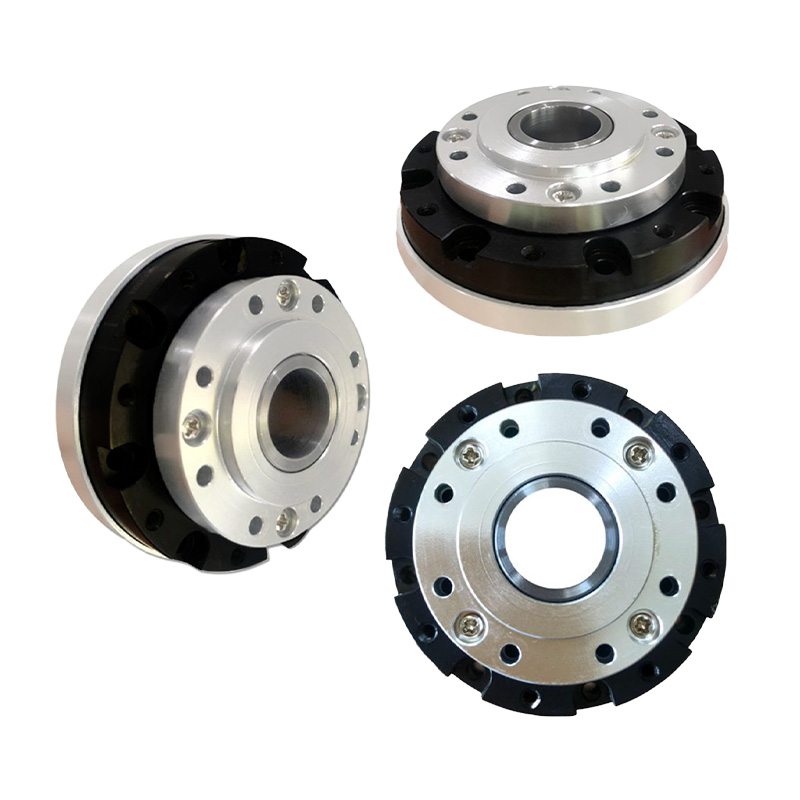

Product Display
Ultra-compact harmonic gears feature an exquisite design with a very small space. They transmit high torque accurately and accurately, have a compact and durable structure, and are widely used as precision mechanical transmission components.
Harmonic gears run smoothly and quietly, have strong adaptability, and can be flexibly integrated into various transmission components of miniaturized equipment systems.

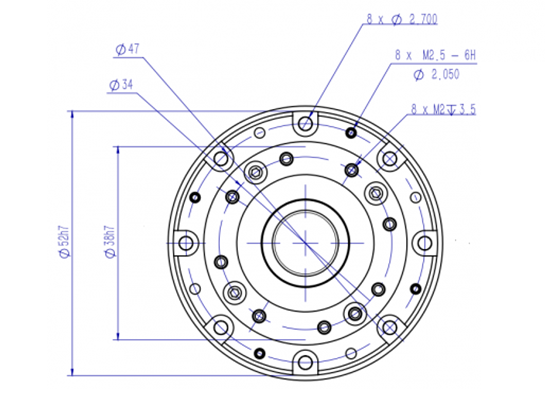

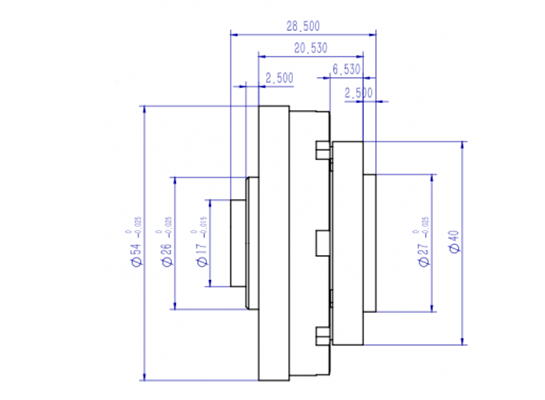

Size & Interface

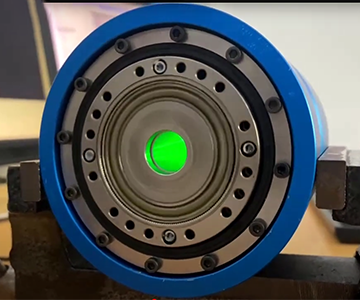

Application Cases

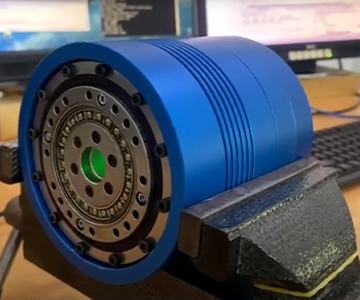

Ultra-compact harmonic gears are widely used in the field of precision machinery. They can be used in small robot joints to achieve flexible movement. In medical devices, they help precise minimally invasive surgery. Their compact design saves space, and their high transmission accuracy ensures stable operation of the equipment, providing high-quality solutions for various scenarios that require space and precision.
