Product Description
The CWS19 wall-mounted temperature and humidity sensor uses a high-precision temperature and humidity integrated chip. Temperature is measured by the diode temperature-sensitive P-N junction, which has the characteristic that the forward depressurization changes with temperature under constant current. Humidity The humidity is measured by using a humidity-sensitive capacitor whose value changes with the humidity. The temperature and humidity compensate each other and are then amplified by an amplifier circuit into a standard digital or analog signal of relative humidity and temperature.
Product parameters
| Basic parameter | |
|---|---|
| Measuring medium | Gas (compatible with contact materials) |
| Temperature range | -40 ~ 0 ~ 125℃ |
| Humidity range | 0-100%RH(relative humidity) |
| Overall weight | ≈160g with display, ≈138g without display |
| Response frequency | ≤2Hz |
| Stability performance | ±1%RHFS/ year, ±0.2℃/ year |
| Class of protection | IP65 |
| Response speed | Temperature response time, 15s without filter, 55s with filter; Humidity response time, 15s without filter, 35s with filter (temperature at 10℃ per step, humidity at 10%RH per step, gas flow rate of 0.1m/s) |
| Output power supply | |
| Output signal | 4 to 20mA, RS485, 0 to 10VDC |
| Power supply range | 12 to 24VDC, 24VDC |
| Maximum power | |
| 4 to 20mA | No display ≤0.05Us(W), no display ≤0.06Us(W) |
| RS485 | No display ≤0.015Us(W), no display ≤0.025Us(W) |
| 0 to 10VDC | No display ≤0.015Us(W), no display ≤0.025Us(W) |
| Load characteristic | |
| Voltage mode | 100 k Ω or higher |
| Current mode | 200 or less Ω |
| Environmental condition | |
| Ambient temperature | -40 ~ 85℃ |
| Ambient humidity | 0% ~ 95%RH(no condensation, no condensation) |
| Electrical protection | |
| Short circuit protection | permanent |
| Inverse pole protection | No damage, but no work |
| Insulation resistance | ≥100MΩ, 500VDC |
| Insulation strength | 500VAC |
| Output restriction | |
| 4 to 20mA | The minimum output is 4mA and the maximum output is 20mA |
| RS485 | The minimum output is 0 and the maximum output is 1650/1000 |
| 0 to 10VDC | The minimum output is 0.001VDC and the maximum output is 10VDC |
| Overall material | |
| Main casing | ABS Engineering Plastics (contact with tested media) |
| filter | Polyethylene (density 50μm) (contact with tested medium) |
| Cable locking head | Nylon (lock wire diameter 4 ~ 6mm) (contact with the measured medium) |
| reveal | LCD LCD display with backlight |
| Sealing element | Nitrile butadiene rubber |
| Mechanical stability | |
| Vibration resistance | 5g(20… 2000Hz) comply with IEC60068-2-6 standard |
| Impact resistance | 500g/1ms complies with IEC60068-2-27 standard |

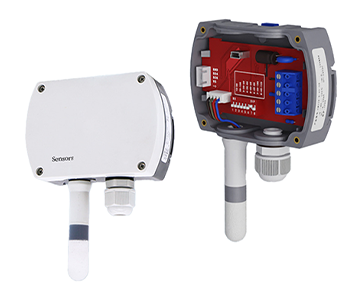

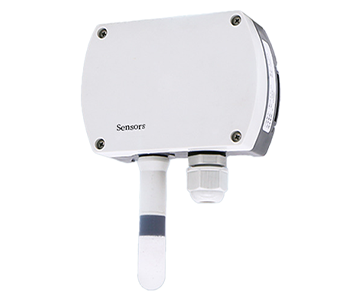

Product Display

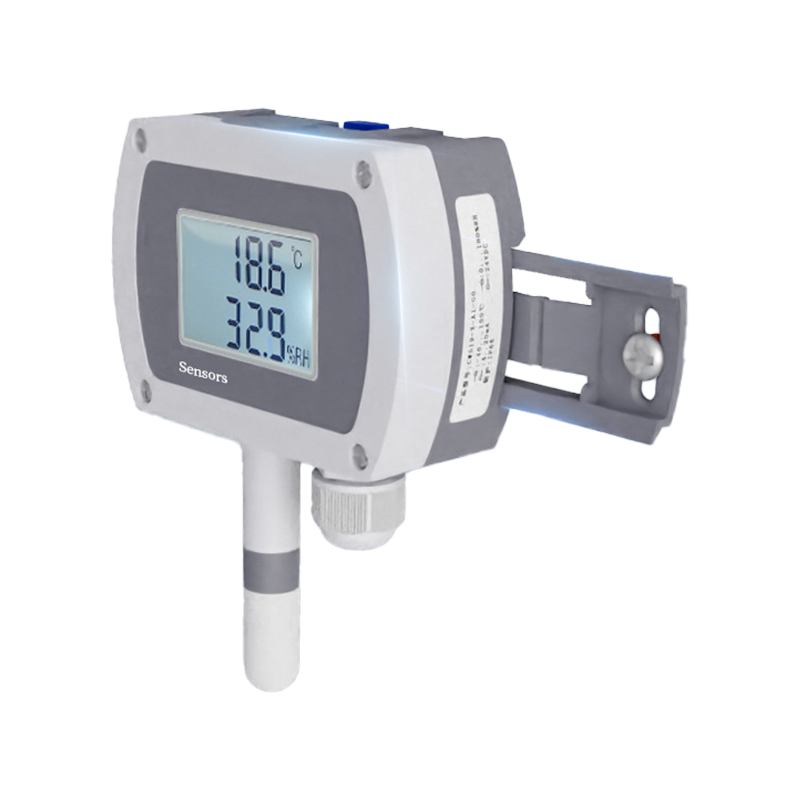

Appearance patent design: face, strength, not to be underestimated
Design patent: Patent No. ZL202030508001.3 Patent No. ZL202030511326.7

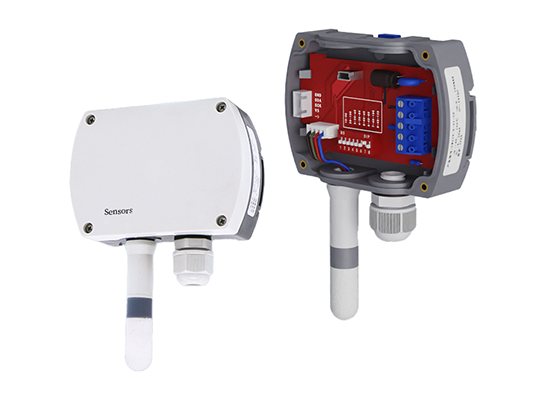

Slide structure patent: convenient installation and maintenance
Utility model patent: Patent number ZL201821819335.6
Elastic fastener: make the shell and fastener more firm
New probe patent design: polyethylene material, dustproof, anti-corrosion, breathable
Utility model patent: Patent number ZL202121872081.6

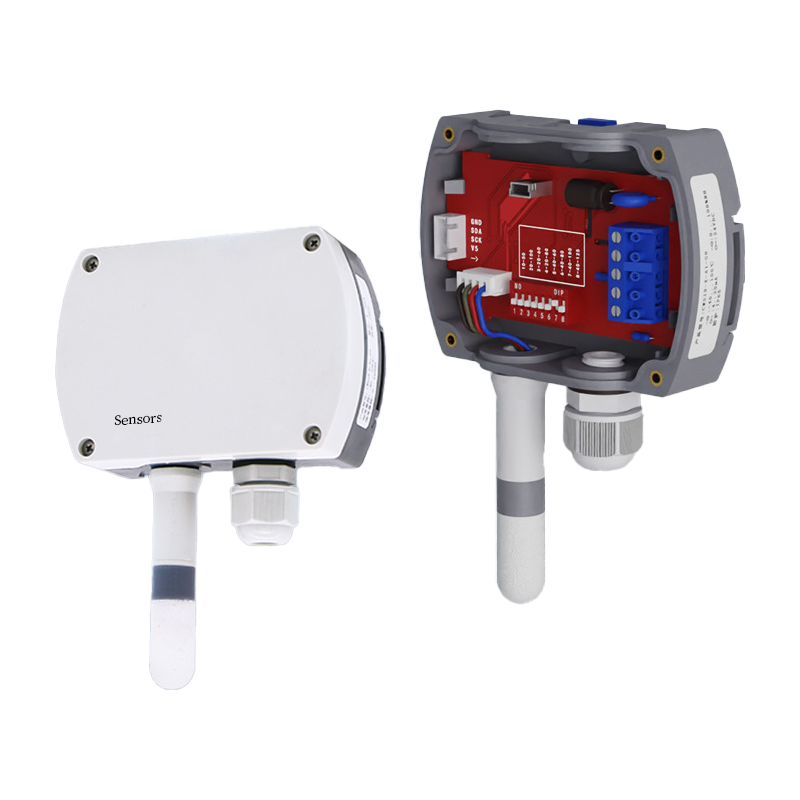

Dip adjustment: eight temperature ranges, can be adjusted by itself

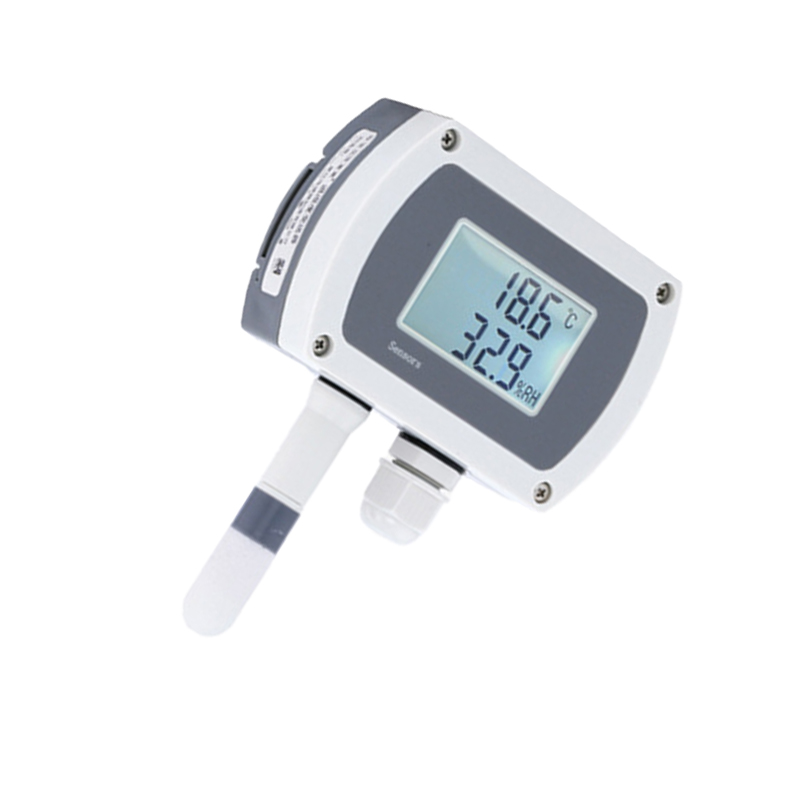

LCD display with backlight, dark environment easy to observe
A number of qualification certification: star instrument quality, trustworthy
Measurement range and accuracy: the temperature measurement range is -40 ~ 0 ~ 125℃, the accuracy can reach ±0.5℃; The humidity measurement range is 0% RH to 100% RH, with high accuracy
Stability and compensation: good long-term stability, the use of full range temperature compensation technology to reduce the impact of ambient temperature on the measurement results

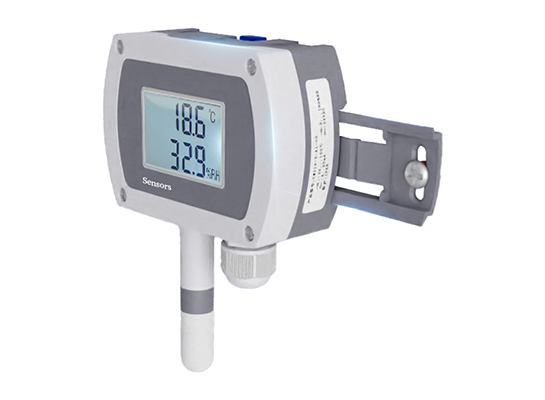

Flexible installation: wall-mounted installation or rail installation, suitable for a variety of indoor environments
Good protection performance: It has a high level of anti-dust protection and can work stably in a dusty environment

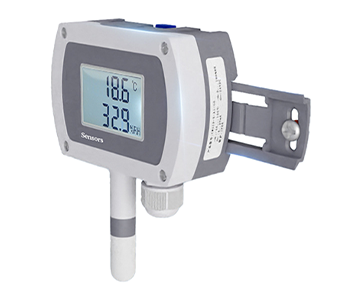

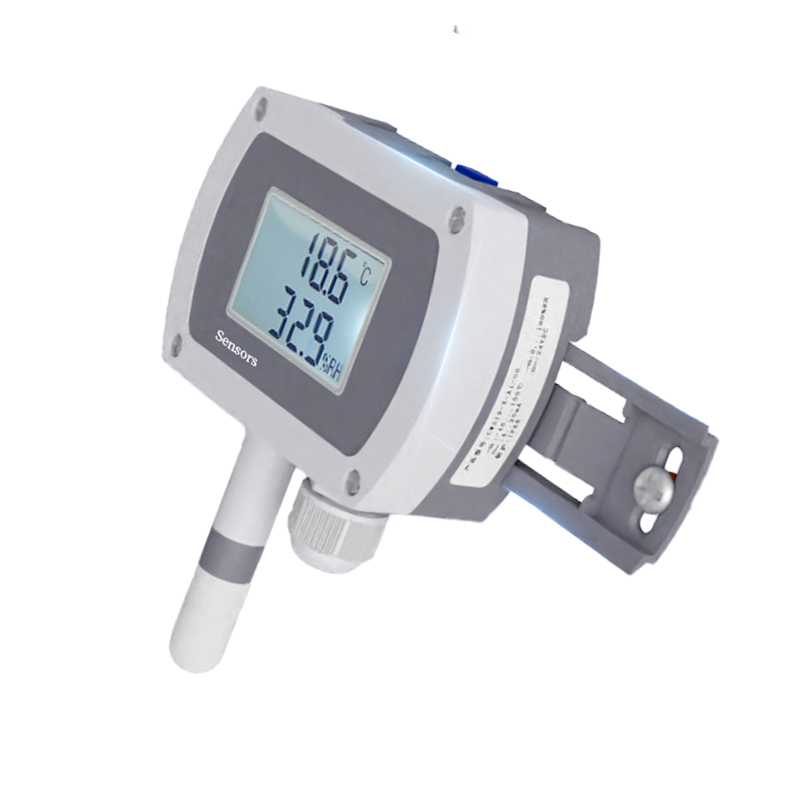

Display function Optional: there are two models with and without display, and the one with display is equipped with LCD LCD screen, which is convenient for on-site data viewing
CWS19 wall-mounted temperature and humidity sensors are widely used in industrial, agricultural, medical, HVAC and other fields, such as petroleum, chemical, metallurgy, water conservancy, Marine, hydraulic pneumatic and other industries of production workshops, warehouses, computer rooms, agricultural planting and breeding environment, hospital wards, clean rooms, and air conditioning system outlet, return air outlet and other locations.

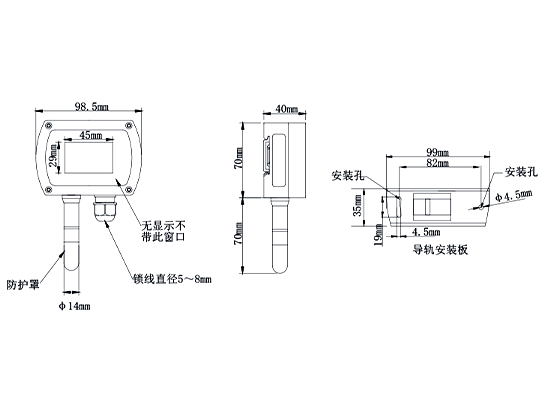

Size & Interface
