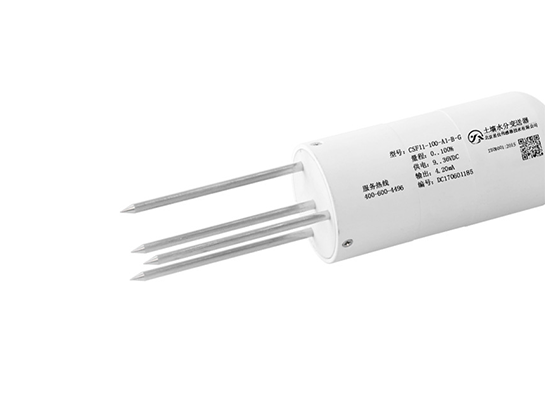

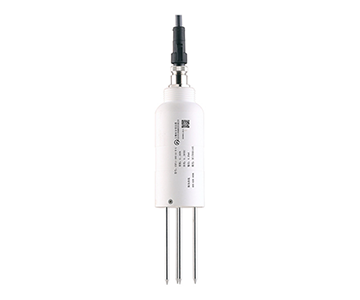

Product Description
CSF11 series soil moisture sensor is a dielectric sensor based on the principle of frequency domain reflection FDR. By measuring the change of capacitance on the sensor at 100MHz frequency, the dielectric constant of the inserted medium is measured. Since the dielectric constant of water is very high (80), the soil is (3-10). Therefore, when the moisture content in the soil changes, the dielectric constant of the soil also changes greatly. This series of soil moisture sensor circuit reduces the influence of temperature change on measurement. Using digital technology and durable materials, the measurement accuracy is high and the cost is low. The sensor can continuously monitor the water content of multiple plots and different soil depths for a long time.
Product parameters
| Basic parameter | |
|---|---|
| Sensor principle | Frequency domain reflection FDR |
| Measurement parameter | Soil volumetric water content |
| Measuring range | Saturated water content |
| Moisture range | 0-60%m³/m³ |
| Temperature range | 0 to 50 ℃ |
| Output signal | 4 to 20mA, RS485 (Modbus-RTU protocol), |
| 0 to 1VDC, 0 to 2.5VDC | |
| Supply voltage | 5-24VDC, 12-36VDC |
| Moisture accuracy | 3% (after rate) |
| Temperature accuracy | Plus or minus 0.5 ℃ |
| Resolution | 0.10% |
| Response time | < 500ms |
| Operating environment | Outdoor, the appropriate ambient temperature is 0-45℃ |
| Working current | 45-50mA, with temperature < 80mA |
| Cable length | 5 m standard (or custom) |
| Shell material | ABS engineering plastics |
| Probe material | 316 stainless steel |
| Gross weight | 500g |
| Class of protection | IP68 |

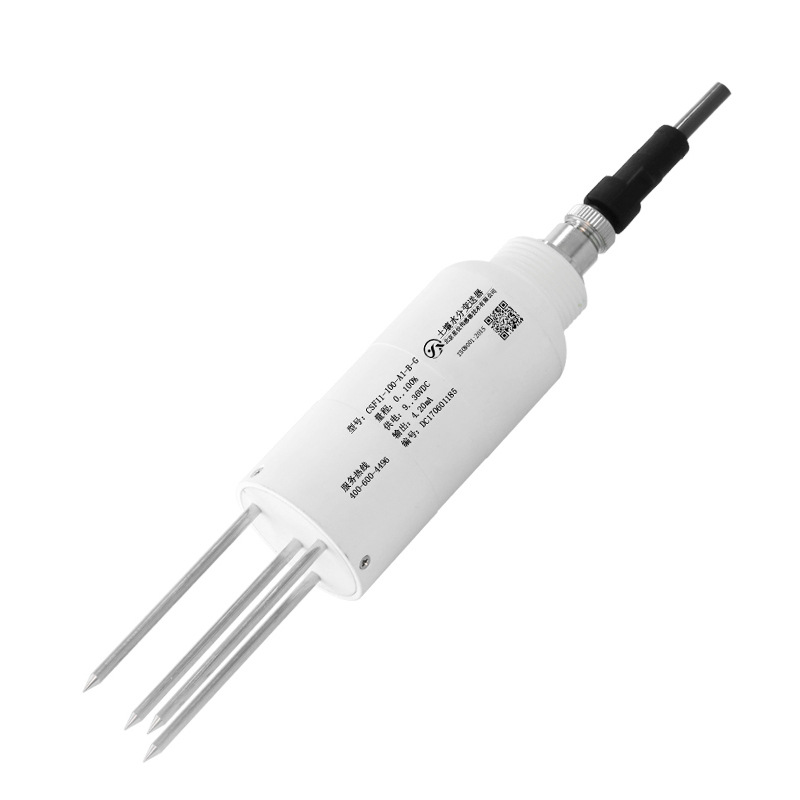

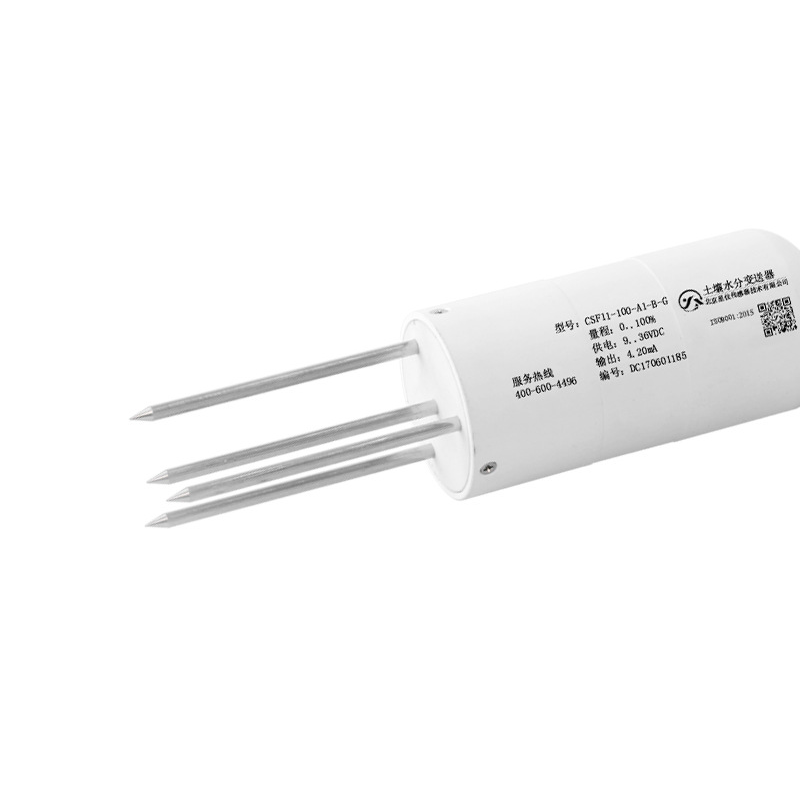

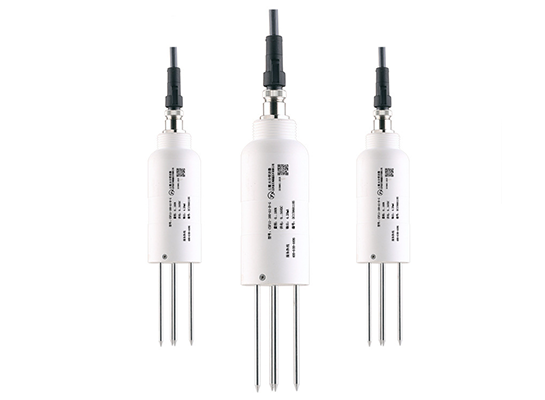

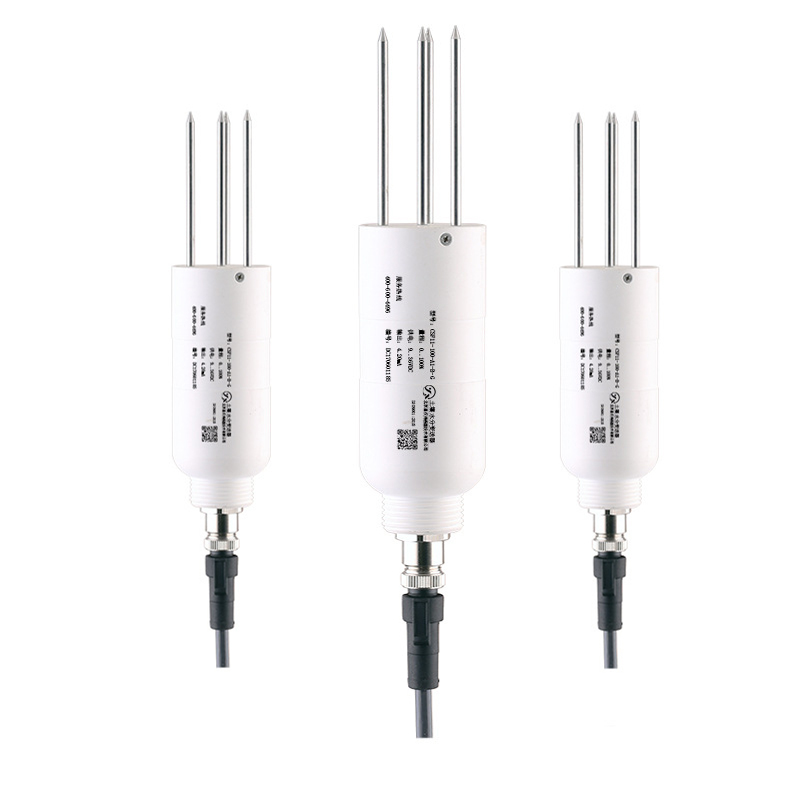

Product Display
Rapid measurement of soil moisture in fields is required in soil and water conservation monitoring, soil hydrology monitoring, fine agricultural production, irrigation and other fields. Its determination methods include drying method, ray method, dielectric property method, nuclear magnetic resonance method, separation tracer method and remote concentration method, etc. Among them, dielectric property method is the use of soil dielectric property measurement, can achieve rapid non-destructive measurement of soil moisture, specifically can be divided into TDR principle based on time domain reflectometry and FDR principle based on frequency domain reflectometry.
a) Measure the volumetric water content of the soil in the 200mm volume country around the probe
b) The soil moisture sensor is designed with 100MHz circuit
c) Low sensitivity in high salinity and viscous soils)
d) High protection (IP68), can be buried in the soil for a long time
e) Wide voltage power supply, nonlinear correction, high accuracy, high consistency
f) Small size, light weight and easy installation
g) lightning protection, frequency interception kilodisturbance design, strong anti-interference ability h) wiring reverse and overvoltage protection, current limiting protection (current output)

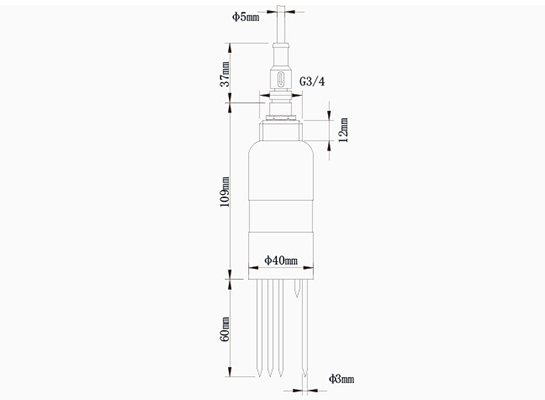

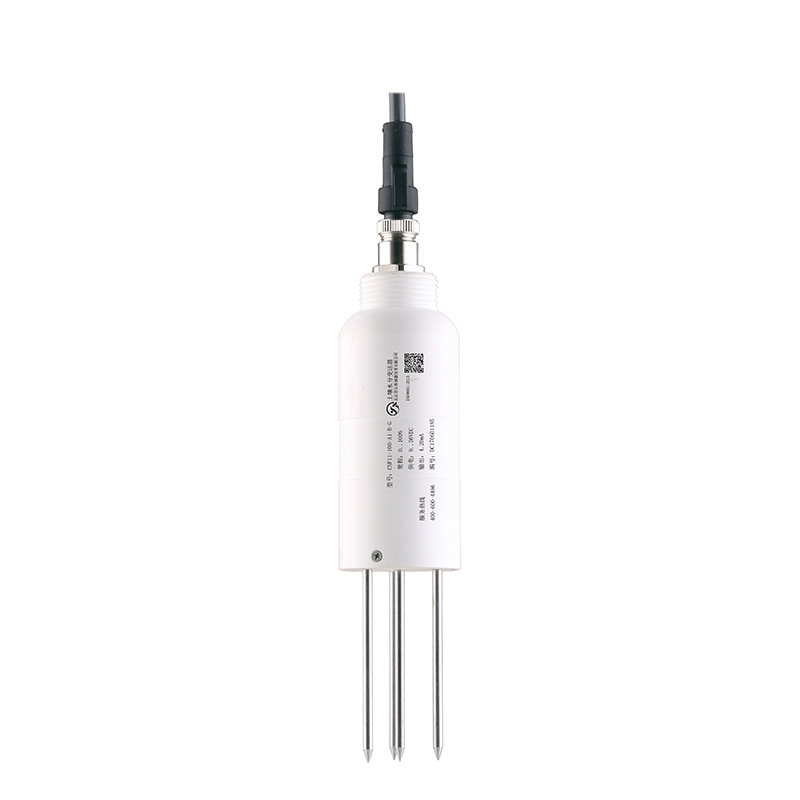

Size & Interface

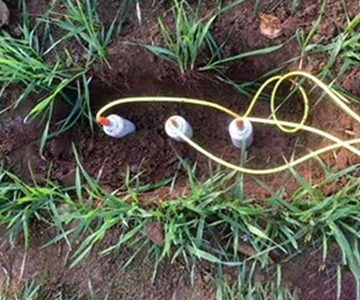

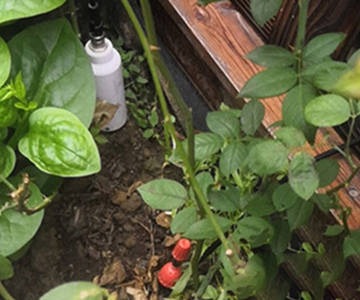

Application Cases
