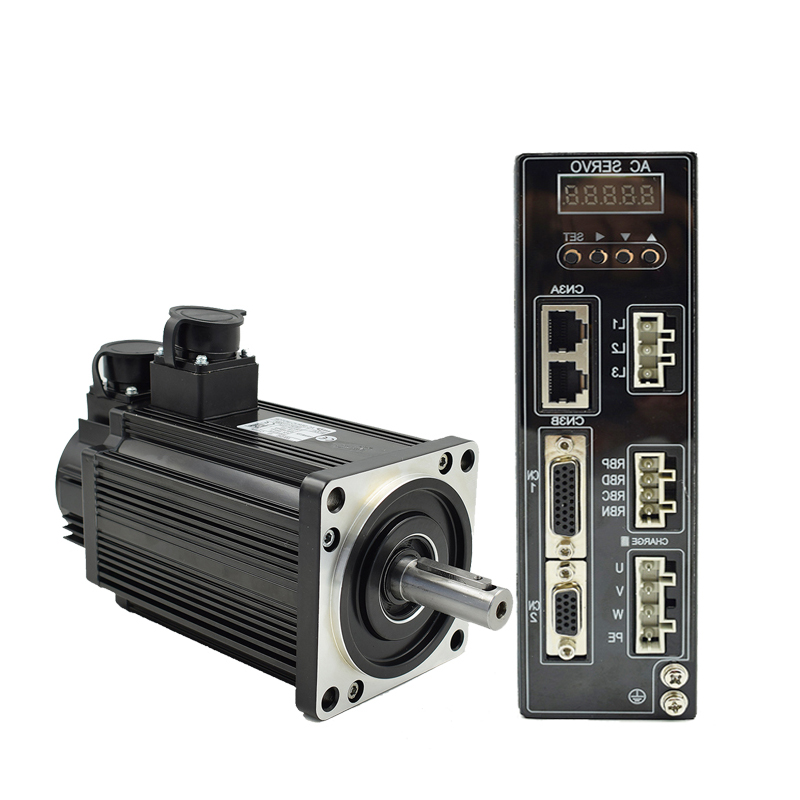

AC servo motor and driver 2.3kw 15nm
High quality hot selling CNC AC servo motor and driver 2.3kw 15nm servo motor
- Model Number ：SZGH-13230AC
- Type：SERVO MOTOR
- Frequency：1500rpm
- Phase：Single-phase
- Protect Feature ：Drip-proof
- Efficiency：IE 4
USD： 359
ablity：Monthly Output100
- Product Description
- Product Params
Product Description
Product Description

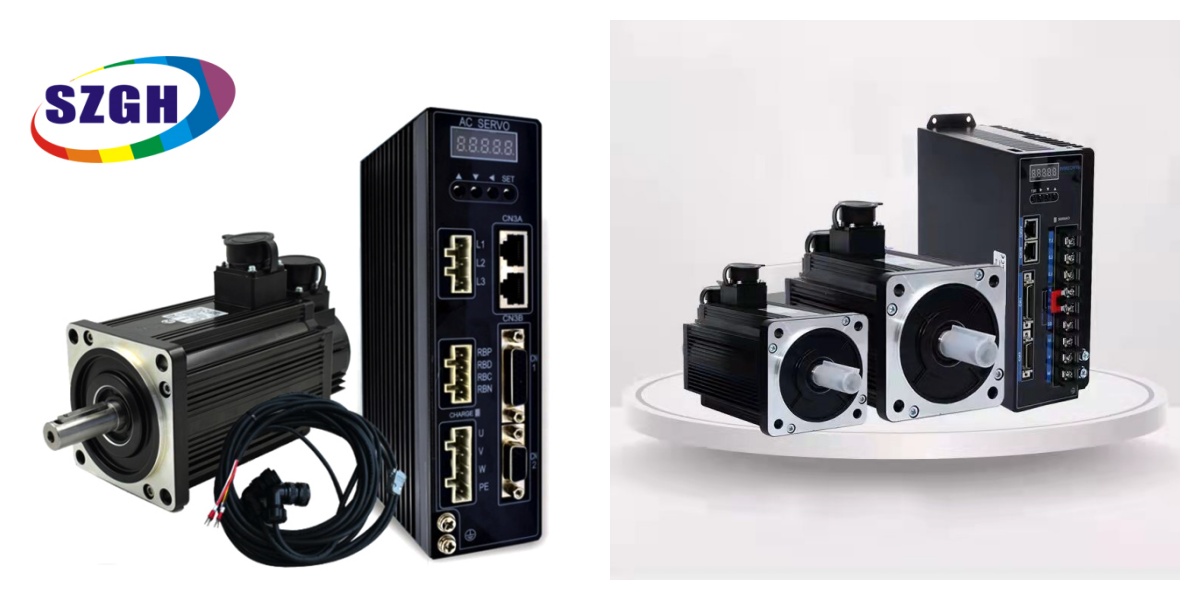

SZGH-13230AC is 2.3KW ,15NM and 1500RPM servo motor, it is low cost , and very general-purpose type. Imported feedback components,original imported low-noise motor.The supporting servo drive is SZGH-SD2026, that matching for 2.3KW servo motor.
Product Specifications
Driver
Model Control
Mode Rated
Voltage (A) Current(A) Encoder
Type Matched Motor Torque Position velocity SZGH-SD2004 √ √ √ Single
or 3phase 220VAC 9 Increment 50-600W SZGH-SD2010 √ √ √ Single
or 3phase 220VAC 12 Increment 750W-1.0KW SZGH-SD2026 √ √ √ Single
or 3phase 220VAC 18 Increment 750W-3.8KW SZGH-SD4038 √ √ √ 3phase
380VAC 18 Increment 2.3KW-3.8KW SZGH-SD4075 √ √ √ 3phase
380VAC 28 Increment 3.5KW-7.5KW

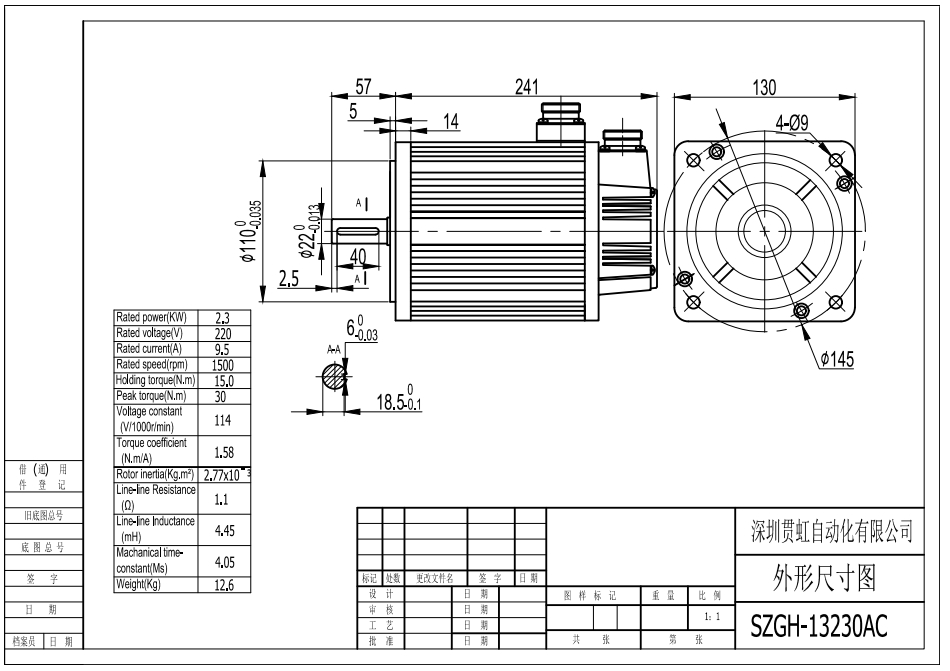

Product parameters
Model Number SZGH-13230AC Frame size (mm) 130 Rated Power (w) 2300 Torque (N.M) Continuous 15 Peak 30 Rated Speed (r/min) 1500 Rated Current (A) 9.5 Rated Voltage (V) 220 Rotor Inertia (kg.㎡x10-4) 27.7 Encoder Resolution (PPR) Increment type 2500 Absolute type 17 bit Motor Length (mm) 241 Brake motor (/T) Length 322 Diameter of Axle (mm) 22 Weight (kg) 14.4
Application
Service & Technical Support
- CERTIFIED ACTUAL PRODUCTS - We have a zero-tolerance policy
for asset recovery vendors.
- PROFESSIONAL TECHNICAL ENGINEER TEAM - possible fastest response and support to clients' application demand.
- UALITY GUARANTEE - Free, one-years warranty and life-long maintenance. Any quality problem,SZGH is committed to following up all the way.
- FAST, PROFESSIONAL AND RELIABLE INTERNATIONAL
DELIVERY - flexible and low cost
delivery solution for clients.
