CNC Servo Motor 130mm 220V 1kw 4Nm 2500Rpm Matching Driver

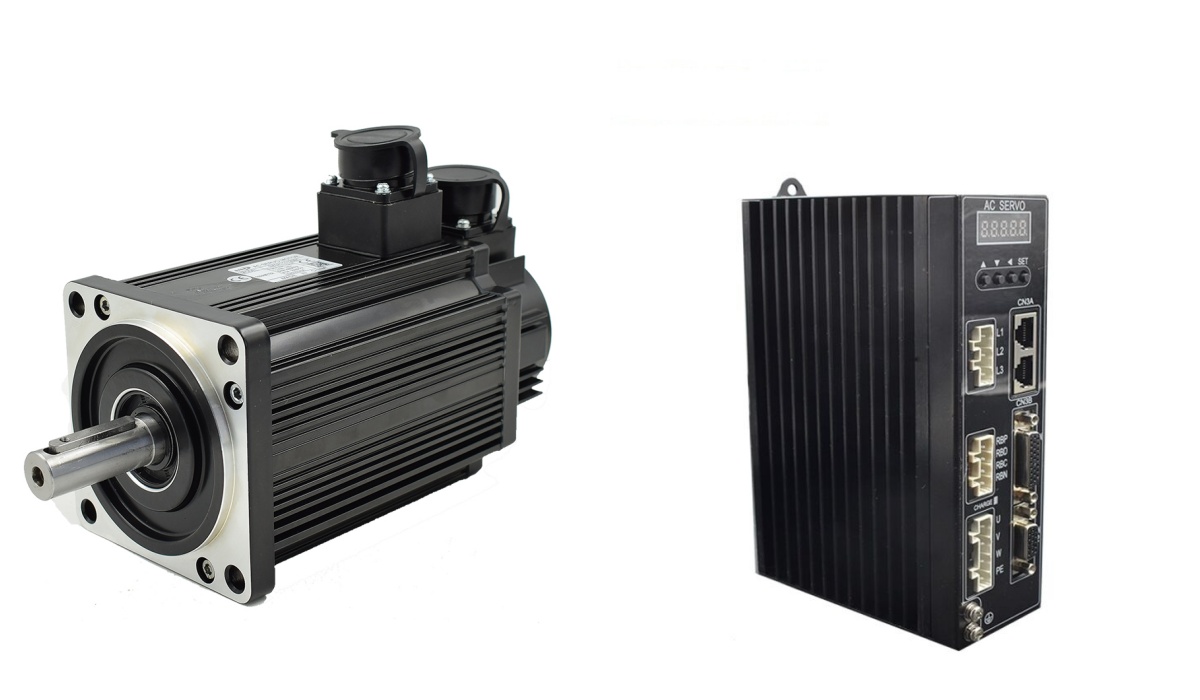

CNC servo motor until kit 130mm 220V 1kw 4Nm 2500Rpm Ac Servo Motor and Drive Kit with 5M Cable

Model Number：SZGH-13100CC+SZGH-SD2026
Type：SERVO MOTOR
Frequency：50Hz
Phase：Single-phase
Protect Feature：Waterproof
Efficiency：IE 4

USD： 279

ablity：Monthly Output100

contact shop

Product Description
Product Params

Product Description

Product Description

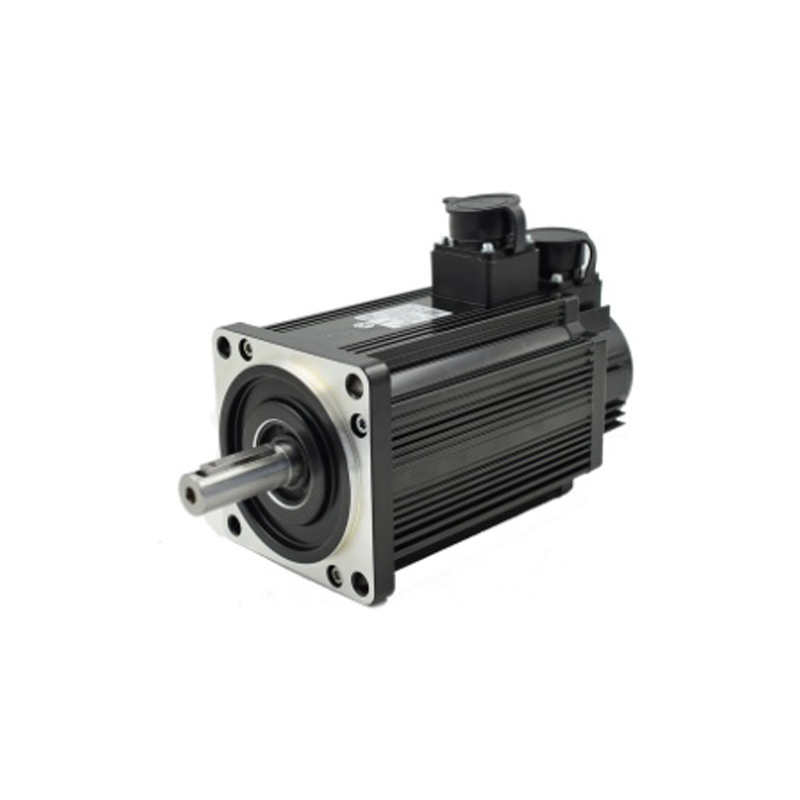

Direction for servo motor

SZGH-13100CC is 1KW ,4NM and 2500RPM servo motor, it is low cost , and very general-purpose type. Imported feedback components,original imported low-noise motor.
There are two kinds type servo driver, SZGH-SD2026,SZGH-201,SZGH-301, that matching for 1KW servo motor.
There is also one dual servo driver,SZGH-302,that can control two pcs of 1KW servo motors synchronously.

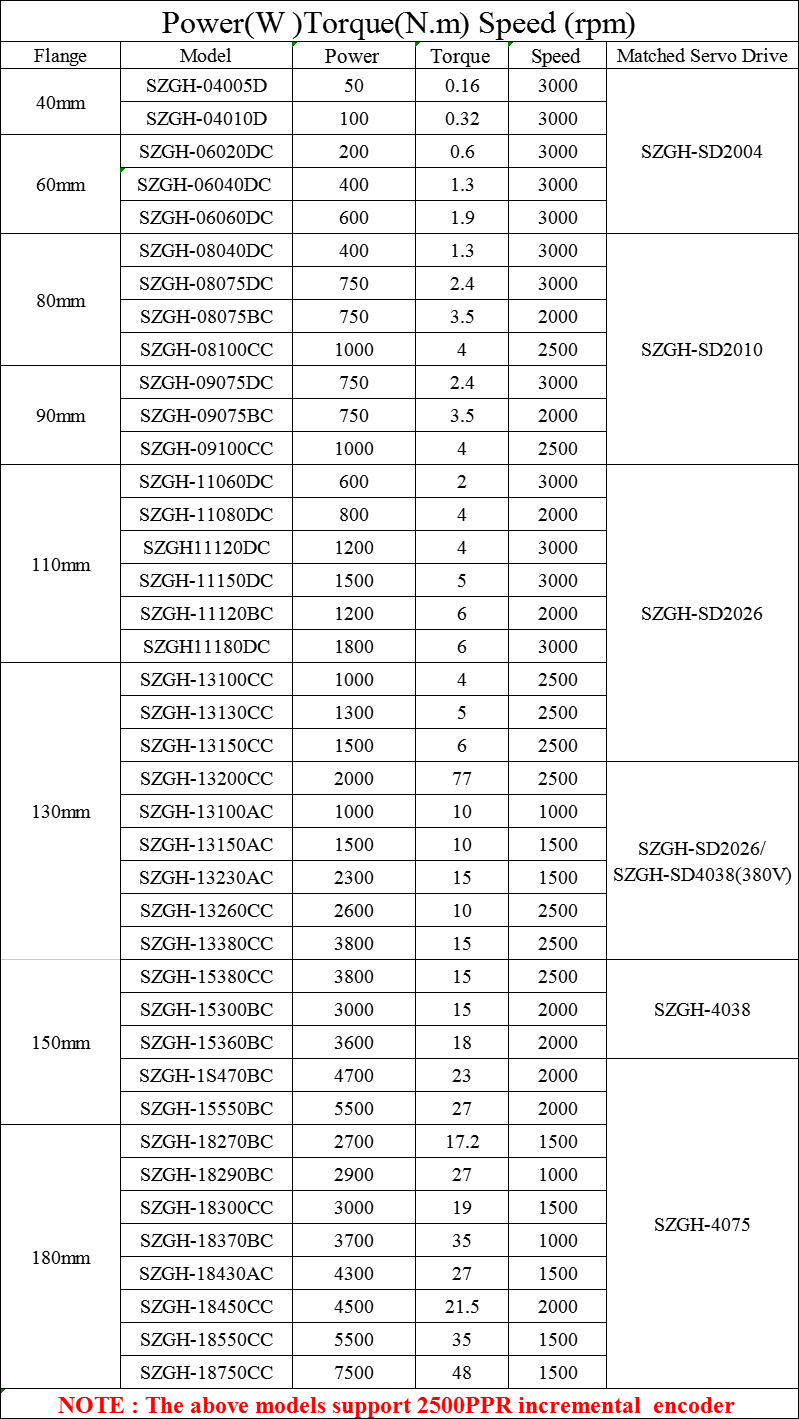

Related Model : SZGH-08100CC ,
SZGH-09100CC ,
SZGH-10100DC ,
SZGH-13100AC
Description of  Driver

Input Power : Single Three Phase AC220V-15%~+10% SO/60HZ

Control model :

0: Position Control; 1: Speed Control;

2: Torque Control; 3: Position/Speed Control;

4: PositionTorque Control; 5: Speed Torque Control

Protective Function : Over-speed Over-voltage Under-voltage Over-current OverloadEncoder Error/ Control Power Eror/ Position Offset Eror

Driver Load : Less than 3times of rotor inertia

Display : 5 bits LED indicator display 4 Operate keys

Communication : RS485

Position Control : Input Model , Electric Ratio

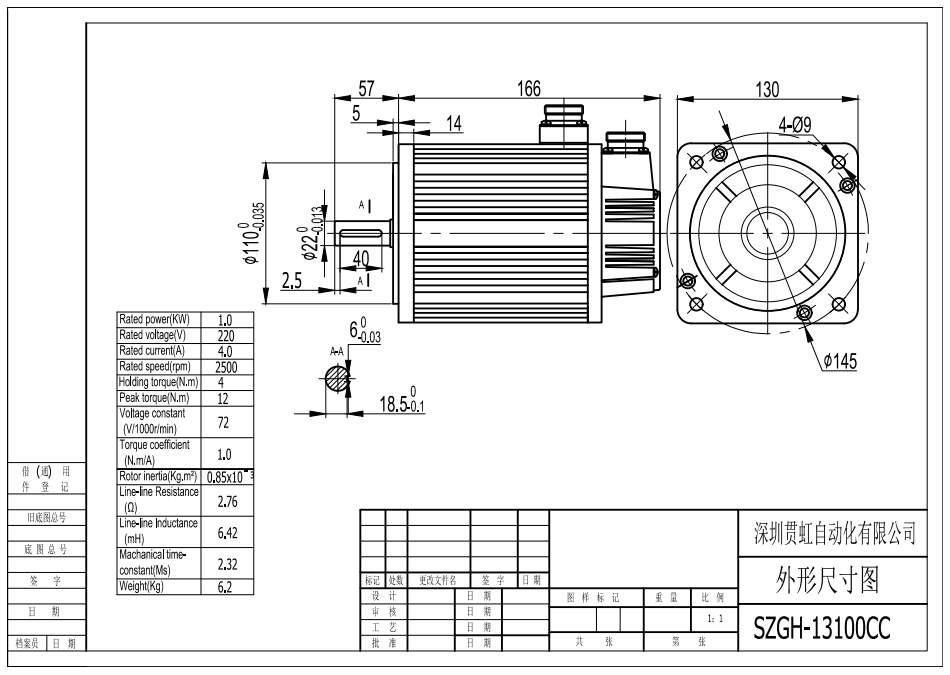

Product parameters

Model Number		SZGH-13100CC
Frame size (mm)		130
Rated Power (w)		1000
Torque (N.M)	Continuous	4
	Peak	12
Rated Speed (r/min)		2500
Rated Current (A)		4
Rated Voltage (V)		220
Rotor Inertia (kg.㎡x10^-4)		8.5
Encoder Resolution (PPR)	Increment type	2500
	Absolute type	17 bit
Motor Length (mm)		166
Brake motor (/T) Length		223
Diameter of Axle (mm)		22
Weight (kg)		6.2

Product Specifications

Driver Model	Control Mode			Rated Voltage (A)	Current(A)	Encoder Type	Matched Motor
Driver Model	Torque	Position	velocity	Rated Voltage (A)	Current(A)	Encoder Type	Matched Motor
SZGH-SD2004	√	√	√	Single or 3phase 220VAC	9	Increment	50-600W
SZGH-SD2010	√	√	√	Single or 3phase 220VAC	12	Increment	750W-1.0KW
SZGH-SD2026	√	√	√	Single or 3phase 220VAC	18	Increment	750W-3.8KW
SZGH-SD4038	√	√	√	3phase 380VAC	18	Increment	2.3KW-3.8KW
SZGH-SD4075	√	√	√	3phase 380VAC	28	Increment	3.5KW-7.5KW

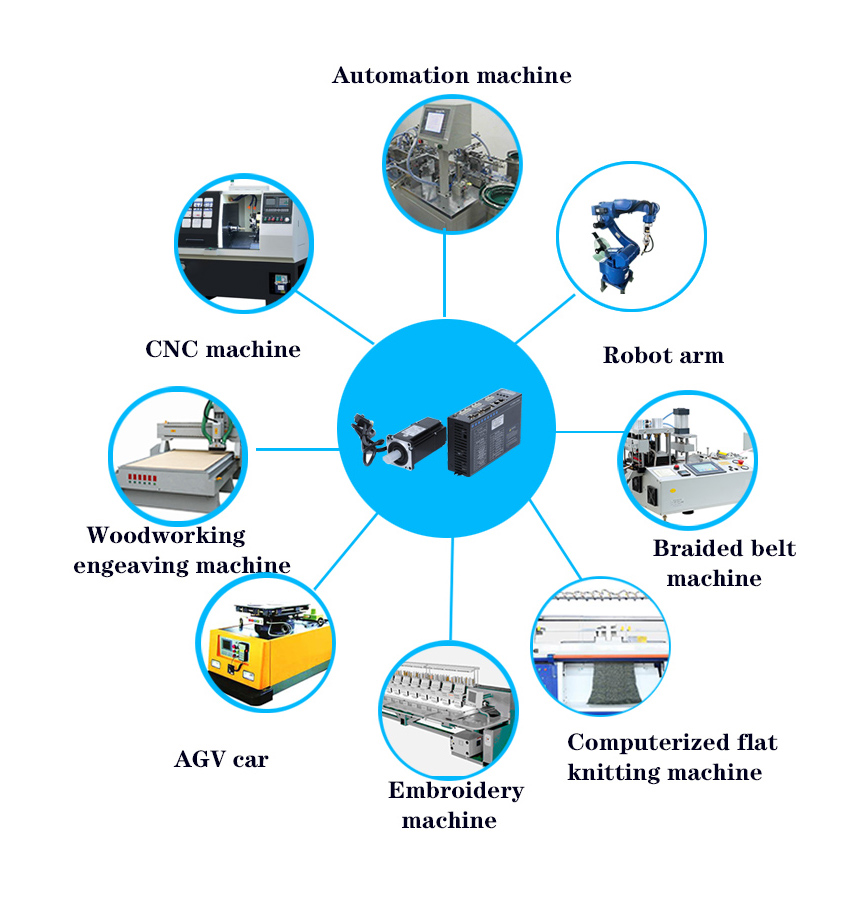

Application
