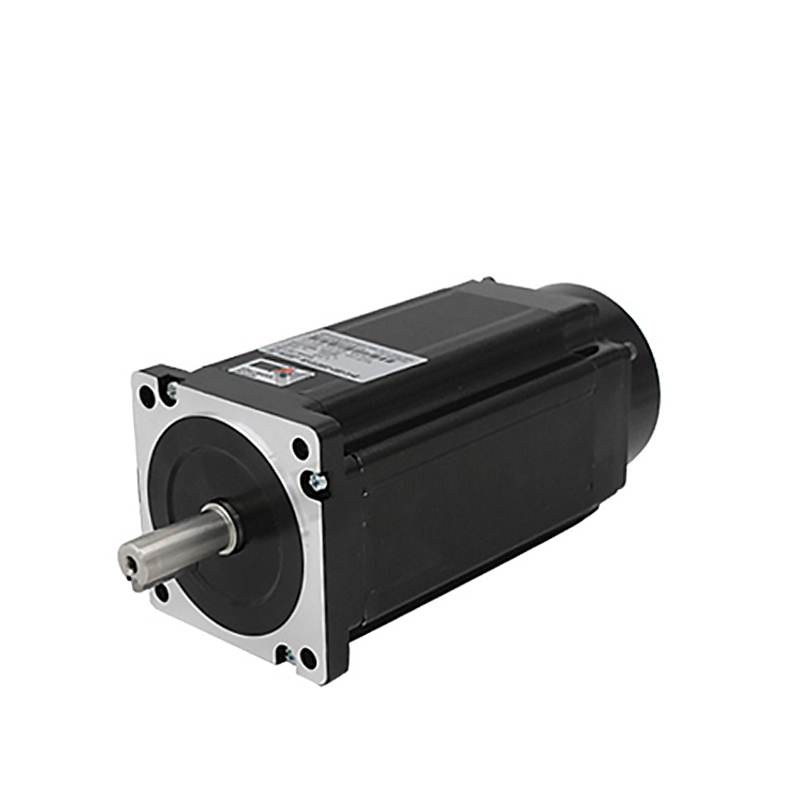

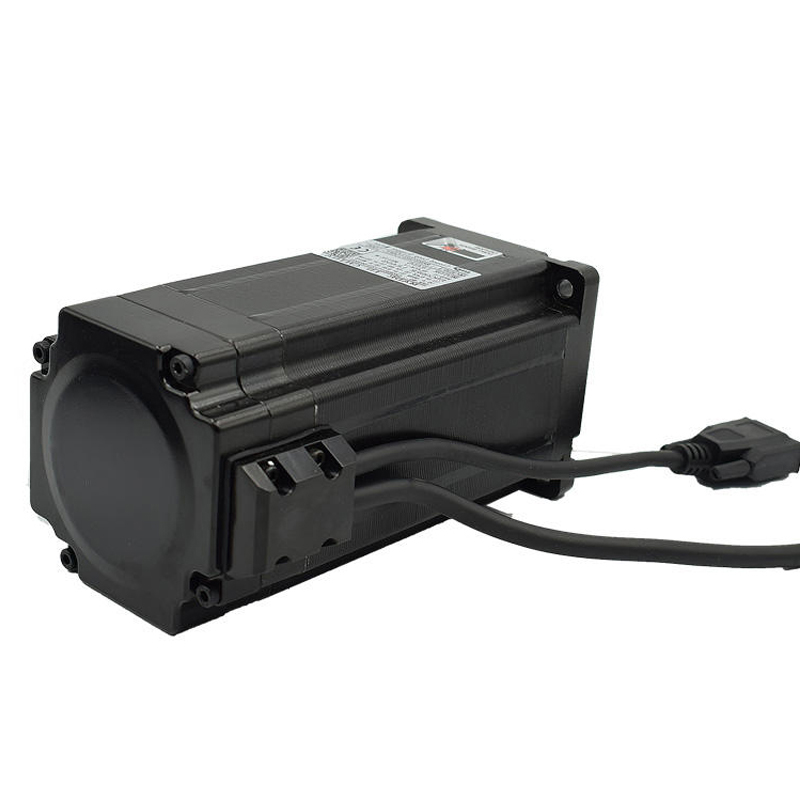

Stepper motor 56BYGH476-447 + driver SZGH-2DM556
High-precision and high-performance 2.0N.M stepper motor and supporting driver
- Modle：56BYGH476-447
- Frame Size：NEMA23
- Axle Diameter(mm)：8
- Length(mm) ：76
- Holding Torque(N*m)：2.0N.m
- Step angle(°) ：1.8
- Current(A/Phase)：4.7
- Matching Driver：SZGH-2DM556
USD： 55
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
| Modle | 56BYGH476-447 |
| Frame Size | NEMA23 |
| Axle Diameter(mm) | 8 |
| Length(mm) | 76 |
| Holding Torque(N*m) | 2.0N.m |
| Step angle(°) | 1.8 |
| Current(A/Phase) | 4.7 |
| Matching Driver | SZGH-2DM556 |
Electrical parameter table Step angle 1.8°±5% Phase 2 Phase Rated current 3.0 A Resistance 1.0Ω±10%/ Phase (At 20℃) Inductance 3.7 mH±20%/Phase Hold torque 1.8 N.m Insulation B Rotor inertia 470 g.c㎡ Weight 1.0 Kg
Product Specifications
| Modle | Frame Size | Axle Diameter(mm) | Length(mm) | Holding Torque(N*m) | Step angle(°) | Current(A/Phase) | Matching Driver |
| 56BYGH441-420 | NEMA23 | 6.35 | 41 | 0.4N.m | 1.8 | 2 | SZGH-2DM556 |
| 56BYGH255-821 | NEMA23 | 6.35 | 55 | 0.9N.m | 0.9 | 2.1 | |
| 56BYGH454-828 | NEMA23 | 6.35 | 54 | 0.9N.m | 1.8 | 2.8 | |
| 56BYGH476-828 | NEMA23 | 6.35 | 76 | 1.3N.m | 1.8 | 2.8 | |
| 56BYGH476-447 | NEMA23 | 8 | 76 | 2.0N.m | 1.8 | 4.7 | |
| 56BYGH480-450 | NEMA23 | 8 | 80 | 2.2N.m | 1.8 | 5 | |
| 56BYGH480-830 | NEMA23 | 8 | 80 | 2.2N.m | 1.8 | 3 |
