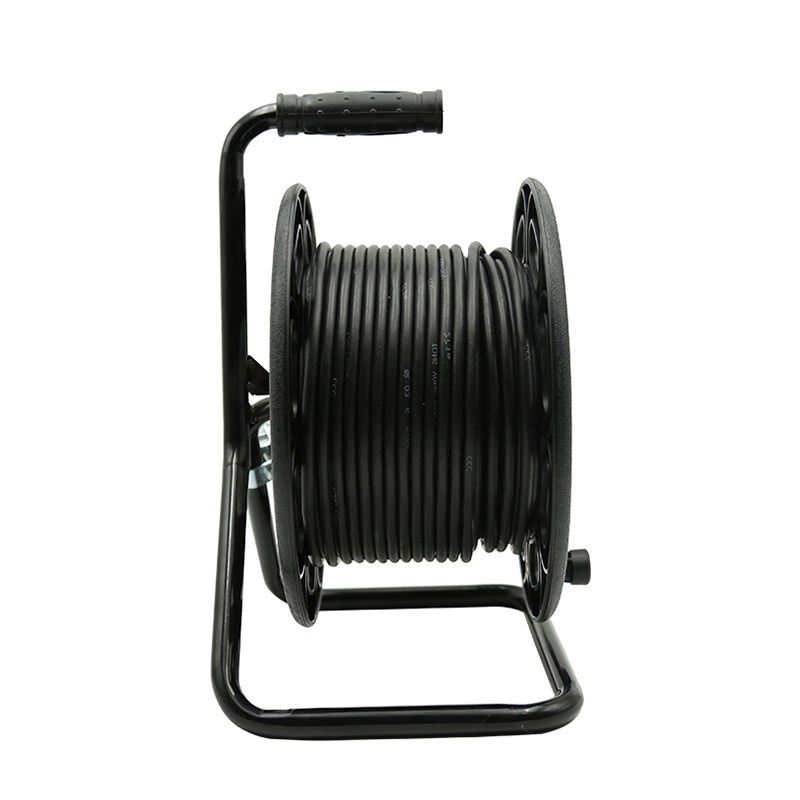

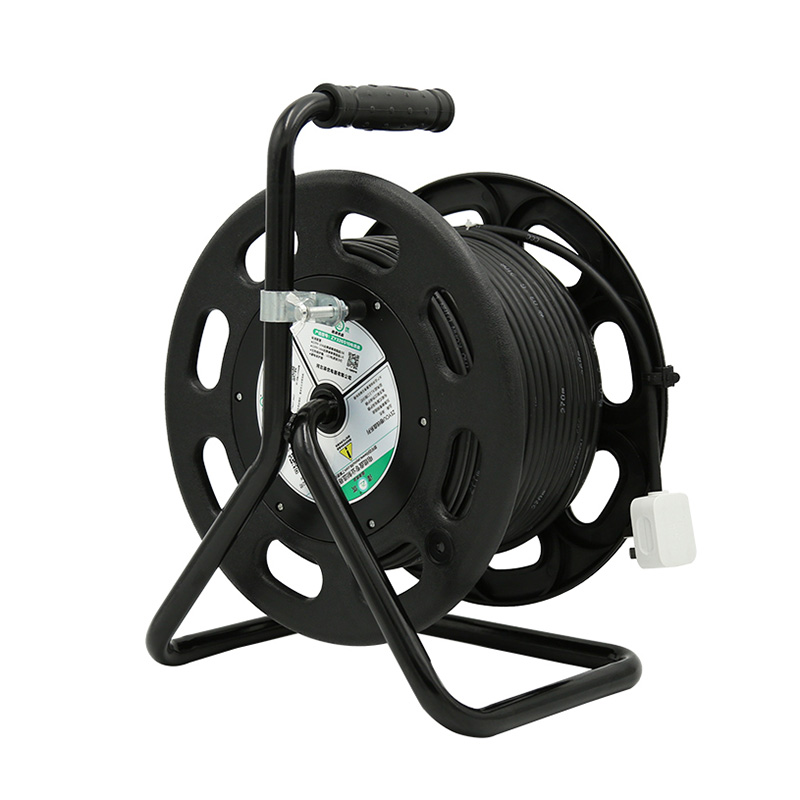

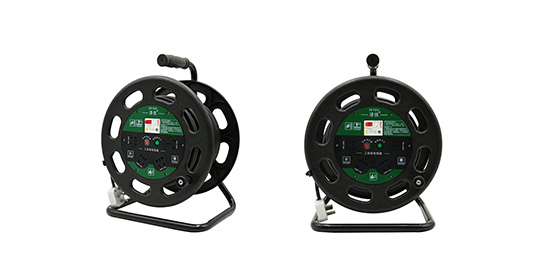

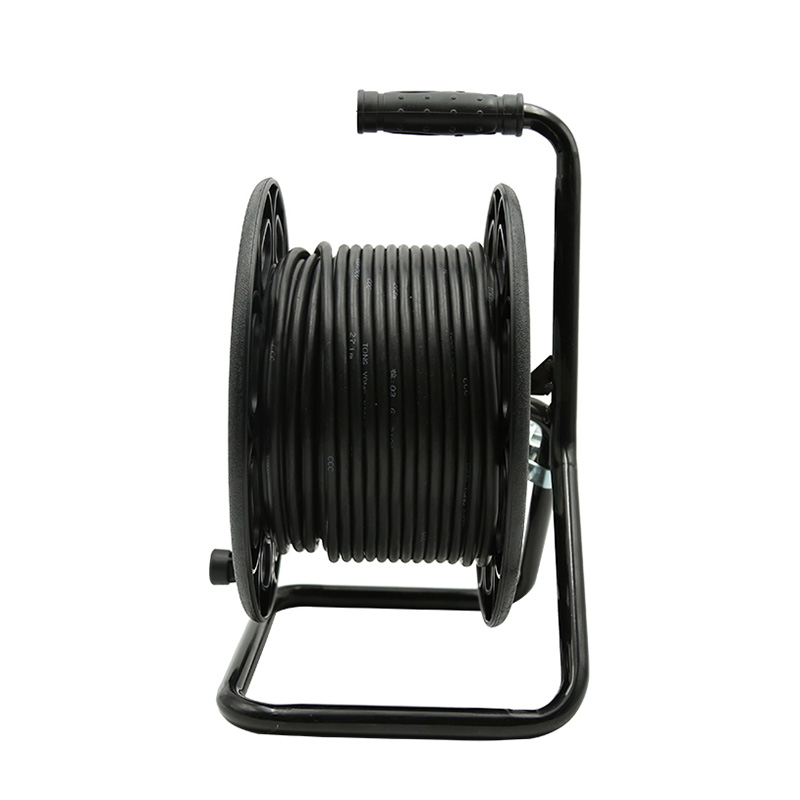

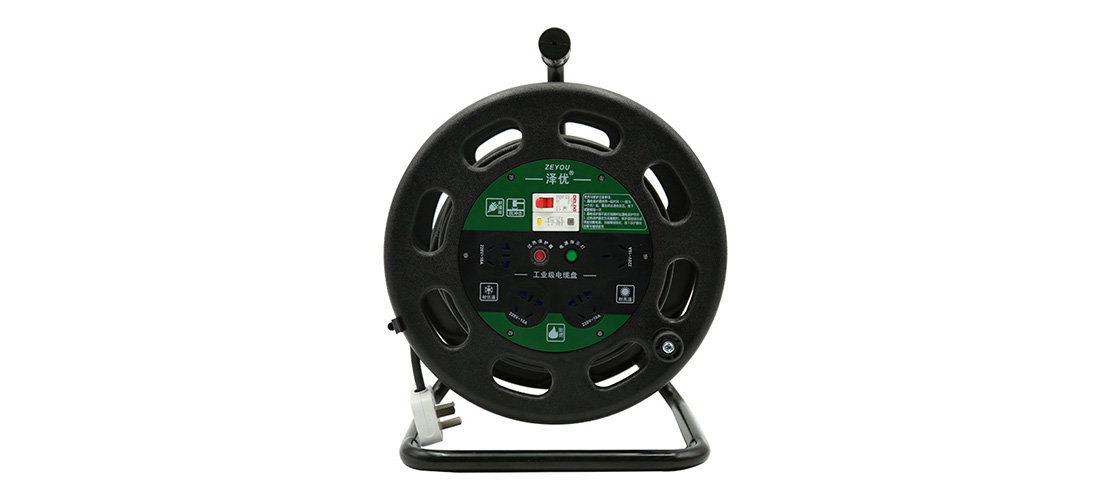

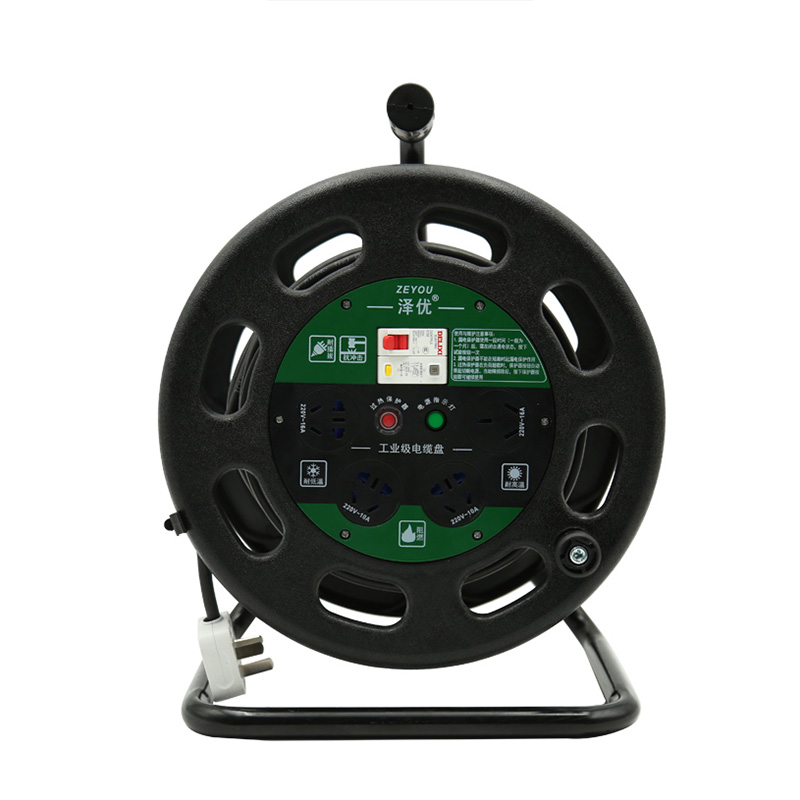

Product Description
Engineering power reel, spool and cable reel are equipment used in the engineering field to receive, transport and manage cables. They are essentially a device on which cables are wound in an orderly manner to facilitate the use of cables in different engineering environments. These devices can effectively prevent cable entanglement and knotting during use and storage, and protect the cable from physical damage to a certain extent.
Product Features
Zeyou Electric

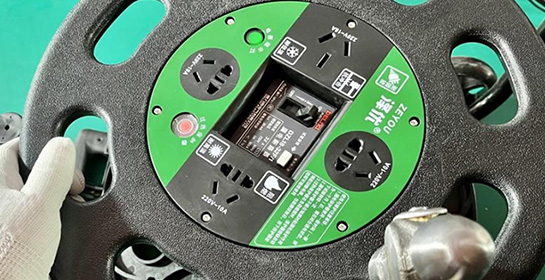

The security inspector checks the circuit of the components
Zeyou Electric
The security inspector checks whether the impact resistance of the disk reaches the standard
Zeyou Electric

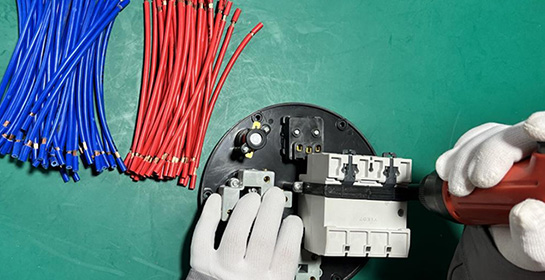

Employees assemble the back of the panel
1, after the power supply, close the leakage protector switch, press the white button, detect whether it will trip, before and after at least three times, if the trip and the indicator light, you can rest assured to use.
2, please do not exceed the rated output power, long time use easy to create fire and other risks.
3, when using, please pull out all the cables, the wire entanglement generates eddy currents, generates heat, increases resistance, the insulation is easy to damage, cause short circuit, resulting in fire.
4. Press the white button of the leakage protector every other month.
5, if you find problems, please contact the dealer or the company in time, do not disassemble without authorization.

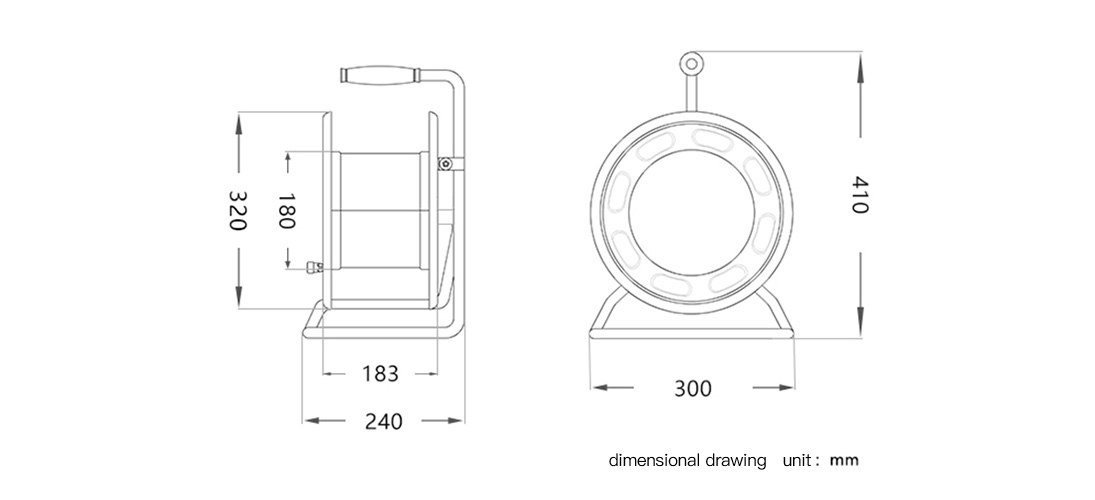

Structure Diagram
Product parameters
| Product model | Line specification * Standard length | Output power when fully rolled | Power output at full stretch |
|---|---|---|---|
| ZY-S32010 | Blank panel | / | / |
| ZY-S32010-B13 | 2*1.5mm²x30m | 900W | 2600W |
| ZY-S32010-B15 | 2*1.5mm²x50m | 900W | 2600W |
| ZY-S32010-B23 | 2*2.5mm²x30m | 1500W | 4400W |
| ZY-S32010-B25 | 2*2.5mm²x50m | 1500W | 4400W |
| ZY-S32010-C13 | 3*1.5mm²x30m | 900W | 2600W |
| ZY-S32010-C15 | 3*1.5mm²x50m | 900W | 2600W |
| ZY-S32010-C23 | 3*2.5mm²x30m | 1500W | 4400W |
| ZY-S32010-C25 | 3*2.5mm²x50m | 1500W | 4400W |
Customer Case

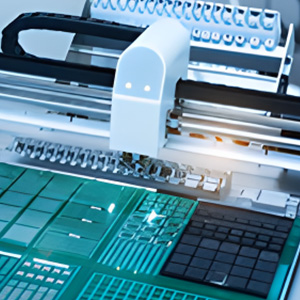

Electronic engineering

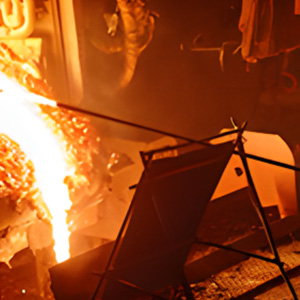

Iron and steel smelting

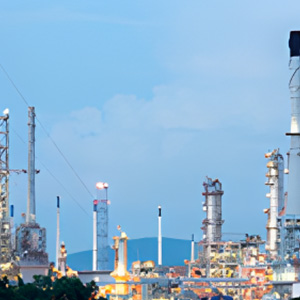

Petrochemical industry

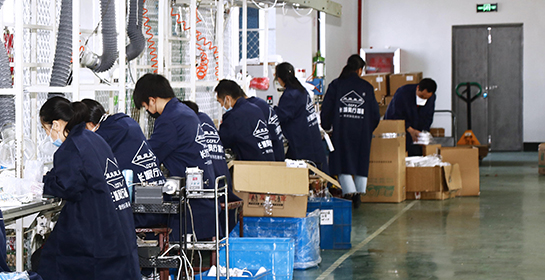

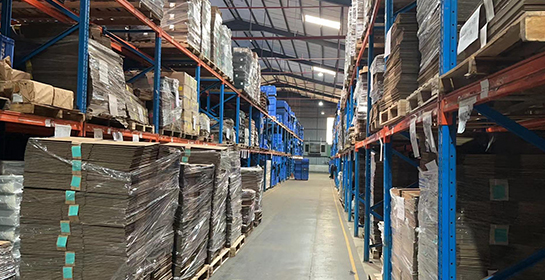

Our Factory

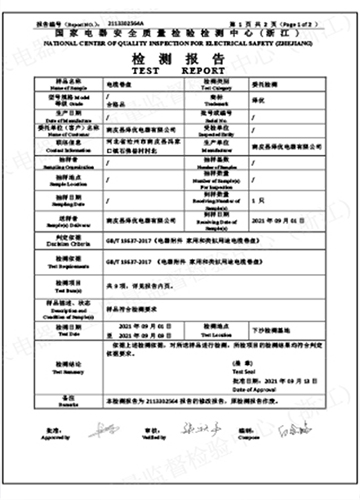

Product Certificate
Service
Manufacturers direct seiko manufacture a tubular cable coil
Good quality Good quality makes good products
Six advantages of strength can not be underestimated 26 years of industry manufacturing experience
Source manufacturers integrity responsible for supporting custom patient service years of experience strict quality control
Pack
Protective material: Wrap a layer of protective material on the surface of the coil, such as plastic film, bubble pad, etc., to prevent scratching and wear during transportation. For electrical coil coils with plugs, sockets and other electrical components, use special protective covers or packaging materials to wrap them well to avoid collision and damage.
Prevent movement and collision: Inside the packaging, use filler such as foam, sponge, etc. to fix the coil coil to prevent movement and collision during transportation. If multiple coils are transported together, place isolation materials between them to avoid friction and collision with each other.
Transport
All modes of transport have measures to ensure the safety of goods, but in practice, the safety performance of different modes of transport is also different. Air transport and railway transport have strict operating norms in the loading and unloading and transportation of goods, and the probability of cargo loss and damage is relatively low. Road transport due to the possibility of complex road conditions, the risk of turbulence and collision of goods is slightly higher, but through reasonable packaging and the choice of reputable transport companies can reduce this risk. Water transport at sea may face risks such as wind and waves, but the safety facilities and cargo fixtures of modern ships can also effectively ensure the safety of goods during transport. Our company will ensure that the product packaging is qualified and firm and choose a strong transportation company to cooperate with the goods safely to the designated place.
