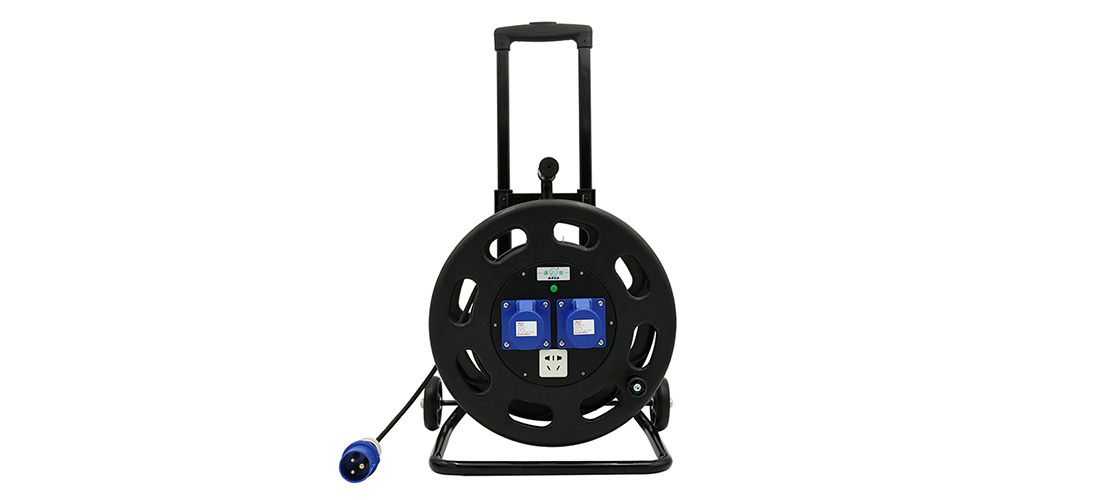

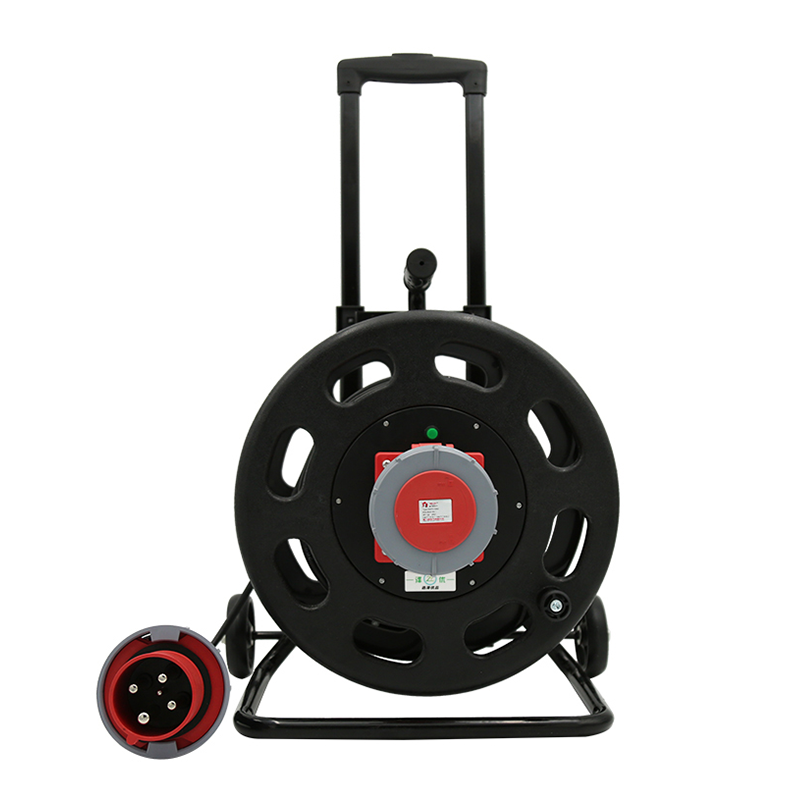

Product Description

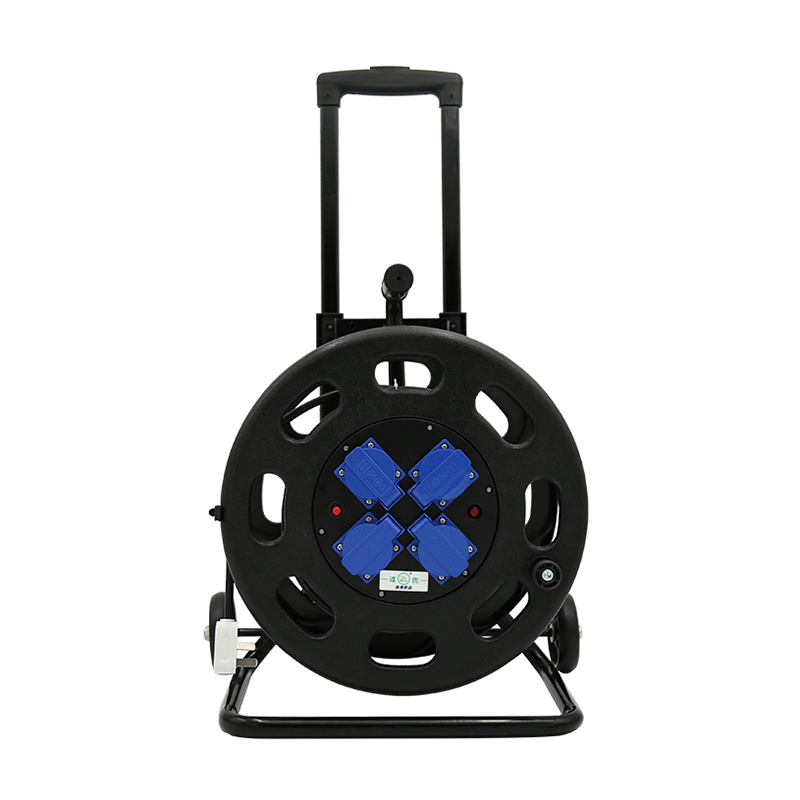

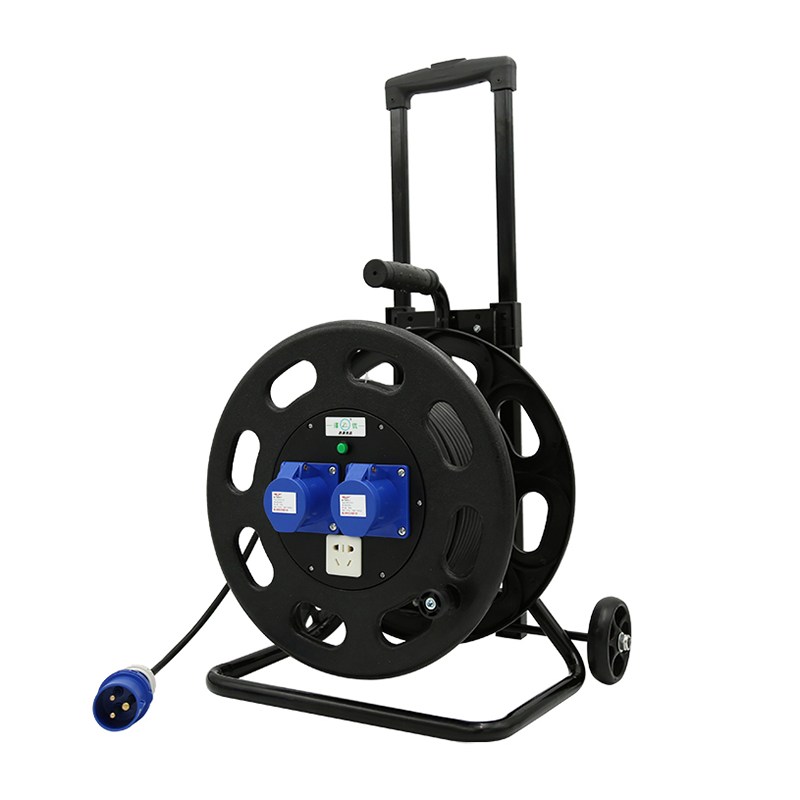

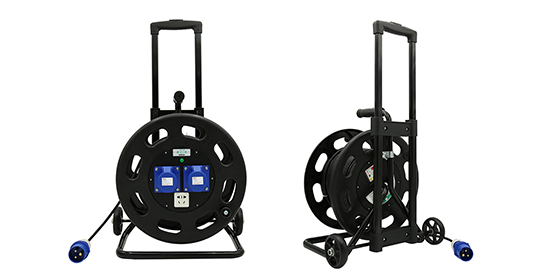

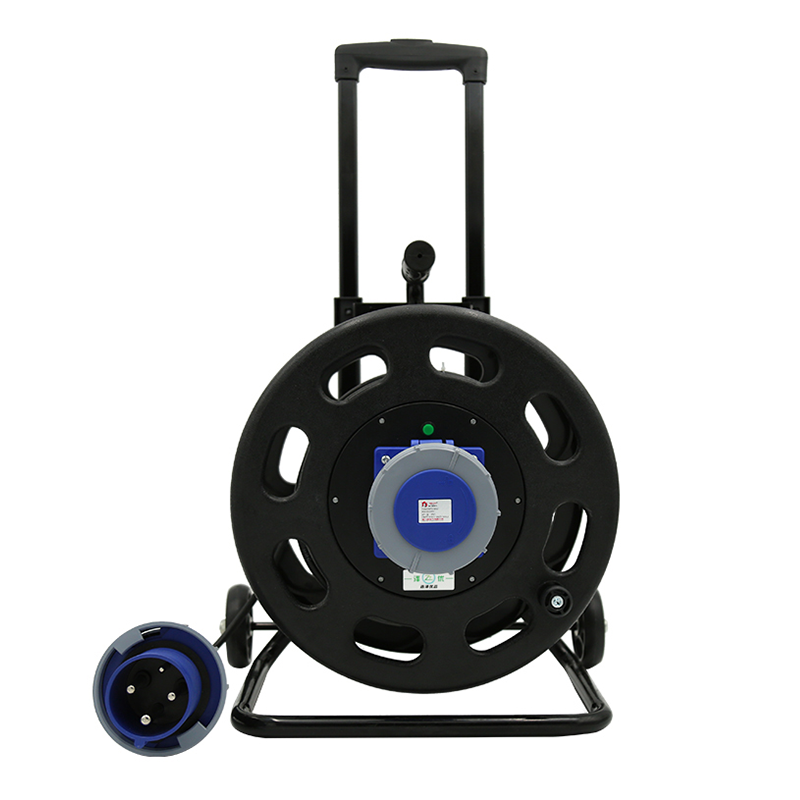

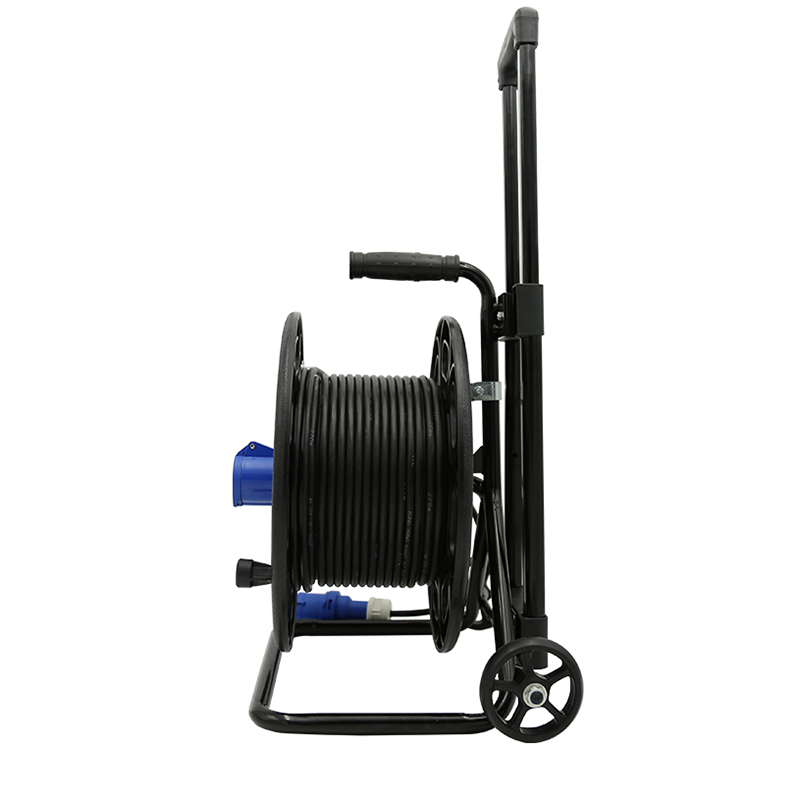

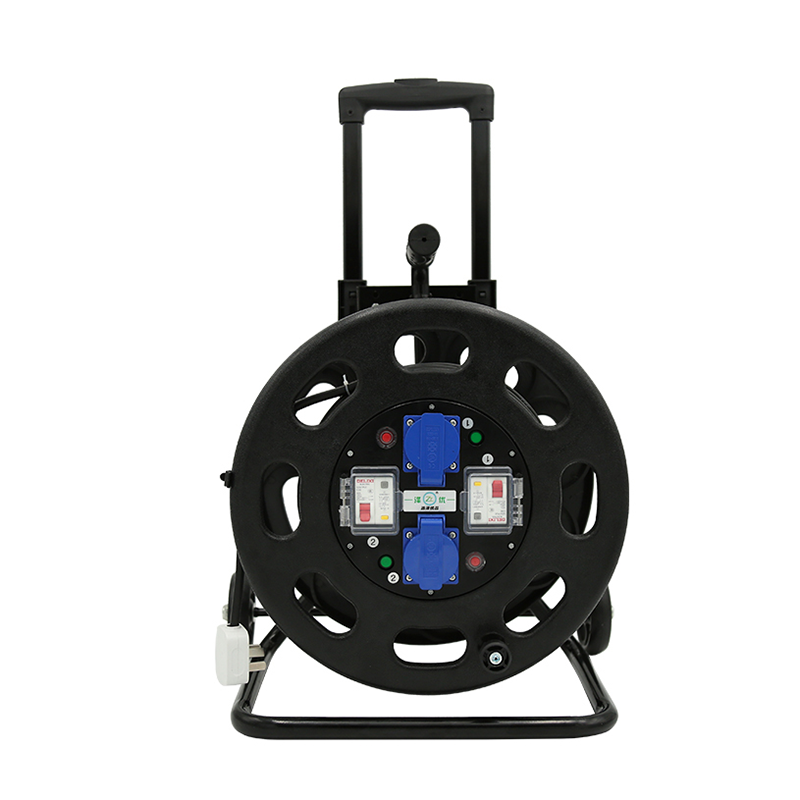

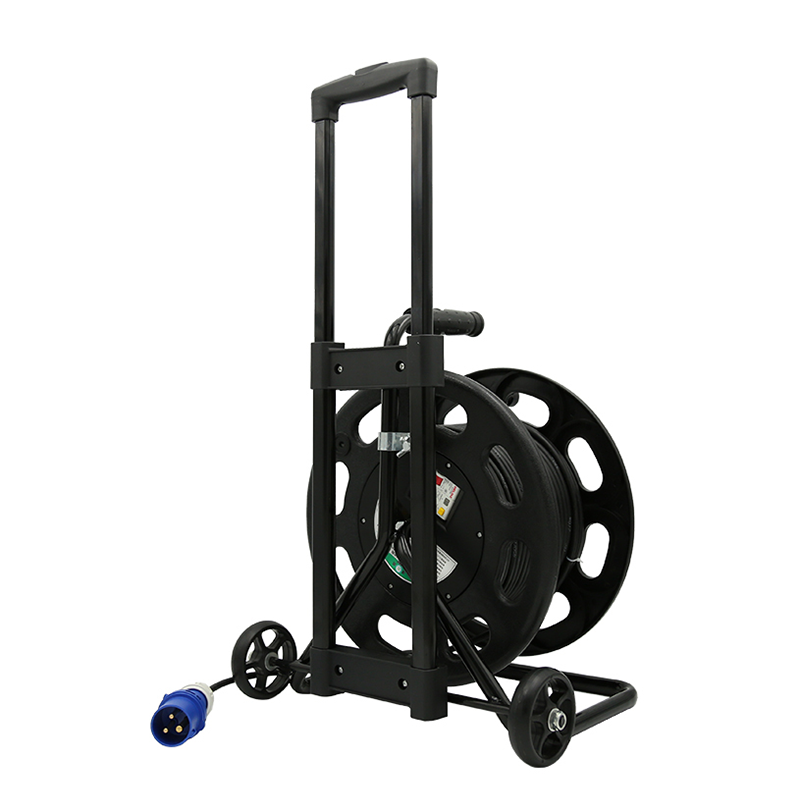

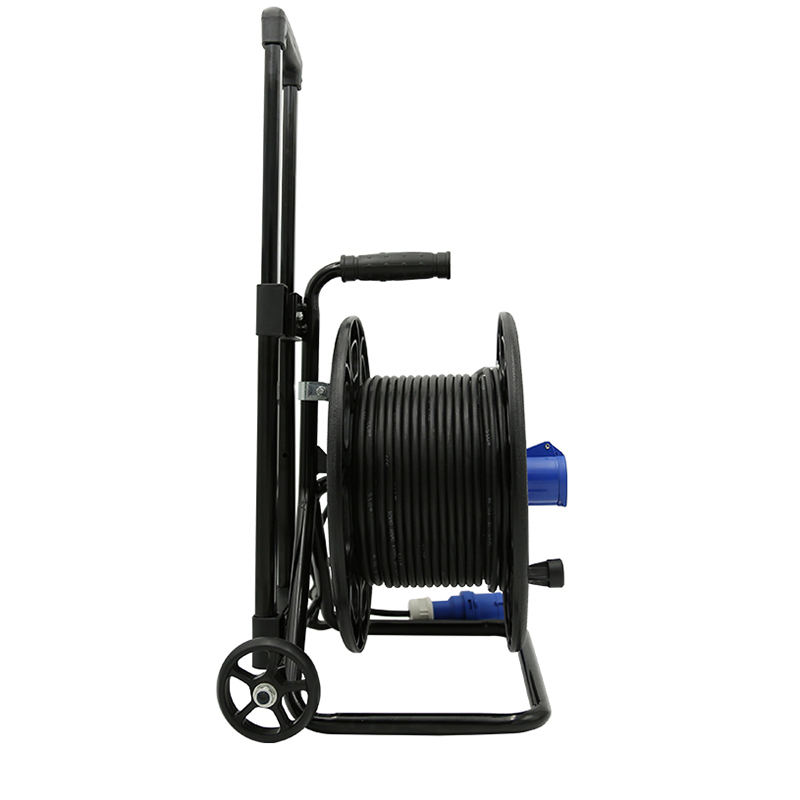

A pull-rod cable reel is a device that facilitates moving and storing cables. It is convenient to use the cable in different engineering environments. These devices can effectively prevent cable entanglement and knotting during use and storage, and protect the cable from physical damage to a certain extent. The telescopic rod enables the cable tray to occupy a smaller space when stored, which is easy to store and manage, and improves the space utilization rate.
Product Features
The use of radiation design, product wear resistance greatly improved
The back reinforcement of the disc body is thickened, and the disc body is more solid and durable, and the impact resistance is greatly improved
The design of anti-retreat nut is humanized, the winding cable is not stuck, and the details reflect the temperature
The larger terminal can access 10 square lines, other brands can only access 2.5 square lines, and the load capacity is greatly improved
O.6MM phosphatic bronze plate, resistant to insertion and removal 6000 times, greatly improved load bearing capacity
100% pure manual welding, higher labor costs than machine welding, bringing a stronger solder joint, ensuring efficiency while ensuring quality, product production layers of testing, conscience control, to ensure safety
01 Thickened phosphor bronze sheet
Large load bearing capacity
Brand protector
02 Brand electrical appliance quality assurance
03 Safe and reliable overheat and overload protection
04 Quality assurance Seiko manufacturing

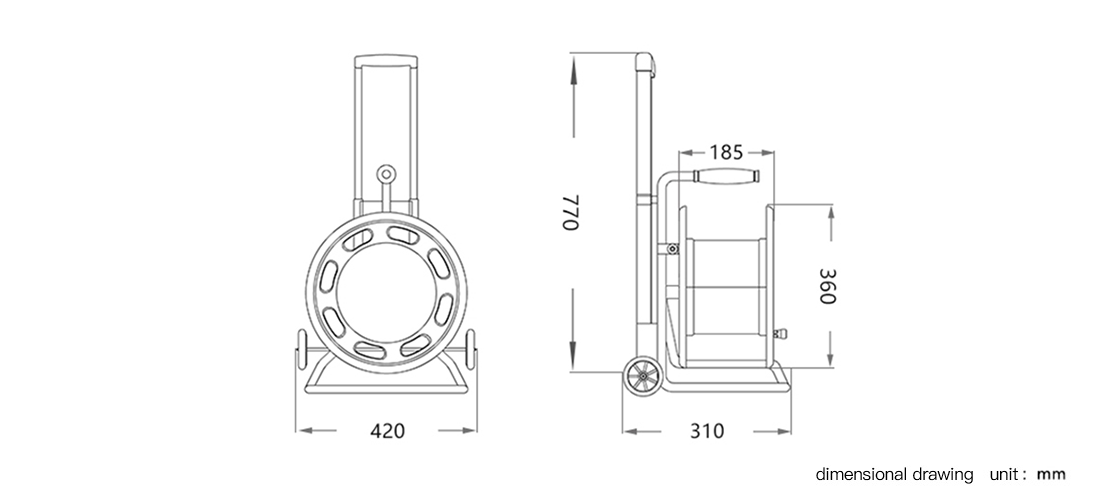

Structure Diagram
Product parameters
| Product model | Line specification * Standard length | Output power when fully rolled | Power output at full stretch |
|---|---|---|---|
| ZY-SL360-4323 | Blank panel | / | / |
| ZY-SL360-4323-C43 | 3*4mm²x30m | 2300W | 7000W |
| ZY-SL360-4323-C43 | 3*4mm²x50m | 2300W | 7000W |
Customer Case

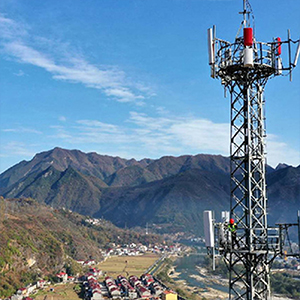

China Mobile
Tangshan Railway Station
China Unicom

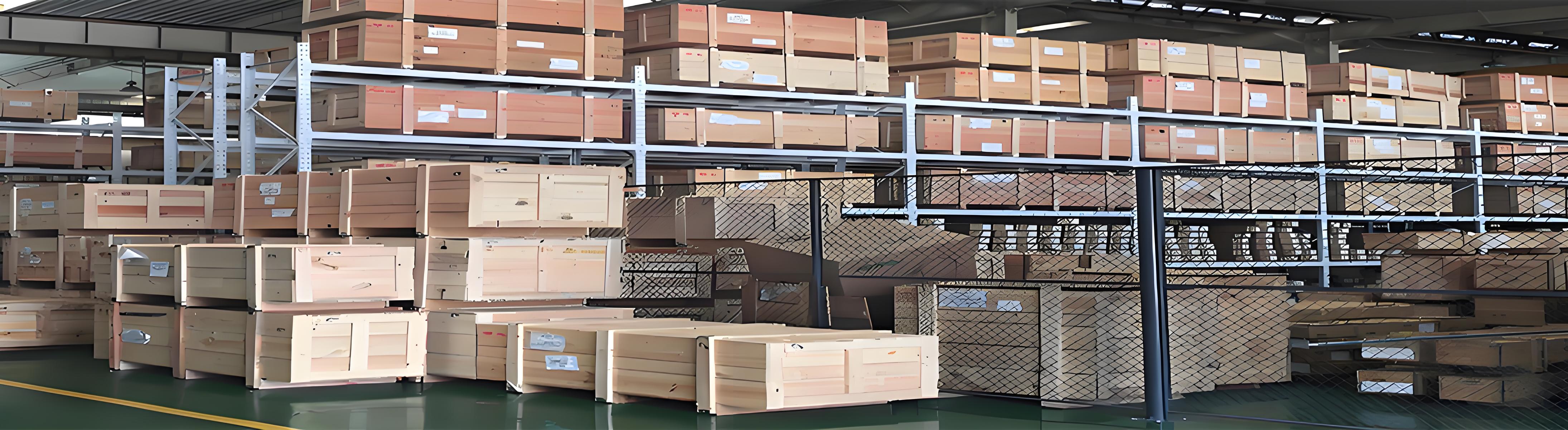

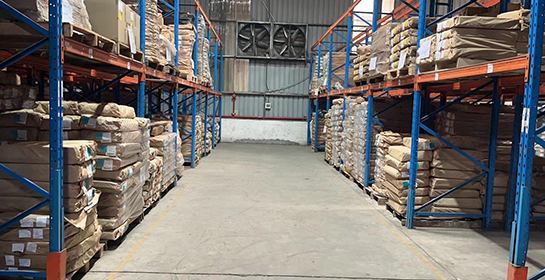

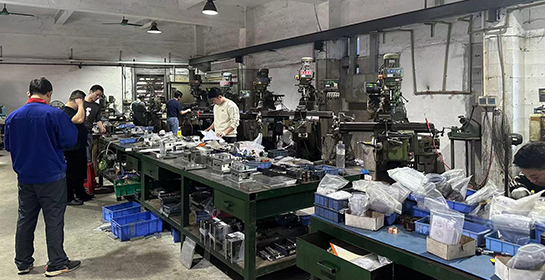

Our Factory

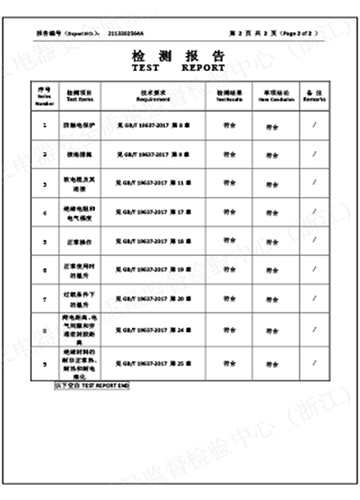

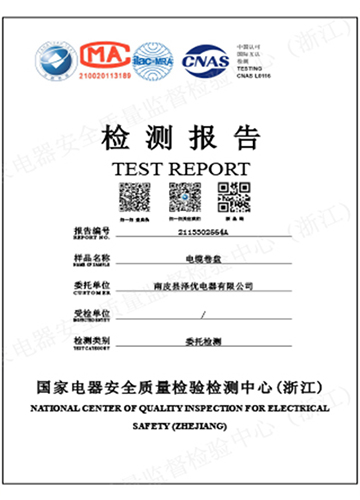

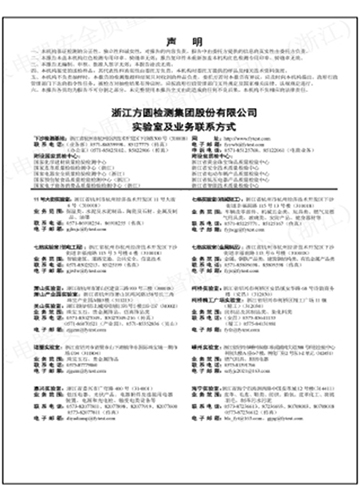

Product Certificate
Service
Manufacturers direct seiko manufacture a tubular cable coil
Good quality Good quality makes good products
Six advantages of strength can not be underestimated 26 years of industry manufacturing experience
Source manufacturers integrity responsible for supporting custom patient service years of experience strict quality control
Pack
Protective material: Wrap a layer of protective material on the surface of the coil, such as plastic film, bubble pad, etc., to prevent scratching and wear during transportation. For electrical coil coils with plugs, sockets and other electrical components, use special protective covers or packaging materials to wrap them well to avoid collision and damage.
Prevent movement and collision: Inside the packaging, use filler such as foam, sponge, etc. to fix the coil coil to prevent movement and collision during transportation. If multiple coils are transported together, place isolation materials between them to avoid friction and collision with each other.
Transport
All modes of transport have measures to ensure the safety of goods, but in practice, the safety performance of different modes of transport is also different. Air transport and railway transport have strict operating norms in the loading and unloading and transportation of goods, and the probability of cargo loss and damage is relatively low. Road transport due to the possibility of complex road conditions, the risk of turbulence and collision of goods is slightly higher, but through reasonable packaging and the choice of reputable transport companies can reduce this risk. Water transport at sea may face risks such as wind and waves, but the safety facilities and cargo fixtures of modern ships can also effectively ensure the safety of goods during transport. Our company will ensure that the product packaging is qualified and firm and choose a strong transportation company to cooperate with the goods safely to the designated place.
