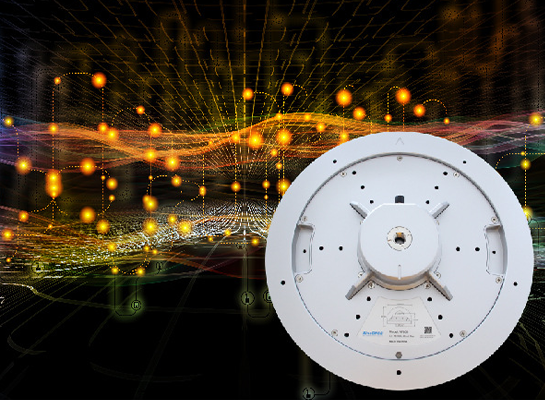

Product Description
Frequency bands and system compatibility
Four-system full frequency: Support Beidou, GPS, GLONASS, GALILEO four global satellite navigation system full frequency signal reception, can make full use of multi-system satellite resources, greatly improve the reliability and accuracy of positioning
Product parameters
| Antenna performance | Frequency range (MHz) | BDS B1,B2,B3 | Working environment | Operating temperature (°C) | -45~+85 |
| GPS L1,L2,L5 | Storage temperature (C) | -55~+85 | |||
| GLONASS L1,L2 | humidness | 95% non-condensing | |||
| Galileo E1,E2,E5a,E5b | Waterproof and dustproof | IP67 | |||
| Polarization mode | Right-handed circular polarization | antistatic | Contact discharge 4K, air discharge 8kV 5 times each without damage | ||
| Antenna beam range | Azimuth :0°-360° Pitch :10°-90° | ||||
| Maximum gain (dB) | 6 | Salt spray resistance | Spray time 2h, spray interval storage time 22h, after 3 cycles, the work is normal | ||
| Axis ratio (dB) | ≤3.0 | ||||
| Phase center error (mm) | ≤1.5 | Vibration resistance | After the impact test with a frequency of (1~30)Hz and a single amplitude of 0.75mm on the three mutual vertical axes for 50min, the structure was intact and the operation was normal; After the impact test with a frequency of (30~55)Hz and a single amplitude of 0.25mm on three mutual vertical axes for 25min, the structure was intact and the work was normal | ||
| Output voltage standing wave ratio (VSWR) | ≤2.0 | ||||
| Port impedance (Ω) | 50 | ||||
| LNA performance | LNA Gain (dB) | 50±2 | |||
| Noise factor (dB) | ≤2.0 | ||||
| Input-output voltage standing wave ratio | ≤2.0 | ||||
| In-band flatness (dB) | ±2 | ||||
| Differential delay (ns) | ≤5 | strike | After 18 shock tests with an acceleration of 50m/s2 and a duration of 18ms, the antenna is in good structure and works normally | ||
| Operating voltage (V) | 3.3-12VDC | ||||
| Working current (mA) | 50 | ||||
| Structural characteristic | Joint type | TNC-K | fall | After the antenna fell free twice at a height of 1m, the structure was intact and the operation was normal | |
| Antenna size (mm) | φ379.5x296.5 | ||||

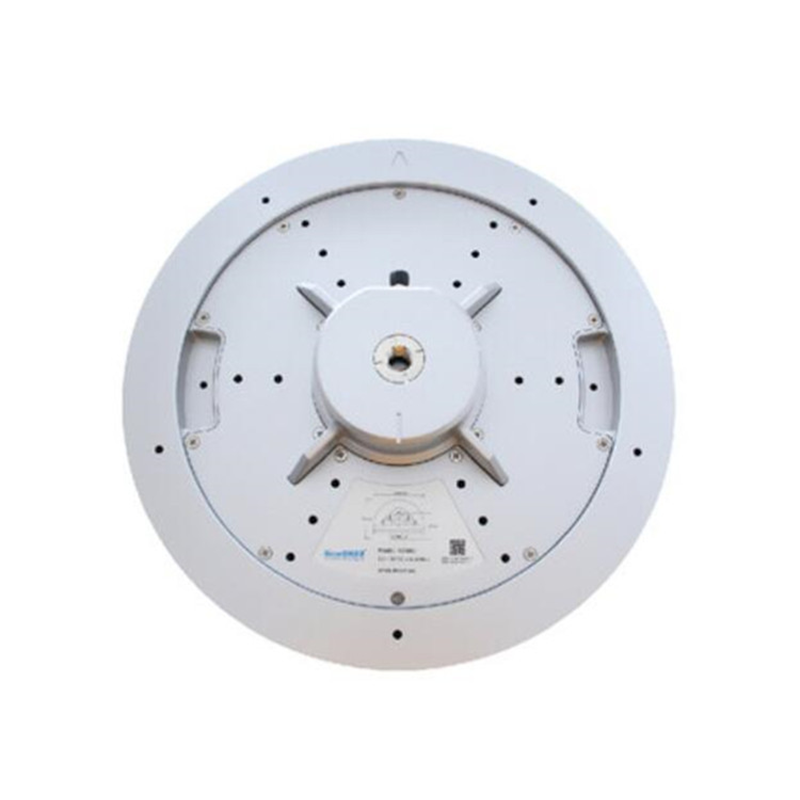

| Installation mode | 5/8"X11(inch) threaded mounting hole | MTBF (h) | ≥10000 |
Technological innovation and advantages
Multipath suppression: The use of choke design, effectively inhibit the multipath effect. In complex environments, such as urban canyons, mountains, etc., it can significantly reduce the interference of reflected signals to direct signals, ensure that the receiver receives pure satellite signals, and thus improve positioning accuracy.
High low elevation gain: Strong tracking ability of low elevation satellite signals to ensure that in the case of poor satellite distribution or serious occlusion, still can receive enough satellite signals, maintain the normal positioning function of the system, improve the positioning availability

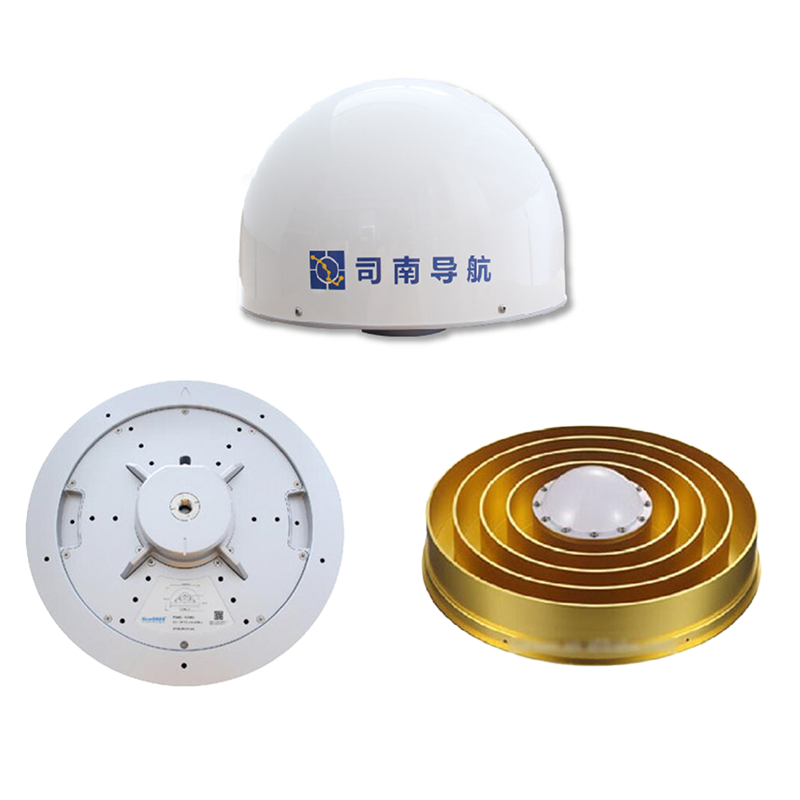

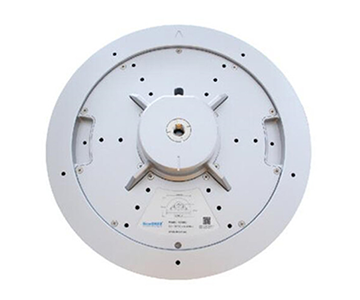

Product Display

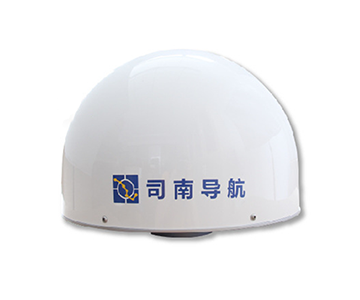

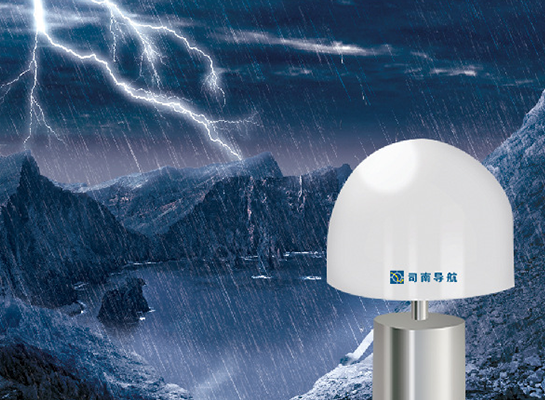

Designed to industrial standards
Waterproof and dustproof up to IP67,
Not afraid of sand, dust and water immersion, stable operation in complex industrial environment,
Ensure accurate signal reception and efficient application.
Built-in low noise amplifier
Enhance the signal and filter out interference,
Improve the anti-interference capability of the system,
Stabilized satellite signal reception and analysis,
Escort high-precision positioning.

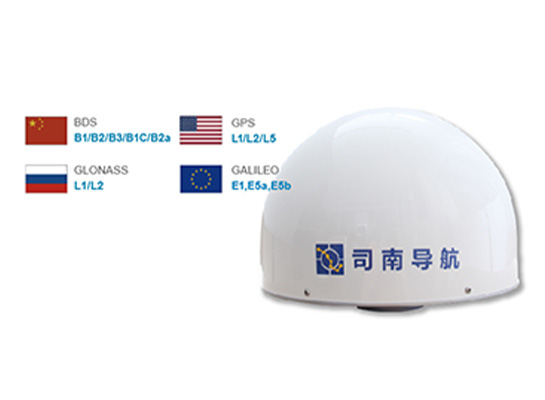

The AT600W GNSS is ideal for high precision positioning
Support BDS B1/B2/B3, GPS L1/L2/L5, GLONASS L1/L2,
Galileo E1/E5a/E5b signal

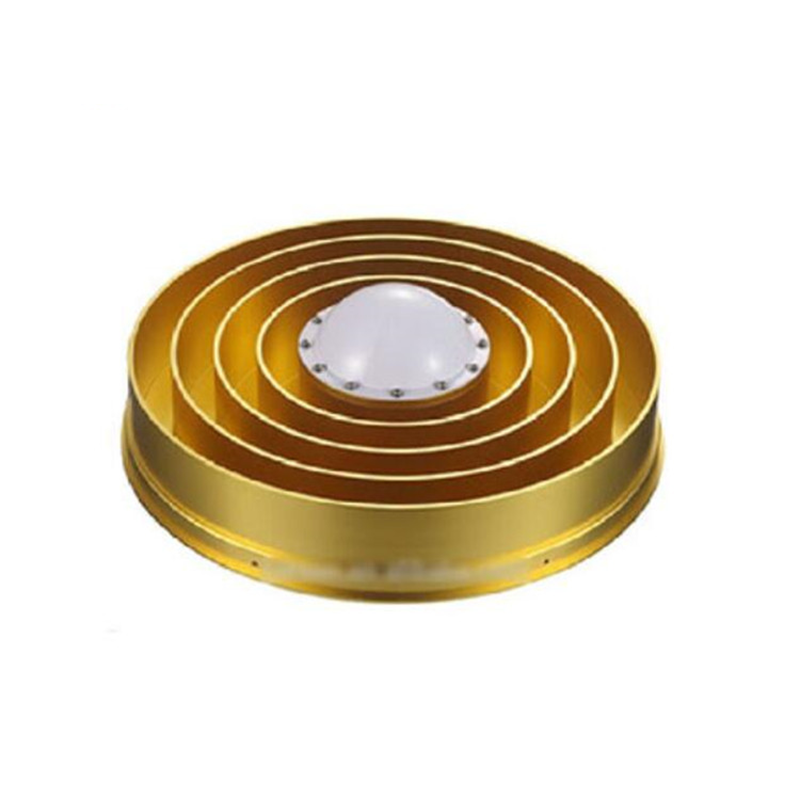

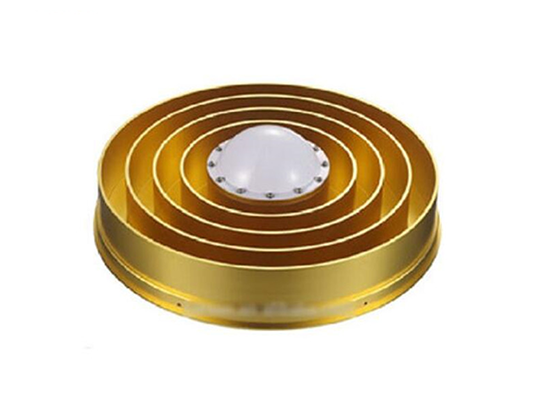

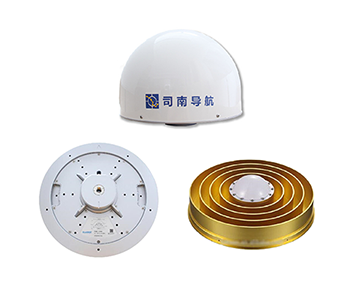

Use 3D choke design
Omnidirectional suppression of multipath effects,
Improve positioning accuracy and stability,
Ensures accurate signal locking in complex environments.
Quality Control
Raw material control: According to the industry demand, global select suppliers, with high-precision equipment to strictly screen raw materials from electrical performance, mechanical strength accuracy and other dimensions, to ensure that the quality exceeds the industry standard, build a solid foundation of high quality products.
Production process optimization: Customize the fine process according to the characteristics of the application field, automatic precision assembly for the production of geographic information acquisition equipment, modular assembly for the manufacturing of fine agricultural navigation equipment, and set up multiple detection points to ensure the accuracy of each link and product consistency, and meet the requirements of high-precision scenarios.
Performance verification system: Build a comprehensive and targeted verification system, simulate the actual scenes of various industries in depth testing, safety engineering products to do extreme environmental reliability verification, industrial measurement products and professional instruments compared calibration, only qualified products to enter the market, to provide users with reliable satellite navigation solutions.
Application Cases

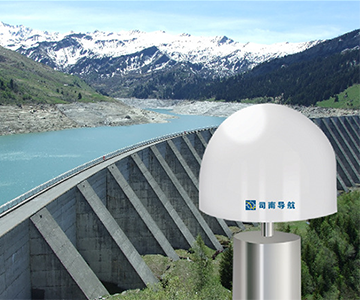

Suitable for many fields: widely used in geodetic mapping, waterway mapping, precision agriculture, deformation monitoring, geological disaster monitoring, military fields, etc.
