Product Description
Super full constellation tracking ability, accurate and stable signal! Built-in Sinan navigation cutting-edge K803 satellite positioning module, full coverage and strong support of global satellite navigation system full band signal, accurate locking, full signal, excellent performance, full strength!
Product parameters
| Signal tracking | BDS | B1, B2,B3, B1C, B2a, B2b* | Communication configuration | Network module | 4G full Netcom |
| GPS | L1,L2,L5 | Net interface | 10M/100M Ethernet | ||
| GLONASS | L1,L2 | Serial port | RS232 serial port | ||
| Galileo | E1, E5a, E5b | port | Net interface | 1 RJ45 Ethernet port | |
| SBAS | L1 | Satellite antenna | One TNC port | ||
| QZSS | L1,L2,L5 | 4G | One SMA port | ||
| Accuracy and reliability | Single point positioning accuracy | H≤1.5m,V≤3.0m (1a,PDOP≤4) | Data and power interface | 1 7-core LEMO interface (COM1+ power supply) 1 7-core LEMO interface (COM3+ power supply) | |
| Pseudo-range accuracy | BDS: B1 10cm (1σ), B3 10cm (1σ) GPS: L1 10cm (1σ), L2 10cm (1σ) GLONASS: L1 10cm (1σ), L2 10cm (1σ) GALILEO: E1=10cm (1σ), E5b=10cm (1σ） | Card slot | 1 Nano SIM card slot | ||
| Electrical index | Power source | DC9-36V | |||
| Carrier phase accuracy | BDS:B1 1.0mm (1σ), B3 1.0mm (1σ) GPS: L1 1.0mm (1σ), L2 1.0mm (1σ) GLONASS: L1 1.0mm (1σ),L2 1.0mm (1σ) | Power dissipation | <5W | ||
| Static accuracy | H: ±(2.5+0.5x10*XD)mm V: ±(5.0+0.5x10XD)mm | Display screen | OLED | ||
| RTK accuracy | H: ±(8+1x10*XD)mm V: ±(15+1x10XD)mm | Pilot lamp | 1 power light,1 satellite light,1 differential light,1 4G light | ||
| RTD accuracy | H:±0.3m(1σ) V: ±0.6m(1σ) | Physical parameter | dimension | 183mm*171mm*56mm | |
| First positioning time | Cold start <60s Hot start <15s | weight | <1kg | ||
| RIK initialization time | < 10s(base length less than 10km) | Shell material | Aluminium alloy | ||
| Signal recapture | ＜2s | Environmental characteristics | Operating temperature | -40℃-+75℃ | |
| Initialize the confidence | ＞99.9% | Storage temperature | -55°℃~+85C | ||
| Data format | Difference format support | CMR,RTCM2.X,RTCM3.X | Class of protection | IP68 | |
| Output format support | Standard and extension NMEA-0183,CNB(ComNavBinary),RTCM2.X,RTCM3.X | Relative humidity | ≤95%(non-condensing) | ||
| Data update rate | 1Hz, 2Hz,5Hz, 10Hz | Salt spray | Spray time 2h, spray interval storage time 22h, Cycle 3 times can work normally | ||
| Communication protocol | network | TCP/IP、HTTP、Ntrip | MTBF | ≥30000h | |
| Serial port | Standard RS232 serial port protocol | quakeproof | Resistance to 1m free drop |
Product Display

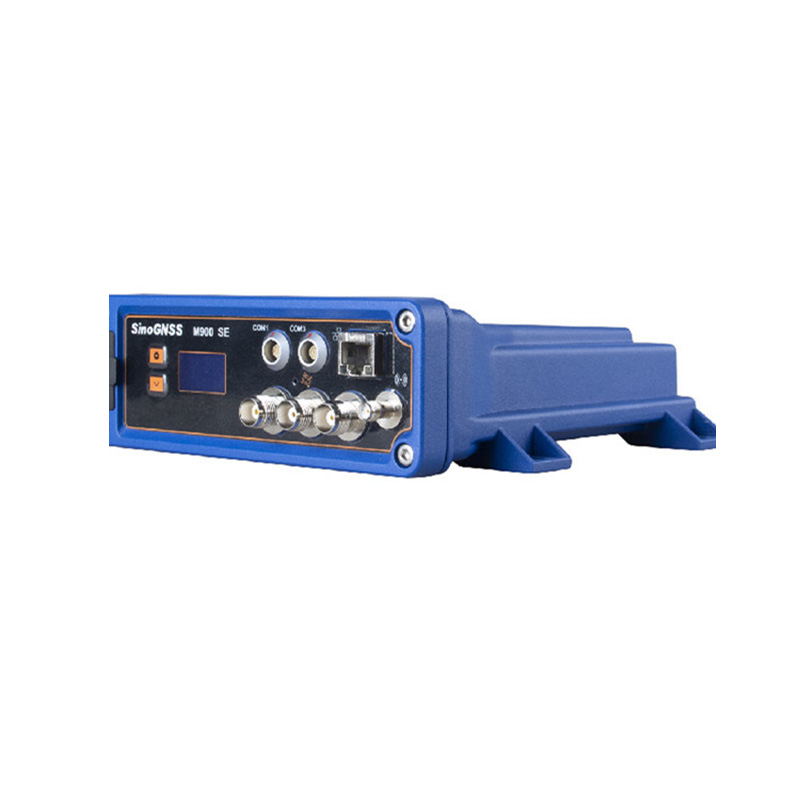

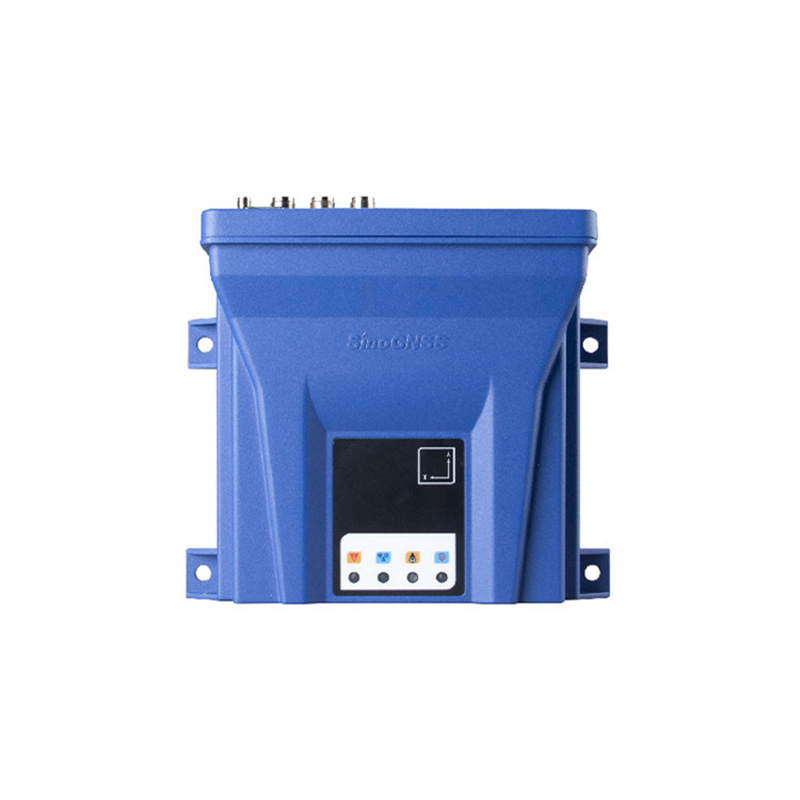

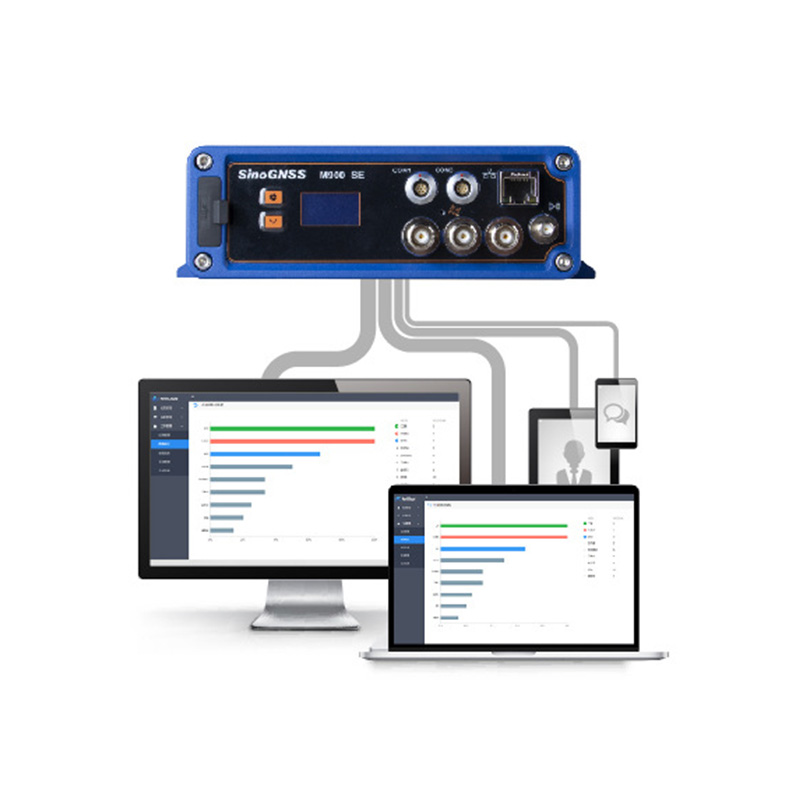

Powerful remote control
Support access to navigation cloud,
Remote monitoring and batch management of equipment can be realized.
Save time and effort in monitoring and maintenance.

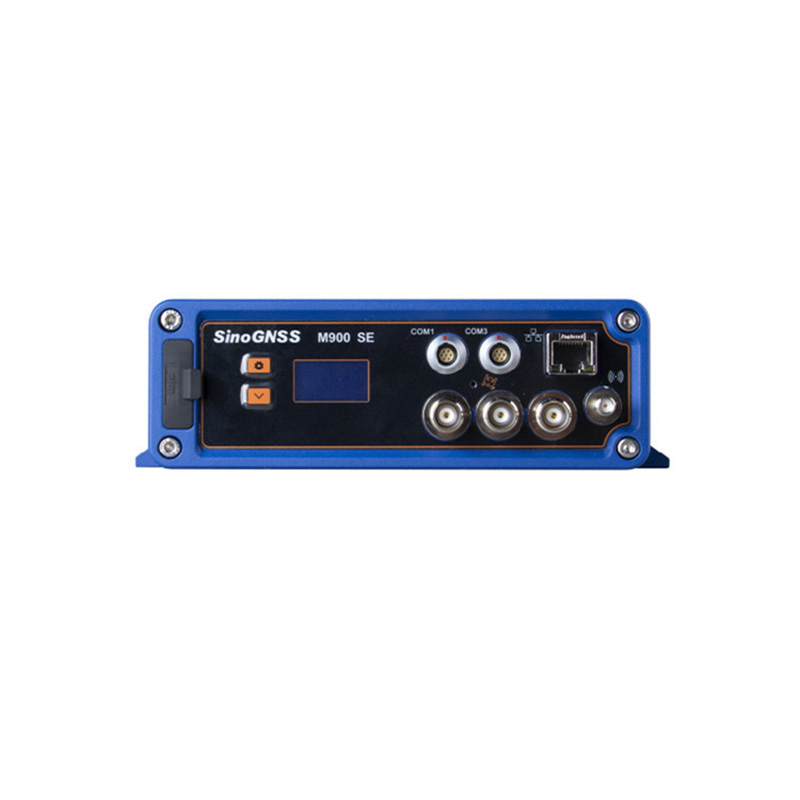

Various communication interfaces are available
Rich interface and wireless communication,
Support 4G, network port, serial port and other communication methods, suitable for a variety of integration methods,
Convenient receiver fast access system.
Lightweight and practical, easy to operate
Support web Settings and navigation cloud platform remote Settings,
Easy to understand interface, get rid of the traditional instruction input cumbersome troubles.
Multiple communication modes
Support GPRS, 4G, LoRa, NB-loT and other communication methods, can do backup transmission,
The real-time information transmission ensures that the monitoring data can be transmitted to the control center in a timely and stable manner.
Dimension drawing
Quality Control
Raw material control: According to the industry demand, global select suppliers, with high-precision equipment to strictly screen raw materials from electrical performance, mechanical strength accuracy and other dimensions, to ensure that the quality exceeds the industry standard, build a solid foundation of high quality products.
Production process optimization: Customize the fine process according to the characteristics of the application field, automatic precision assembly for the production of geographic information acquisition equipment, modular assembly for the manufacturing of fine agricultural navigation equipment, and set up multiple detection points to ensure the accuracy of each link and product consistency, and meet the requirements of high-precision scenarios.
Performance verification system: Build a comprehensive and targeted verification system, simulate the actual scenes of various industries in depth testing, safety engineering products to do extreme environmental reliability verification, industrial measurement products and professional instruments compared calibration, only qualified products to enter the market, to provide users with reliable satellite navigation solutions.
Application Cases
Geological disaster monitoring: It can be used to monitor the displacement changes of hidden points of geological disasters such as landslides, debris flows, and ground collapses, grasp the deformation of geological bodies in real time, and provide data support for disaster warning and prevention, such as in Nyingchi, Xizang, Chuxiong, Yunnan and other geological disaster-prone areas.
Water safety monitoring: It can monitor the deformation of reservoir DAMS, embankments, slugs and other water conservancy facilities, and monitor the settlement, displacement, tilt and other parameters of DAMS to ensure the safe operation of water conservancy projects, such as Xiajiang water conservancy monitoring in Jiangxi Province and GNSS automatic deformation monitoring of Fengjiashan reservoir dam in Shaanxi province.
Mine safety monitoring: suitable for slope displacement monitoring of open-pit mines, dam deformation monitoring of tailings ponds, etc., timely detection of safety hazards in the mine production process, to ensure the safety of mine personnel and equipment, such as Kunming phosphate mine, Zhani River open-pit slope and other mine monitoring.
