DF-RC2 remote control

Stable Robot Remote Control with MESH Ad hoc Network Technology Performance

Working frequency band :
1.4G
Transmission power :
20W
Working bandwidth :
5/10/20MHz adjustable
Screen size :
15.6-inch high-definition display screen
Size :
557*353*211mm

USD: 13400

ablity:Monthly Output2000

contact shop
  • Product Description
  • Product Params

Product Description

Product description

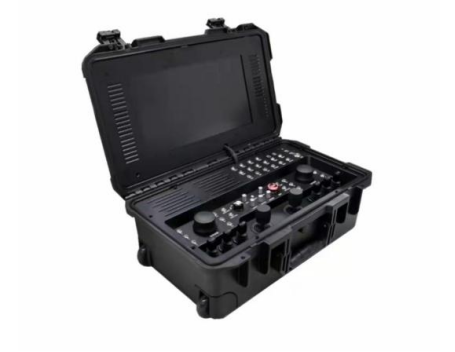

DF-RC2 remote control is a robot remote control developed by our company for robots, which integrates functions such as image reception, data transmission, real-time display, command and control. It is powerful and has stable performance. Adopting the leading MESH self-organizing network technology, images and data are encrypted during transmission, and can be used in conjunction with ZCXH3606 vehicle end devices to form a robot intelligent communication system. This device integrates functions such as image reception and remote control data transmission.

Main functions

Receive images and data from vehicle end devices and display them; Send control commands to the vehicle end equipment, such as vehicle motion control, cloud pool machine control, bubble control, car light control, emergency stop button, horn, preheating, et


Product features

1.High definition and high brightness screen:

Using a 15.6-inch high-definition high brightness screen for visibility under sunlight, the data feedback from the front-end is visible in real-time. For the convenience of clearer observation, an external display can be connected through the internet interface.

2.Bidirectional transmission:

The images and information collected by the front-end are transmitted to the back-end robot remote controller through the front-end trigger. The back-end robot remote controller can send control instructions to the robot, achieving bidirectional data transmission of the robot's intelligent communication system;

3.Remote control:

On the same site, it is possible to control multiple robots with one remote control, or to control multiple robots with multiple remote controls, achieving collaborative work among robot clusters.

4.Long transmission distance:

Urban environment 3-5 kilometers, visual distance 5-15 kilometers;

5.Easy to operate: can have voice intercom, set multiple joysticks, switches, and buttons, making it easy to operate in emergency situations;

6.Networking function: MESH self-organizing network, with no less than 9 relay hops and no less than 64 networking nodes;

7.Long working hours: Built in battery, with a battery life of up to 4-5 hours, can work for long periods of time in emergency situations;

8.VIP customization: Functionality can be adjusted according to the actual needs of customers, supporting 4G public network customization;

Product parameters


RF parameters

Working frequency band

1.4G, customizable

Constellation pattern

QPSK(4QAM)、16QAM、64QAM self-adaption

Transmission power

20W

Working bandwidth

5/10/20MHz adjustable

Receiver sensitivity

-96dBm

Transmission-distance

Urban environment 3-5 kilometers, visual distance 5-15 kilometers

Video parameters

Screen size

15.6-inch high-definition display screen

Video format

HD: 1080P@60

Video compression

H.264

Physical/Environmental

Size

557*353*211mm

Weight

15kg

Operation temperature

-20℃〜+50℃

Electrical characteristics

Power supply

DC 12V

Consumption

The average power consumption of the entire machine is less than 60w

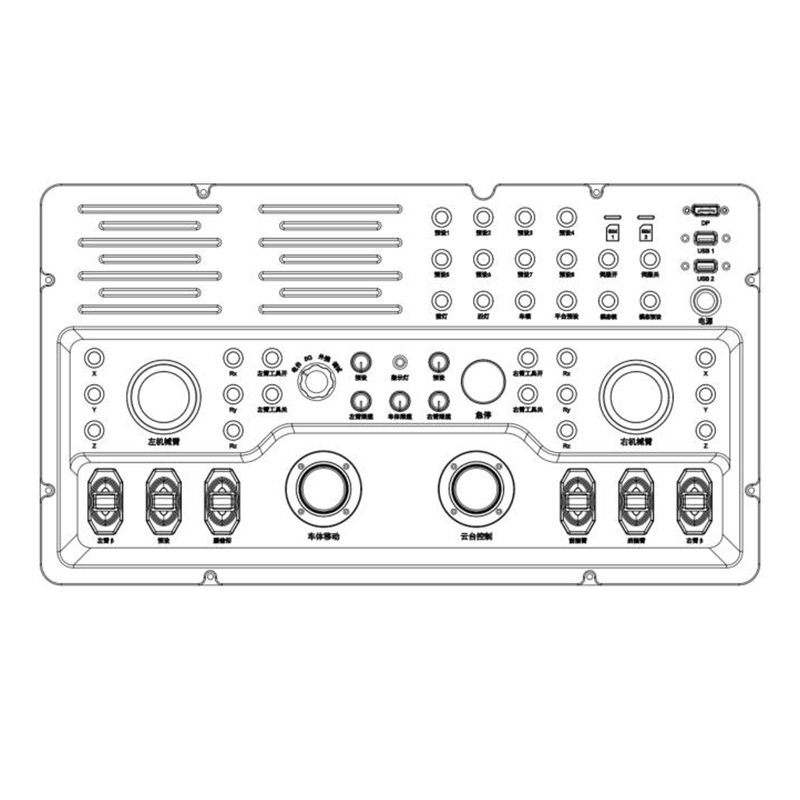

Size/Interface Description
