T1
5 Years
Small forward moving AGV
Intelligent small forward moving forklift robot lifting TianZi ChuanZi nine feet pallet plane handling AGV small car
- Load centre：600mm
- Overall height (with forks at lowest level)：2041mm
- Overall length：2374mm
- Overall width (with touching device)：1270mm
- Fork outer width：826mm (adjustable)
- Rated load：1500kg
USD： 57350
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

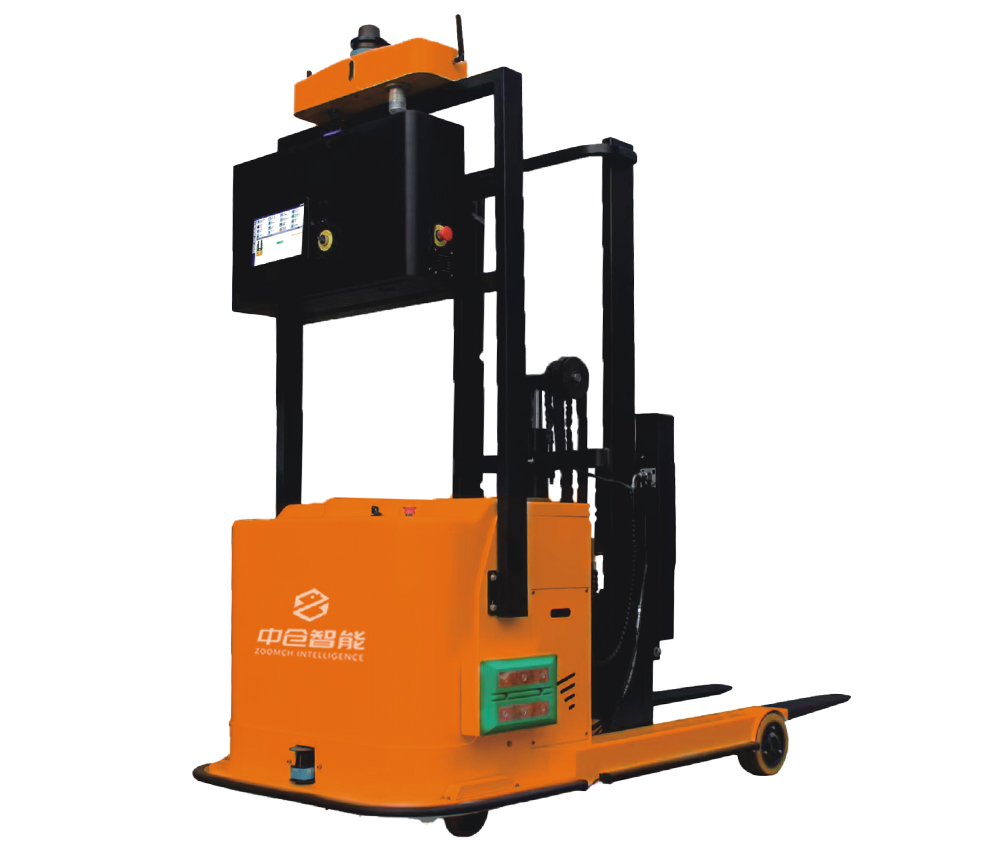

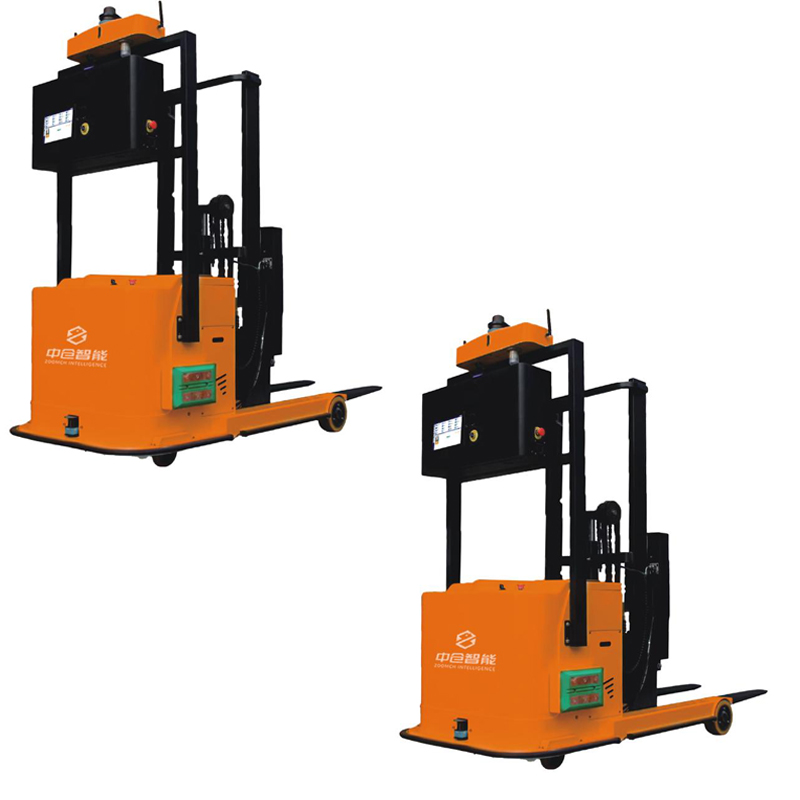

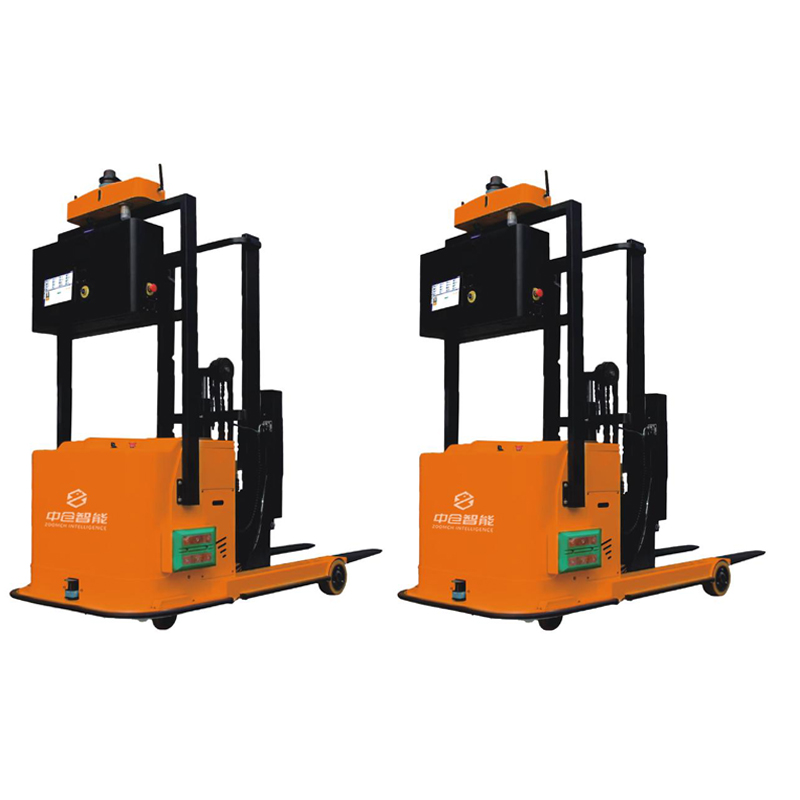

Small forward moving AGV
Common features of counterbalanced forklift trucks and electric forklift trucks
When the mast is extended to the front end, it is equivalent to a counterbalanced forklift; when the mast is fully retracted, it is equivalent to an electric stacker.
It has the advantages of operational flexibility and high load. At the same time, the volume and dead weight will not increase much, maximizing the saving of operating space and greatly improving the utilization rate of warehouse space.
Product Parameters
| Driving form | electric powered |
| Navigation method | laser |
| Load centre | 600mm |
| Overall height (with forks at lowest level) | 2041mm |
| Overall length | 2374mm |
| Overall width (with touching device) | 1270mm |
| Fork outer width | 826mm (adjustable) |
| Lifting speed (full load/no load) | 90mm/s / 120mm/s |
| Rated load | 1500kg |
| Number of wheels | 5 |
| Fork size | 1070/122/40mm |
| Driving style | laser guided automatic/remote control |
| Tyres | polyhelium ester |
| Braking distance | 500mm |
| Lifting height | 3000mm (can be customized) |
| Pick-up and delivery channel (1200*1200mm pallet) | 3400mm |
| Descending speed (full load/no load) | 80mm/s / 60mm/s |
| Traveling speed (full load/unloaded) | 1m/s / 1.5m/s(adjustable) |
| Typical charge/run time | 2h/8h |
- Functions: laser navigation, visual detection, obstacle detection, anti-collision, side movement, emergency stop button, automatic charging, voice prompts, sound and light alarm.
- Features: The mast moves forward as a whole, small working space, adjustable forged forks, etc.
- Purpose: Suitable for handling and stacking operations of pallets and frames of various specifications such as Sichuan-shaped, Tian-shaped, and nine-legged.
Applications
Note: Product prices do not include installation and debugging fees. This product requires on-site debugging.
Please contact the merchant for details.
