Product description

DF-RC4 is a waterproof remote control based on the Windows operating system, supporting customer customization and self-development, and supporting touch screen clicks. The communication method adopts self-organized network, supporting no less than 64 devices to monitor and operate online simultaneously without interfering with each other. The node communication delay is within 100 milliseconds, and it also supports 1-8 video displays with an intelligent control system. It supports automatic intelligent detection of power on remote controllers, automatic error alarms, real-time display and storage of data and videos, supports wireless self-organized network configuration, supports device parameter tuning of intelligent robots, comes with GIS maps, supports positioning, comes with a virtual control panel, and supports self-defined joystick, switch, and button functions.

Product features

1.Adopting Windows operating system with touch operation, supporting customer customization and self-development

2.Adopting a 10.1-inch high-definition and high brightness display screen, with a 1000 brightness IPS LCD screen, it can still be viewed clearly in sunlight

3.Supports 1080P high-definition video transmission, video stream addresses can be configured independently, and supports video storage

4.On the same site, it is possible to control multiple robots with one remote control or multiple remote controls to control multiple robots, achieving collaborative work among robot clusters

5.Urban environment 1.5 kilometers, visual distance 2-5 kilometers

6.Support intelligent self check upon startup, which can automatically check whether the joystick, buttons, switches, etc. are normal

7.Support real-time data display, which can display relevant data of unmanned vehicles in real time;

8.Equipped with a virtual control panel, it can define the functions of the joystick, switch, and button by itself;

9.Equipped with physical button status display function, it can monitor the working status of each joystick, switch, and button in real time;

10.Using a large capacity lithium-ion battery, it can work for 4-6 hours

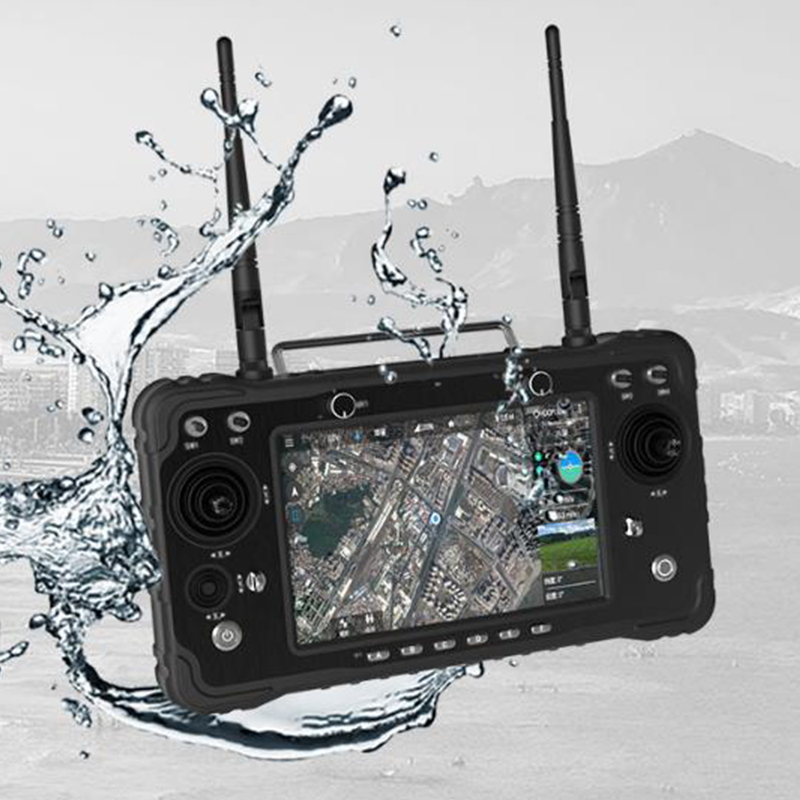

11.Adopting IP66 waterproof, dust-proof, and anti drop materials and structures, ensuring not only good hand feel but also durability

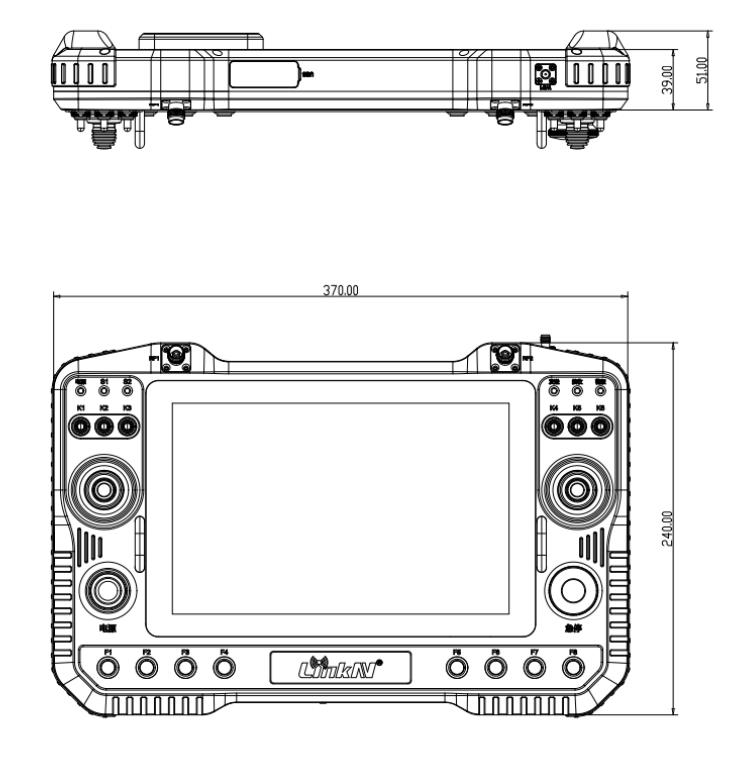

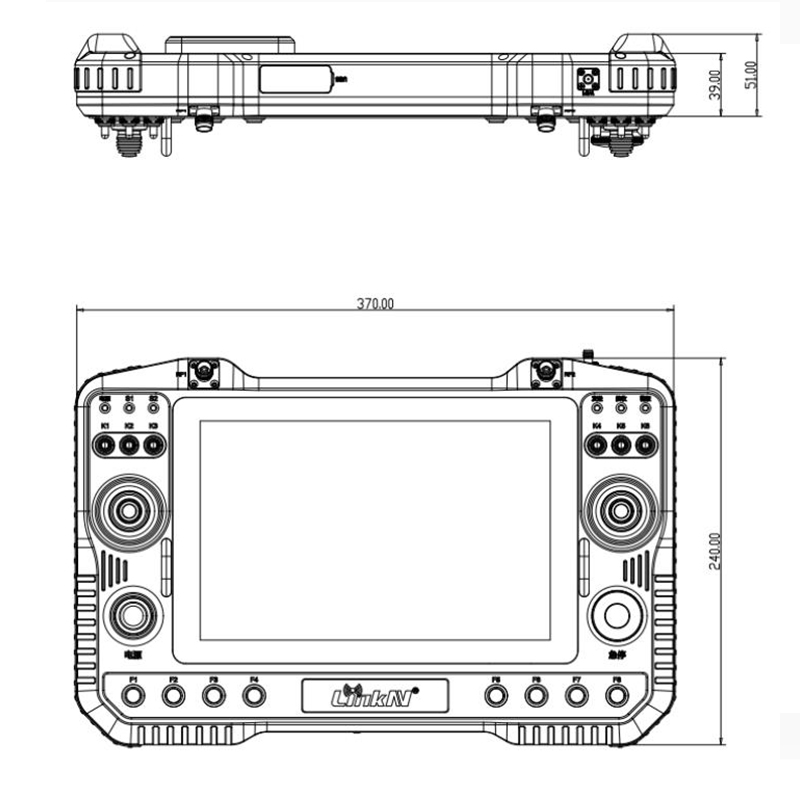

Product size

Product parameters
