Product description

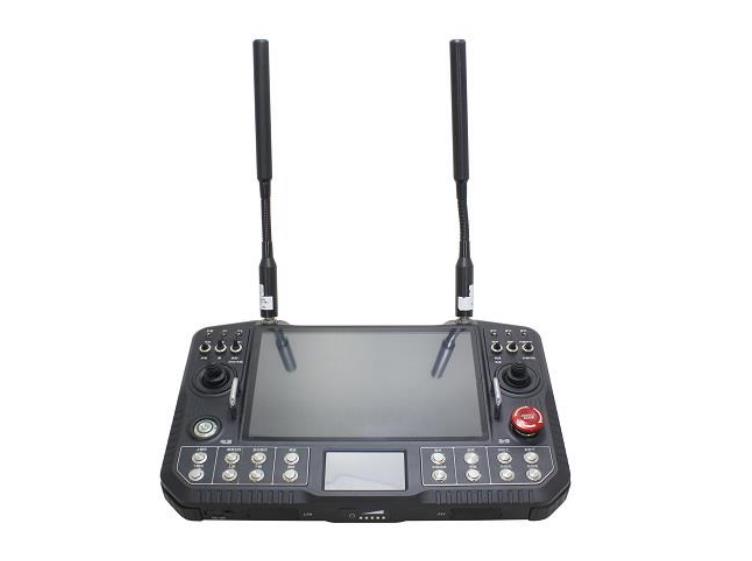

DF-RC5 is a waterproof industrial grade remote control based on embedded operating systems, supporting customer customized communication and control protocols. The communication method adopts self-organized network communication, and point-to-point communication can reach 1.5 kilometers in complex environments. It supports 64 devices online simultaneously, fully solving the problem of mutual interference among multiple devices. And it supports public 4G/5G transmission, as well as 1-8 video transmission and network monitoring. Control practical requirements such as data feedback. This remote control features a slightly tilted screen, an upright antenna, and a silicone wrap around the handshake part, providing a user-friendly touch and human-machine interface, fully leveraging the optimal performance of the device.

Product features

1. Aluminum alloy shell: Strong heat dissipation, silicone wrapped around the handshake part, and equipped with a strap for easy operation

2. High definition and high brightness screen: It adopts a 10.1-inch high-definition and high brightness screen that can be seen in sunlight. The simulated video image delay does not exceed 0.3 seconds, and the network camera delay does not exceed 0.4 seconds. The data feedback from the front end is visible in real time

3. Bidirectional transmission: The images and information collected by the front-end are transmitted to the back-end robot remote controller through the front-end trigger. The back-end robot remote controller can send control instructions to the robot, achieving bidirectional data transmission of the robot intelligent communication system

4. Remote control: On the same site, it is possible to control multiple robots with one remote control or multiple remote controls to control multiple robots, achieving collaborative combat among robot clusters

5. Long transmission distance: The ground to ground line of sight transmission distance can reach 1.5 kilometers. By adding MESH relay stations, the distance between the MESH remote control and the MESH onboard radar can be transmitted further

6.Easy to operate: can have voice intercom, set multiple joysticks, switches, and buttons, easy to operate in emergency situations

7.Networking function: MESH self-organizing network, with no less than 9 relay hops and no less than 64 networking nodes

8. Long working hours: Built in battery, with a battery life of up to 4-5 hours, can work for long periods of time in emergency situations

9. High protection level: IP67 protection design, convenient for use in harsh environments

Product parameters

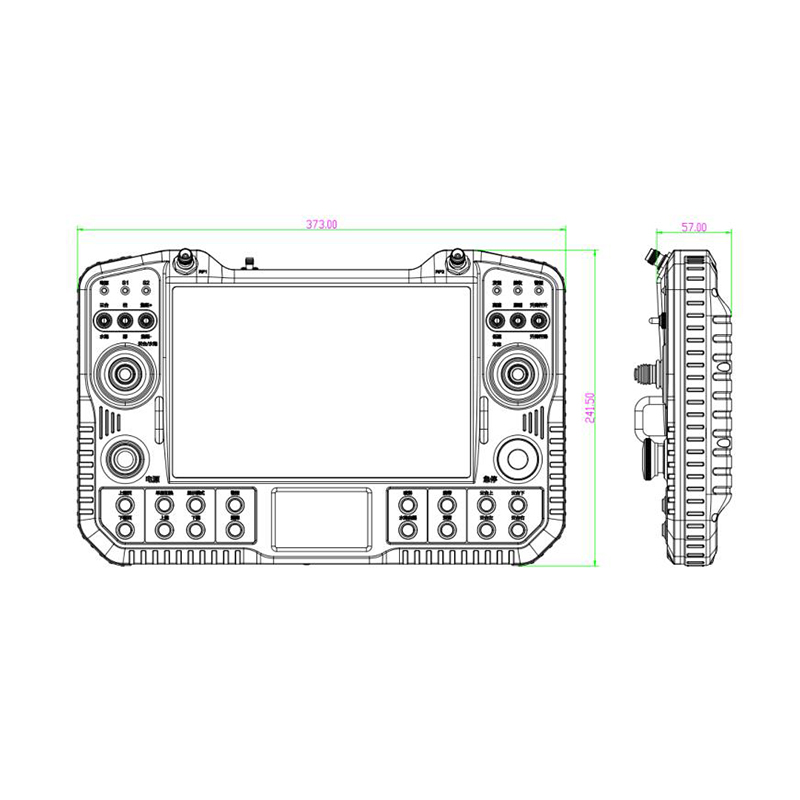

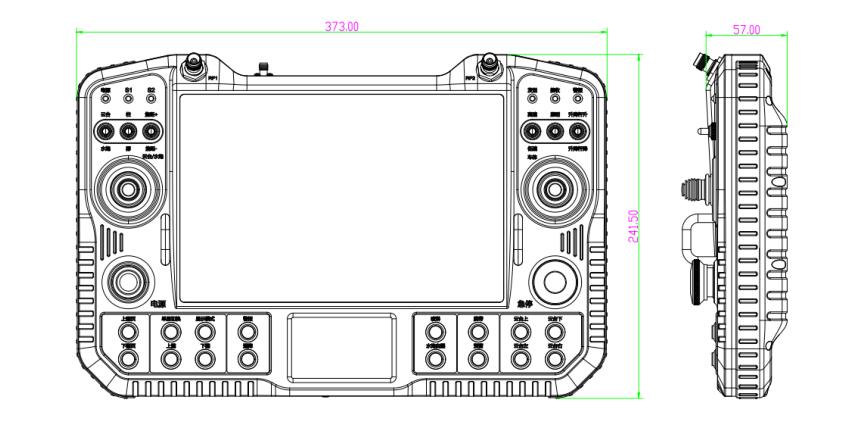

Product dimension diagram

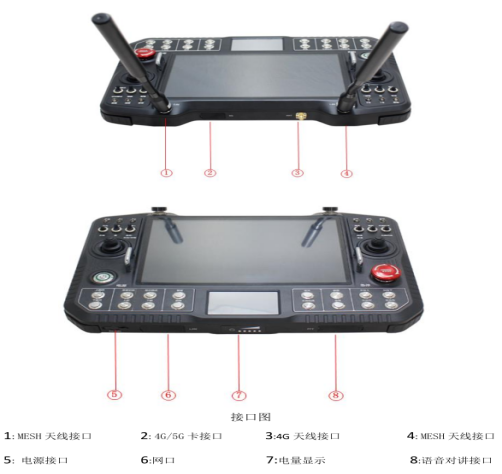

Product Interface Diagram

1. MESH antenna interface

2. 4G/5G card interface

3. 4G antenna interface

4.MESH antenna interface

5. Power interface

6. Network port

7. Power display

8. Voice intercom
