Product description

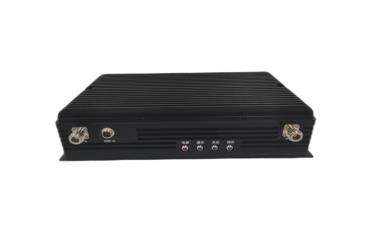

The DF-RC6 device is a powerful and stable transmitter device newly developed by our company, which can wirelessly control unmanned fire trucks. This device integrates functions such as image merging, transmission, and bidirectional data transmission. The transmitter supports multiple video modes, supports H.264 encoding, adapts to various modes, achieves 1080P clarity, bright colors, low latency, and smooth images.

The transmitter has a built-in data module that can receive, process, and execute data sent by the remote control; Supporting peripheral sensing equipment, such as gas sensors, detectors, etc. Send the detected data back to the remote control and display it in real time, making it convenient for commanders to make timely judgments.

Product features

1.Image transmission frequency band: 200-800MHz; Data transmission frequency band: 410-500MHz

2.Image transmission power: 2W

3.Open ground transmission distance 1-3 kilometers

4.Customizable data transmission power

5.It has broadcasting grade high-definition image encoding quality, supports multiple video formats, and adapts to various modes

6.Bandwidth can be adjusted within the range of 2-8MHz

7.Adopting current leading COFDM modulation technology and H.264 image compression technology

8.Diversified data interfaces: RS232/TTL/RS485, customizable according to customer requirements, default RS232 interface

Product parameters

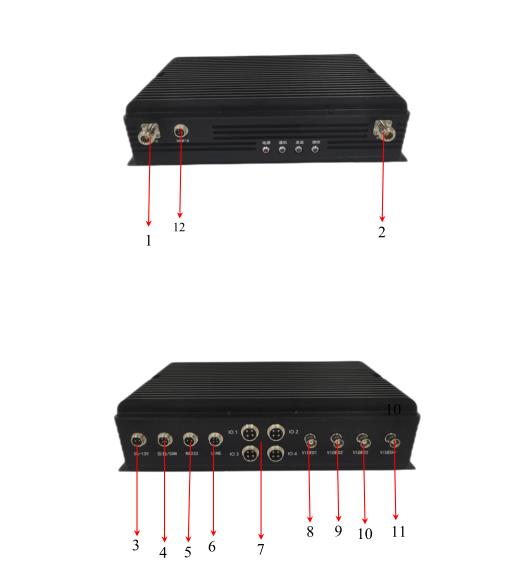

Interface device illustration

1、RF-D: Data transmission receiving antenna interface, it is recommended to configure our company's suction cup antenna

2、RF-V: Image transmission receiving antenna interface, it is recommended to configure our company's suction cup antenna

3、Power supply (DC12V/5A): 1 pin positive, 2 pins negative

4、Pan tilt/CAN: Control the RS485 data interface of the pan tilt and the CAN bus of the vehicle body, where pins 1 and 2 are for pan tilt control, and pins 3 and 4 are for CAN bus

5、RS232:1 pin is TX, pin 2 is RX, and needs to be grounded together with the device

6、LINE: Device debugging interface

7、I/O1-4: Relay control interface, with a total of eight relays and 16 external pins

8、VIDEO1: Video input port

9、VIDEO2: Video input port

10、VIDEO3: Video input port

11、VIDEO4: Video input port

12、Config: The parameter configuration passed in the image is not recommended for adjustment
