Anhui Zhongcang Intelligent Technology Co., Ltd.
T1
5 Years

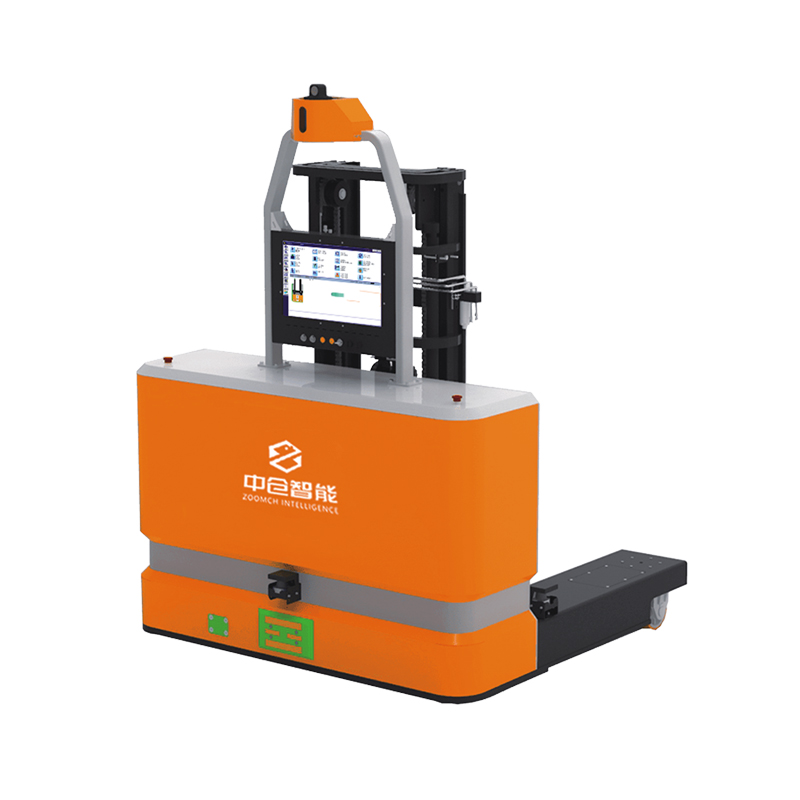

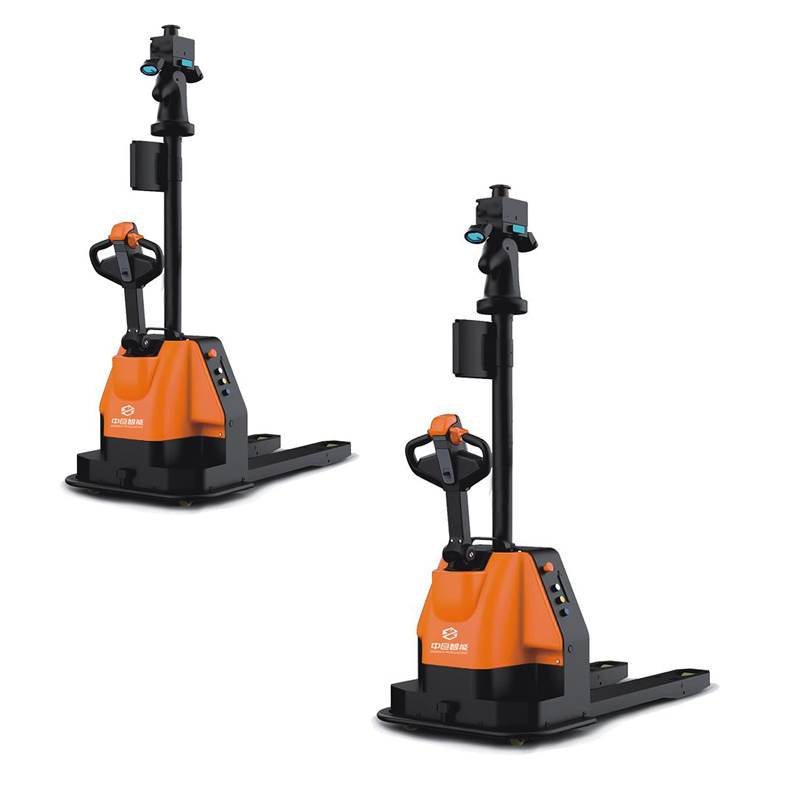

Transportation style AGV
Intelligent handling robot Intelligent logistics warehousing system Compact and flexible laser guided handling AGV
- Total length：1635mm
- Overall height (when the fork is at its lowest)：2150mm
- Overall width (with touch device)：810mm
- Fork outer width：685mm
- Rated load：1500kg
- Load center：600mm
USD： 49700
ablity：Monthly Output200
- Product Description
- Product Params
Product Description
Transportation style AGV
Highly flexible and adaptable
Multiple safety sensor protection ensures the safety of AGV operation
Operate the terminal to check the AGV running status
Product parameters
| Drive form | Electric |
| Navigation | Laser |
| Load center | 600mm |
| Overall height (when the fork is at its lowest) | 2150mm |
| Total length | 1635mm |
| Overall width (with touch device) | 810mm |
| Fork outer width | 685mm |
| Lifting speed (full load/no load) | / |
| Rated load | 1500kg |
| Number of wheels | 7 |
| Fork size | 1150/175/55mm |
| Driving style | Laser guided automatic/remote control |
| Tire | Polyurethane |
| Braking distance | 500mm |
| Lifting height | 120mm |
Pick-up and delivery channel (1200*1200 mm pallet) | 2400mm |
| Descending speed (full load/no load) | / |
| Traveling speed (full load/unloaded) | 1m/s / 1.5m/s (adjustable) |
| Typical charge/run time | 2h/8h |
- Functions: laser navigation, visual detection, obstacle detection, anti-collision, emergency stop button, automatic charging, voice prompts, sound and light alarm.
- Features: compact and flexible, safe for man and machine, harmonious operation.
- Purpose: Suitable for Sichuan pallet handling of goods off the ground in warehouses or on the ground.

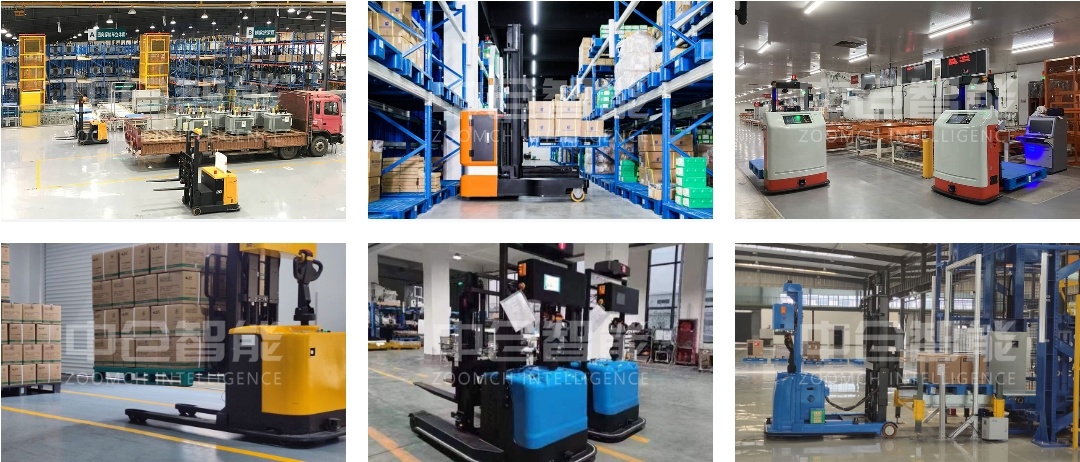

Applications
Note: Product prices do not include installation and debugging fees.
This product requires on-site debugging.
Please contact the merchant for details.
Recommended products

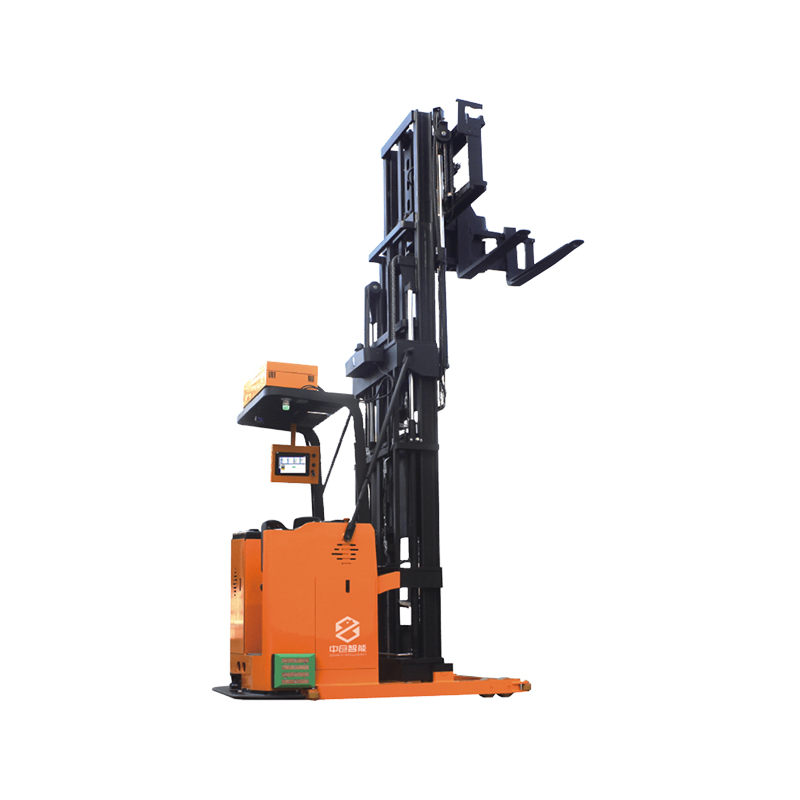

Three-way fork AGV
