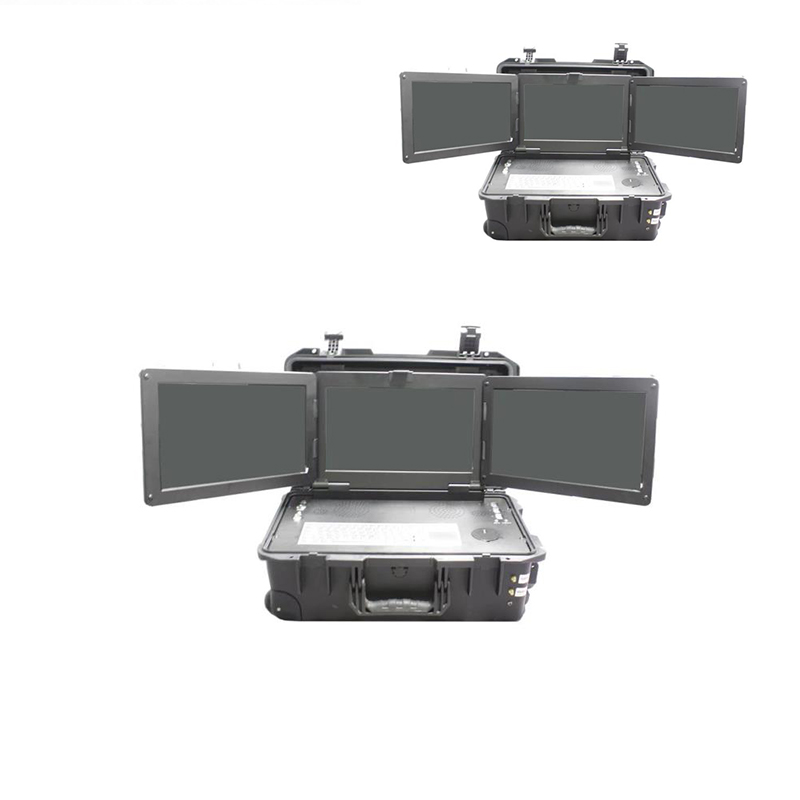

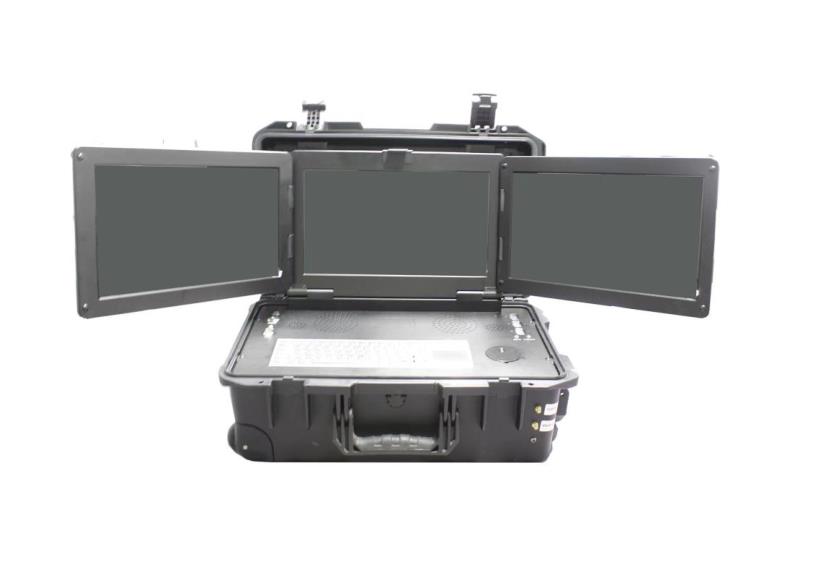

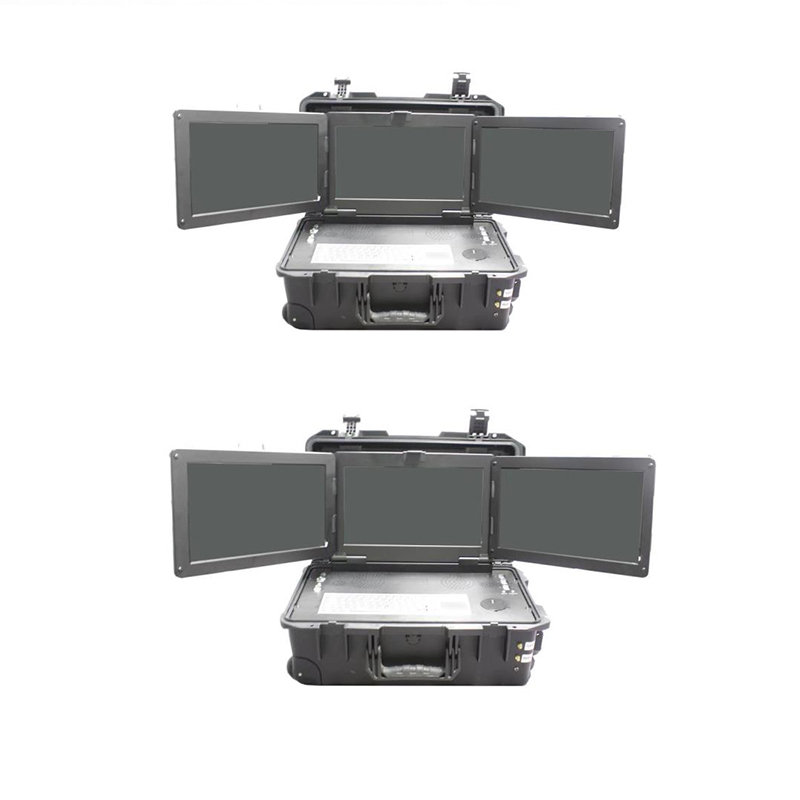

DF-RC8 portable three screen command box
1080P three screen design with high-definition camera, foldable, real-time voice intercom, portable three screen command box
USD： 11200
ablity：Monthly Output200
- Product Description
- Product Params
Product Description
Product description
DF-RC8 is a portable three screen command box developed for on-site command. The product integrates MESH self-organized network, 5G public network, WIFI, and wired network, integrating various services such as voice, video, location, and data information at the accident scene. It has unified presentation, management, and provides three screen display function, achieving visual command. The host screen image can be projected to the front command center's large screen system, and linked with the rear command center to achieve communication and issuance.
Product features
1.Volume 577 * 353 * 211mm
2.Weight 22kg
3.Three screen design, foldable, size 15.6 inches * 3, resolution 1080P, middle screen with high-definition camera
4.Support 5G public network data backhaul
5.Supports HDMI video output
6.Capable of video monitoring and real-time voice intercom
7.Supports external MIC and headphones, and supports multiple voice input and output options
8.Flexible networking and rapid deployment
Host characteristics | Operating system | WIN10/64 bit |
CPU | Intel(R) Core(TM) i7-12700F 210 GHz | |
Display screen | 15.6 inches * 3 | |
Internal memory | DDR4-64G memory | |
Hard disk | 1TB solid-state drive | |
Operating mode | Embedded mouse and keyboard | |
RF parameters | Working frequency band | 1.4GHz |
Working bandwidth | 5/10/20/40MHz，20MHz(Typical) | |
RF Channel | 2T2R | |
Transmission power | 20W | |
Network parameters | Nodes | 64 units |
Throughput rate | 82Mbps | |
Encryption algorithm | AES | |
Public network | 4G/5G All network connectivity | |
WIFI | 2.4GHz | |
Transmission distance | 10-20km (Sight distance) | |
Physical/Environmental | Size | 577*353*211mm |
Weight | 22kg (including batteries) | |
Operation temperature | -20℃〜+65℃ | |
Protection grade | IP65 | |
Electrical Characteristics | Power supply | 19~24V |
Battery capacity | 42Ah | |
Interface | Ad hoc network antenna interface | N*2 |
5G antenna interface | SMA*4 | |
WIFI antenna interface | SMA*1 | |
GPS antenna interface | SMA*1 | |
Video interface | HDMI*1 | |
Data interface | USB*6 | |
Network interface | Gigabit Ethernet port * 1 | |
Voice interface | 7-core Remmer head * 1, 3.5mm * 2 |

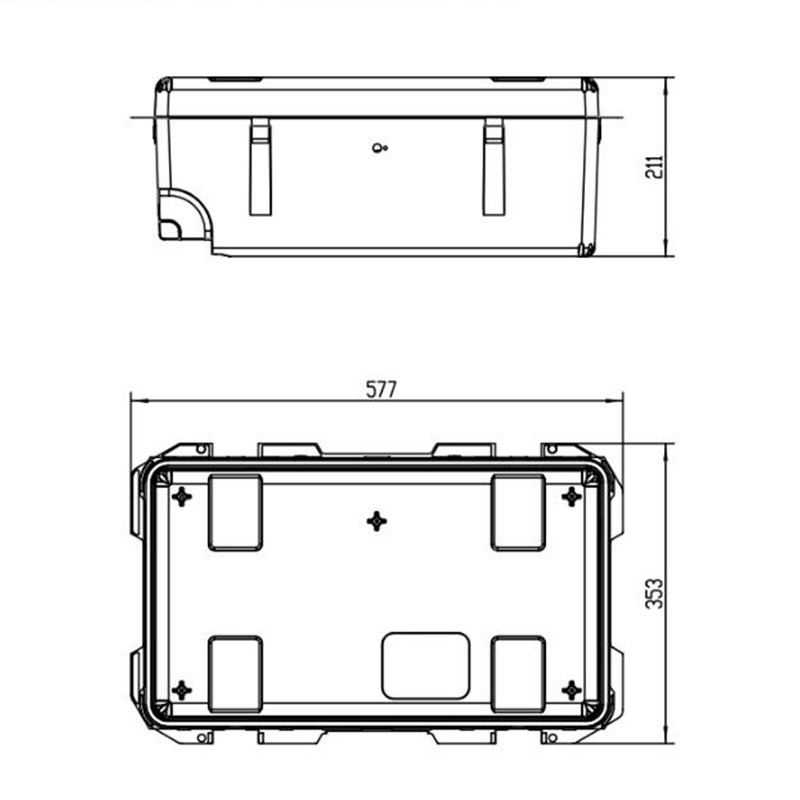

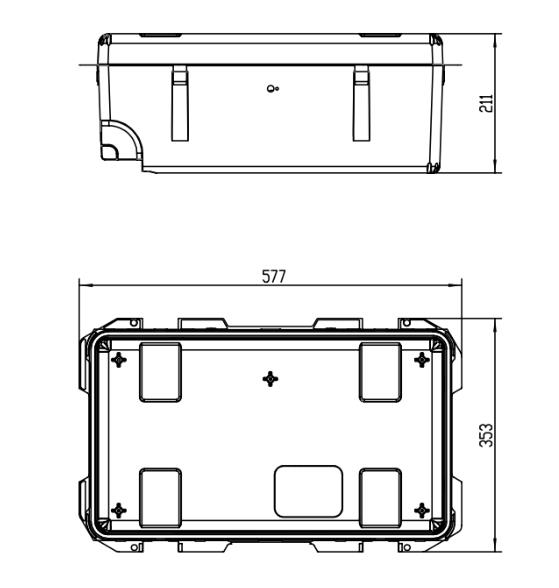

Equipment dimension diagram （mm）

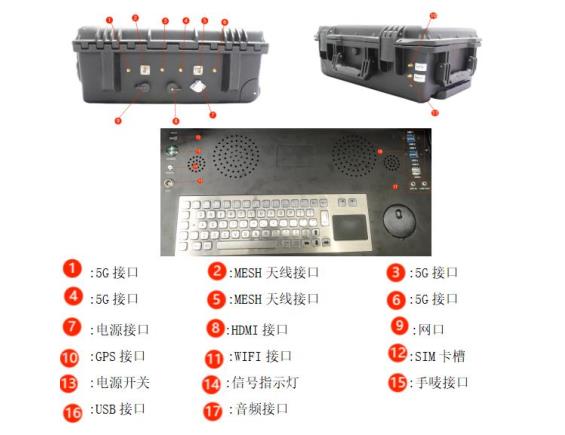

Interface device illustration
1 . 5G interface
2. MESH antenna interface
3. 5G interface
4. 5G interface
5. MESH antenna interface
6. 5G interface
7. Power interface
8. HDMI interface
9. Network interface
10. GPS interface
11. WiFi interface
12. SM card slot
13. Power switch
14. Signal indicator light
15. Handmark interface
16. USB interface
17. Audio interface
