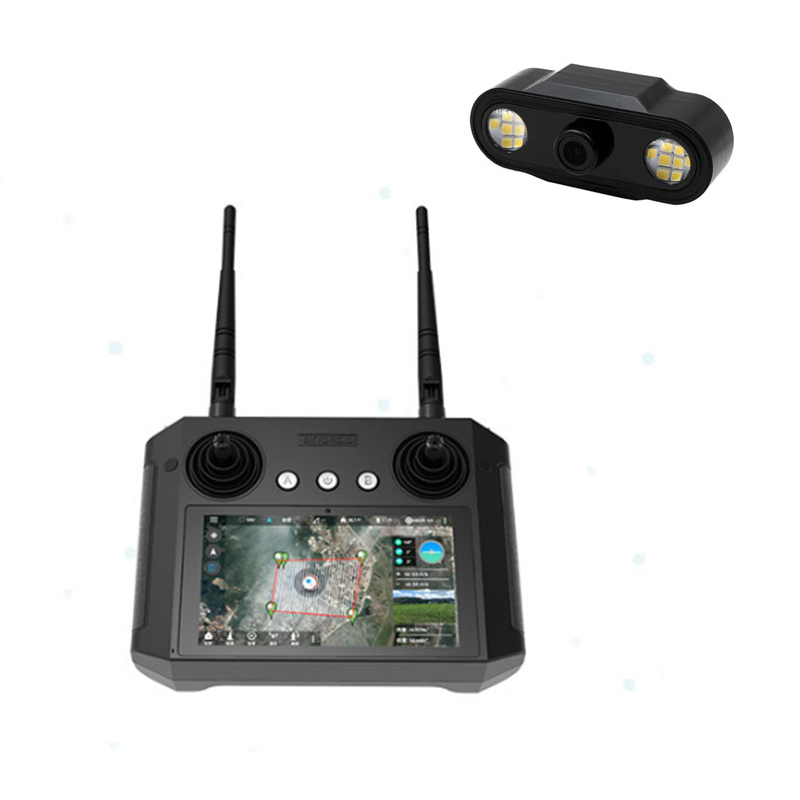

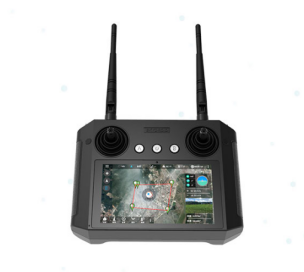

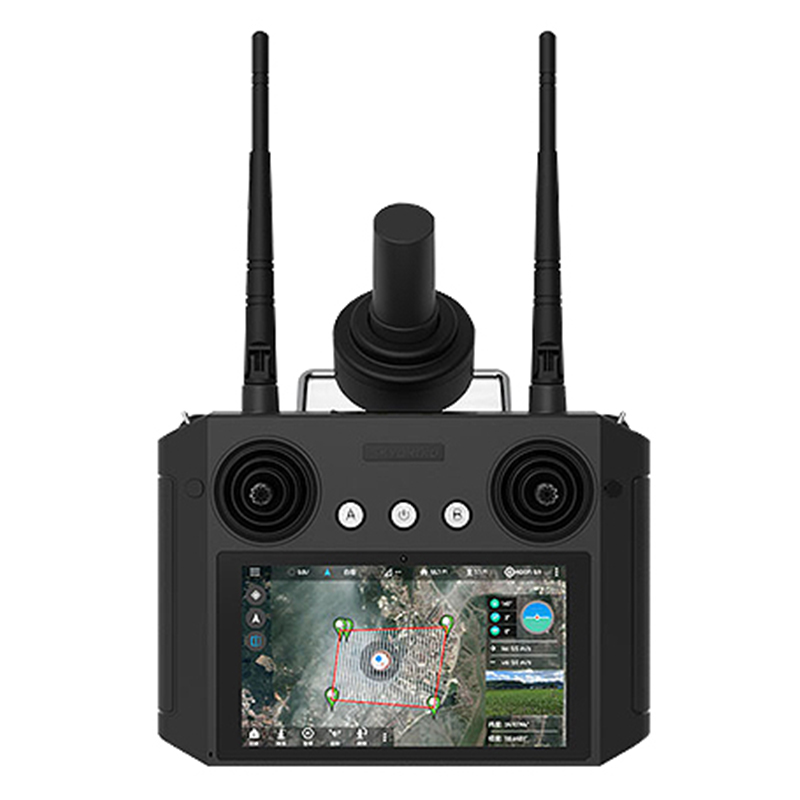

DF-H12 Remote Control

Ultra long endurance using advanced SDR technology with built-in Qualcomm processor and low latency remote control

Working voltage :
4.2V
Frequency band :
2.400-2.483Ghz
Size :
190*152*94mm
Endurance :
6-20h
Weight :
530g

USD: 390

ablity:Monthly Output300

contact shop
  • Product Description
  • Product Params

Product Description


Product Description

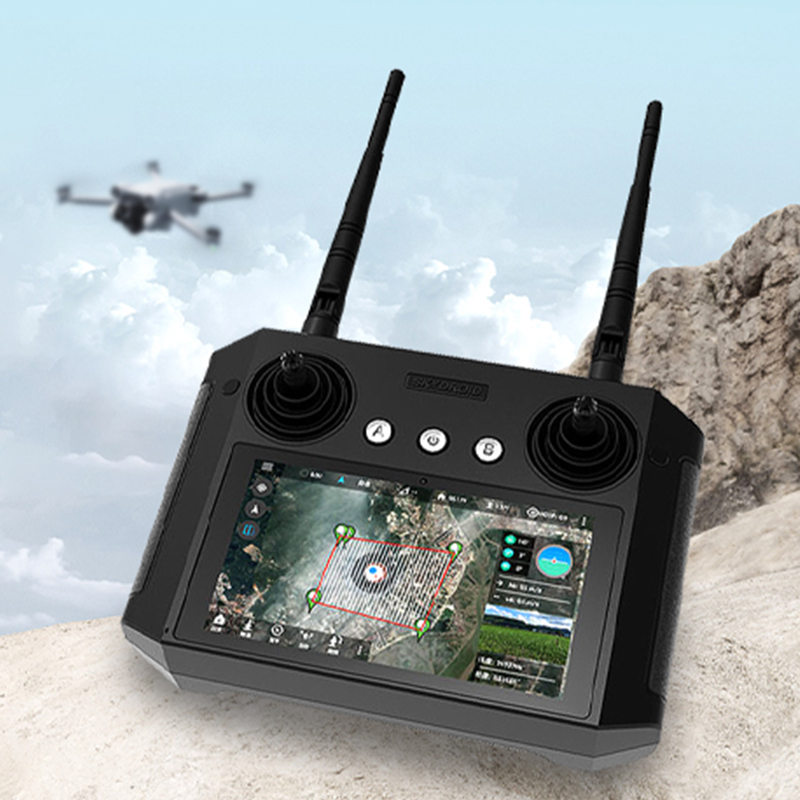

DF-H12 Remote Control

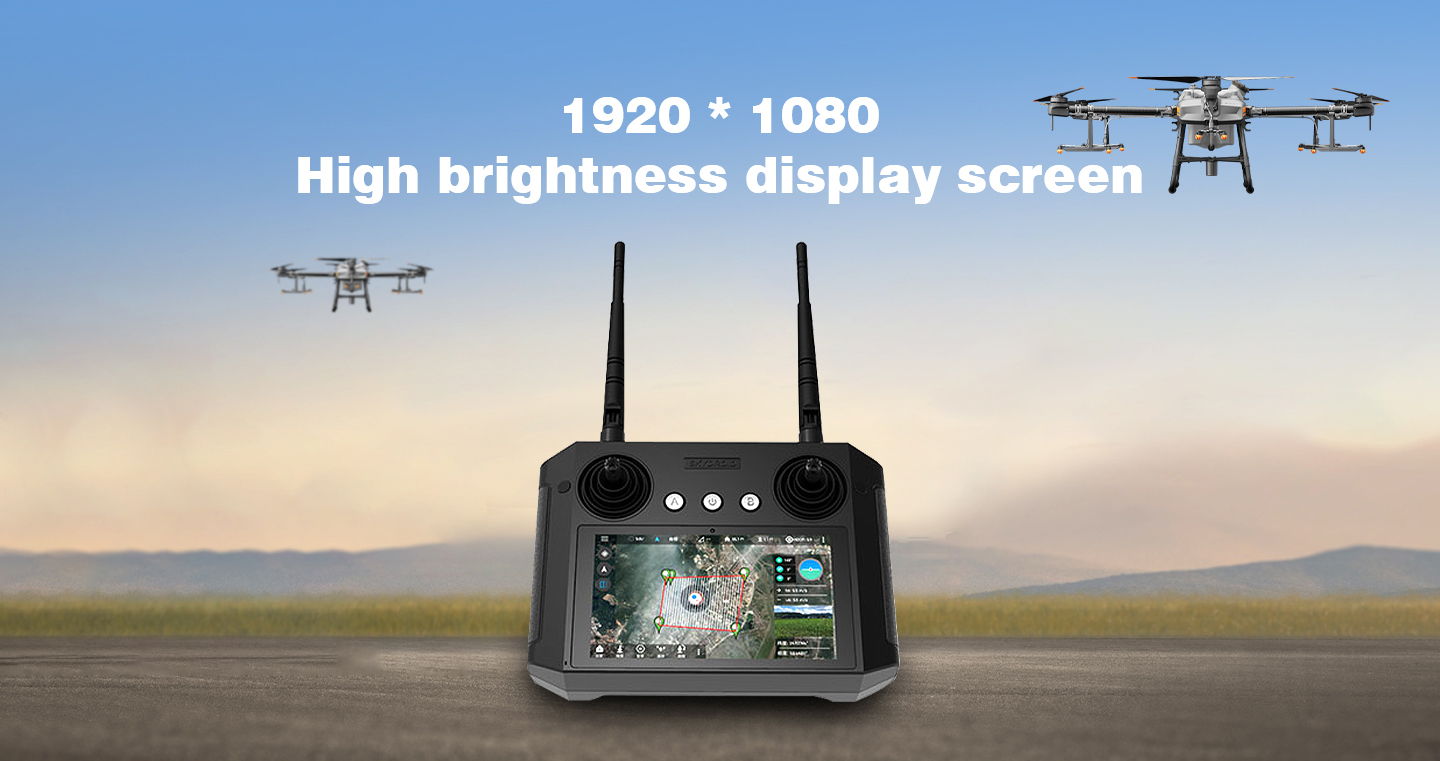

Ultra high definition

Ultra long link

Extra Long Range

Ultra strong scalability

Super Open

Super user-friendly

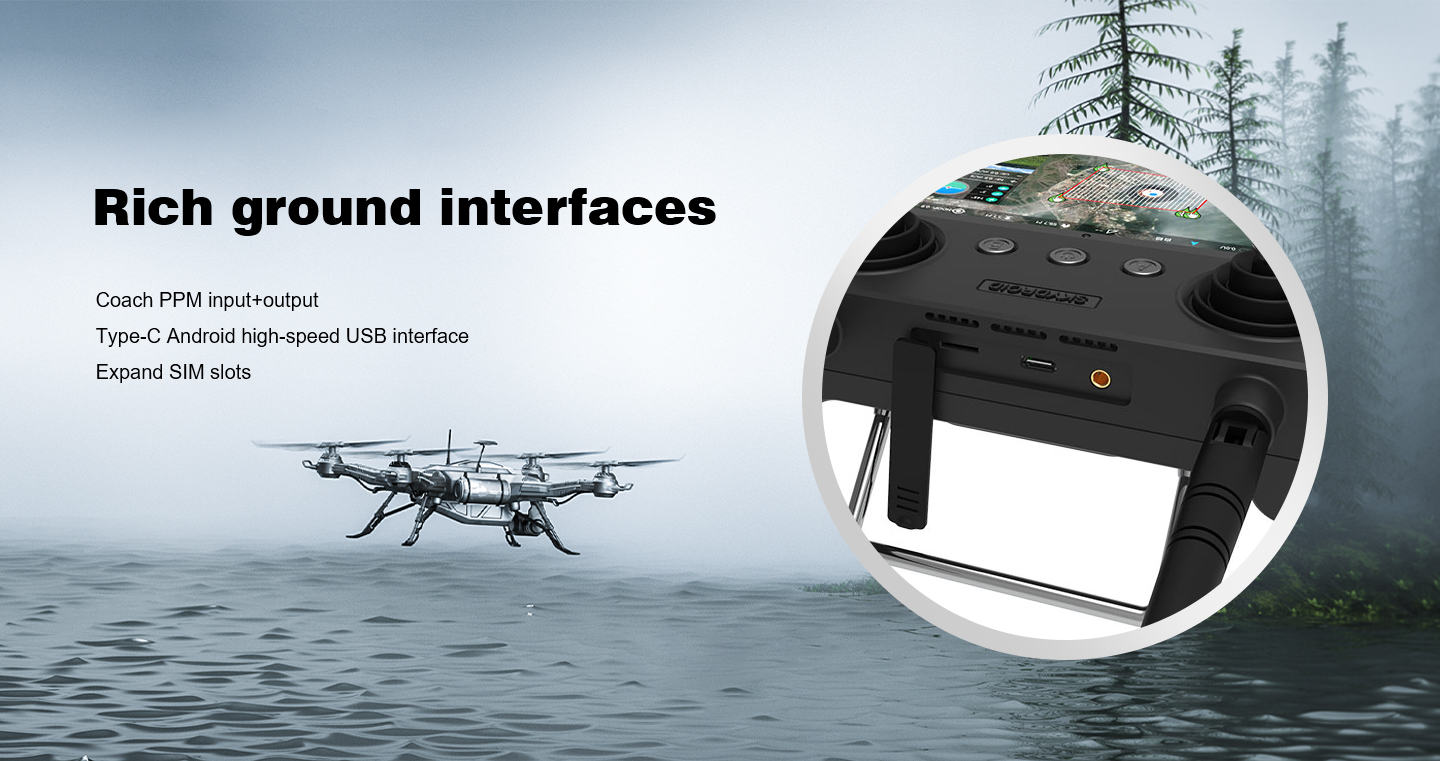

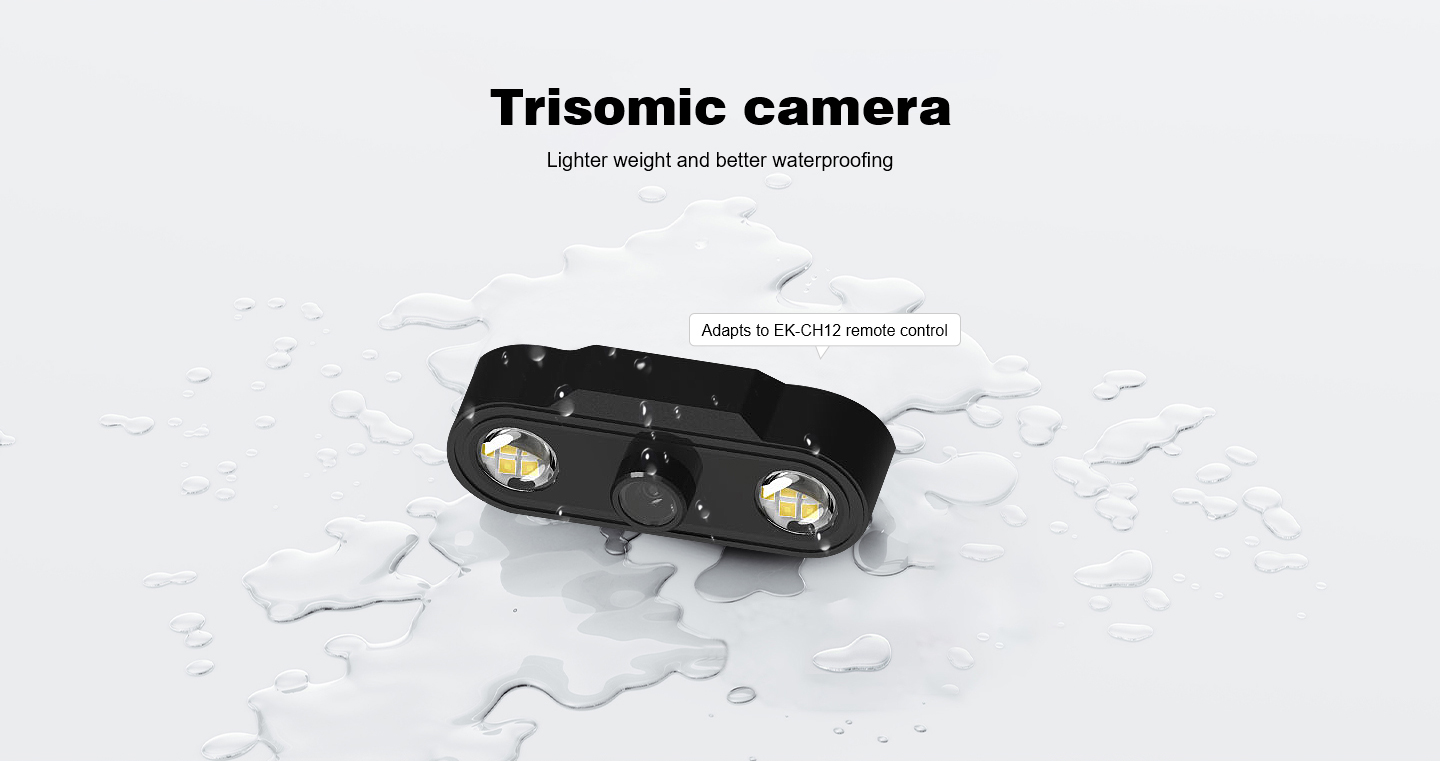

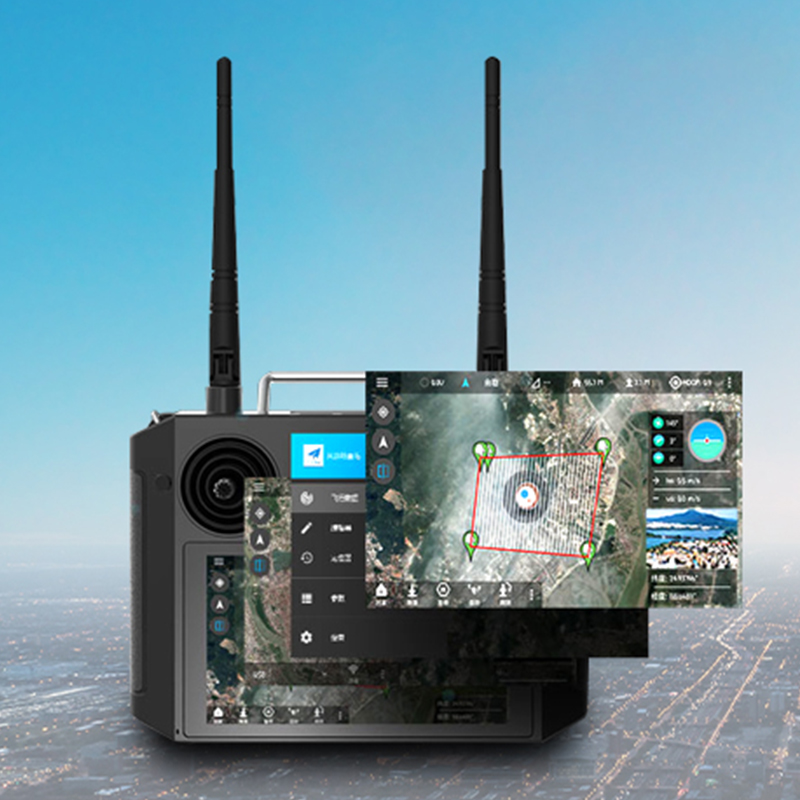

The H12 series adopts a brand new Qualcomm processor, equipped with an Android embedded system, advanced SDR technology, and super protocol stack. Make the image clearer, with lower latency, longer distance, and stronger anti-interference ability. Supports rich interfaces such as SIM, digital cameras, serial ports, and s.bus. Using waterproof, dustproof, and anti drop materials and structures, it is very durable and can be applied to drones, robots, industrial control equipment, etc.


Product features


Parameters

Remote control parameters

Model

H12

Number of channels

12

Working voltage

4.2V

RF power

20DB@CE/23DB@FCC

Frequency band

2.400-2.483Ghz

Frequency hopping

New FHSS frequency hopping

Upgradation

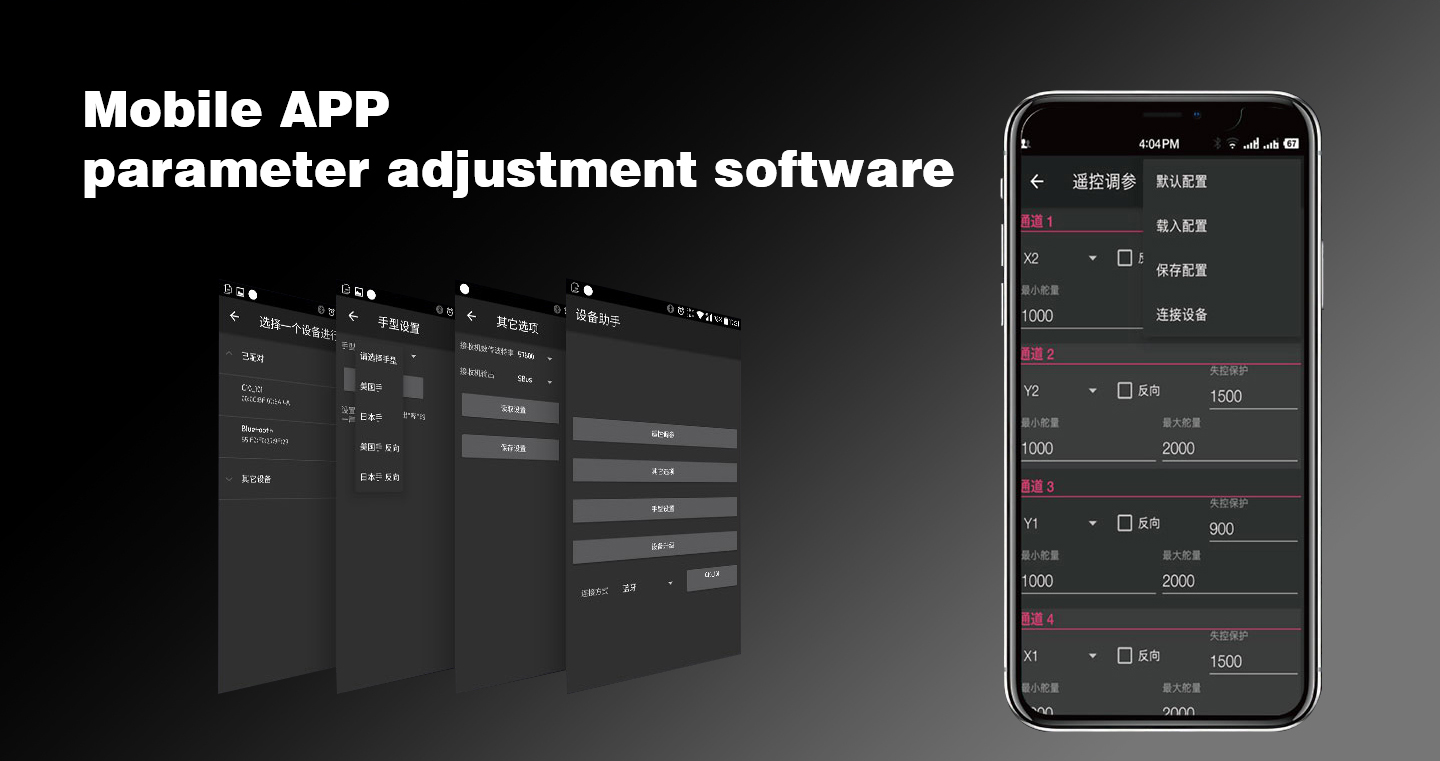

App online upgrade

Weight

530g

Size

190*152*94mm

Battery

10000mA/H

Endurance

6-20h

Charging interface

TYPE-C

Application

Helicopters, fixed wings, multi rotors, vehicles and ships

Receiver parameters

Model

R12

Number of channels

12

Working voltage

4.5-5.5V

Working current

140mA@5V

Size

51*41*13mm

Weight

14g
