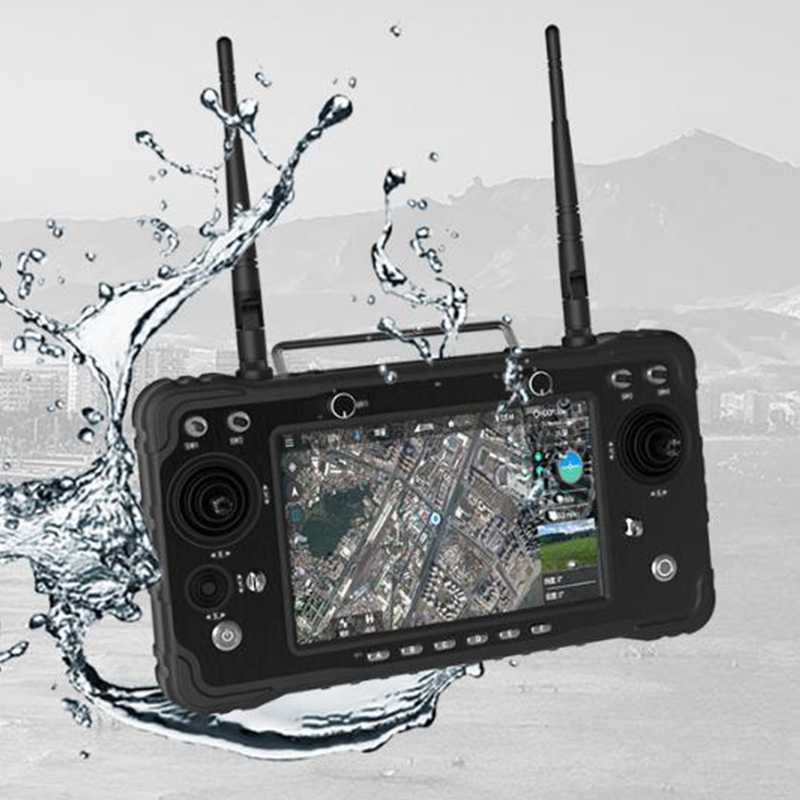

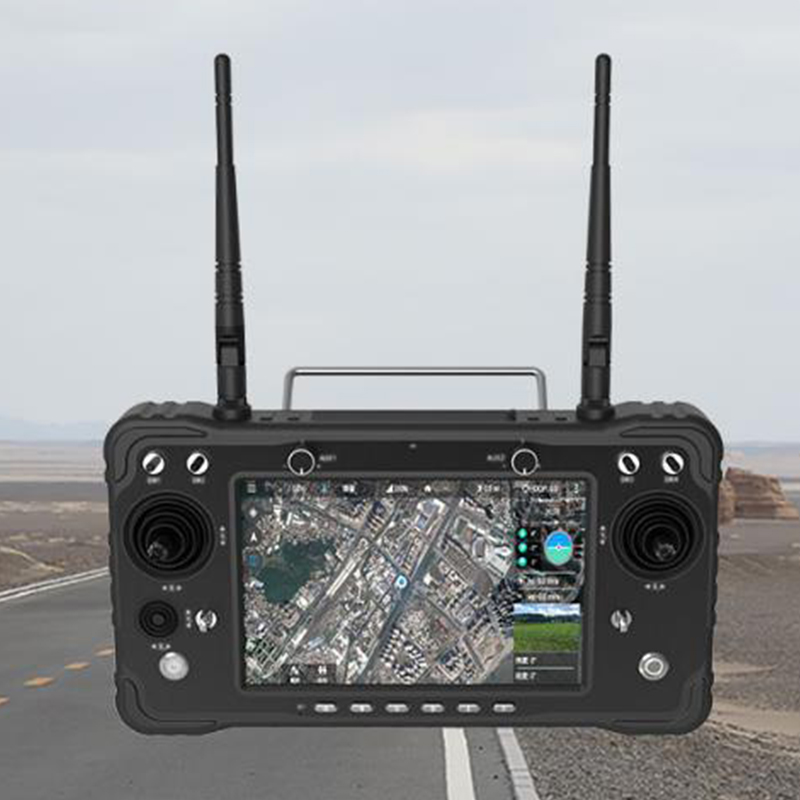

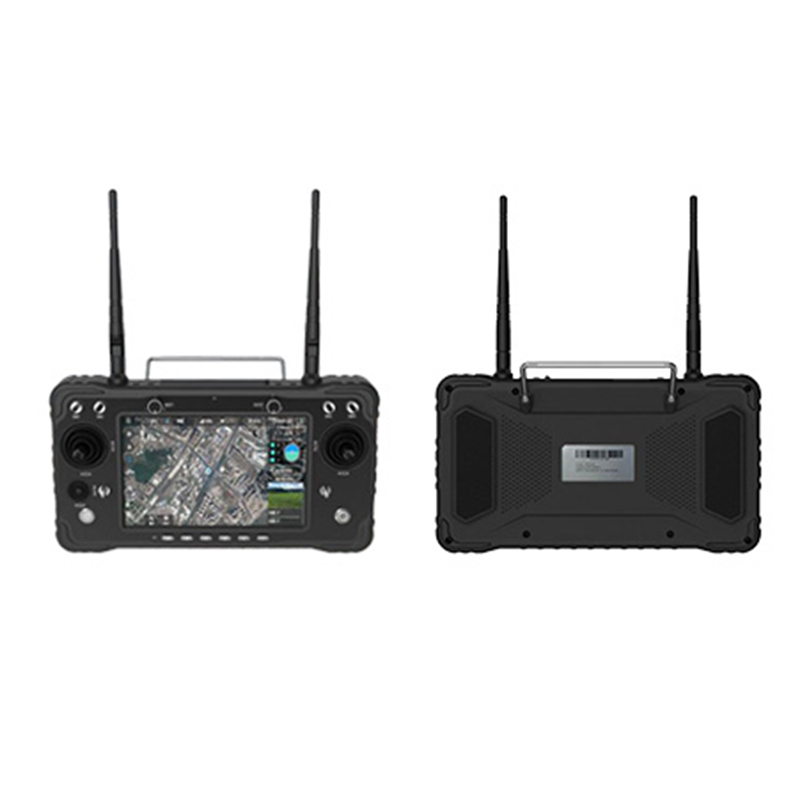

DF-H16 Remote Control
Adopting a brand new processor for ultra strong anti-interference digital high-definition image transmission remote control for drones and robots
USD： 999999
ablity：Monthly Output200
- Product Description
- Product Params
Product Description
Product Description

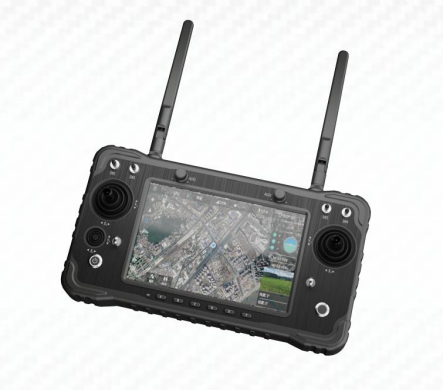

DF-CH16 remote control

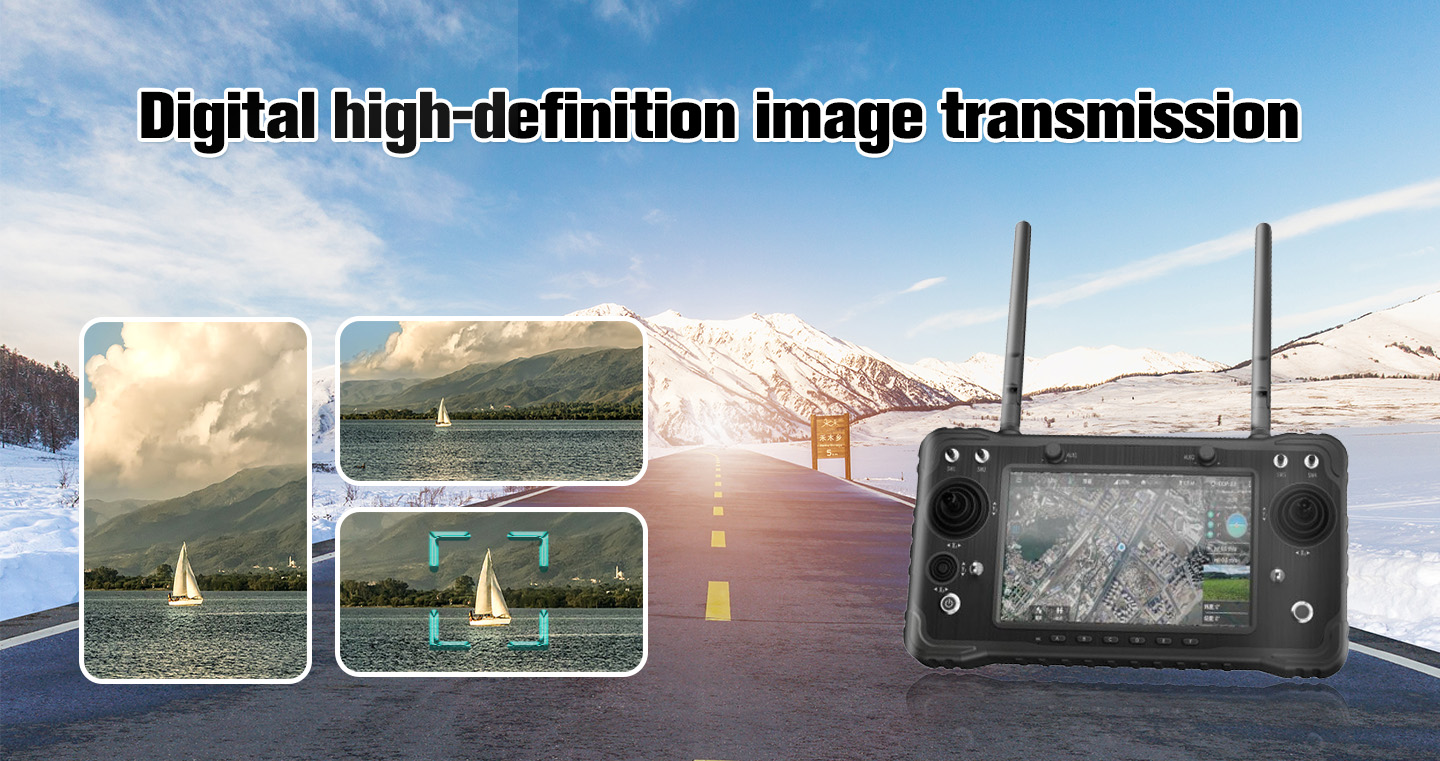

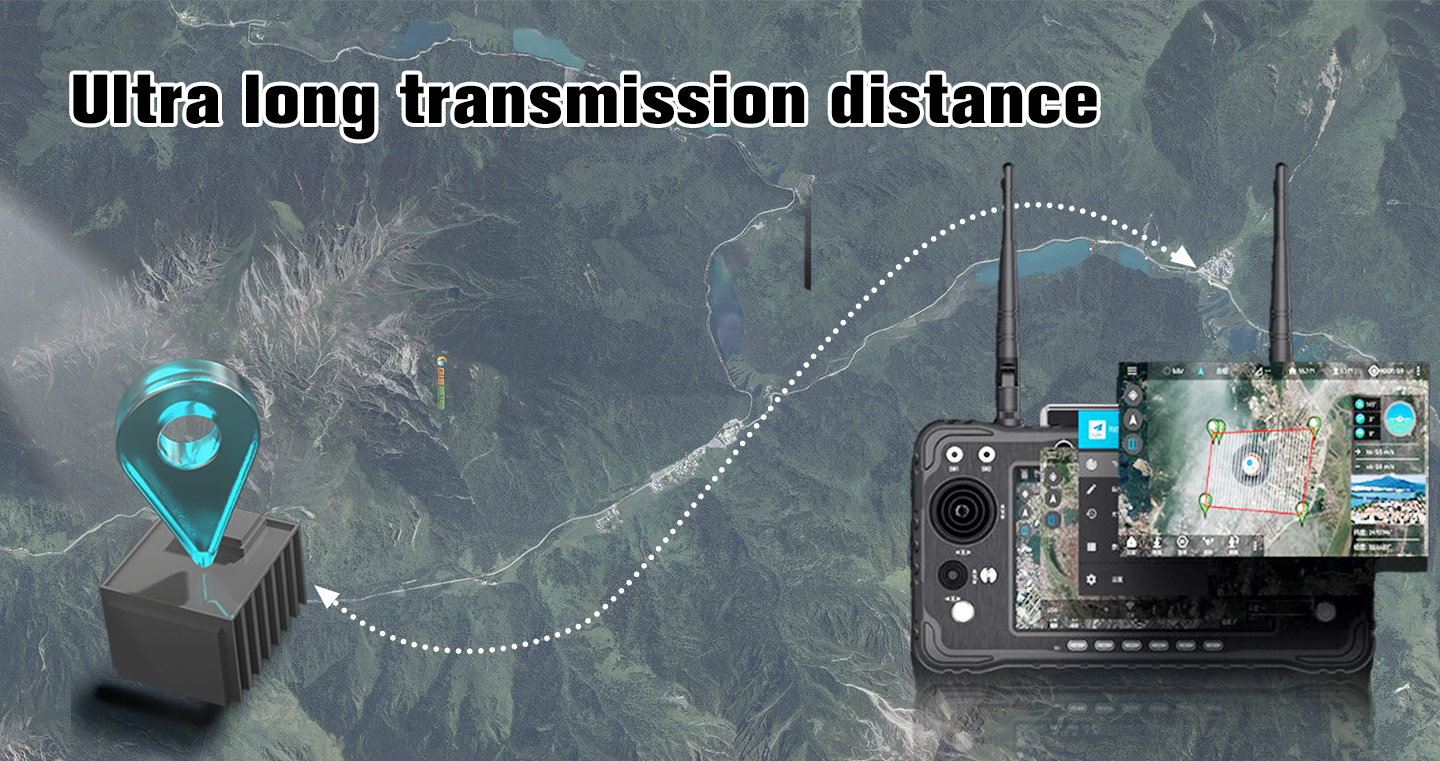

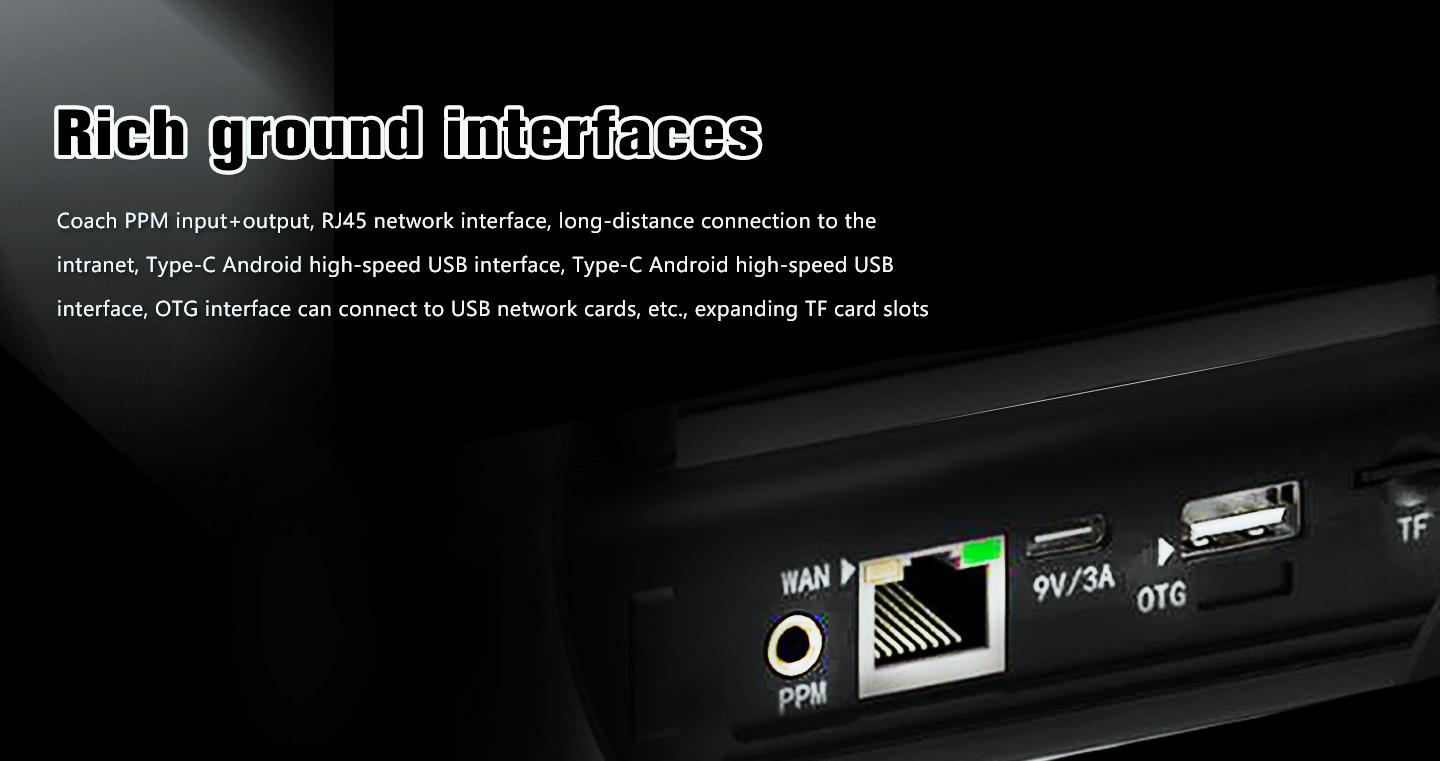

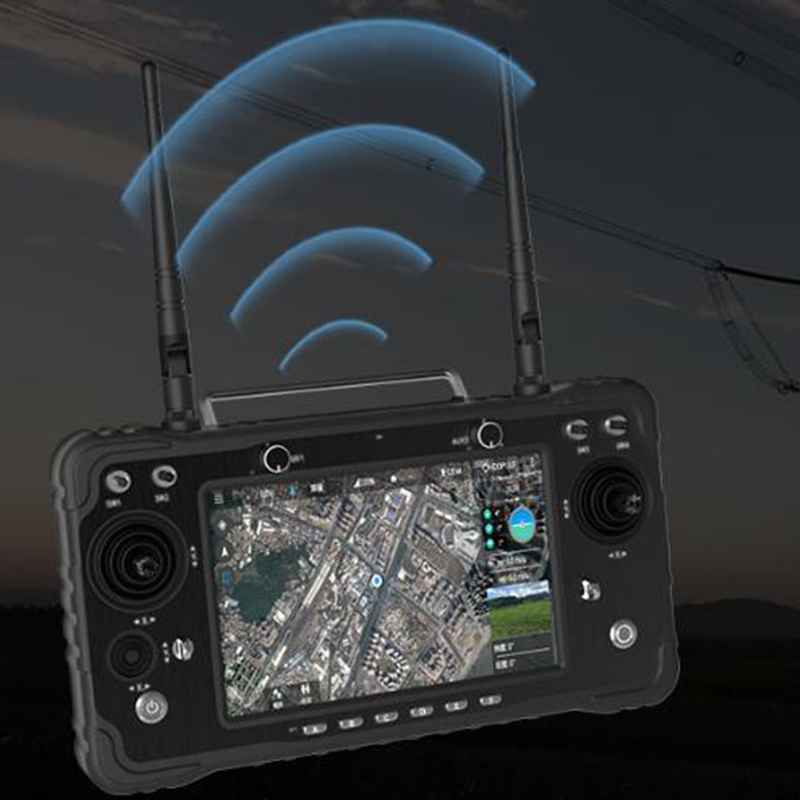

The DF-CH16 series adopts a brand new surging processor, equipped with an Android embedded system, advanced SDR technology and super protocol stack, making images clearer, with lower latency, longer distance, and stronger anti-interference ability. It supports HDM, network port, sensor interface dual serial port transmission, s.bus and other rich interfaces, which can be applied to drones, robots, industrial control equipment, fire protection, power, and other fields.

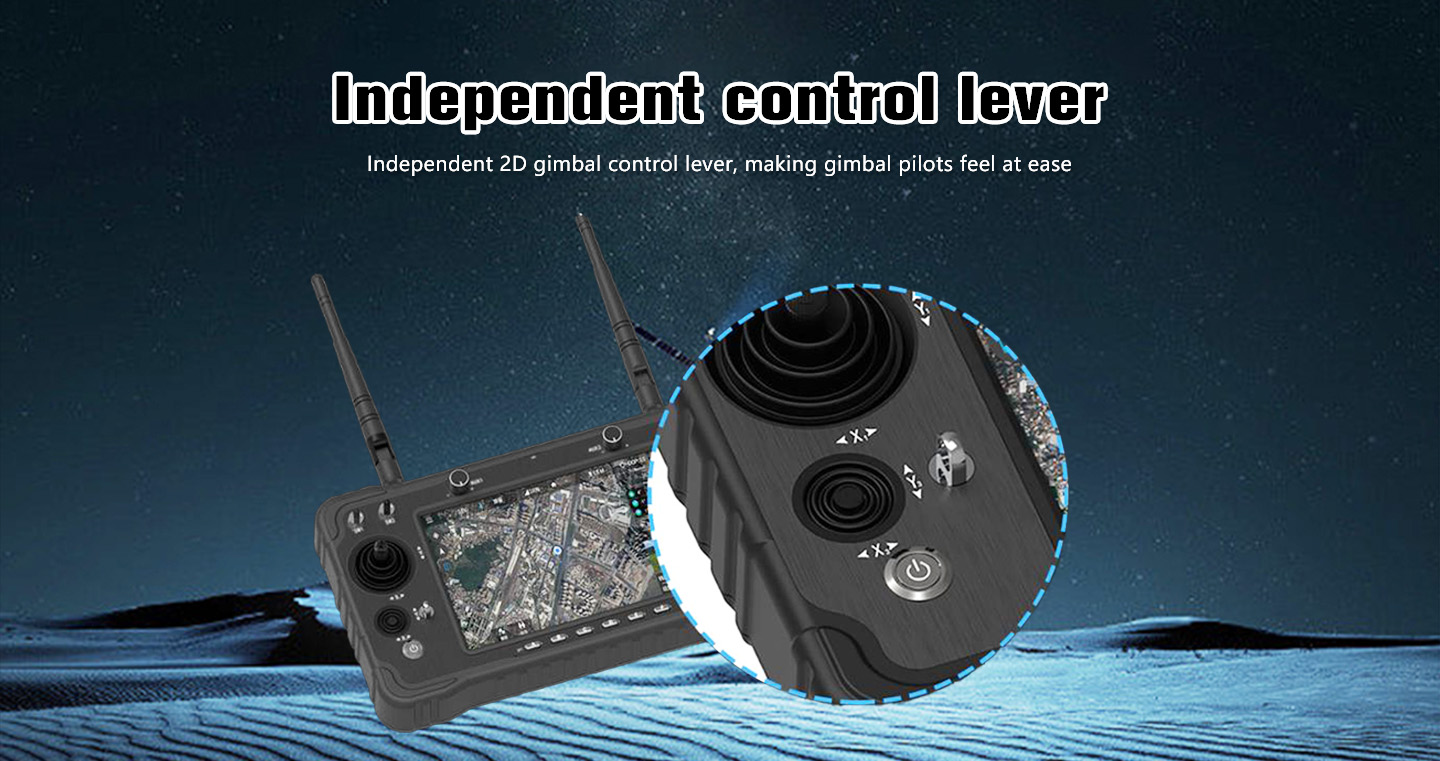

Product features
Parameters
Remote control parameters | |||
Model | H16 | Number of channels | 16 |
Working voltage | 4.2V | RF power | 20DB@CE/23DB@FCC |
Frequency band | 2.400-2.483Ghz | Frequency hopping | New FHSS frequency hopping |
Upgradation | App online upgrade | Weight | 1034g |

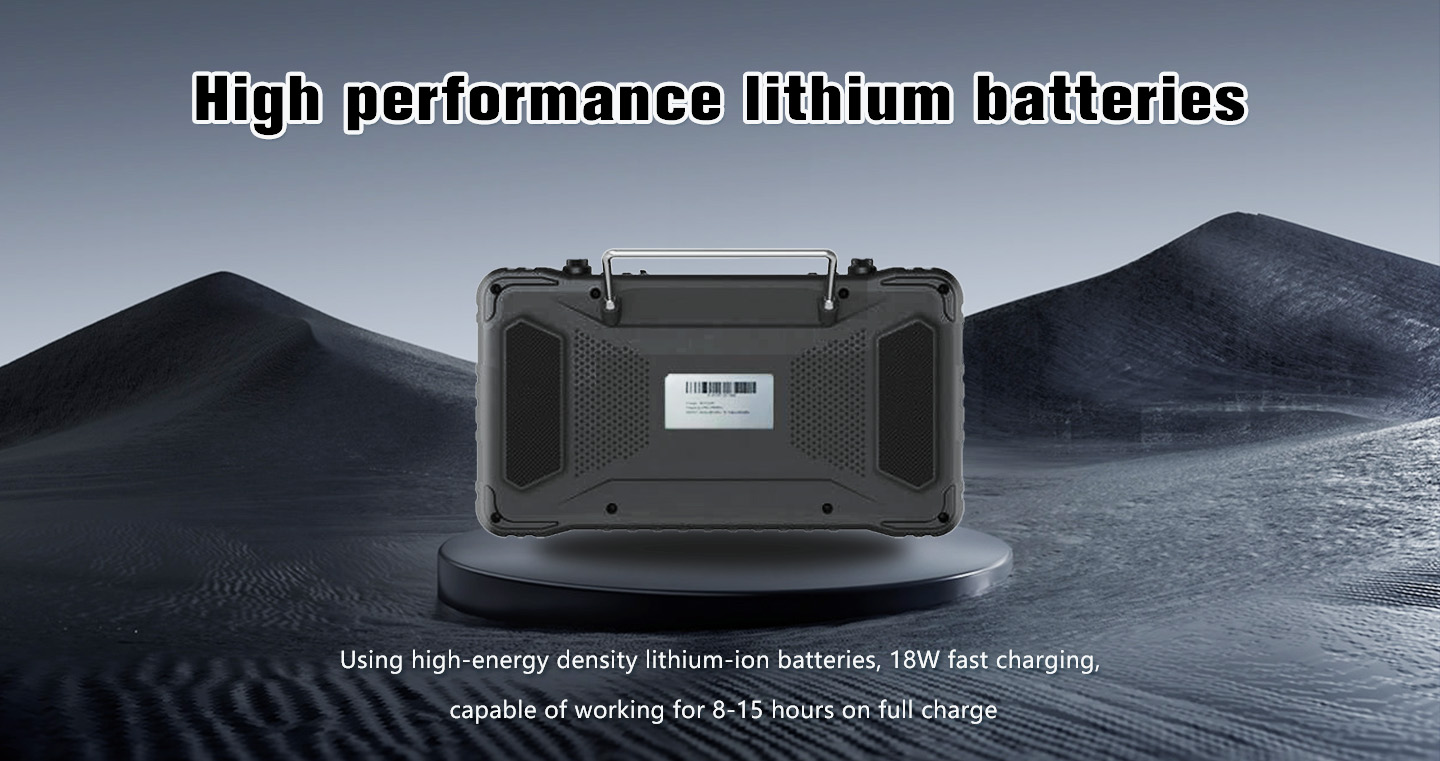

Size | 272*183*94mm | Battery | 20000mA/H |
Endurance | 6-20h | Charging interface | TYPE-C |
Application | Helicopters, fixed wings, multi rotors, vehicles and ships | ||
Receiver parameters | |||
Model | R16 | Number of channels | 16 |
Working voltage | 7.2-72V | RF power | 20DB@CE/23DB@FCC |
Size | 76*59*11mm | Weight | 90g |
Three body MIPI camera | |||
Model | MIPI | Working current (with lights on) | 140mA |
Working voltage | 14-72V | Working current (without lights on) | 14mA |
Size | 102.1*42.6*36.5mm | Weight | 55g |
