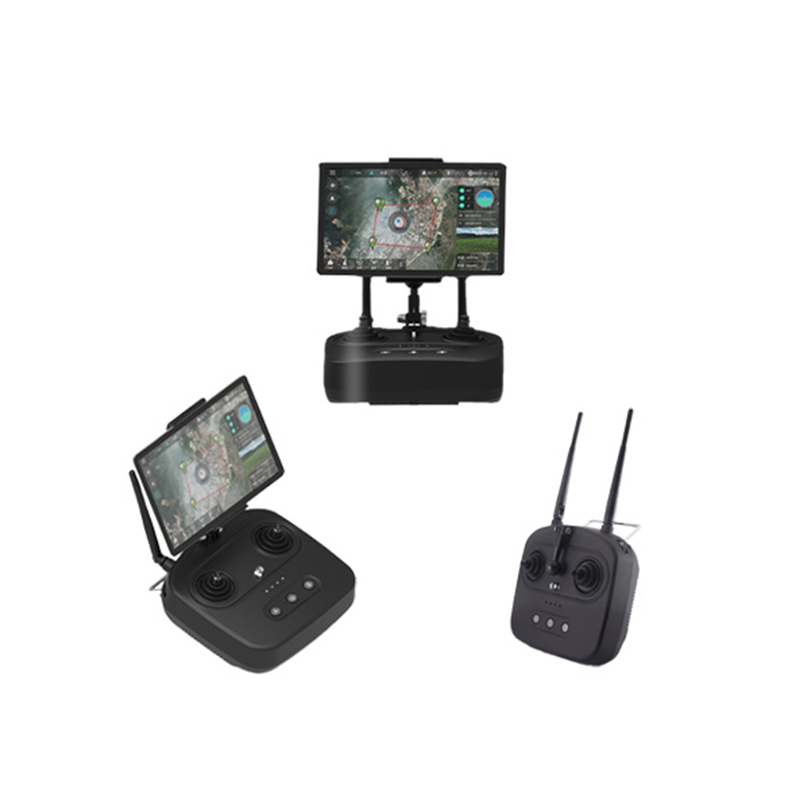

DF-T10 Remote Control
厂家直销高质量10KM+数字图传距离数图控三合一链路遥控器
USD： 999999
ablity：Monthly Output200
- Product Description
- Product Params
Product Description
Product Description

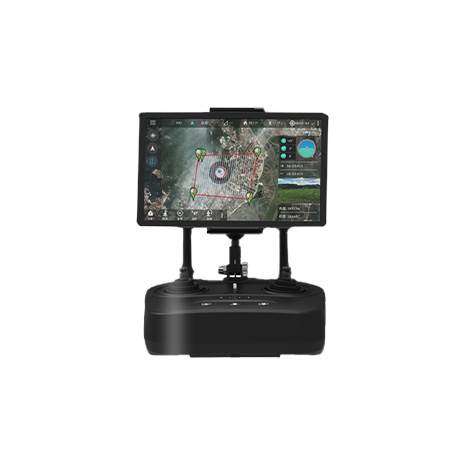

EK-CT10 Remote Control
10KM+digital image transmission distance
Digital graph control three in one link
Replaceable 18650 battery design
Product features

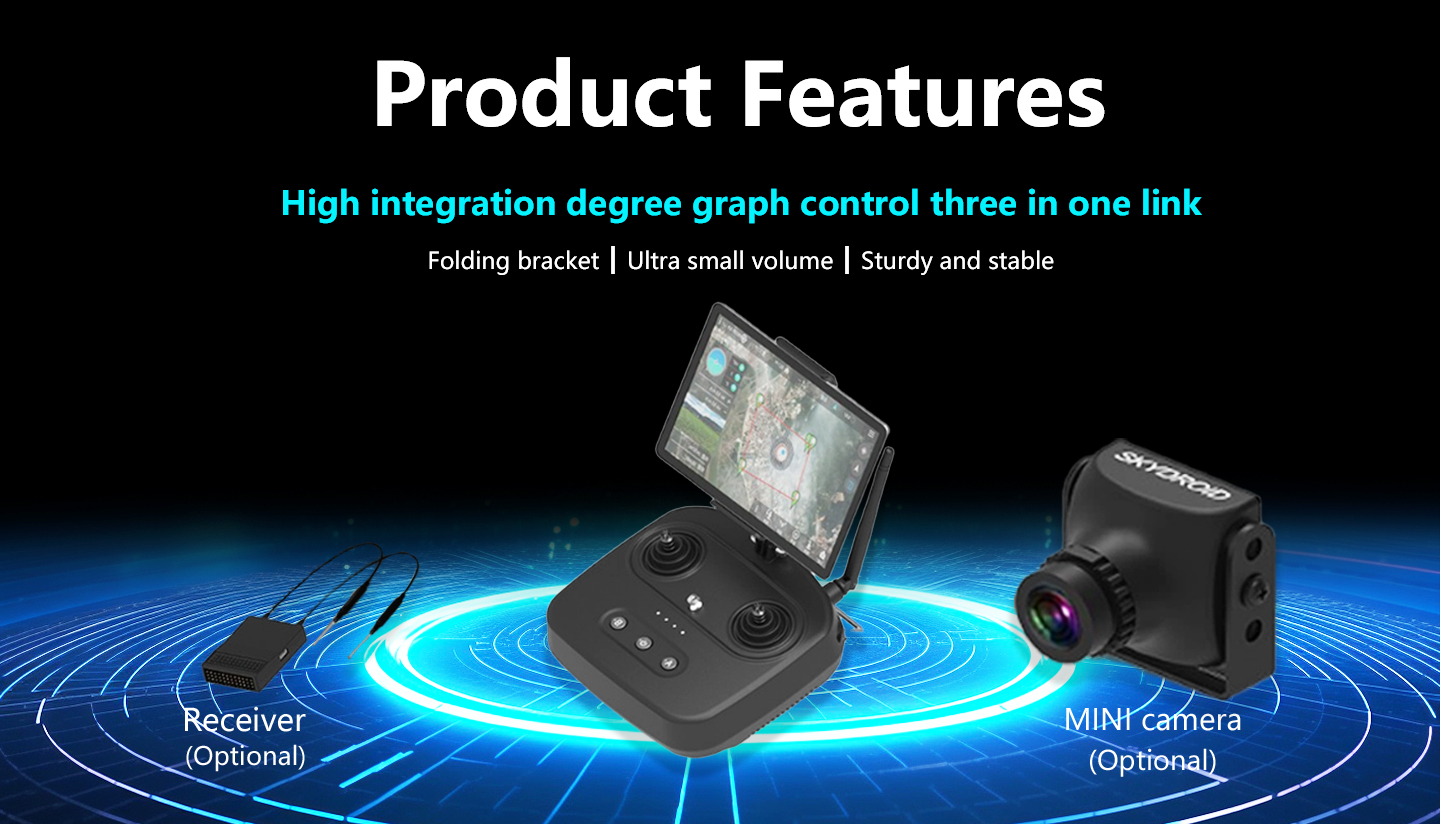

1. High integration degree graph control three in one link

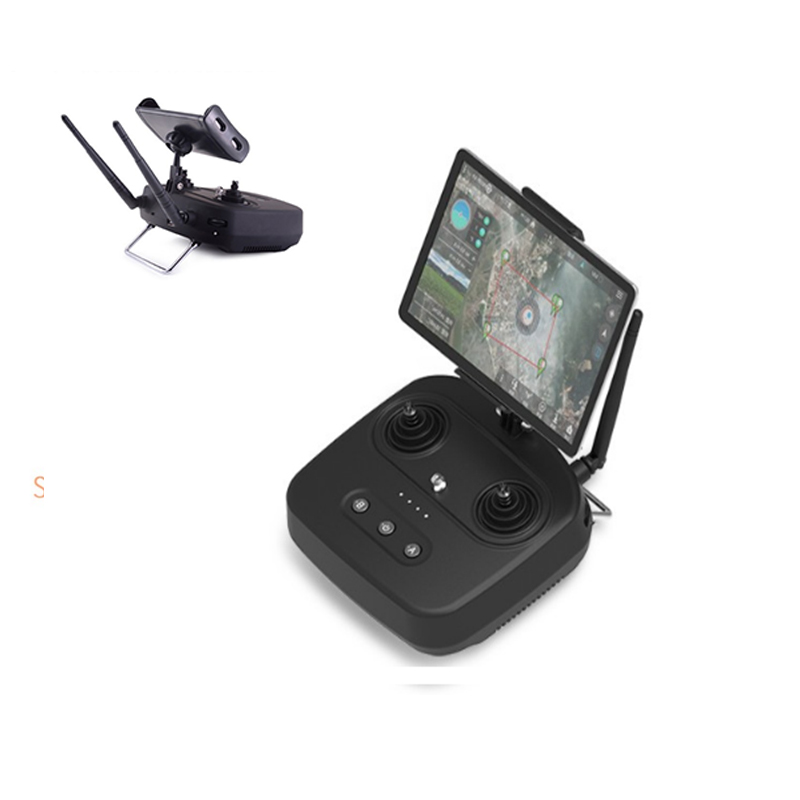

Folding bracket/ultra small volume/sturdy and stable

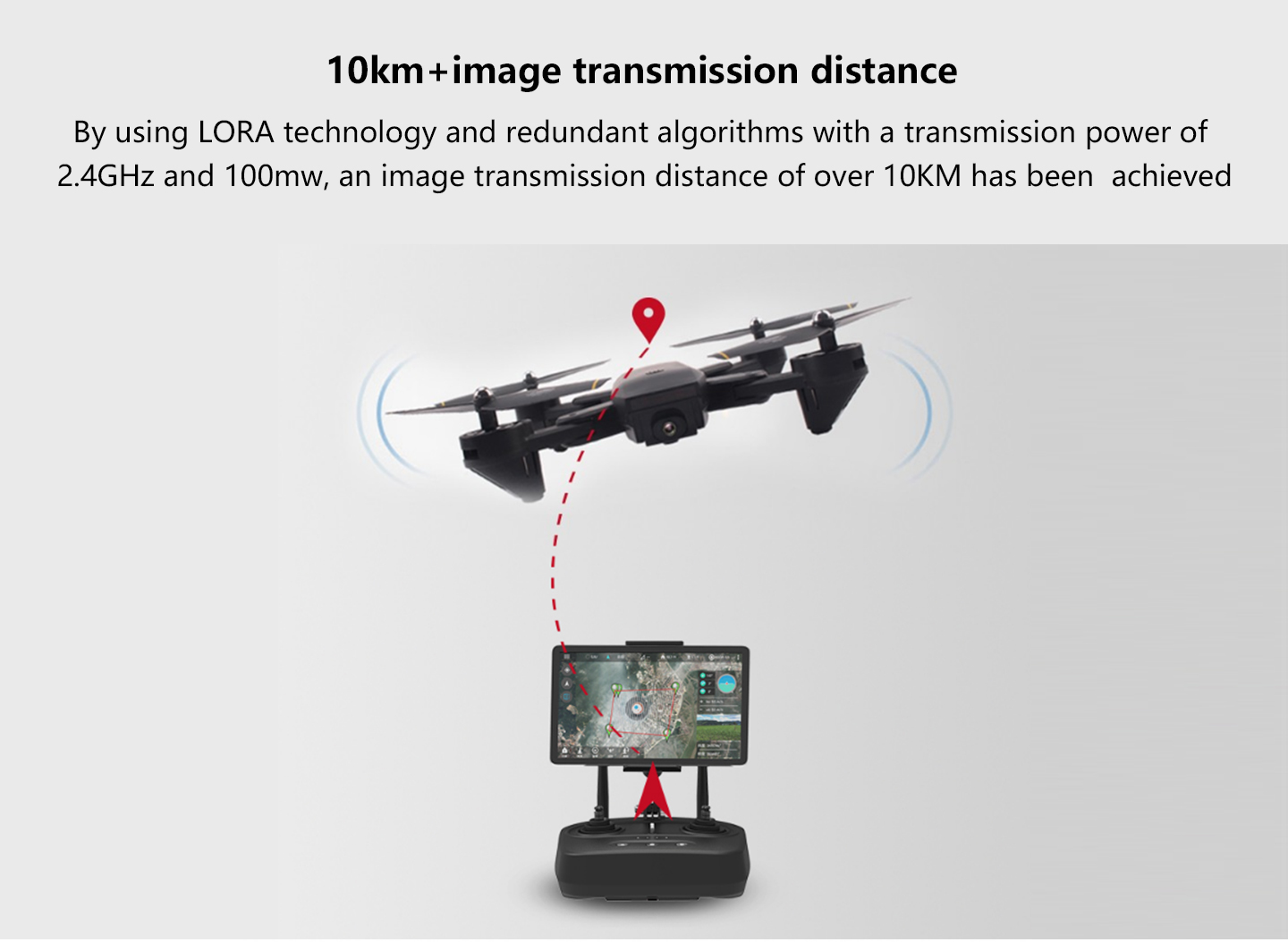

2.10km+image transmission distance
By using LORA technology and redundant algorithms with a transmission power of 2.4GHz and 100mw, an image transmission distance of over 10KM has been achieved

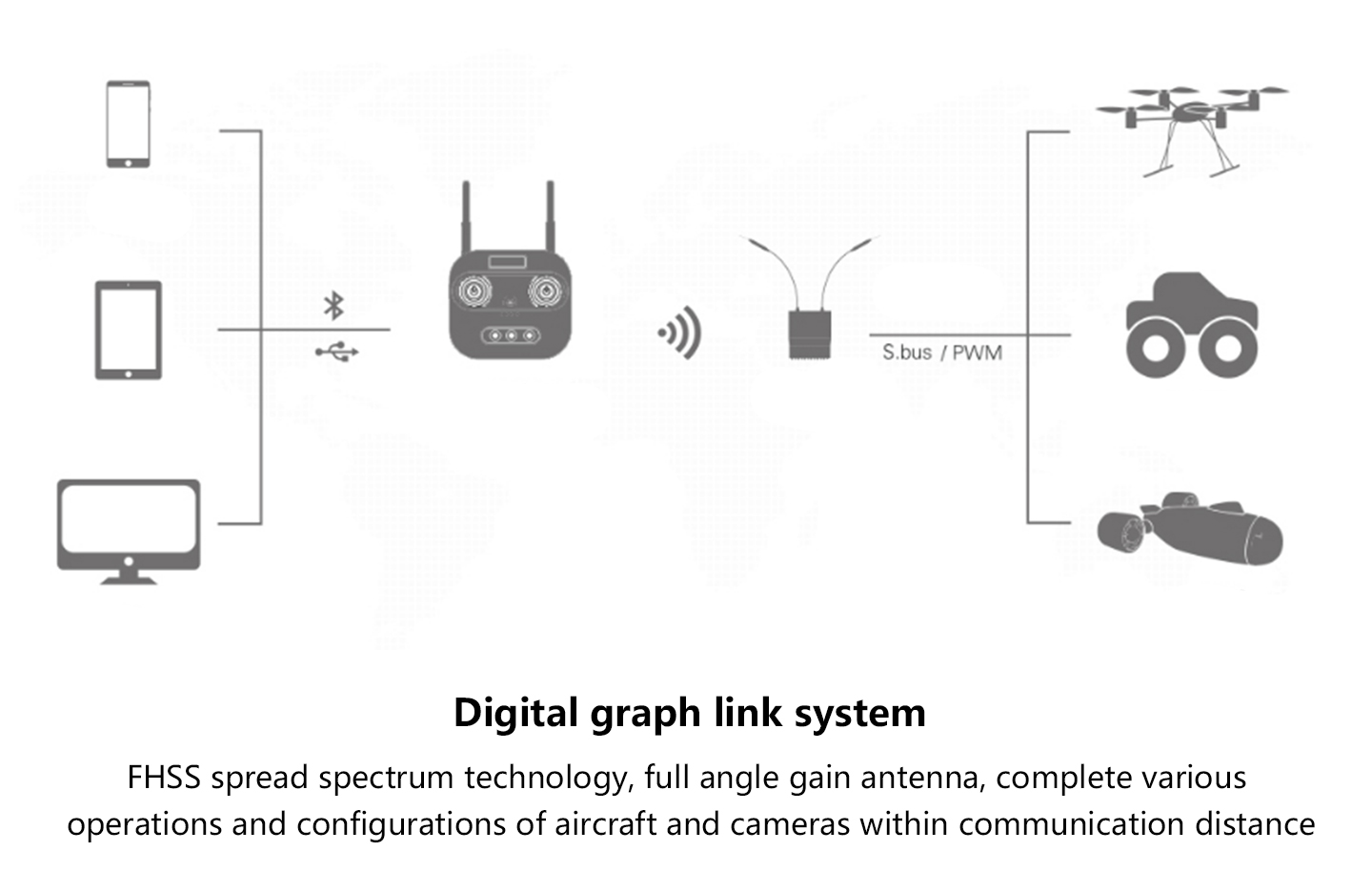

3.Digital graph link system
FHSS spread spectrum technology, full angle gain antenna, complete various operations and configurations of aircraft and cameras within communication distance

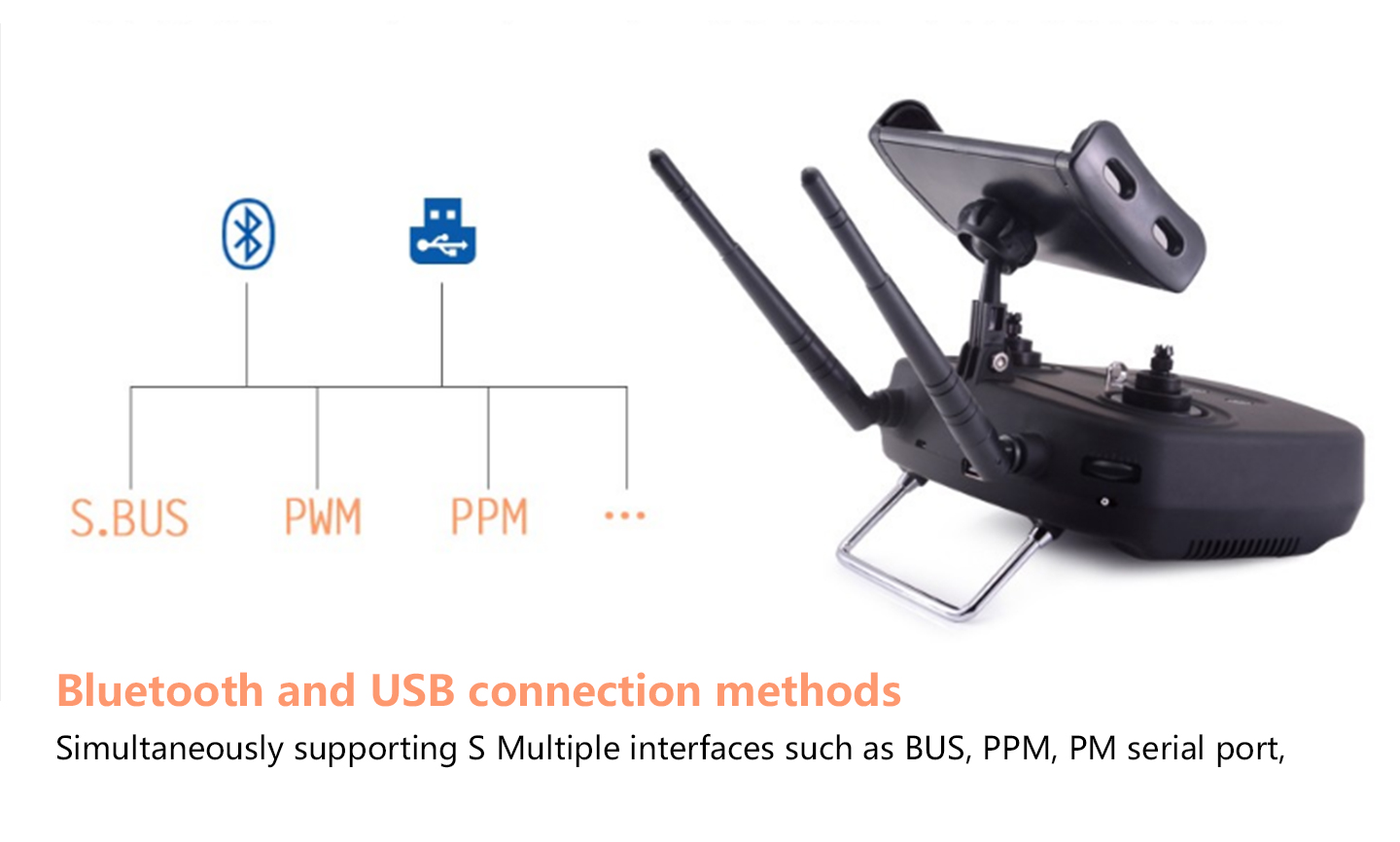

6. Bluetooth and USB connection methods
Simultaneously supporting S Multiple interfaces such as BUS, PPM, PM serial port, and support for device expansion
Product parameters
Remote control parameters | |||
Model | T10 | Number of channels | 10 |
Working voltage | 4.2V | Work current | 100mA |
Frequency band | 2.400-2.483Ghz | Frequency hopping | New FHSS frequency hopping |
Upgradation | App online upgrade | Weight | 525g |
Size | 130*150*20mm | Battery | 18650 sections (to be purchased separately) |
Endurance | 20h | Charging interface | MICRO-USB |
Application | Helicopters, fixed wings, multi rotors, vehicles and ships | ||
Receiver parameters | |||
Model | R10 | Number of channels | 10 |
Working voltage | 4.5-5.5V | Work current | 100mA |
Size | 76*59*11mm | Weight | 20g |
MIPI camera parameters | |||
Model | MINIDCAM | Size | 30*29*26mm |
Working voltage | 180mA | Weight | 15.6g |
Applications
The main purpose and scope of application are for remote control operation of helicopters, fixed wings, multi rotors, vehicles, ships, etc. for video image transmission (with optional cameras), data transmission, and control of drone flight.
Recommended products
DF-S1Pro Avionics System
DF-S1Pro Avionics System with High Integration and High Definition 1080P Video Streaming Transmission Practical Network Port
collect：0
DF-C20 23x zoom three-axis night vision gimbal
Industrial grade three-axis stabilization structure 1080P high-definition 23x zoom night vision gimbal
collect：0

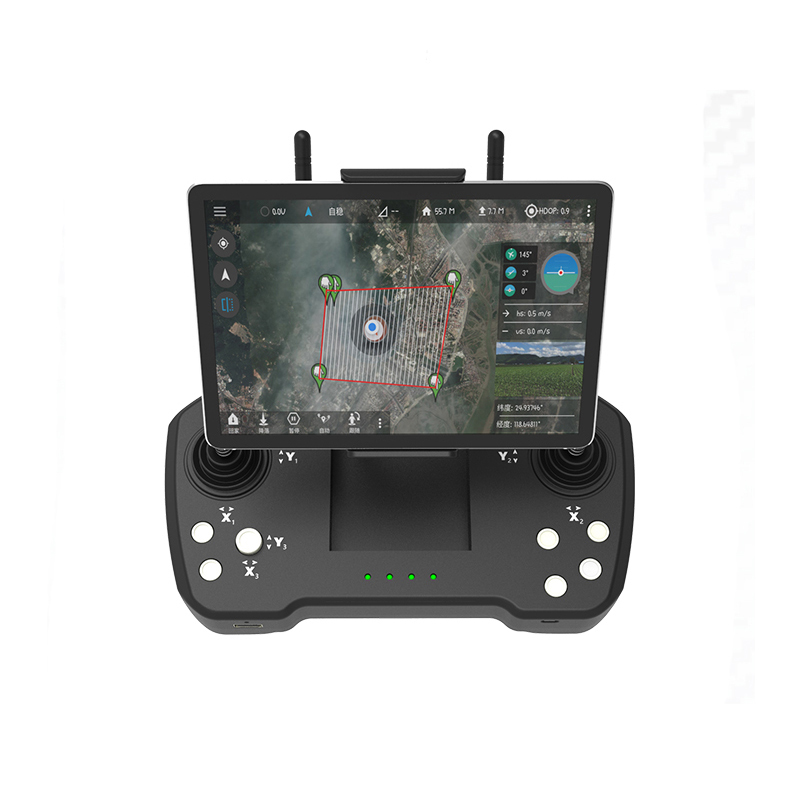

DF-H30 Remote Control
