Product Description

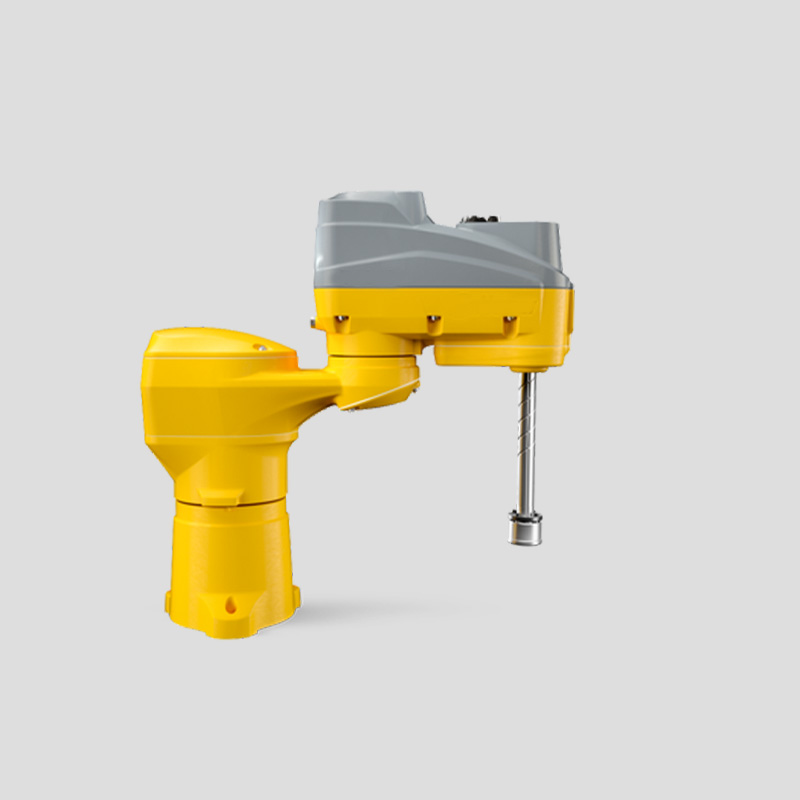

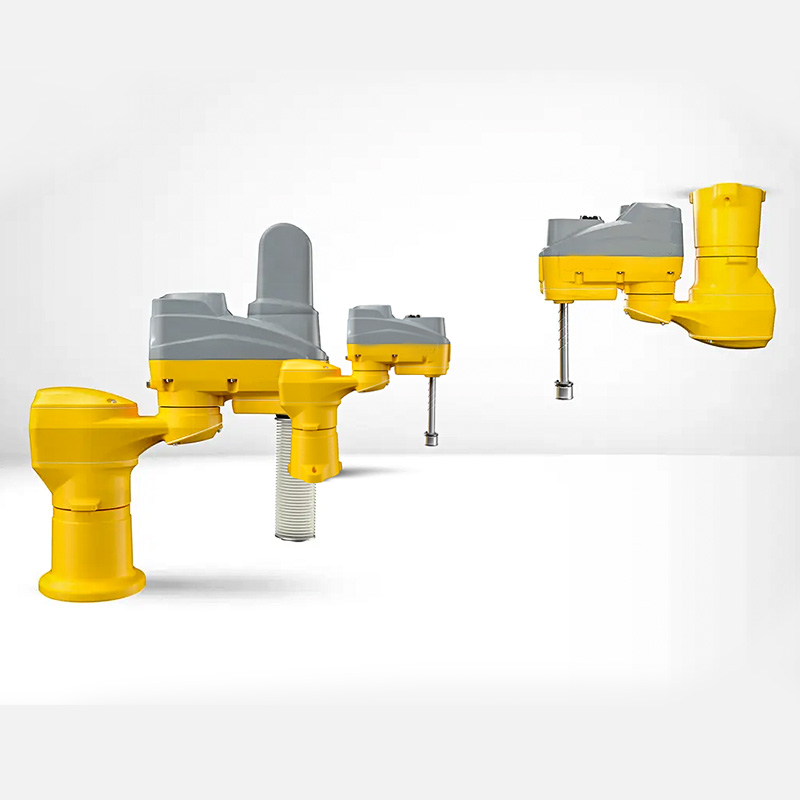

TS2 SCARA robot
TS2 Scara robot is entering a new performance class with its TS2 SCARA series. The completely redesigned 4-axis machine with proprietary JCS drive technology facilitates ultra-short cycle times and high repeatability. It also has a revolutionary encapsulated design which opens up new possibilities for use in sensitive environments. It is piloted by the generic CS9 controller that also controls TX2 6-axis robots.
Product Features
High performance kinematics
Light and rigid structure
Modular: same components as TX2 6-axis robots
Patented JCS smart gearbox on axis 1 and 2 designed for compact robots:
high dynamics, agility and path precision also due to higher drive frequency, encapsulated in oil bath, perfect lubrication allows extremely high dynamics, Unique, 19-bit safe digital multi-turn absolute encoders, ready to operate with no initiation, Outstanding precision for robot guided by camera and path precision, Dynamic absolute calibration as a standard option
Smart connected tool
Allows instant production changeovers
Brings time savings, increased flexibility to ensure a rapid return on investment
Includes pneumatic, power and signal (Cat5e) contacts
Ultra-compact integrated tool changer available (optional), allows automatic - manual usage of various tools
Application Cases
Robots for medical devices
We are pleased to be your partner and supplier for robotic applications such as the processing of complex orthopedic implants. You gain enhanced performance and relieve your employees of repetitive tasks. Our robots are also an excellent choice for injection molding or the assembly of blood pressure monitors, pacemakers and infusion bags.
we pride ourselves on combining expertise in the regulatory environment with scientific understanding and technical perfection. This results in robotic solutions for safe and efficient processes.
Technical Parameter
Model | TS2-40 | TS2-60 | TS2-80 | TS2-100 |
Degrees of freedom | 4 | 4 | 4 | 4 |
Load capacity | 8.4 kg | 8.4 kg | 8.4 kg | 8.4 kg |
Reach | 460 mm | 620 mm | 800 mm | 1000 mm |
Stroke | 200 mm or 400 mm (option) | |||
Repeatability X-Y | ± 0,01 mm | ± 0,01 mm | ± 0,015 mm | ± 0,02 mm |
Repeatability Z | ± 0,004 mm | |||
Repeatability R-Z | ± 0,002° | ± 0,002° | ± 0,003° | ± 0,003° |
Protection class -EN 60529 | Up to IP65 with ball screw cover and bellows | |||
Attachment methods | Floor or ceiling | |||
