Product Description

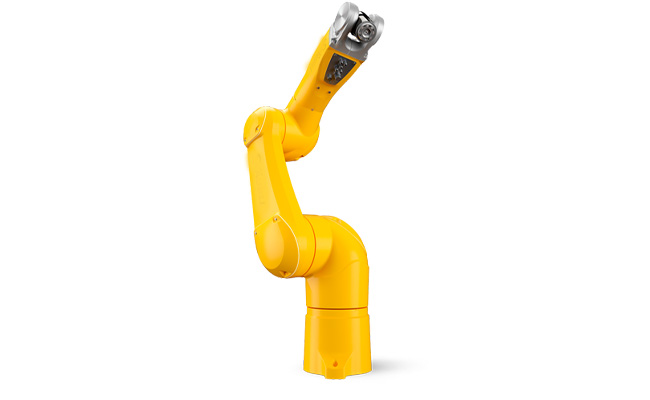

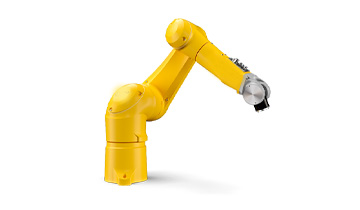

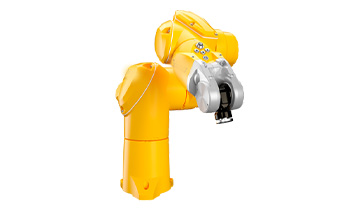

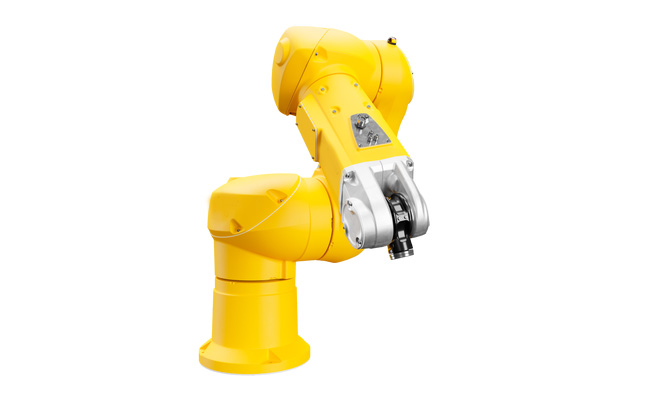

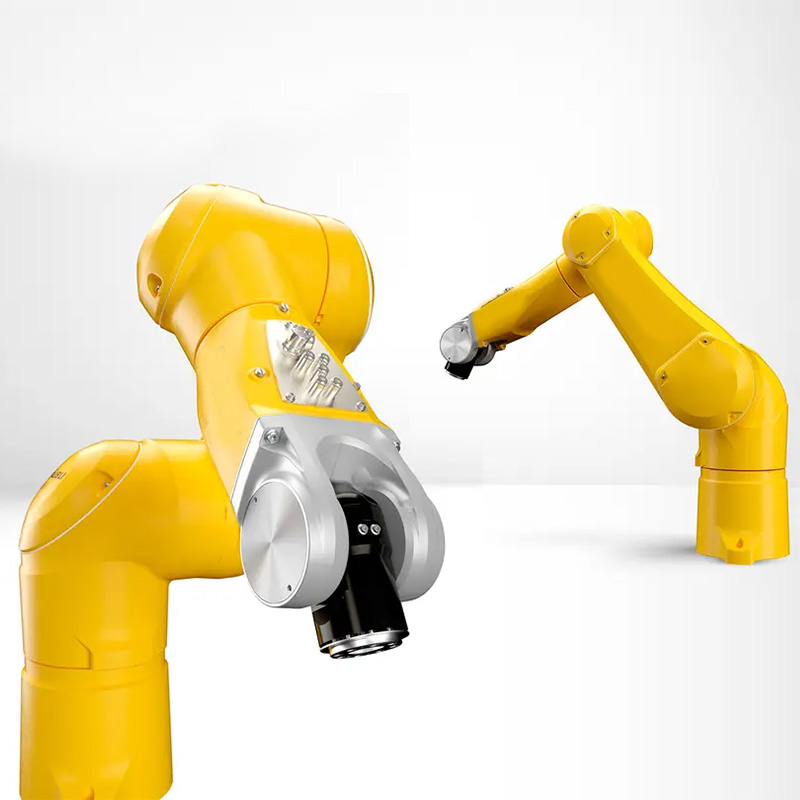

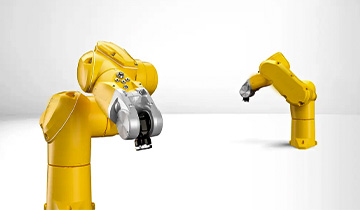

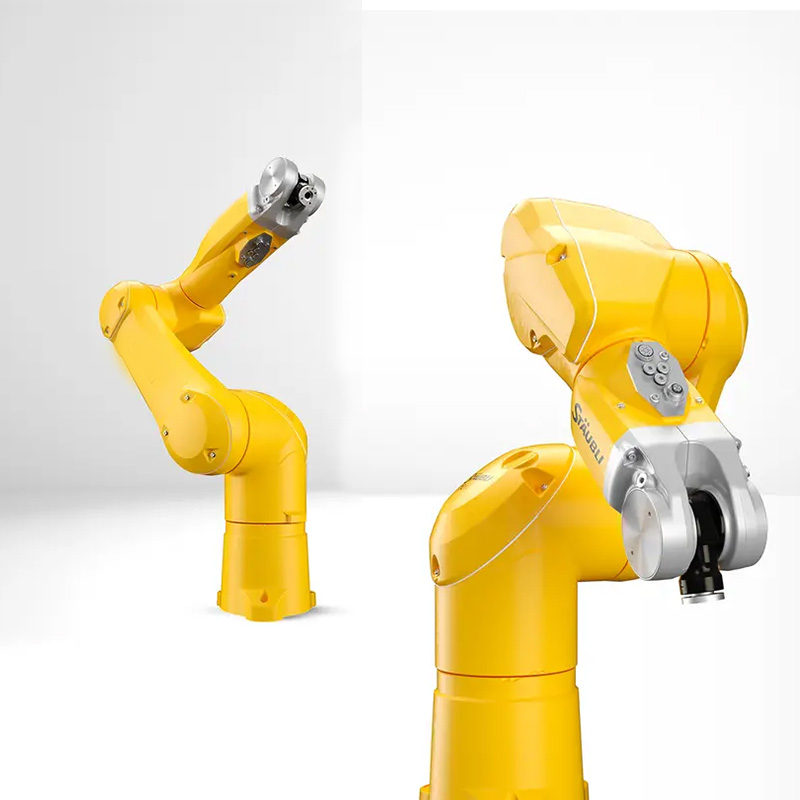

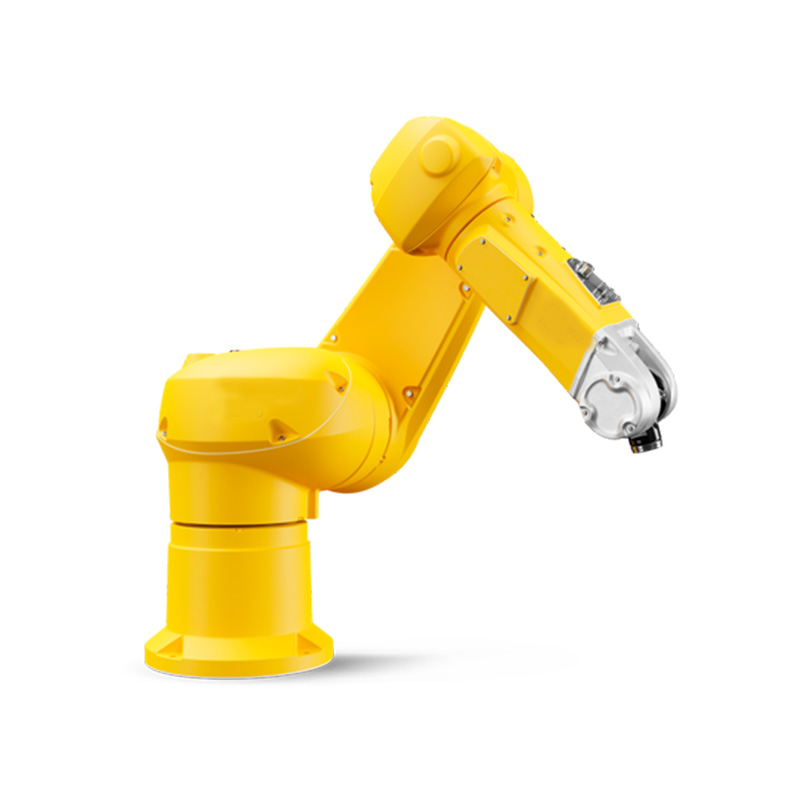

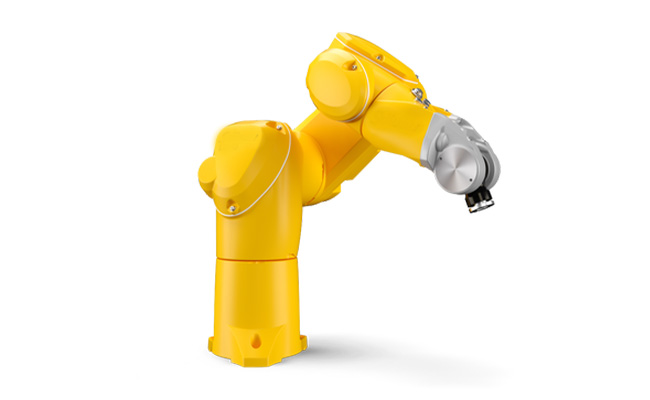

TX2 industrial robot
Our fast and precise TX2 industrial robots are the next generation of 6-axis robotic arms. This line of robots provides the ideal combination of speed, rigidity, size and precision. These robots have unique features that make them adaptable to all industries, including sensitive environments.
Optional SIL 3 / PL e safety functionalities allow high productivity while ensuring Man-Machine collaboration.



Product Features

Smart design
Hygienic encapsulated 6-axis arm enabled by hollow shaft gearbox, no external cables
Compatible with all environments, from harsh and dirty to sterile
Protection and additional installation options available
IP65 for the entire arm with pressurization kit
Elegant and innovative design
Custom colors possible for your CI requirements
Easy service access to components

Integration flexibility, modular and scalable
360° mounting possibility for flexible integration

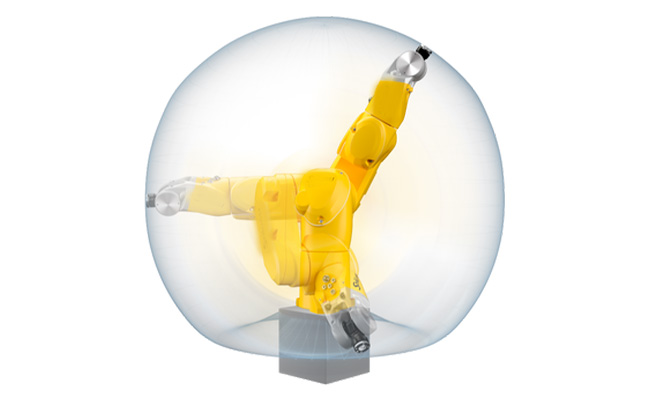

Large and efficient spherical working range
Righty-lefty integration possible for maximum work envelope usage
Integrated electrical and pneumatic user circuit including Cat5e
Sealed vertical cable option bringing additional and smart integration options
Smooth rounded surface and sealed screws with hexagonal heads providing minimum retention areas

High performance kinematics
Over 130 years of experience in fast moving technology
Light and rigid structure
Patented JCS smart gearbox specially designed for compact robots
Compatible with NSF H1 food oil with no loss in performance
Unique, 19-bit safe digital multi-turn absolute encoders, ready to operate with no initiation
Outstanding precision for robot guided by camera and path precision
Dynamic absolute calibration as a standard

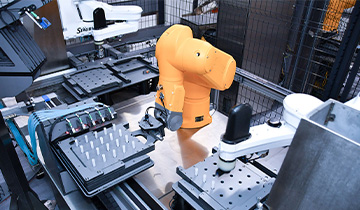

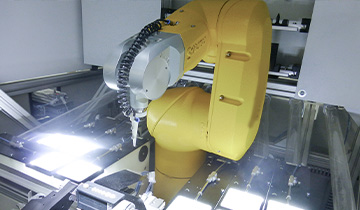

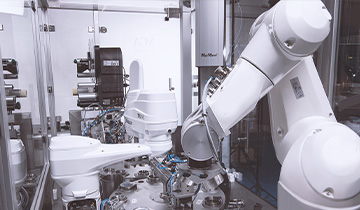

Application Cases



Technical Parameter
Model | TX2-20 | TX2-60 | TX2-90 | TX2-140 |
Degrees of freedom | 6 | 6 | 6 | 6 |
Load capacity | 2 kg | 4.5 kg | 14 kg | 40 kg |
Reach at wrist | 515 mm | 670 mm | 1000 mm | 1510 mm |
Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.015 mm |
Protection class (*wrist) | IP65 (*IP67) | |||
Attachment methods | 360° mounting possibility | |||
Controller | ||||
Modular safety SIL 3 / PL e | Optional |
FAQ
What mode of transportation do you usually use?
We mainly use three modes of transportation: sea transportation, air transportation and express delivery. For large quantities of goods, it is generally recommended to choose sea transportation, which is relatively cheap; for urgent orders or small quantities of high-value goods, air transportation or express delivery will be more suitable.
How long does it take from ordering to delivery?
In general, the delivery time of conventional products is about 30 days after the order is placed. If it is a customized product, the delivery time may be extended to 50 days. The specific time will be determined according to the specific circumstances of the order.
How long is the warranty period of the product?
The warranty period of our products is generally 1 year, calculated from the date of qualified acceptance of the goods. During the warranty period, if there is a quality problem with the product, we will provide free repair or replacement service.
If there is a problem with the product during use, how to carry out after-sales repair?
If there is a problem with the product, you can first contact our customer service staff and provide detailed information and problem description of the product. We will arrange professional technicians for remote guidance.
