Product Description

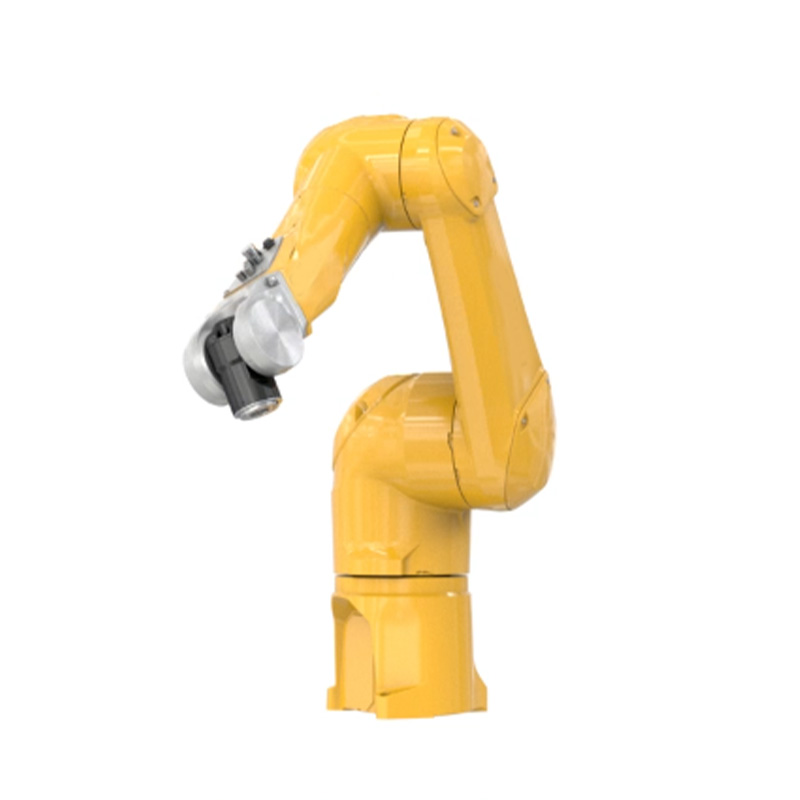

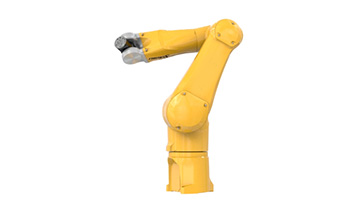

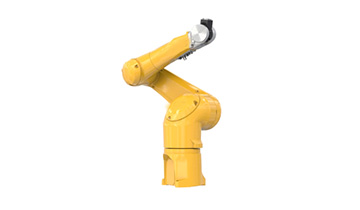

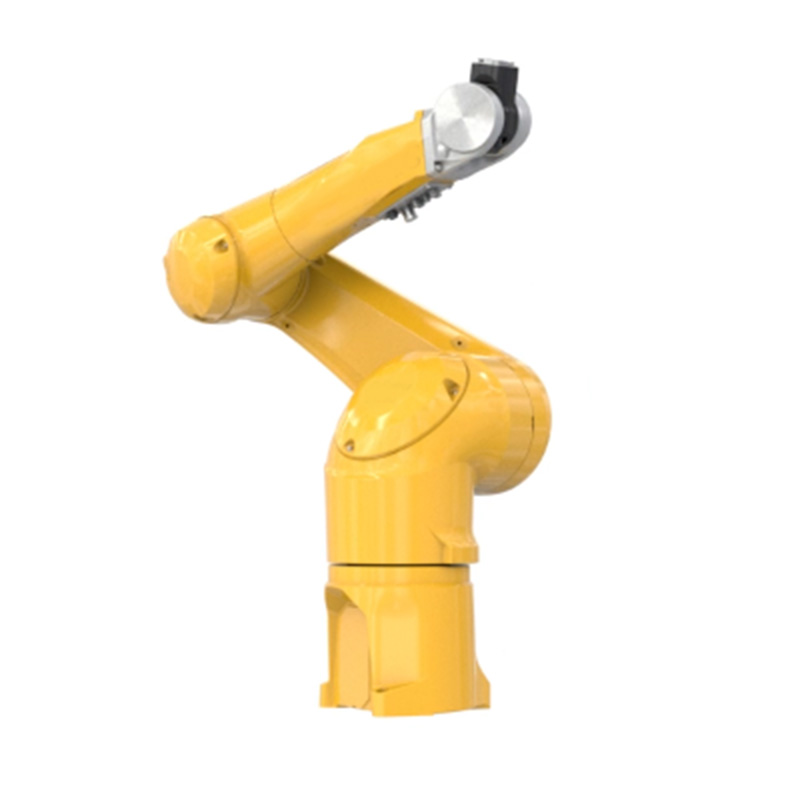

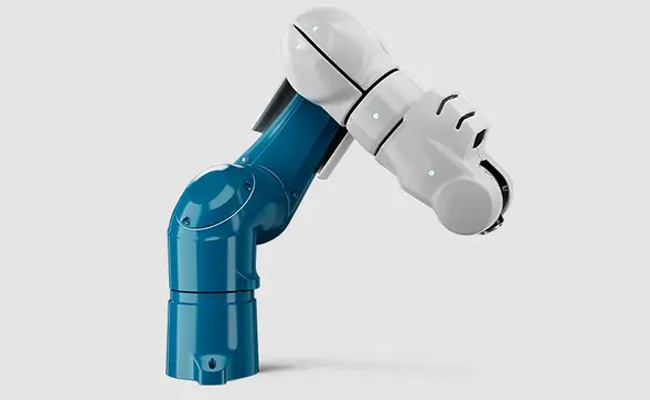

TX2touch-60 POWER cobot
TX2touch is the only cobot with the SIL3/PLe safety level. It is highly productive due to the performance, smart connectivity and reliability inherited from TX2 robots and its CS9 controller.
The TX2touch-60 series has a payload of up to 4.5 kg with a maximum reach of 920 mm.
Product Features
Designed for smart integration

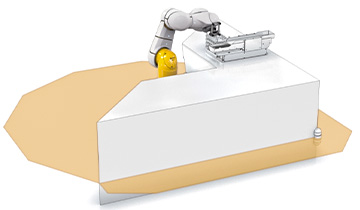

Large and efficient spherical working range
Integrated electrical and pneumatic user circuit including Cat5e
Sealed vertical cable option bringing additional and smart integration options

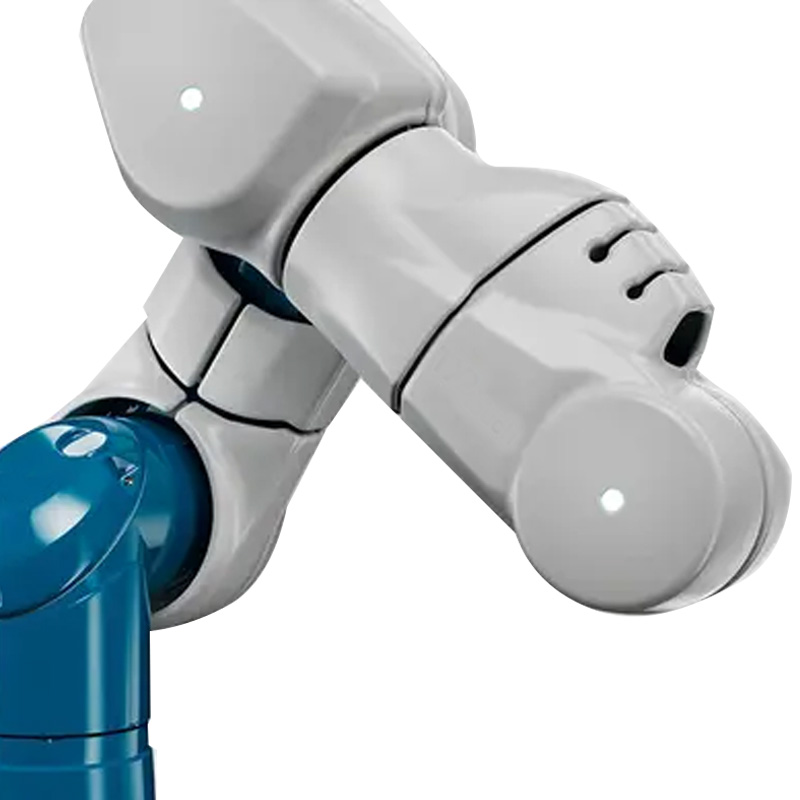

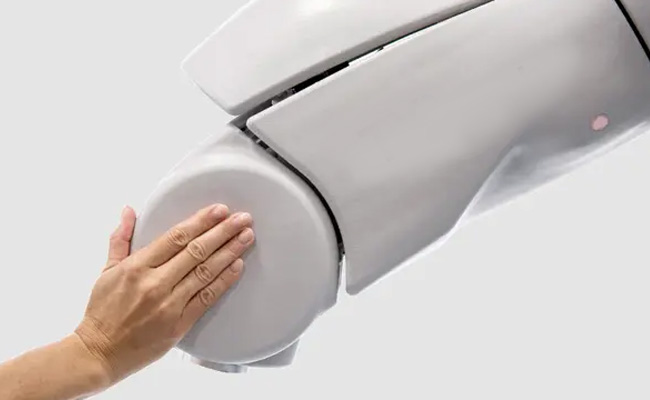

Safe touch skin
The skin brings a supplementary functionality to enable the following SAFE issues:
When you touch the skin the robot stops
When you get hit by the robot it will not hurt you
When you get trapped by the robot it will not crush you
It is also equipped with status lights for functional diagnosis

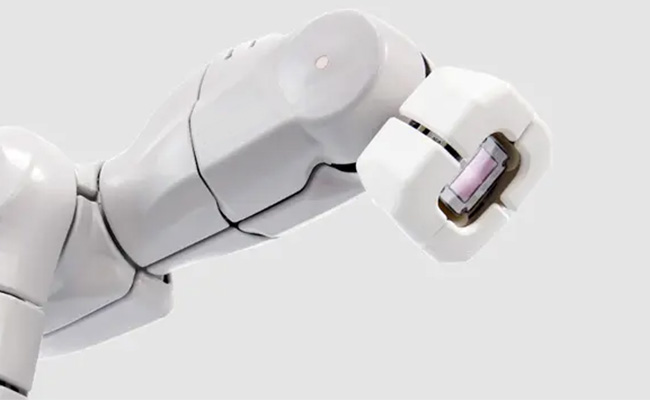

Gripper padding
Skin pads for tools can be added with the same safety level
Eases the safety certification of the robotic cell
Protect the embedded cameras, measurements devices or gripper by preventing collisions
Application Cases

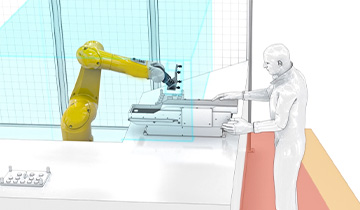

Safety functionalities

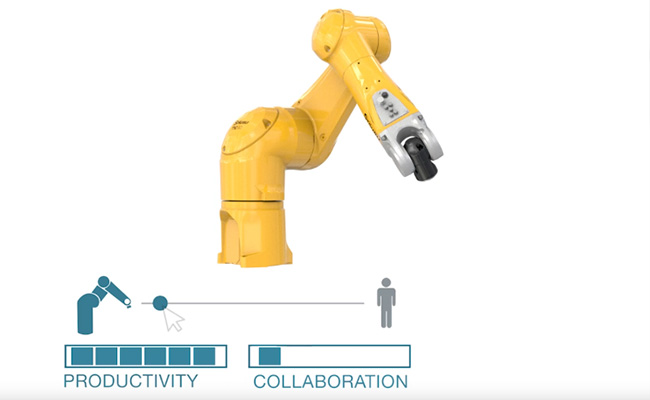

Thanks to the combined use of a set of 5 unique modular SIL3-PLe safety functionalities, the TX2touch cobot range is the safest on the market while maintaining a high level of productivity.
In the electronic product manufacturing workshop, collaborative robot arms are very useful. They can quickly pick up tiny components such as chips and resistors from material boxes and accurately place them on the designated positions of the circuit board, helping to efficiently mount the chips. During assembly, its flexible multi-joint design allows it to smoothly complete complex assembly actions, which not only improves production capacity, but also reduces labor fatigue and ensures product consistency.
Technical Parameter
Model | TX2-60 | TX2-6L |
Degrees of freedom | 6 | 6 |
Load capacity | 4.5 kg | 3.5 kg |
Reach at wrist | 670 mm | 920 mm |
Repeatability | ±0.02 mm | ±0.03 mm |
Controller | CS9 | |
FAQ
What mode of transportation do you usually use?
We mainly use three modes of transportation: sea transportation, air transportation and express delivery. For large quantities of goods, it is generally recommended to choose sea transportation, which is relatively cheap; for urgent orders or small quantities of high-value goods, air transportation or express delivery will be more suitable.
How long does it take from ordering to delivery?
In general, the delivery time of conventional products is about 30 days after the order is placed. If it is a customized product, the delivery time may be extended to 50 days. The specific time will be determined according to the specific circumstances of the order.
How long is the warranty period of the product?
The warranty period of our products is generally 1 year, calculated from the date of qualified acceptance of the goods. During the warranty period, if there is a quality problem with the product, we will provide free repair or replacement service.
If there is a problem with the product during use, how to carry out after-sales repair?
If there is a problem with the product, you can first contact our customer service staff and provide detailed information and problem description of the product. We will arrange professional technicians for remote guidance.
