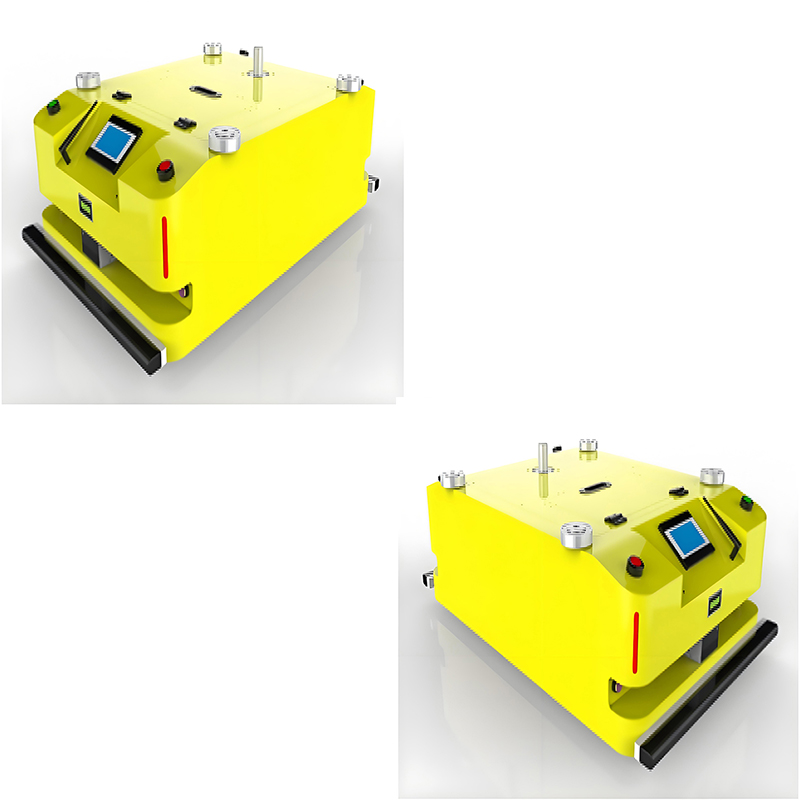

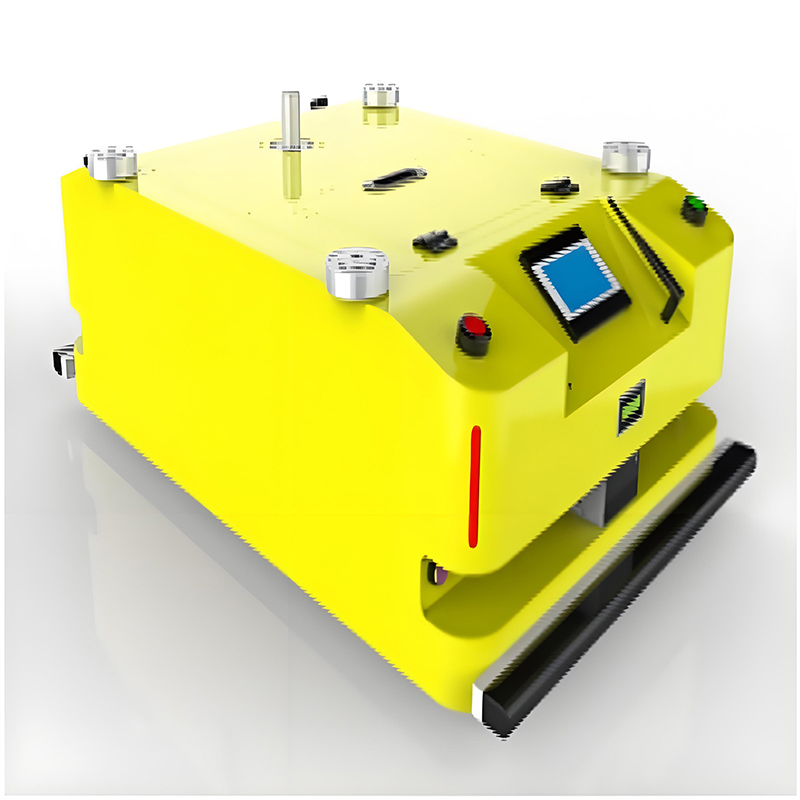

Latent AGV—TL-QF-300SX-001

Touring single-drive two-way latent AGV intelligent warehousing and logistics handling robot

  • Product number：TL-QF-300SX-001
  • Drive form：Differential drive
  • Stopping accuracy：±10mm
  • Human-computer interaction：4.3-inch touch screen

USD： 99999

ablity：Monthly Output200

contact shop
  • Deskripsi Produk
  • Product Params

Deskripsi Produk

Latent AGV—TL-QF-300SX-001

Ø  Single drive, bidirectional operation, capable of forward, backward, 90°/180°/360° rotation, acceleration, deceleration, bifurcated turns, timed stop, reversal operation and other multi-functional driving;


Ø  The AGV lurks under the material truck, and the traction pin mounted on the top of the AGV automatically pulls the traction mechanism of the material truck, automatically running the distribution production line material truck, realizing the turnover of material trucks in the workshop with high efficiency, and maximizing the production efficiency of the enterprise;


Ø  Multi-sensor fusion navigation is safe, reliable, flexible and efficient, fully automated without manual intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly connects to MES/WMS/ERP systems, improves logistics efficiency, quickly and flexibly adapts to different complex scenarios, and completes efficiently Automated transport work for logistics.



Product parameters

Product number
TL-QF-300SX-001
Dimensions
Standard L1000mm*W600mm*H300mm (or customized)
Navigation type
Magnetic navigation
Drive form
Differential drive
Walking style
Multi-functional driving such as forward, backward, rotation, bifurcated turns, scheduled stops, reversal operation, etc.
Walking speed
0~40m/min (or customized)
Specified load
100KG (or customized)
Gradeability
≤2 degrees
Turning radius
500mm or 90°/180°/360° rotation in place
Stopping accuracy
±10mm
Navigation accuracy
±10mm
Battery life
8-12H (or customized)
Charging method
Manual charging/automatic charging (optional)
Human-computer interaction
4.3-inch touch screen
Alarm form
Audible alarm
Communications network
WIFI network/radio frequency network
Power Battery
35Ah high quality lead-acid battery
Security
Obstacle sensor + contact bumper + emergency stop button
Design life
>80000H


Note: This AGV car is a non-standard customized product. Please contact the merchant for consultation based on the customized size.
