Product Description

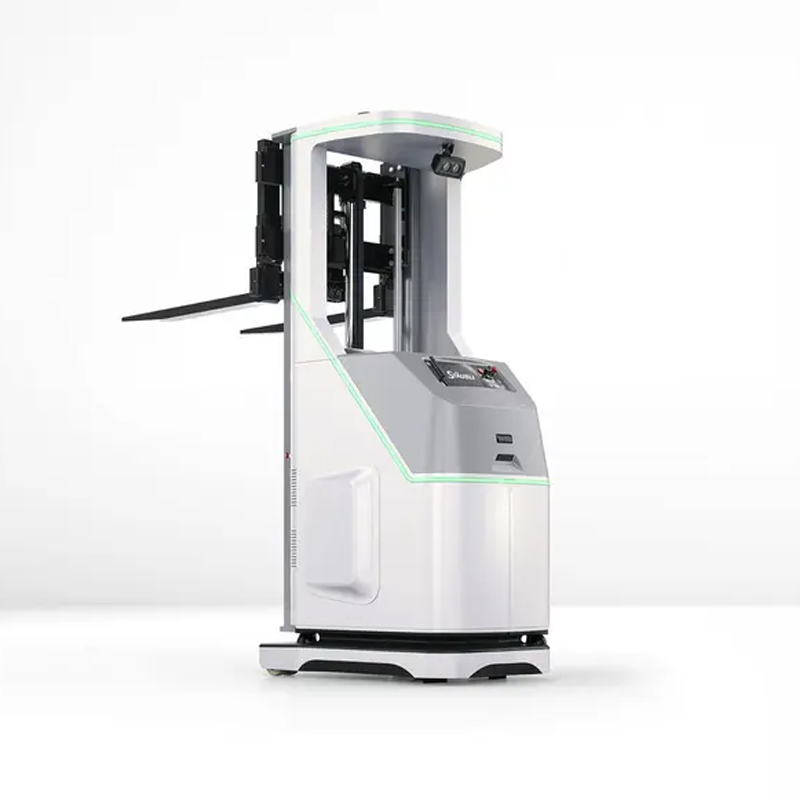

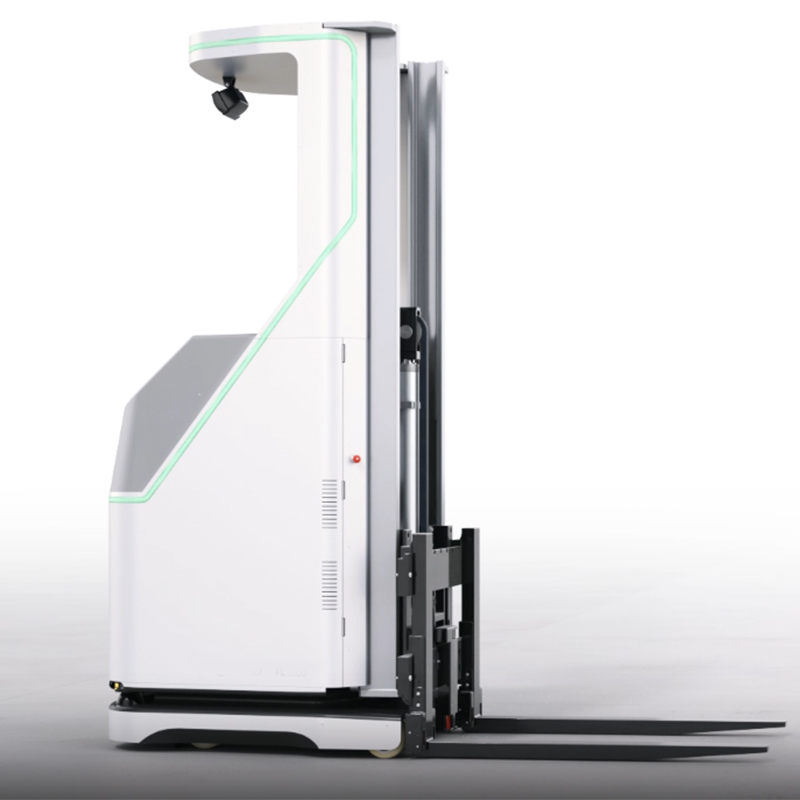

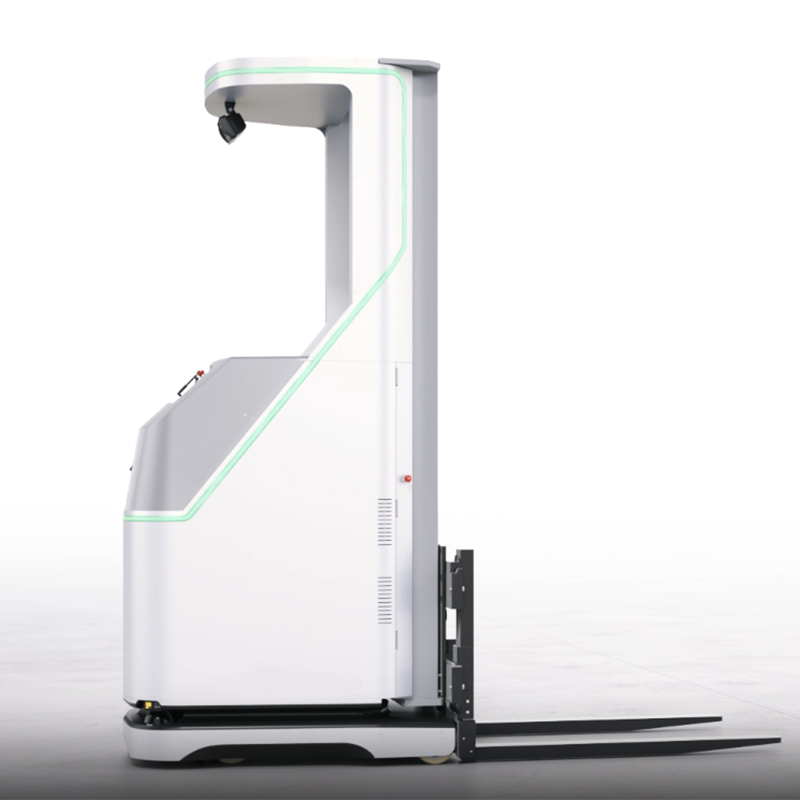

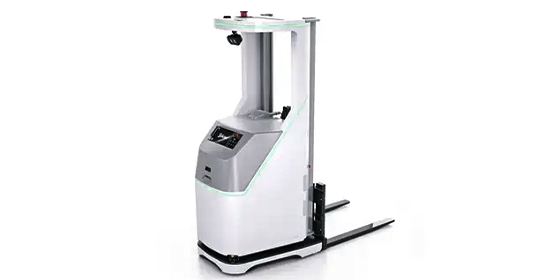

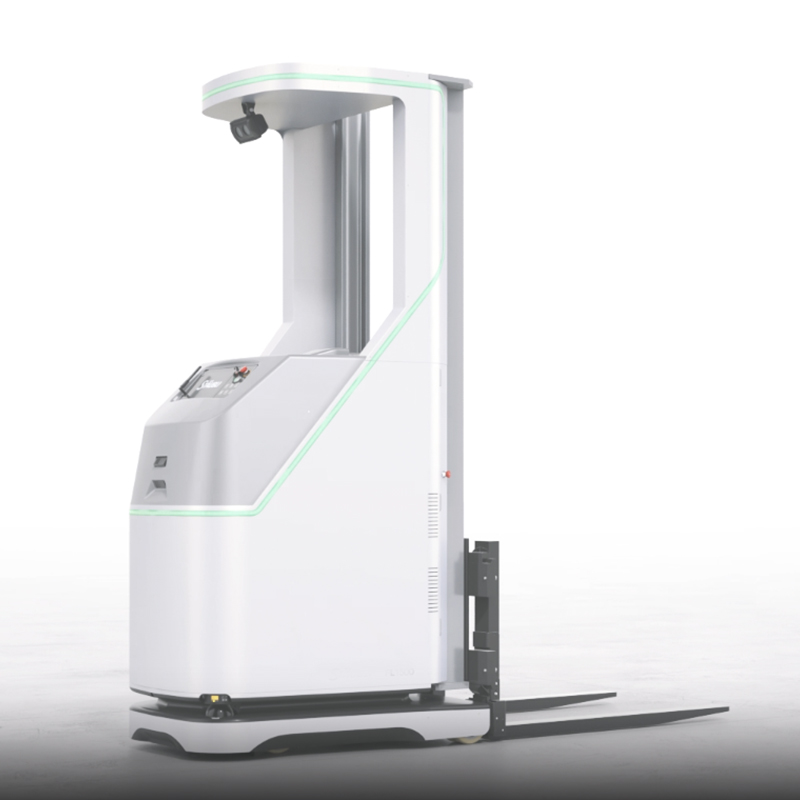

The STrobot FL1500 is an ultra-compact 1.5-ton counterbalanced forklift AGV. Thanks to its modular design of counterbalanced weight and batteries the FL1500 can be configured with the right set-up for your industrial application. And thus FL1500 delivers a sustainable performance on your factory floor.
Product Features
The FL1500 AGV forklift has an ingenious compact design that shows outstanding advantages in space utilization. Its sophisticated body layout effectively reduces the floor space without affecting the core performance of the forklift. It can flexibly shuttle between the narrow aisles between factory warehouse shelves or the small operating area of the logistics transfer center to complete the handling tasks efficiently.

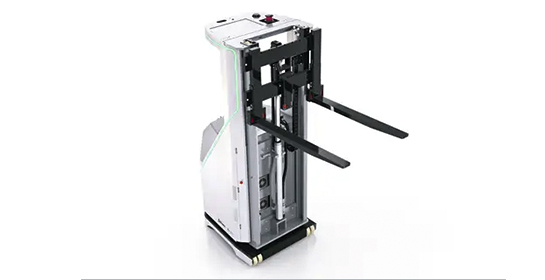

The hydraulic single mast equipped with AVG forklift is a powerful assistant for warehousing operations. It has a powerful lifting function and can easily lift pallets or boxes steadily. In the warehouse, whether it is neatly stacking pallets of goods or stacking boxes in layers, the hydraulic single mast can be operated accurately to help improve storage space utilization and work efficiency.
The LED light bar on the AGV forklift is not just a simple lighting tool, but also the key to achieving clear visual status communication. It uses different light colors, flashing frequencies and dynamic changes to intuitively display the operating status of the forklift, such as forward, backward, fault warning, etc., so that operators and surrounding personnel can understand it at a glance, greatly improving the safety and efficiency of operations.
Product parameters
Item | Standard | Option | |
Payload(kg) | 500kg | 1 000kg | 1500kg |
Drive type | Tricycle | / | / |
Turning radius (m) | 1.5 | / | / |
Ground clearance min.(mm) | 30 | / | / |
Targeted max. speed (m/s) | Up to 1.6 | / | / |
Position accuracy (mm) | Up to ± 10 | Up to ± 5 | |
Navigation | Laser natural feature | Hybrid navigation: +2D code camera (floor) | |
Dead weight (kg) | 2 100 | 2 650 | 3250 |
Customer Case

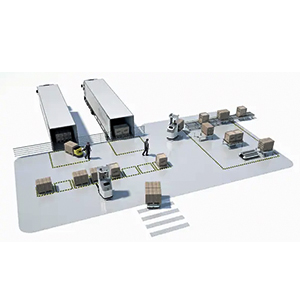

The AGV forklift is paired with the PF3 AGV platform, intelligent scheduling and collaborative operations, flow of incoming warehouses is simplified, making the warehouse incoming warehouse process more efficient and smoother

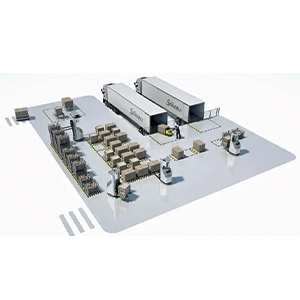

The PF3 AGV platform uses precise navigation to steadily transport the pallet to the pallet station. Then, the AGV forklift responds quickly, accurately grabs the pallet, and efficiently stores it on the shelf.

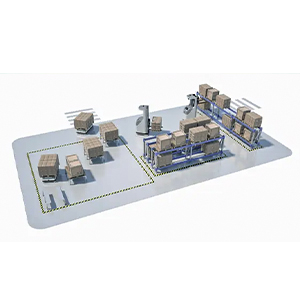

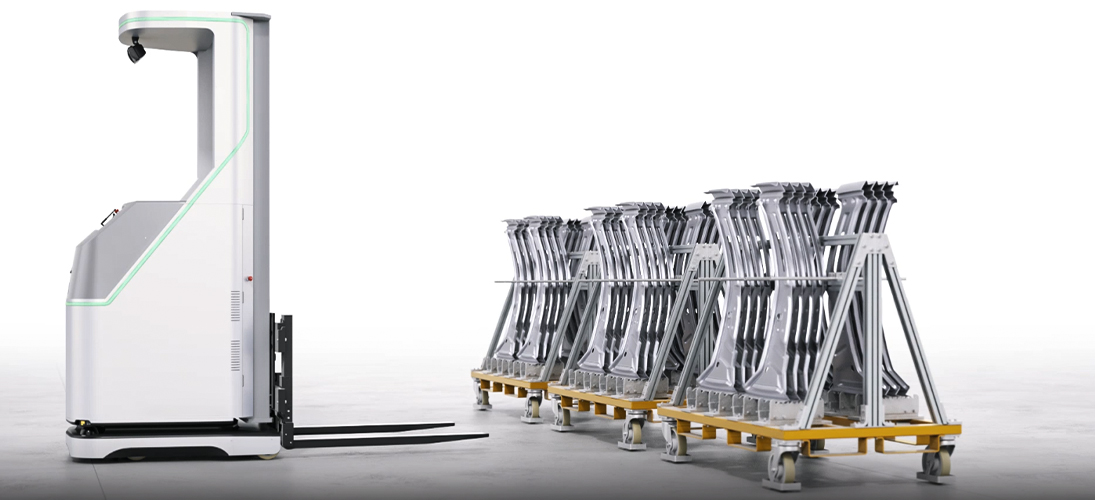

AGV forklifts work flexibly, accurately picking up pallet cages placed on the floor, and using intelligent control technology to stack them smoothly, up to three layers neatly.
