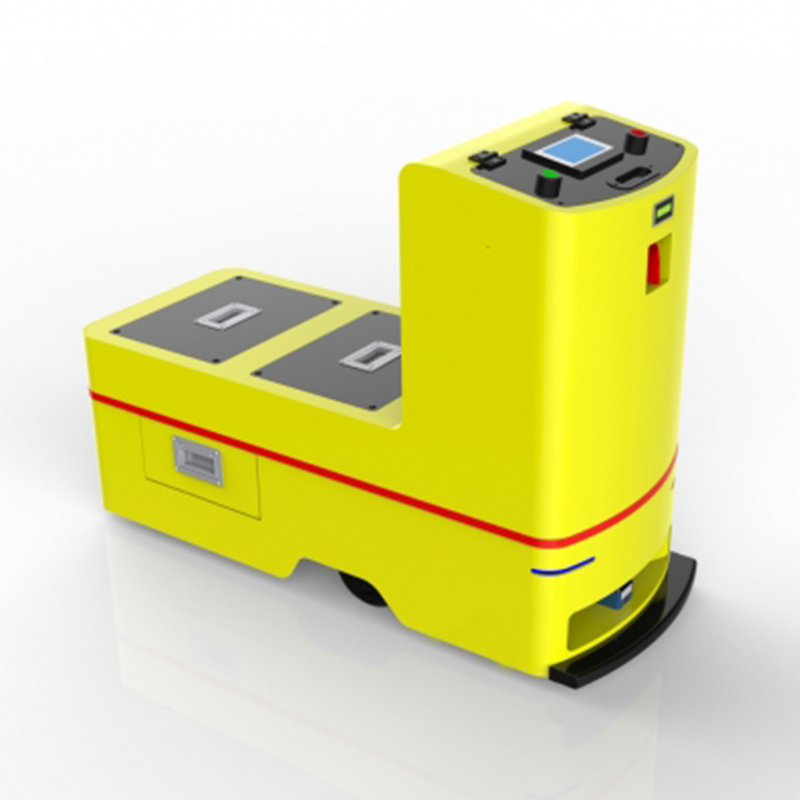

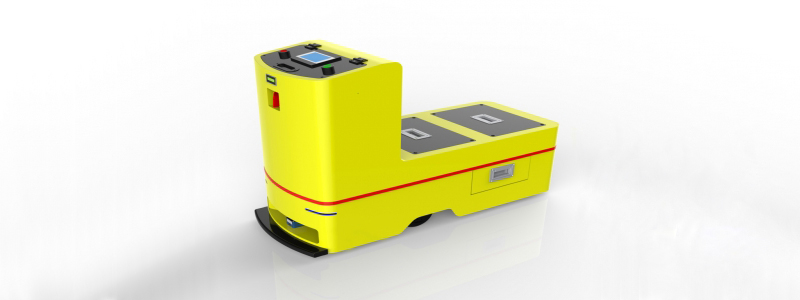

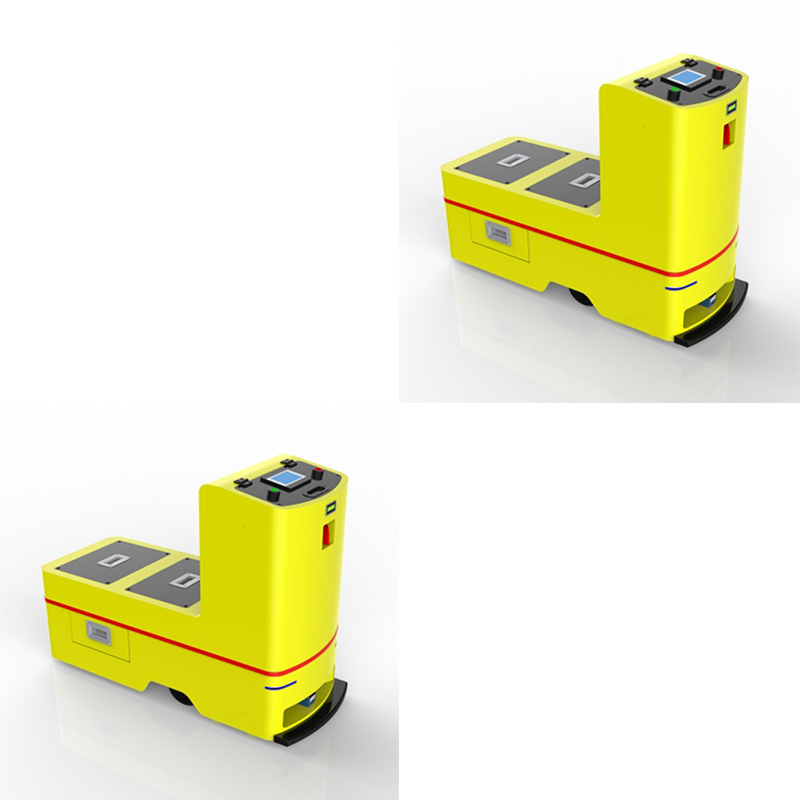

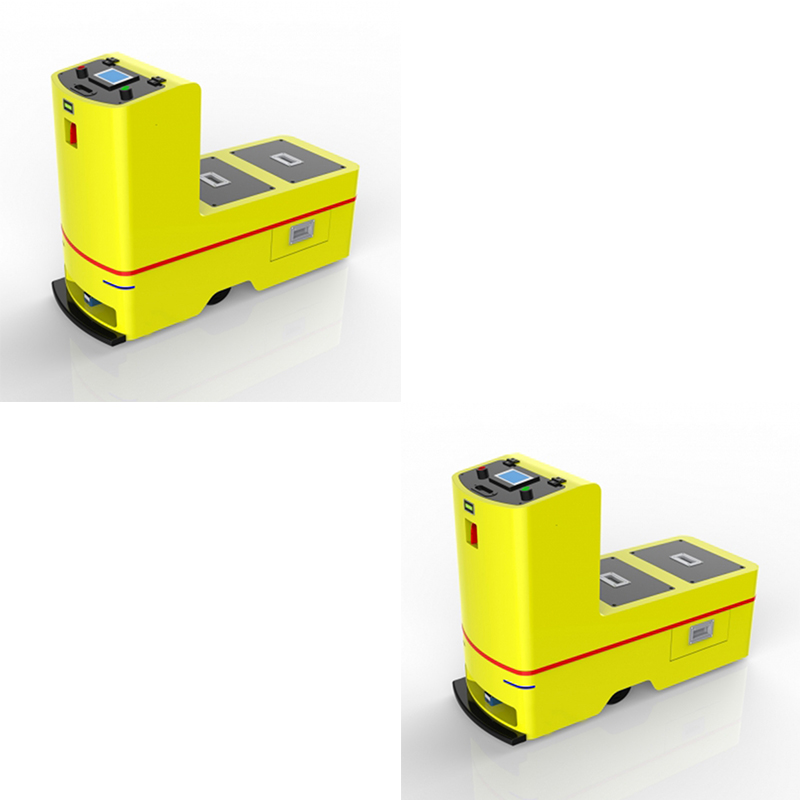

Traction AGV TL-QY-800DX-001

Touring single-drive one-way traction AGV intelligent unmanned material transportation

  • Product number:TL-QY-800DX-001
  • Dimensions:Standard L1080mm*W420mm*H800mm (or customized)
  • Walking speed:0~45m/min (or customized)
  • Specified load:1000KG (or customized)
  • Gradeability:≤2 degrees
  • Turning radius:800mm

USD: 99999

ablity:Monthly Output200

contact shop
  • Product Description
  • Product Params

Product Description

Traction AGV——TL-QY-800DX-001



  • Single drive, one-way operation, capable of multi-functional driving such as forward, acceleration, deceleration, bifurcated turns, scheduled stops, reversal operation, etc.;
  • The rear end of the AGV can be connected to the material truck through the traction mechanism, and can automatically run the traction and distribution production line material truck to realize the turnover of the workshop material truck with high efficiency and maximize the production efficiency of the enterprise;
  • Multi-sensor fusion navigation is safe, reliable, flexible and efficient, fully automated without manual intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly connects to MES/WMS/ERP systems, improves logistics efficiency, quickly and flexibly adapts to different complex scenarios, and completes efficiently Automated transportation work for logistics.

Product parameters

———— -

Product number
TL-QY-800DX-001
Dimensions
Standard L1080mm*W420mm*H800mm (or customized)
Navigation type
Magnetic navigation
Drive form
Differential drive
Walking style
Multifunctional driving such as forward, bifurcated turns, and scheduled stops
Walking speed
0~45m/min (or customized)
Specified load
1000KG (or customized)
Gradeability
≤2 degrees
Turning radius
800mm
Stopping accuracy
±10mm
Navigation accuracy
±10mm
Battery life
8-12H (or customized)
Charging method
Manual charging/automatic charging (optional)
Human-computer interaction
4.3-inch touch screen
Alarm form
Audible alarm
Communications network
WIFI network/radio frequency network
Power Battery
70Ah high quality lithium battery
Security
Obstacle sensor + contact bumper + emergency stop button
Design life
>80000H



Case display

———— -

Note: This AGV car is a non-standard customized product. Please contact the merchant for consultation based on the customized size.
