Lifting AGV——TL-BF-285EW-001
Handling robot smart car lifting type two-way running QR code navigation AGV car
- Product number：TL-BF-285EW-001
- Navigation type：QR code navigation
- Walking speed：0~1.2m/s (or customized)
- Gradeability：≤2 degrees
- Stopping accuracy：±10mm
- Battery life：8-12H (or customized)
USD： 99999
ablity：Monthly Output200
- Mô tả sản phẩm
- Product Params
Mô tả sản phẩm

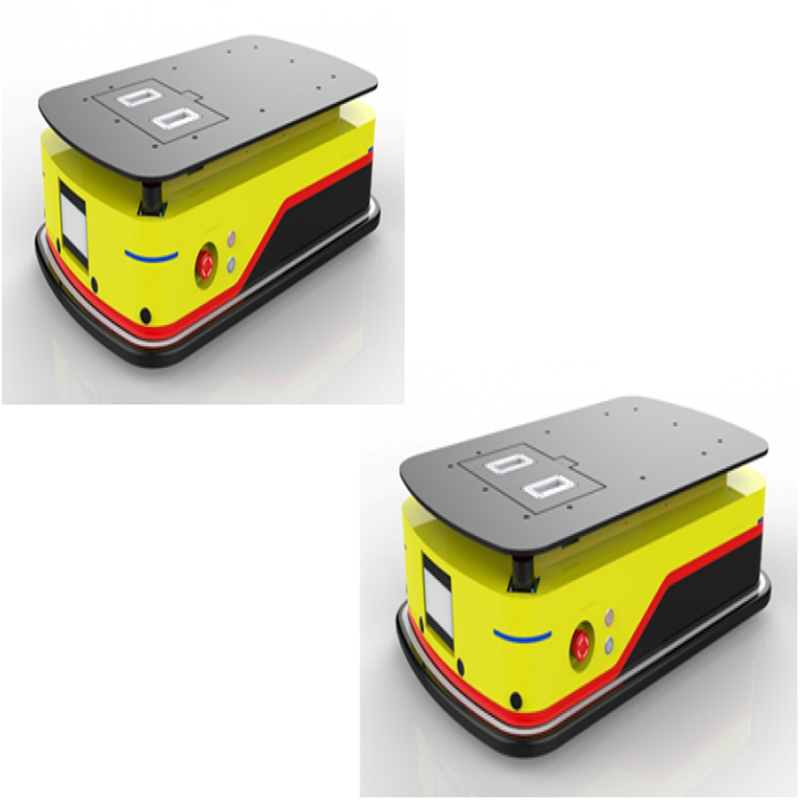

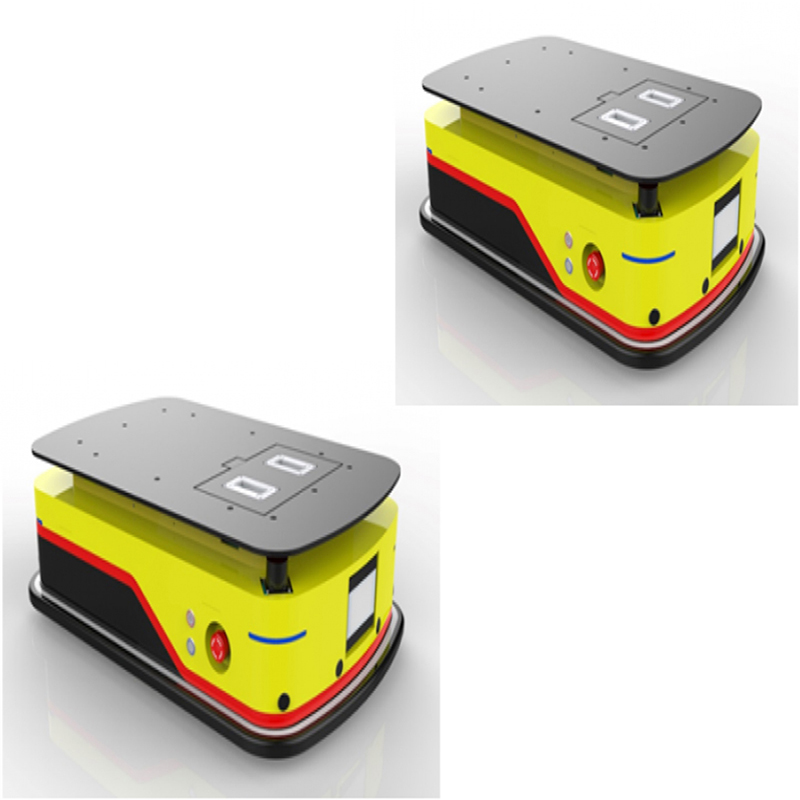

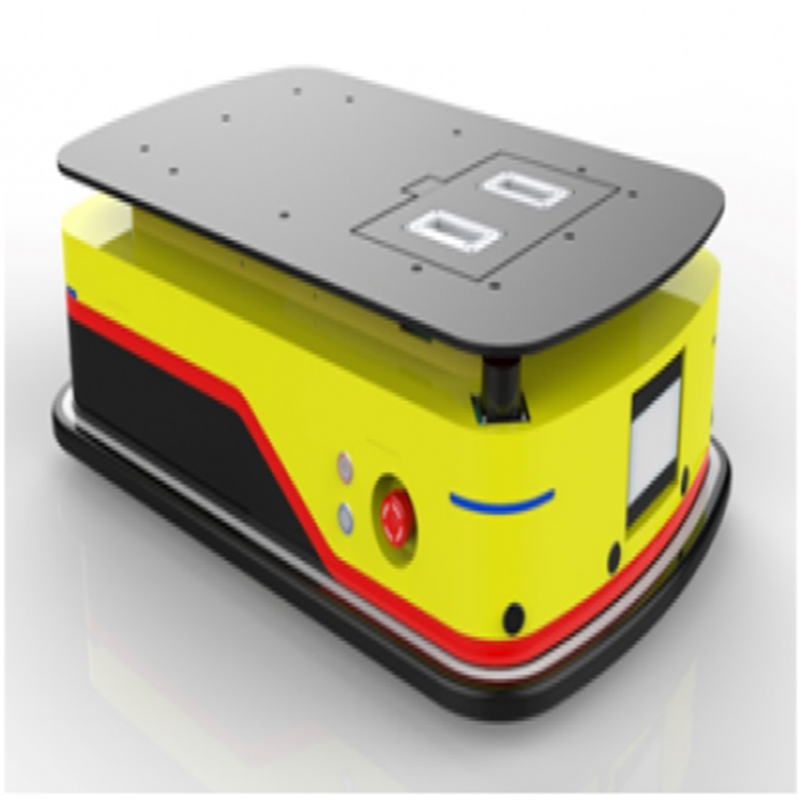

Lifting AGV—TL-BF-285EW-001
Ø QR code navigation, two-way operation, capable of forward, backward, 90°/180°/360° rotation, acceleration, deceleration, bifurcated turns, scheduled stops, reversal operation and other multi-functional driving;
Ø The top of the AGV can directly lift material trucks or material frames or be equipped with a lifting mechanism, etc., to automatically run and distribute production line materials, realize the turnover of workshop materials with high efficiency, and maximize the production efficiency of the enterprise;
Ø Multi-sensor fusion navigation is safe, reliable, flexible and efficient, fully automated without manual intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly connects to MES/WMS/ERP systems, improves logistics efficiency, quickly and flexibly adapts to different complex scenarios, and completes efficiently Automated transportation work for logistics.
Product parameters
| Product number | TL-BF-285EW-001 |
| Dimensions | Standard L900mm*W550mm*H285mm (or customized) |
| Navigation type | QR code navigation |
| Drive form | Differential drive |
| Walking style | Multi-functional driving such as forward, backward, rotation, bifurcated turns, scheduled stops, reversal operation, etc. |
| Walking speed | 0~1.2m/s (or customized) |
| Specified load | 200KG (or customized) |
| Gradeability | ≤2 degrees |
| Turning radius | 90°/180°/360° rotation in place |
| Stopping accuracy | ±10mm |
| Navigation accuracy | ±10mm |
| Battery life | 8-12H (or customized) |
| Charging method | Manual charging/automatic charging (optional) |
| Human-computer interaction | Host computer system scheduling |
| Alarm form | Audible alarm |
| Communications network | WIFI network/radio frequency network |
| Power Battery | 22Ah high quality lead-acid battery |
| Security | Obstacle sensor + contact bumper + emergency stop button |
| Design life | >80000H |
Note: This AGV car is a non-standard customized product. Please contact the merchant for consultation based on the customized size.
Case display
