Roller AGV—TL-GT-600SX-001
Dual-drive two-way intelligent unmanned roller conveyor intelligent storage AGV trolley
- Dimensions：Standard L1500mm*W650mm*H600mm (or customized)
- Navigation type：Magnetic navigation
- Walking speed：0~45m/min (or customized)
- Gradeability：≤2 degrees
- Turning radius：1000mm
- Design life：>80000H
USD： 99999
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

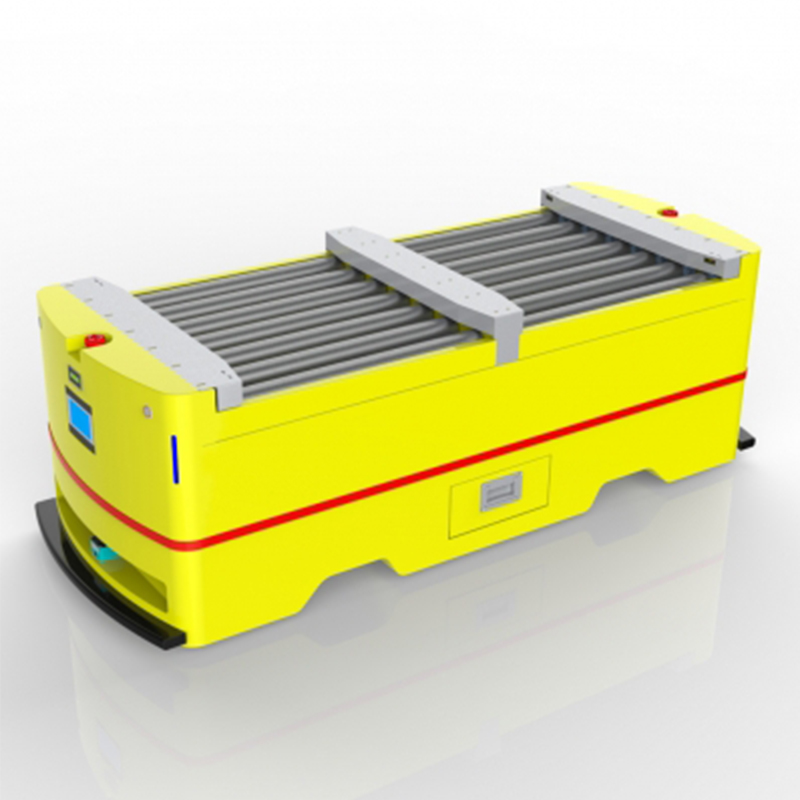

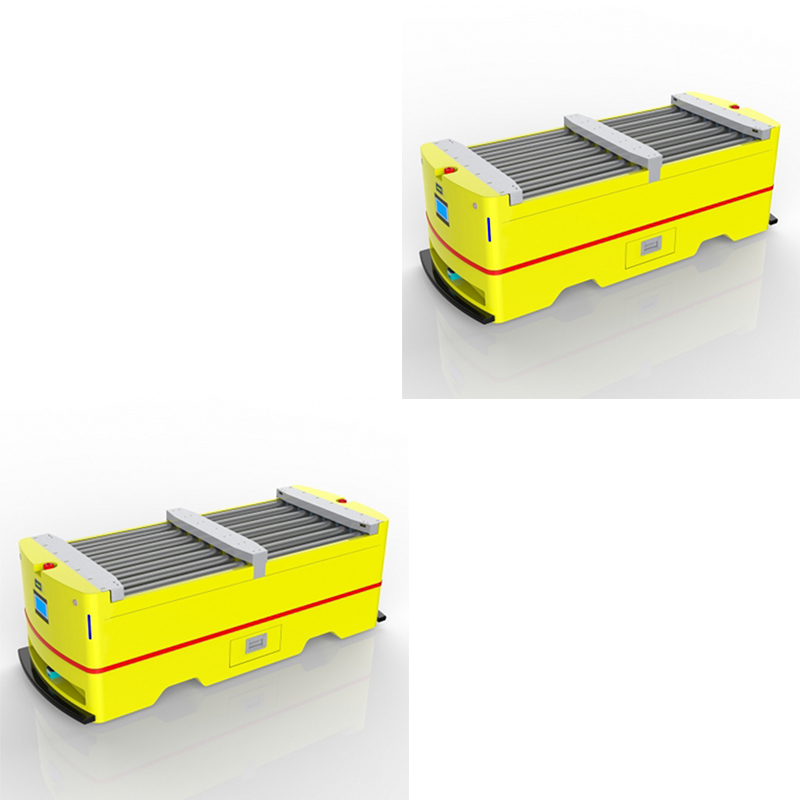

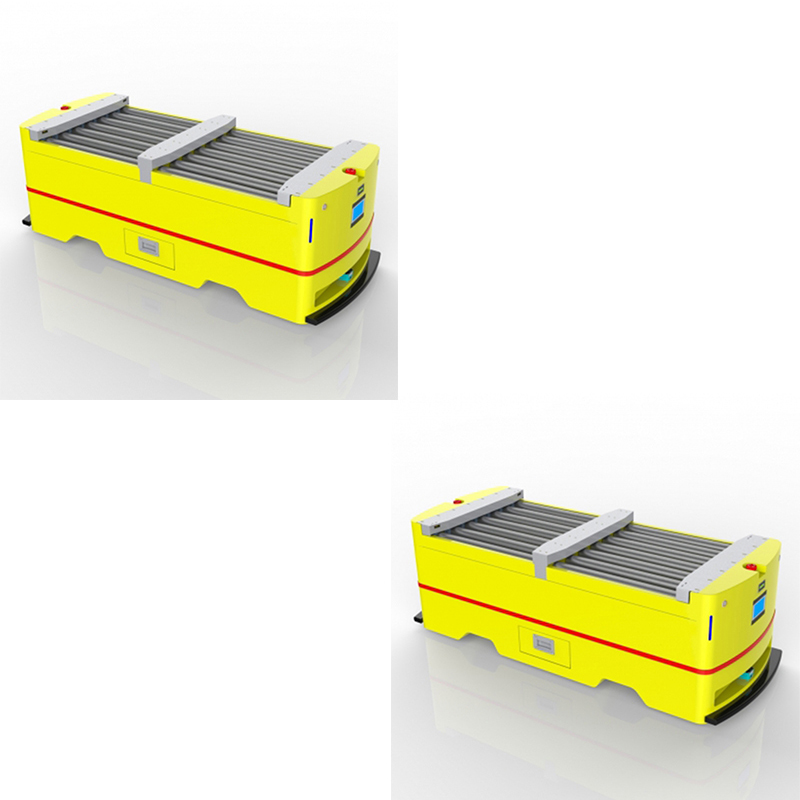

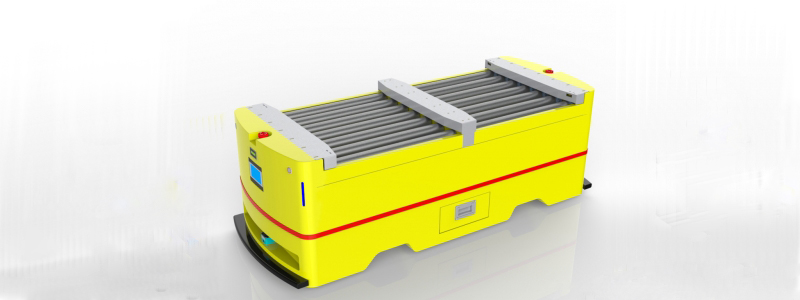

Roller AGV—TL-GT-600SX-001
Ø Dual-drive bi-directional operation, can be forward, backward, accelerate, decelerate, bifurcate turn, timing stop, change direction operation and other multi-functional driving;
Ø The top of AGV carries double-station power roller platform, which can be automatically docked with the production line roller line/conveyor belt to complete the automatic loading and unloading of materials, so as to realize the turnover of materials in the workshop with high efficiency, and maximize the production efficiency of the enterprise;
Ø Multi-sensor fusion navigation is safe and reliable, flexible and efficient, without manual intervention to achieve full automation, automatic handling to reduce the intensity of manual labor, intelligent scheduling seamless docking MES/WMS/ERP system, improve logistics efficiency, fast and flexible to adapt to different complex scenarios, and efficiently complete the logistics of the automated transport work.
Product Parameters
| Product Model | TL-GT-600SX-001 |
| Dimensions | Standard L1500mm*W650mm*H600mm (or customized) |
| Navigation type | Magnetic navigation |
| Drive form | Differential drive/steering wheel drive |
| Walking style | Multifunctional driving such as forward, backward, bifurcated turns, scheduled stops, etc. |
| Walking speed | 0~45m/min (or customized) |
| Specified load | 500KG (or customized) |
| Gradeability | ≤2 degrees |
| Turning radius | 1000mm |
| Stopping accuracy | ±10mm |
| Navigation accuracy | ±10mm |
| Battery life | 8-12H (or customized) |
| Charging method | Manual charging/automatic charging (optional) |
| Human-computer interaction | 4.3-inch touch screen |
| Alarm form | Audible alarm |
| Communications network | WIFI network/radio frequency network |
| Power Battery | 70Ah high-quality lead-acid battery/70Ah high-quality lithium battery |
| Security | Obstacle sensor + contact bumper + emergency stop button |
| Design life | >80000H |
Note: This AGV car is a non-standard customized product. Please contact the merchant for consultation based on the customized size.

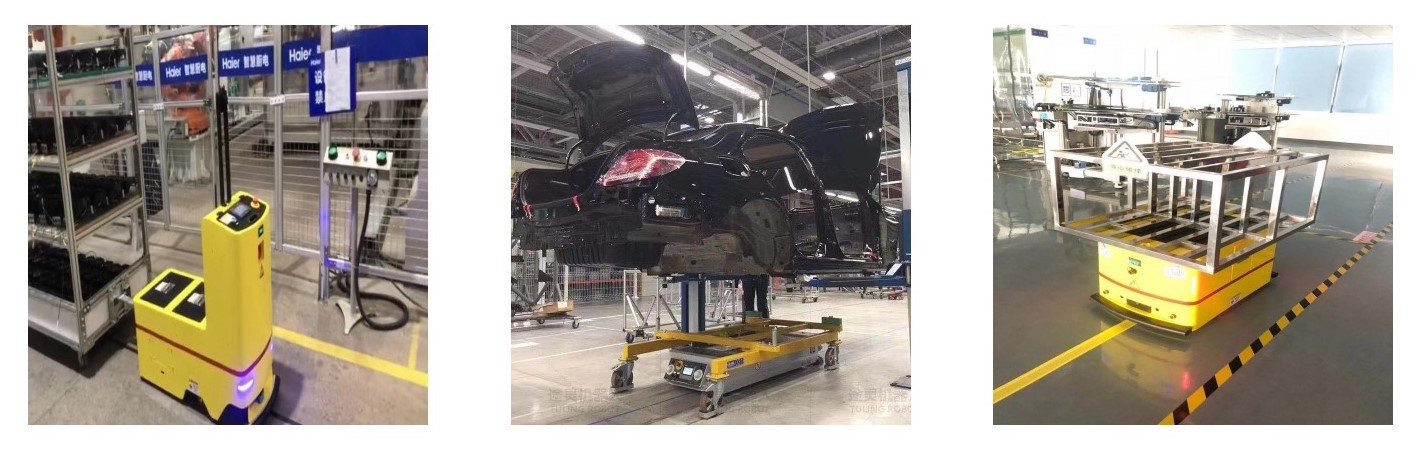

Case display
Recommended products

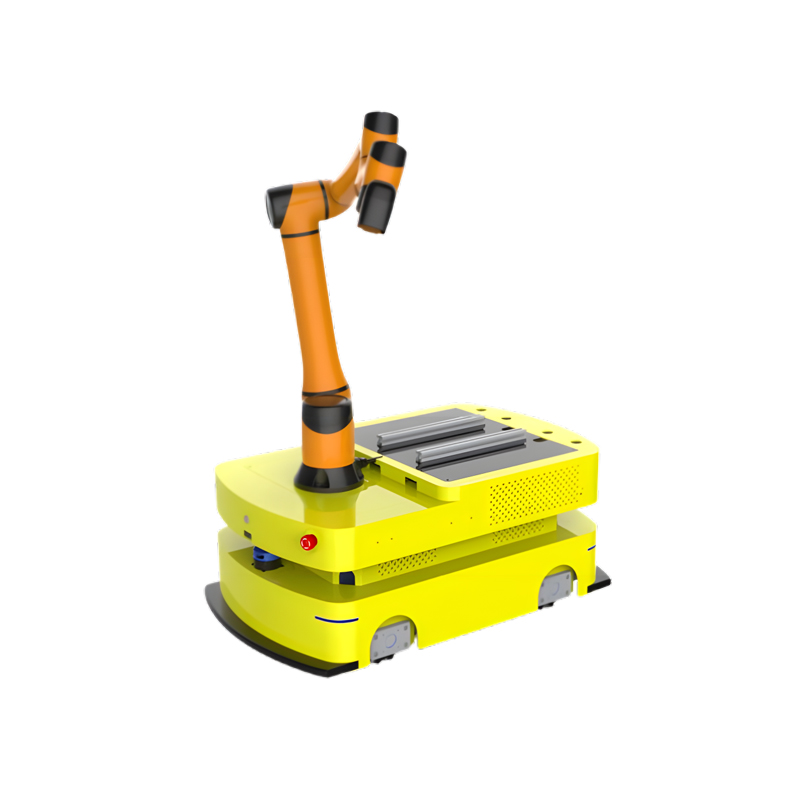

Manipulator compound AGV——TL-FH-500SL-001
Composite manipulator robot module automatic arm AGV robot for picking goods
collect：0
Laser Navigation AGV——TL-JS-350SX-001
Logistics Robot Material Handling Equipment Autonomous Mobile Robot Lifting Automated Guided Vehicle
collect：0

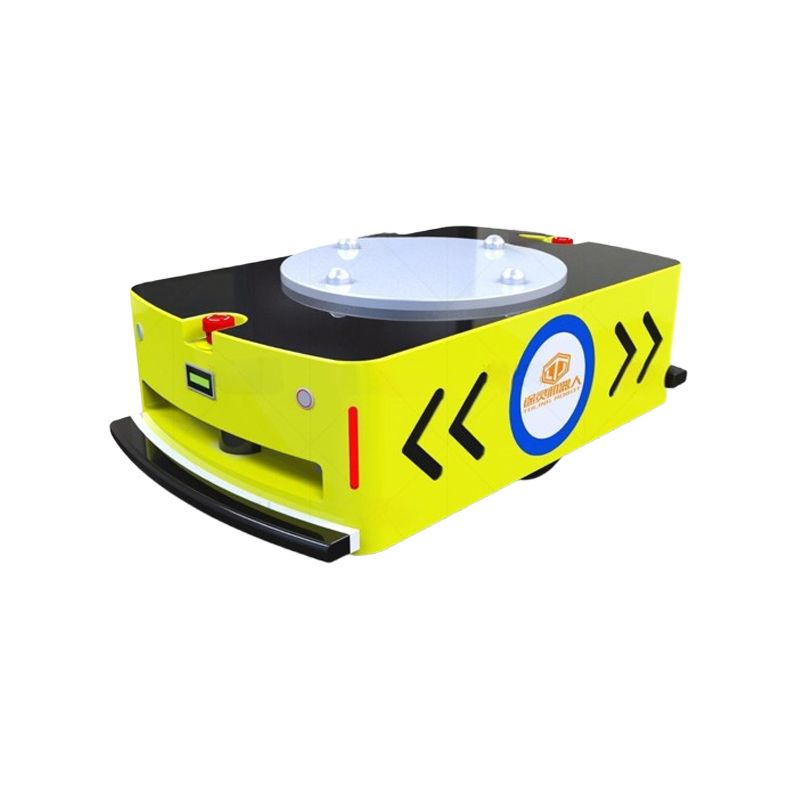

Backpack AGV——TL-BF-430SX-002
