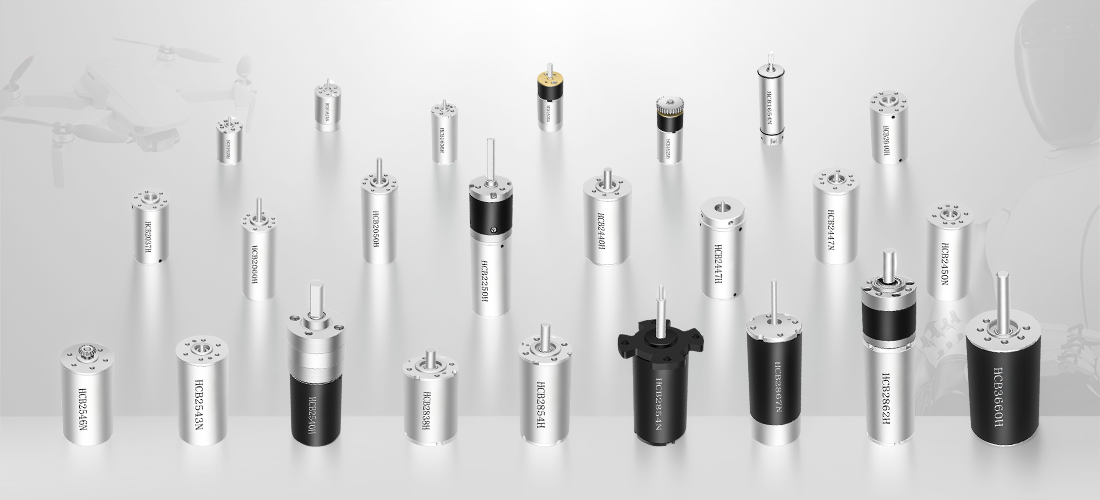

HCB series hollow cup brushless motor
Small size, large energy, precise drive and efficient operation
The advanced brushless commutation technology can effectively eliminate the energy loss and electromagnetic interference caused by the friction between the brush and the commutator. Its unique hollow cup structure design greatly reduces the rotor moment of inertia and improves the motor response speed

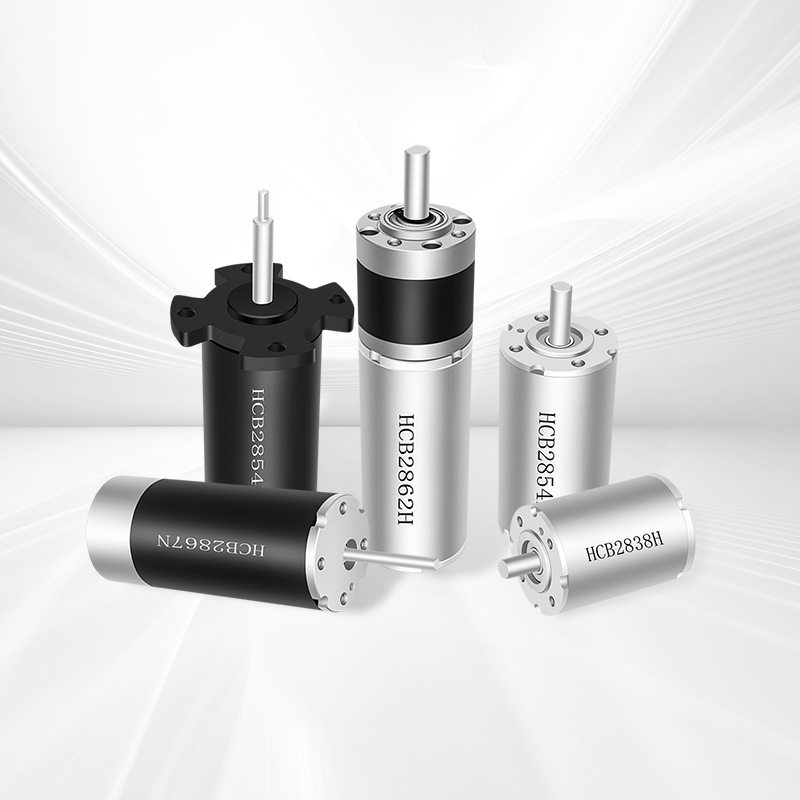

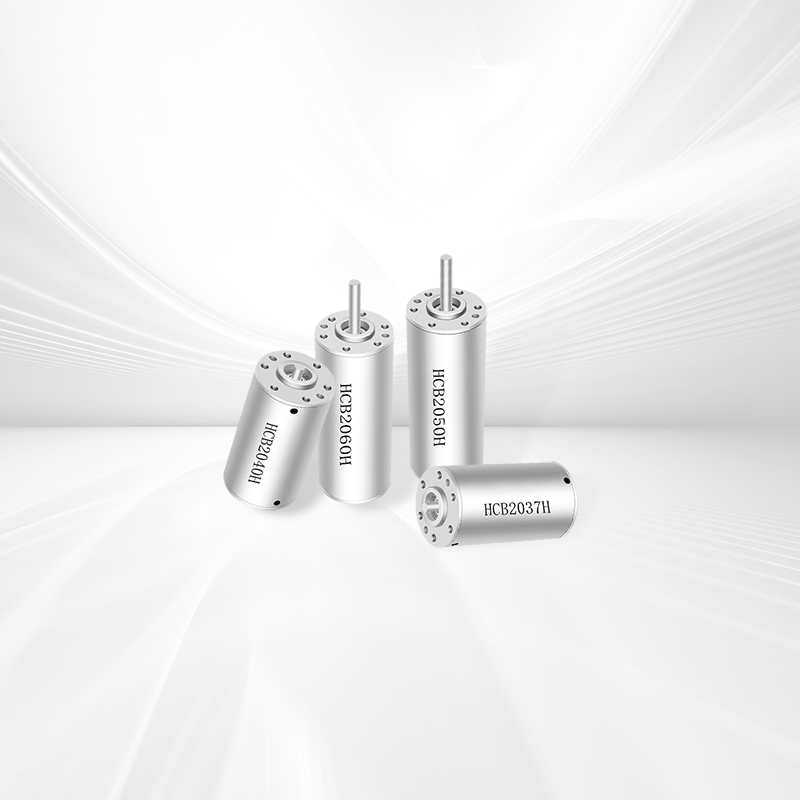

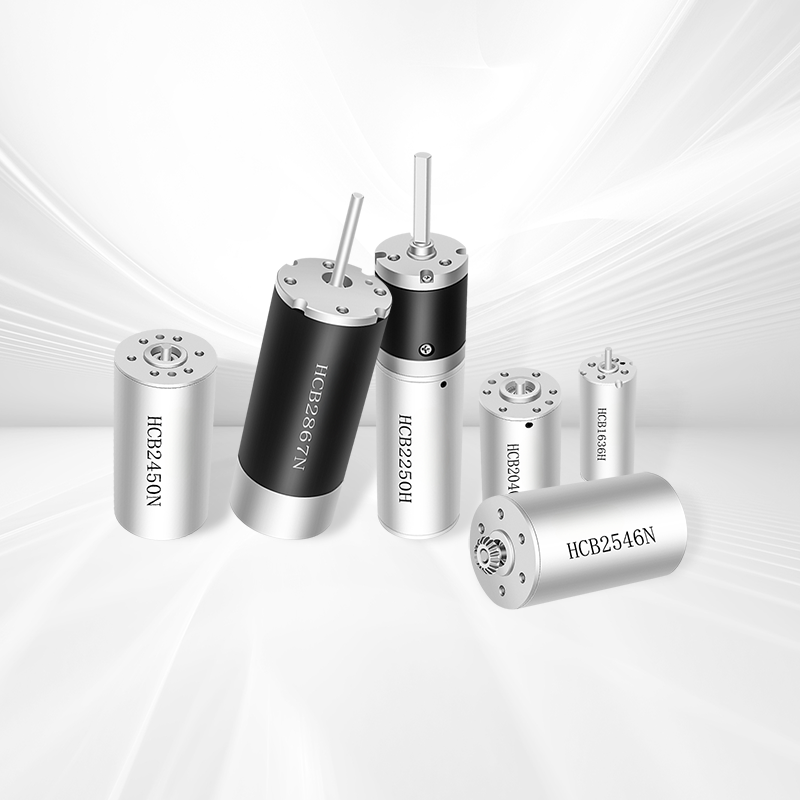

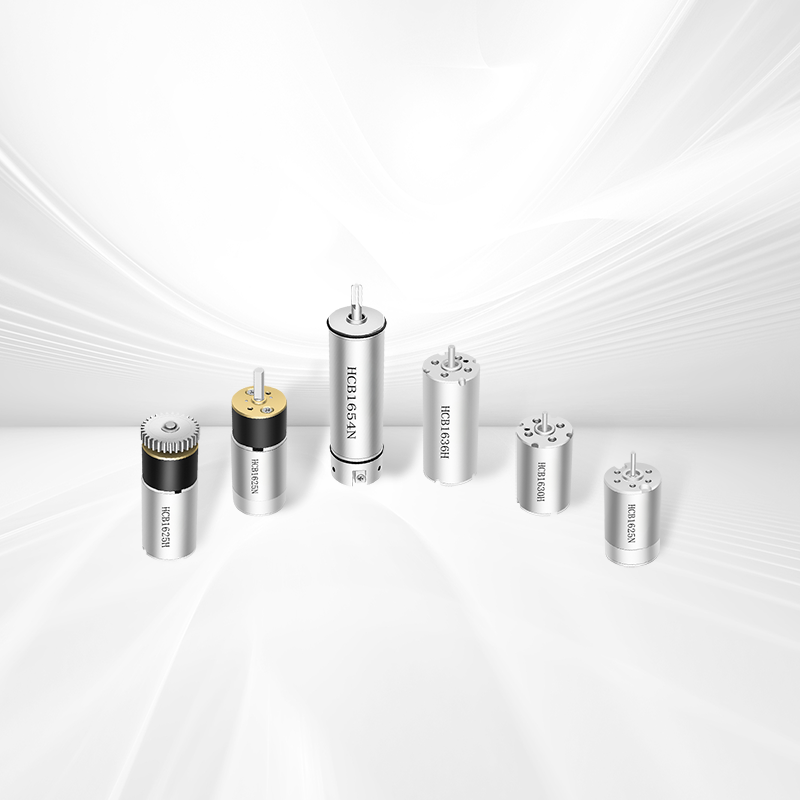

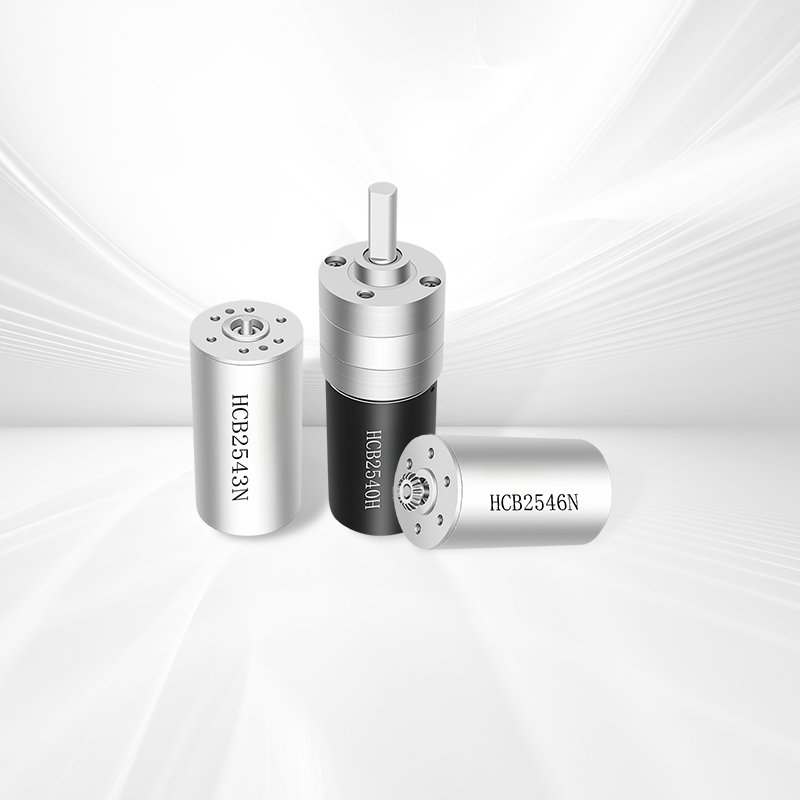

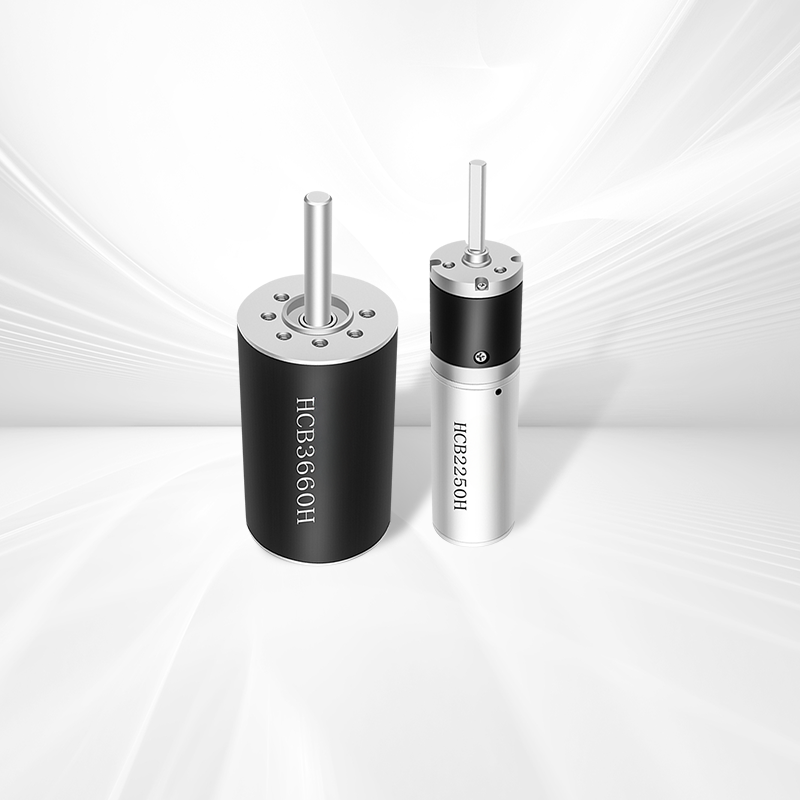

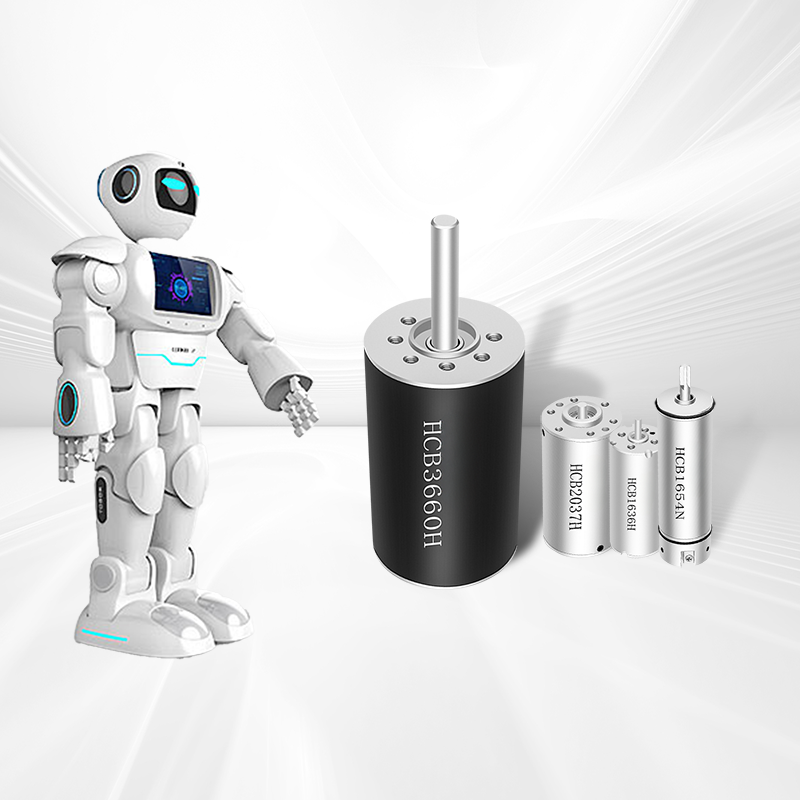

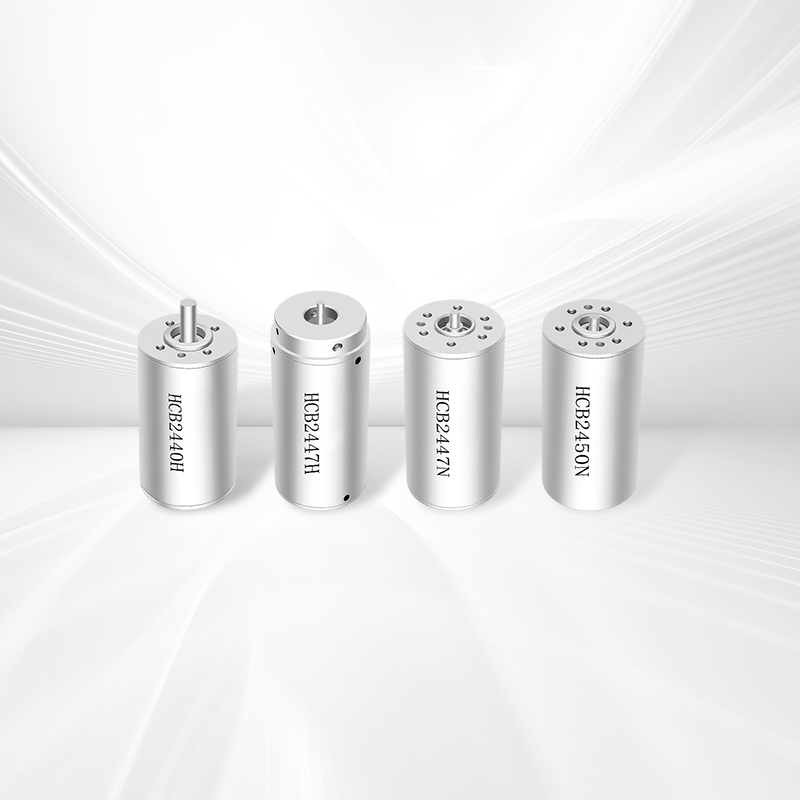

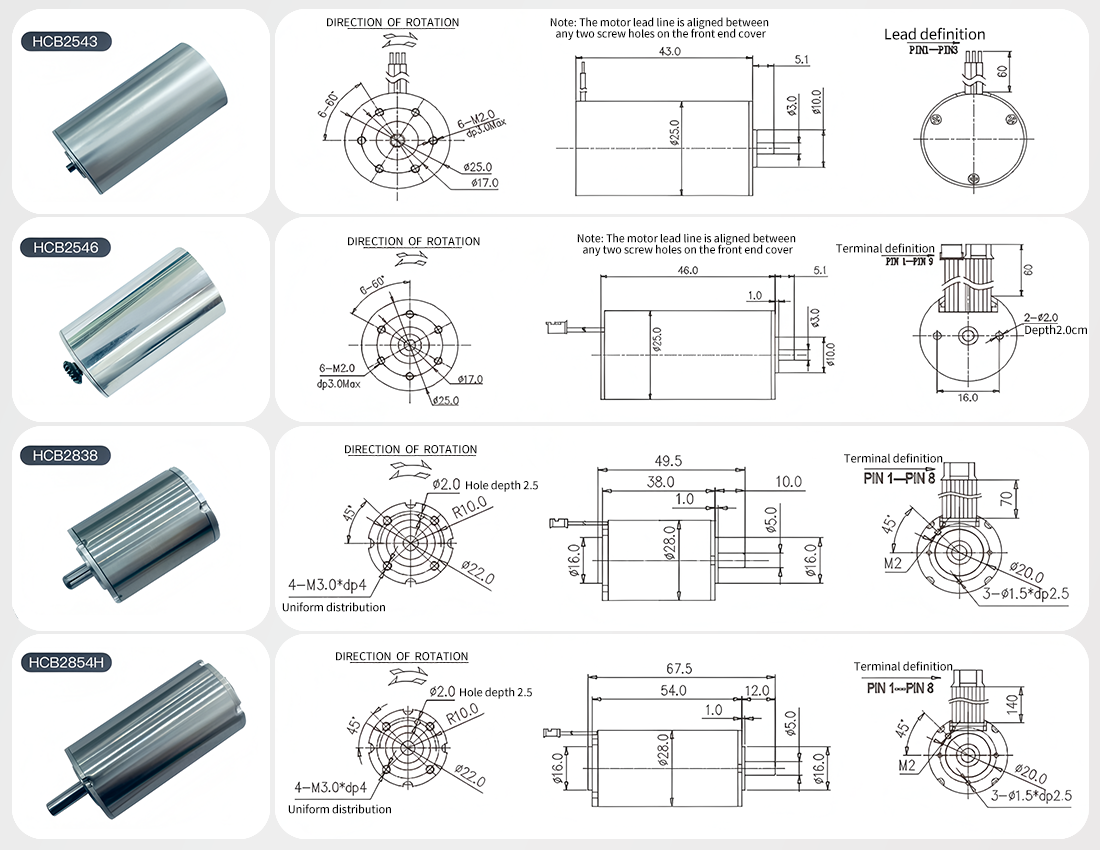

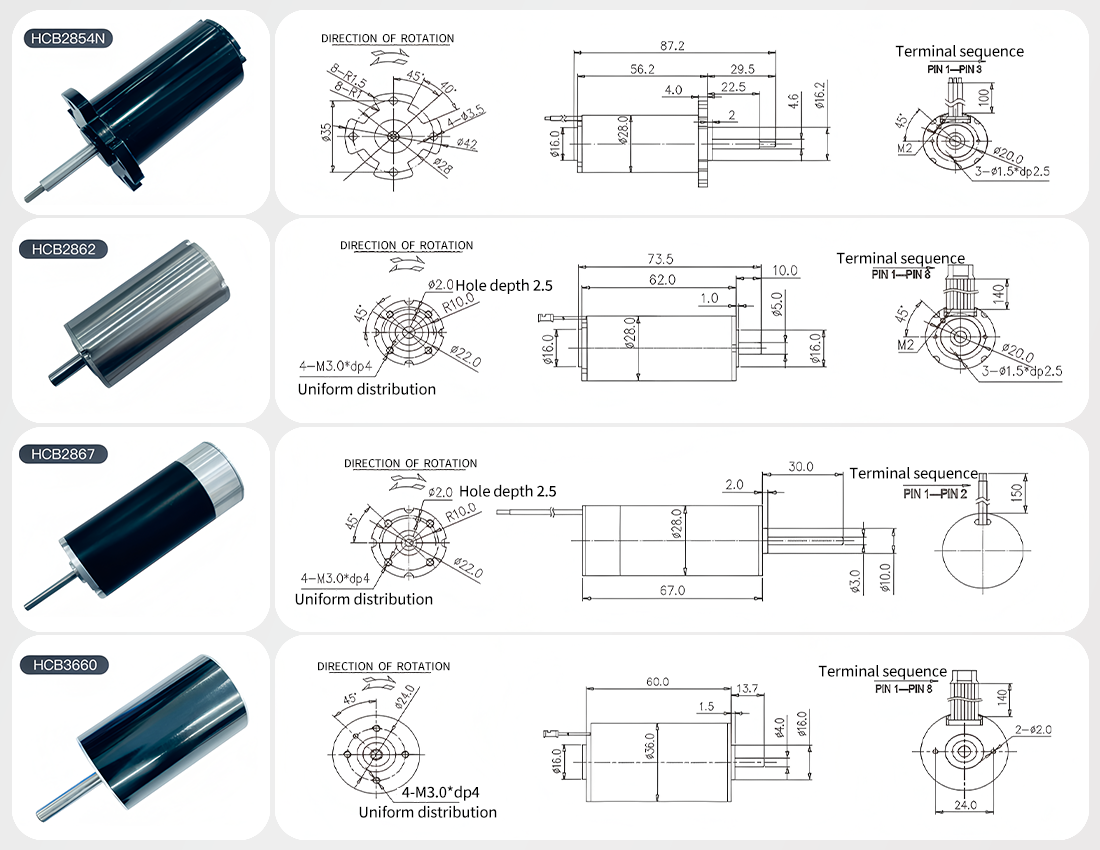

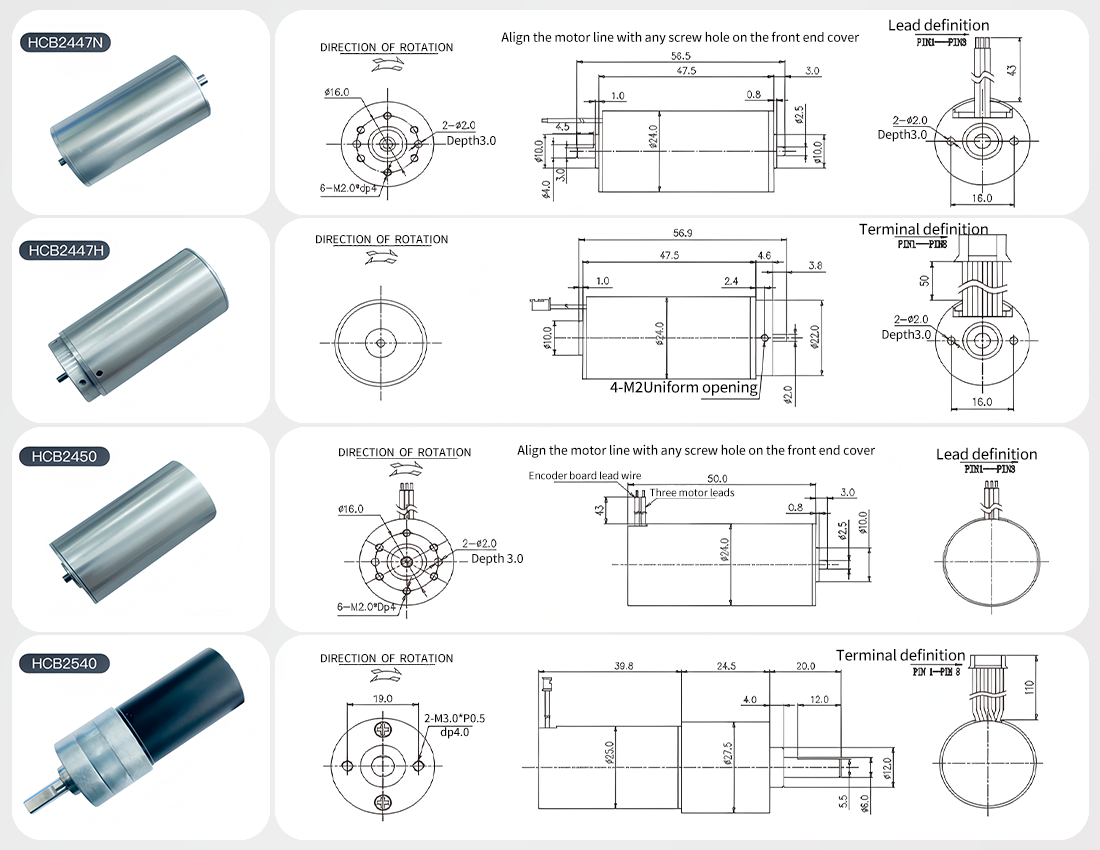

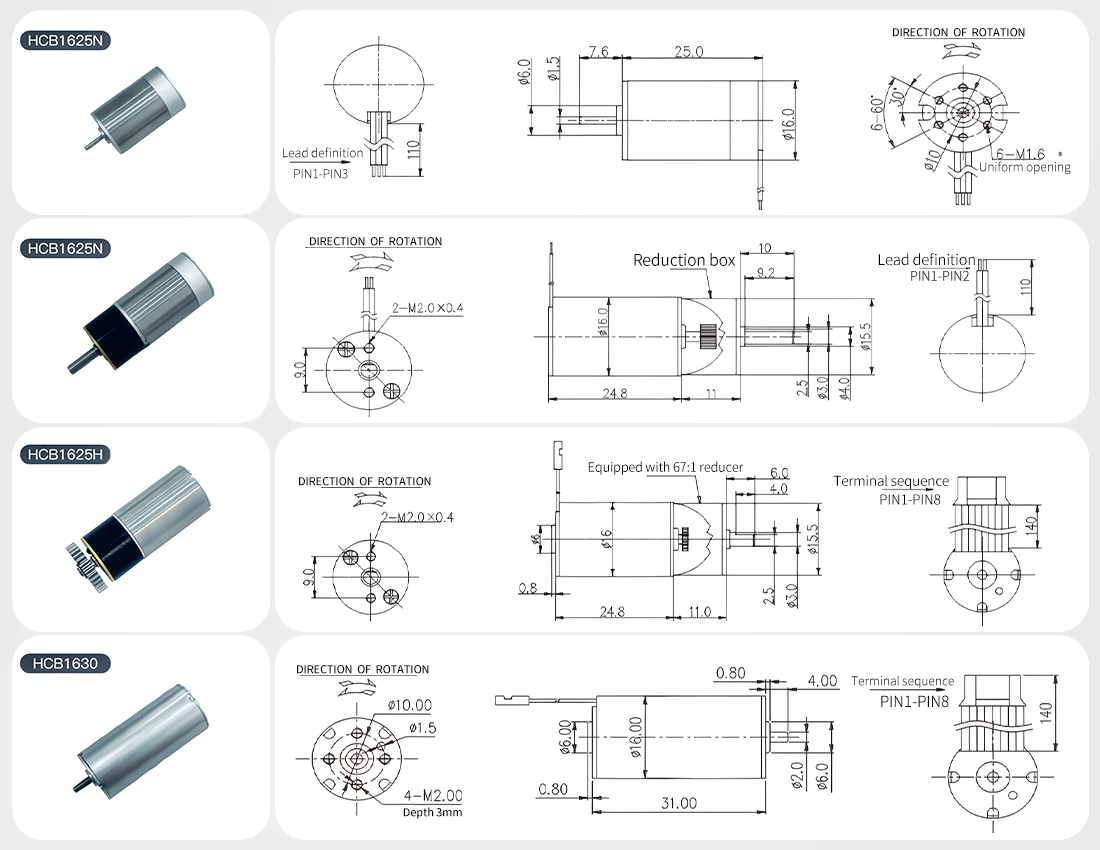

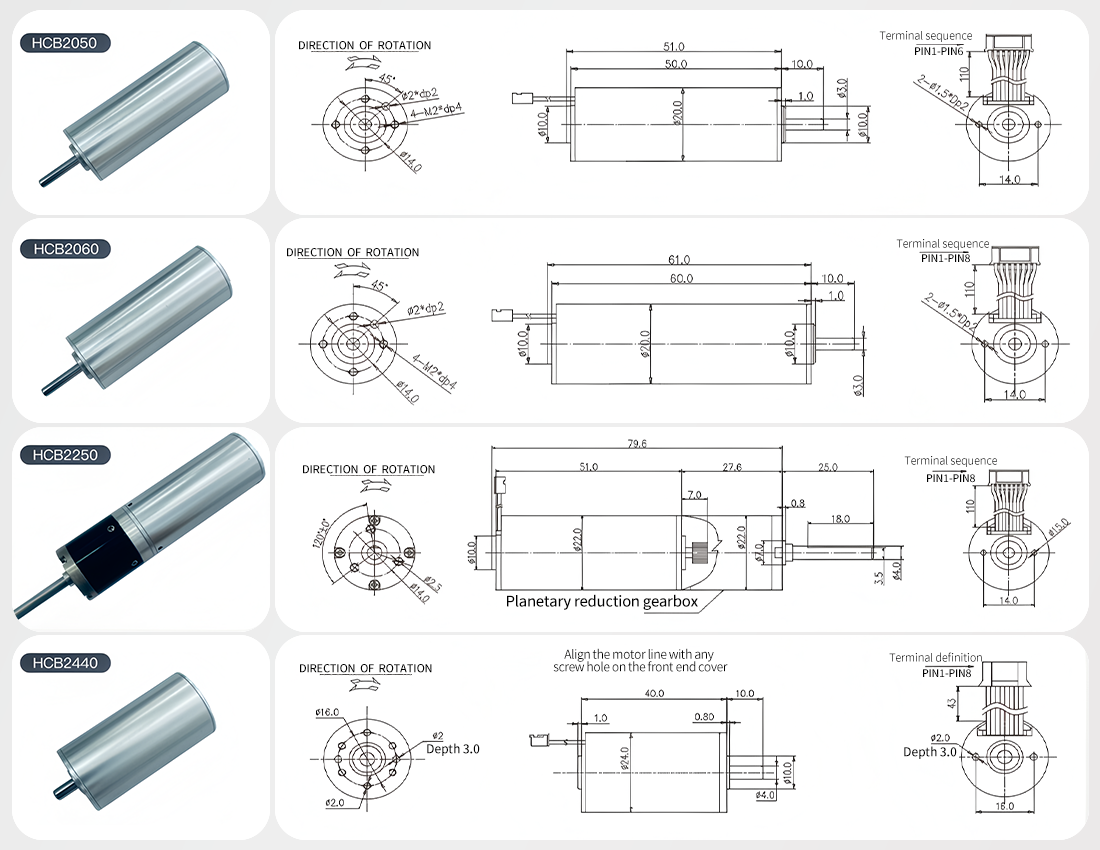

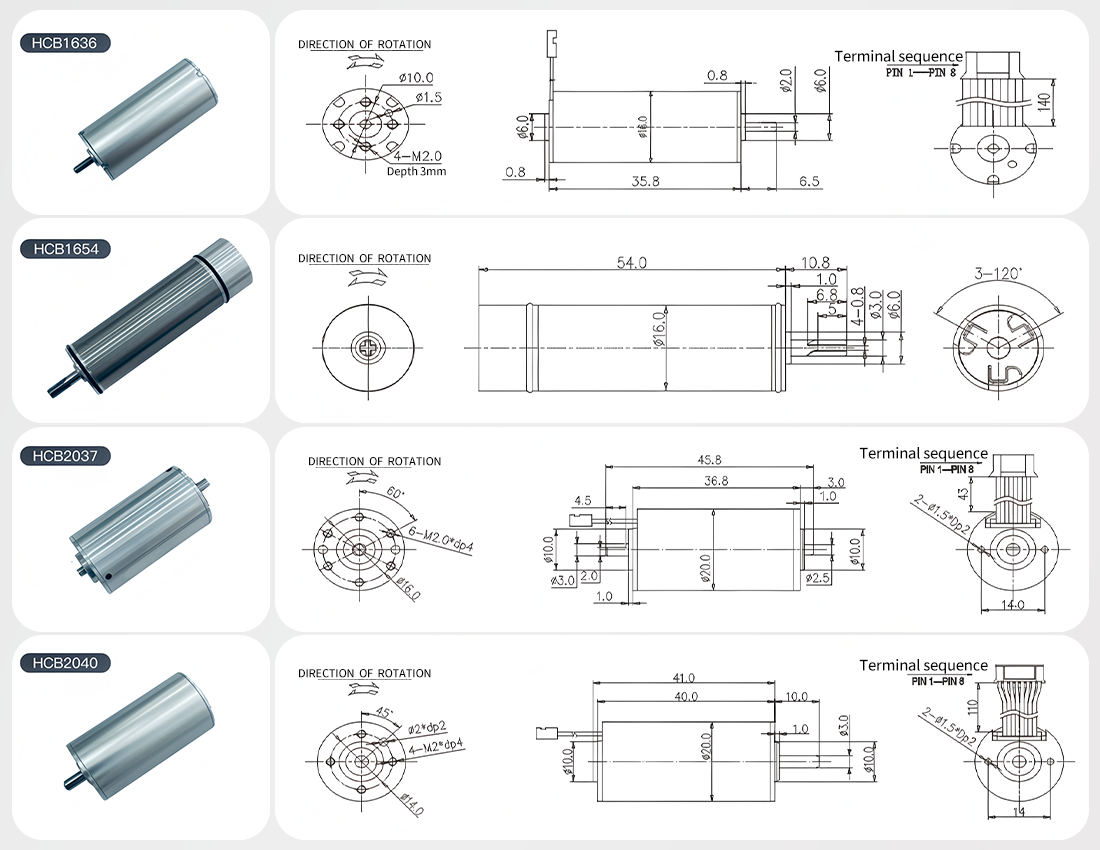

Dimensional drawing
Product parameters
MODEL | VOLTAGE | NO LOAD | TYPICALLOADCHARACTEISTICS | STALL | ||||||||
OPERATING | NOMINAL | SPEED | CURREN | SPEED | CURREN | TORQUE | OUTPU | TORQUE | CURRENT | |||
V | rpm | A | rpm | A | 9.Cm | mN.m | W | 9.cm | mN.m | A | ||
HCB1625N-01A | 5~13.0 | 8.5 | 16500 | 0.09 | 13800 | 0.80 | 30 | 2.94 | 4.24 | 110 | 10.78 | 2.4 |
HCB1625N-02A | 3~9 | 4.5 | 5600 | 0.05 | 4500 | 0.72 | 30 | 2.94 | 1.38 | 97 | 9.5 | 1.4 |
HCB1625N-03A | 4~9 | 6.0 | 10500 | 0.08 | 9300 | 0.19 | 8 | 0.78 | 0.8 | 70 | 6.9 | 1.7 |
HCB1625N-04A | 8~16 | 12.0 | 12000 | 0.9 | 10000 | 0.2 | 20 | 1.96 | 2.1 | 120 | 11.8 | 0.9 |
HCB1625H-01A | 9~16.0 | 12.0 | 23600 | 0.18 | 21000 | 0.39 | 10 | 0.98 | 4.56 | 115 | 11.27 | 2.7 |
HCB1625H-02A | 12~30.0 | 24.0 | 24154 | 0.09 | 21100 | 0.39 | 25 | 2.45 | 6.65 | 190 | 18.6 | 2.1 |
HCB1630H-01A | 9~16 | 12.0 | 9500 | 0.1 | 7500 | 0.35 | 30 | 2.9 | 2.3 | 142 | 13.9 | 1.9 |
HCB1630H-02A | 12~30.0 | 24.0 | 16000 | 0.23 | 13000 | 0.65 | 50 | 4.9 | 6.6 | 266 | 26 | 2.5 |
HCB1636H-01A | 12~30.0 | 24.0 | 14000 | 0.1 | 11200 | 0.45 | 56 | 5.5 | 6.45 | 270 | 26.4 | 1.8 |
HCB1636H-02A | 9~16 | 12.0 | 12000 | 0.15 | 9000 | 0.65 | 50 | 4.9 | 4.6 | 180 | 17.64 | 2.2 |
HCB1654N-01A | 12~30.0 | 24.0 | 30000 | 0.10 | 28000 | 0.60 | 40 | 3.92 | 11.49 | 360 | 35.28 | 4.8 |
HCB2037H-01A | 9~18 | 12.0 | 8000 | 0.08 | 6400 | 0.45 | 60 | 5.88 | 3.45 | 322 | 31.5 | 2.4 |
HCB2037H-02A | 12~30.0 | 24.0 | 20000 | 0.12 | 15500 | 0.7 | 70 | 6.86 | 10.2 | 375 | 36.7 | 3.47 |
HCB2040H-01A | 12~30.0 | 24.0 | 16000 | 0.16 | 13000 | 0.7 | 75 | 7.35 | 10.0 | 490 | 48.0 | 3.6 |
HCB2040H-02A | 9~18 | 12.0 | 9500 | 0.07 | 7800 | 0.42 | 40 | 3.92 | 3.20 | 230 | 22.5 | 2.0 |
HCB2050H-01A | 18~30.0 | 30 | 16000 | 0.16 | 13000 | 0.96 | 150 | 14.7 | 20.0 | 1050 | 102.9 | 6.1 |
HCB2050H-02A | 9~16 | 12.0 | 12800 | 0.18 | 10200 | 1.24 | 100 | 9.8 | 10.46 | 820 | 80.3 | 9.5 |
HCB2060H-01A | 12~30.0 | 24.0 | 23000 | 0.16 | 21000 | 1.29 | 150 | 14.7 | 32.6 | 1734 | 170 | 17.5 |
HCB2060H-02A | 30~40.0 | 36.0 | 50000 | 0.15 | 47000 | 1.8 | 102 | 10 | 49.2 | 1711 | 168 | 24.8 |
HCB2250H-01A | 12~30.0 | 24 | 14000 | 0.10 | 11000 | 0.8 | 130 | 12.7 | 13.3 | 892 | 87.4 | 5.6 |
HCB2250H-02A | 24~36 | 30 | 10000 | 0.09 | 8400 | 0.63 | 159 | 15.6 | 15.6 | 1500 | 147 | 5.3 |
HCB2440H-01A | 9~18 | 12.0 | 7100 | 0.12 | 6080 | 0.9 | 100 | 9.8 | 6.18 | 708 | 69.4 | 4.6 |
HCB2440H-02A | 12~30.0 | 24.0 | 17000 | 0.21 | 14700 | 1.52 | 150 | 14.7 | 22.6 | 1431 | 140.2 | 10.9 |
HCB2447N-01A | 9~18 | 12.0 | 7300 | 0.13 | 6700 | 1.4 | 150 | 14.7 | 11.1 | 1677 | 164.4 | 10.9 |
HCB2447N-02A | 12~30.0 | 24.0 | 16000 | 0.3 | 14800 | 2.1 | 200 | 19.6 | 42.6 | 2589 | 253.8 | 18.4 |
HCB2447H-01A | 12~30.0 | 24.0 | 16000 | 0.21 | 13500 | 1.2 | 180 | 17.64 | 24.9 | 1487 | 145.7 | 8.6 |
HCB2447H-02A | 24~36 | 30.0 | 18500 | 0.28 | 15500 | 1.75 | 200 | 19.6 | 47.7 | 2444 | 239.6 | 16.1 |
HCB2450N-01A | 12~30.0 | 24.0 | 26000 | 0.3 | 23400 | 2.6 | 200 | 19.6 | 44.9 | 1730 | 169.6 | 20 |
HCB2540H-01A | 6~12.0 | 7.4 | 10000 | 0.16 | 8100 | 1.5 | 110 | 10.7 | 7.2 | 719 | 70.4 | 10.5 |
HCB2540H-02A | 12~30.0 | 24.0 | 16000 | 0.2 | 14300 | 2.2 | 180 | 17.6 | 27.9 | 1681 | 164.8 | 12.0 |
HCB2543N-01A | 12~30.0 | 24.0 | 21000 | 0.16 | 18500 | 1.7 | 190 | 18.6 | 36 | 2134 | 209 | 19.6 |
HCB2543N-02A | 24~36 | 30.0 | 15000 | 0.12 | 13000 | 1.4 | 160 | 15.7 | 21.4 | 2027 | 198 | 10.7 |
HCB2546H-01A | 9~18 | 12.0 | 12000 | 0.24 | 10600 | 1.3 | 150 | 14.7 | 15.8 | 1231 | 120.6 | 13.3 |
HCB2546H-02A | 12~30.0 | 24.0 | 19000 | 0.28 | 17300 | 2.0 | 200 | 19.6 | 41.6 | 2185 | 214.2 | 18.4 |
HCB2838H-01A | 14~24.0 | 19.0 | 20000 | 0.22 | 18100 | 2.3 | 150 | 14.7 | 28.8 | 1541 | 151 | 17.2 |
HCB2854H-01A | 12~30.0 | 24.0 | 9000 | 0.2 | 8000 | 0.96 | 204 | 20 | 16.7 | 2397 | 235 | 9.5 |
HCB2854H-02A | 24~36 | 30.0 | 16000 | 0.30 | 13800 | 1.8 | 280 | 27.4 | 39.5 | 3714 | 364 | 20.6 |
HCB2854N-01A | 9~18 | 12.0 | 15700 | 0.38 | 14000 | 3.0 | 200 | 19.6 | 29.1 | 1897 | 186 | 26.6 |
HCB2854N-02A | 12~30.0 | 24.0 | 11000 | 0.21 | 9800 | 1.2 | 300 | 29.4 | 31.6 | 2888 | 283.1 | 14.1 |
HCB2862H-01A | 12~30.0 | 24.0 | 14500 | 0.32 | 12500 | 3.3 | 400 | 39.2 | 55 | 4163 | 408 | 26.7 |
HCB2862H-02A | 24~36 | 30.0 | 16000 | 0.35 | 14000 | 2.3 | 300 | 29.4 | 76.8 | 5317 | 522 | 30 |
HCB2867N-01A | 9~18 | 12.0 | 5800 | 0.21 | 5200 | 1.0 | 200 | 19.6 | 12.5 | 1899 | 186.1 | 10 |
HCB2867N-02A | 12~30.0 | 24.0 | 14000 | 0.3 | 12900 | 1.4 | 300 | 29.4 | 49.7 | 3798 | 372.3 | 23.5 |
HCB3660H-01A | 12~30.0 | 24.0 | 10000 | 0.25 | 8000 | 3 | 500 | 49 | 41 | 2999 | 294 | 13.3 |
HCB3660H-02A | 24~36.0 | 30.0 | 14000 | 0.40 | 12000 | 5 | 700 | 68.6 | 86 | 6946 | 680 | 34 |
Application

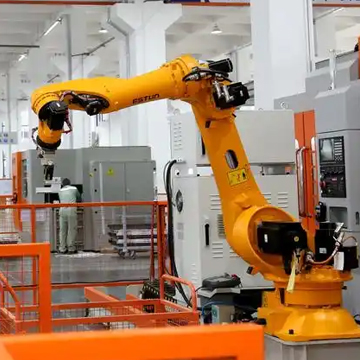

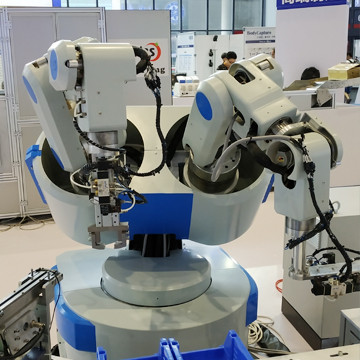

Widely used in industrial automation, household appliances, medical equipment, intelligent manufacturing, smart home, robots, drones, power tools and other fields
