The D1103-F2838B series fixed-wing high-speed brushless motors are highly efficient and have a long service life

Small UAV model brushless motor Multi-axis aircraft motor high-speed brushless model motor

  • voltage:3.7-30V
  • Load current:1.8-7.2A
  • Pull:6.7-5250g
  • Power:7.6-1600W
  • Weight:3.3-360g

USD: 4.5-30

ablity:Monthly Output8000

contact shop

Product Description

The fixed-wing series of aircraft model brushless motors are made of high-quality materials, are sturdy and durable, and can adapt to various flight environments. The unique brushless design reduces friction loss, and its efficiency is greatly improved compared to traditional brushed motors. It has strong power and can instantly generate powerful thrust, helping the model aircraft take off easily and fly at high speed. It also features precise speed regulation performance. When paired with professional electronic controllers, it can achieve fine control. Whether it's smooth cruising or flexible steering, it can respond precisely. The lightweight fuselage design ensures power while reducing weight, making the model aircraft fly more flexibly and lightly.

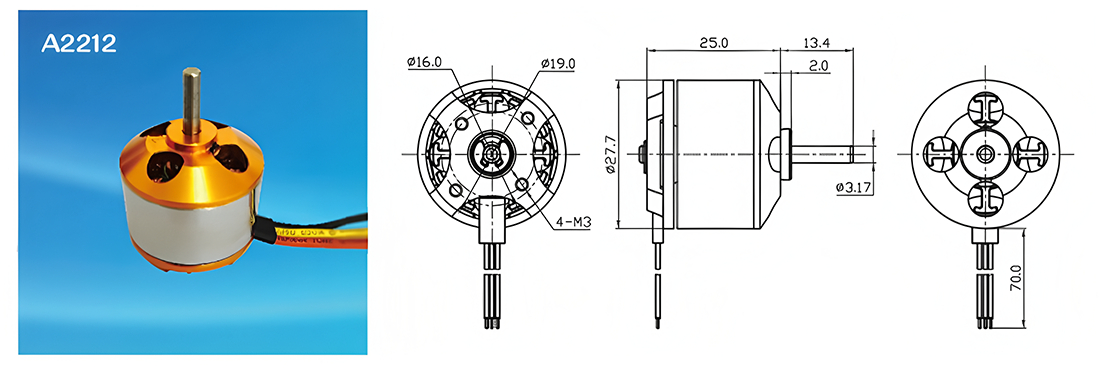

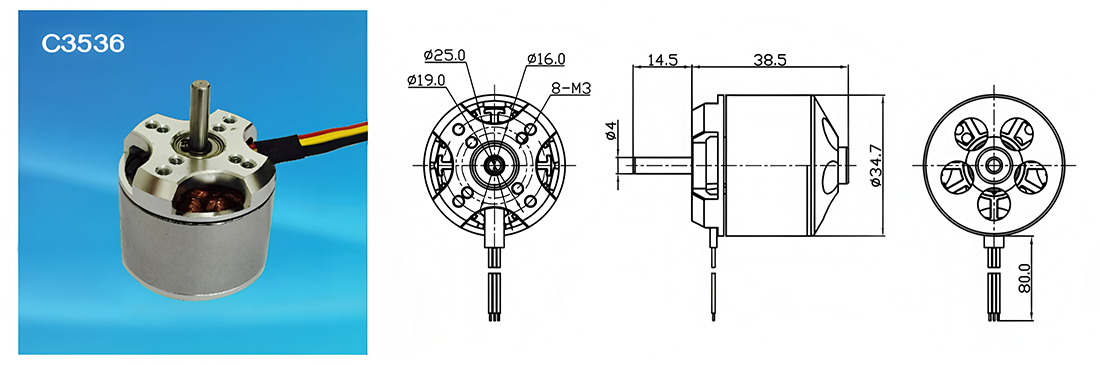

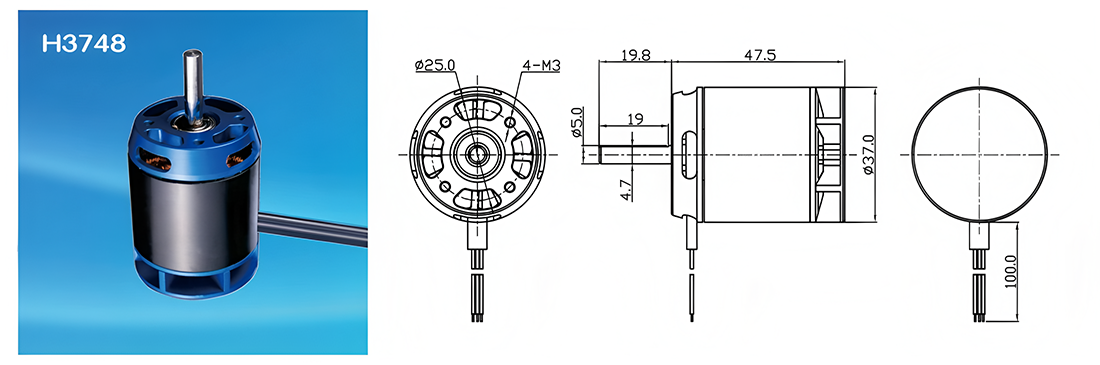

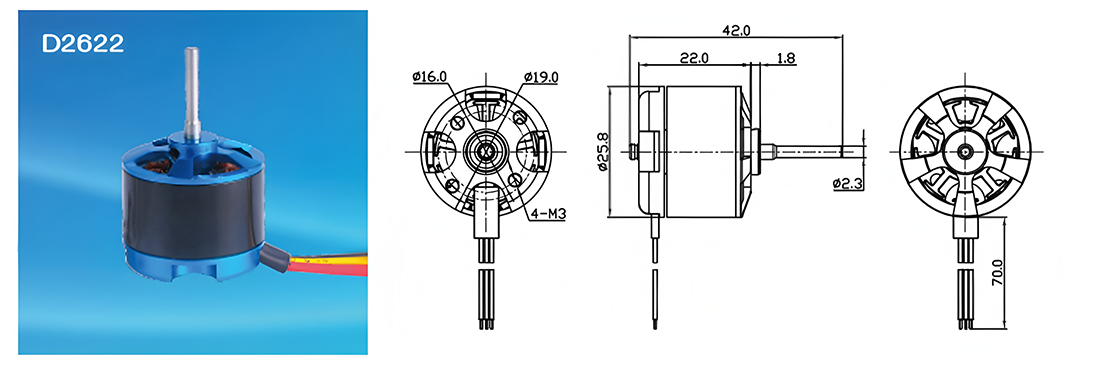

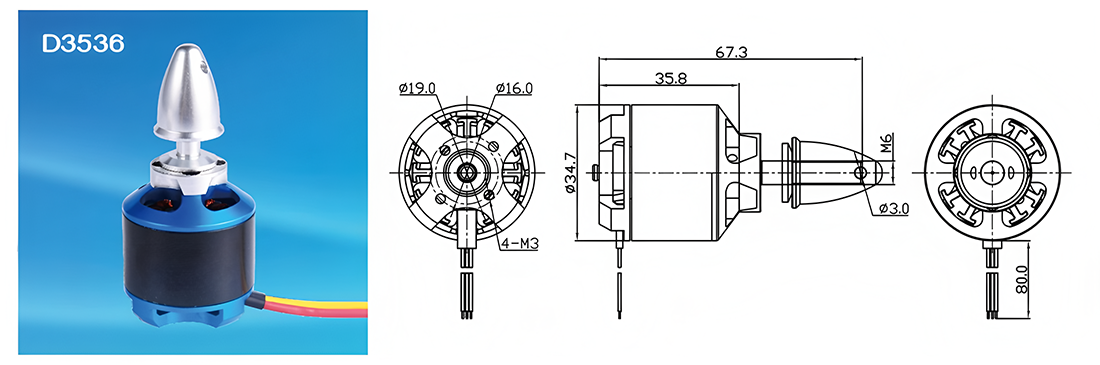

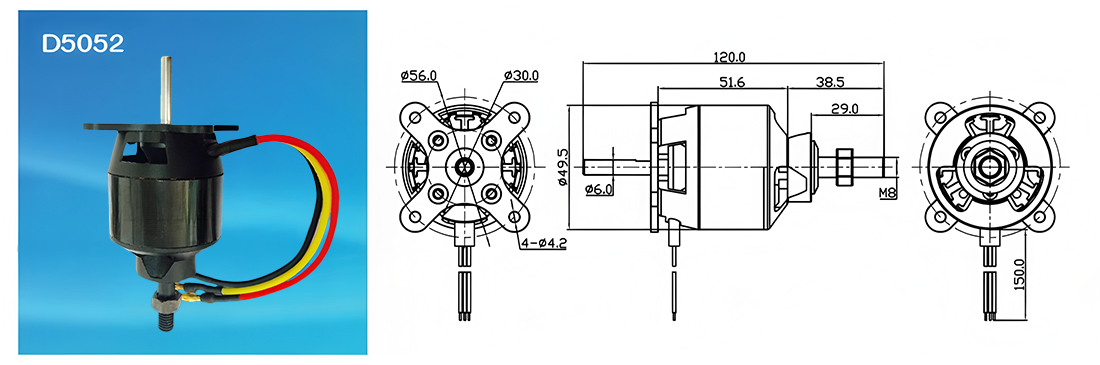

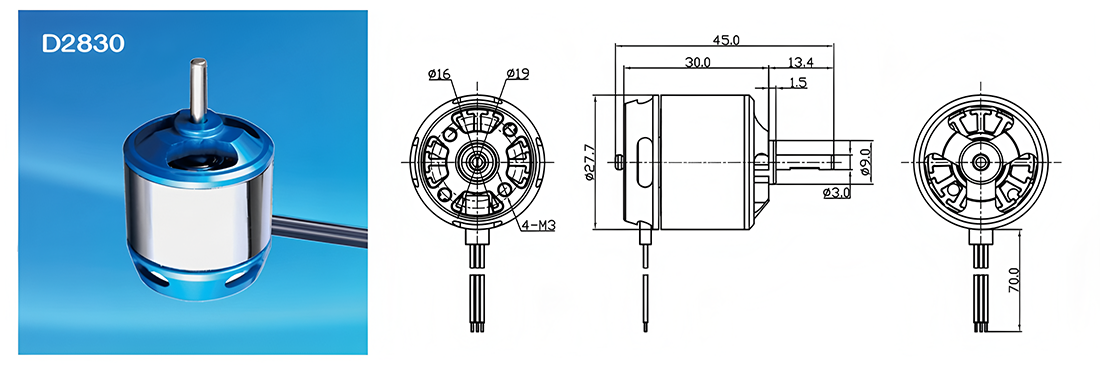

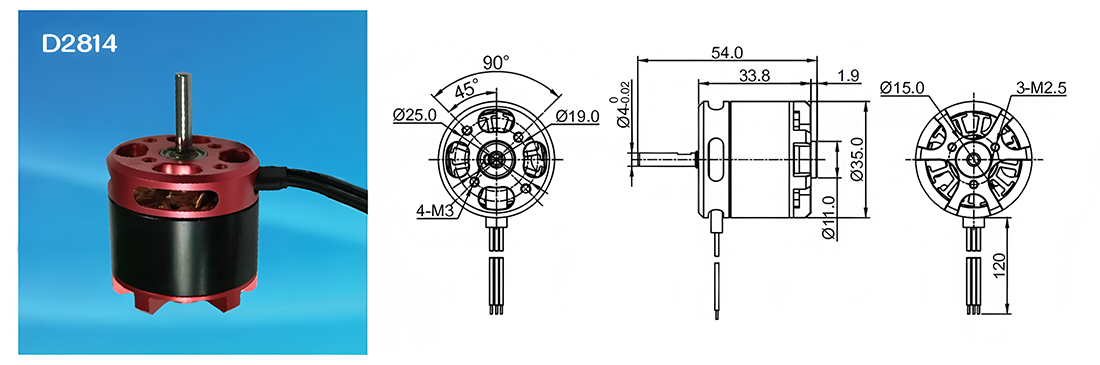

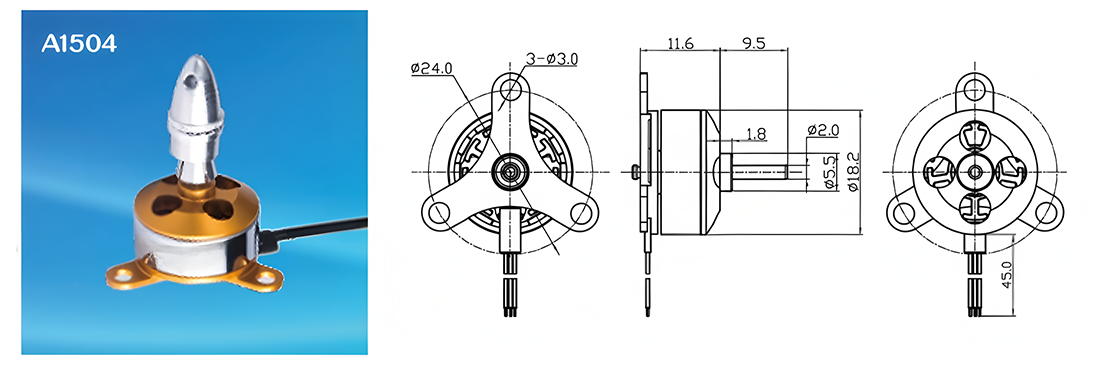

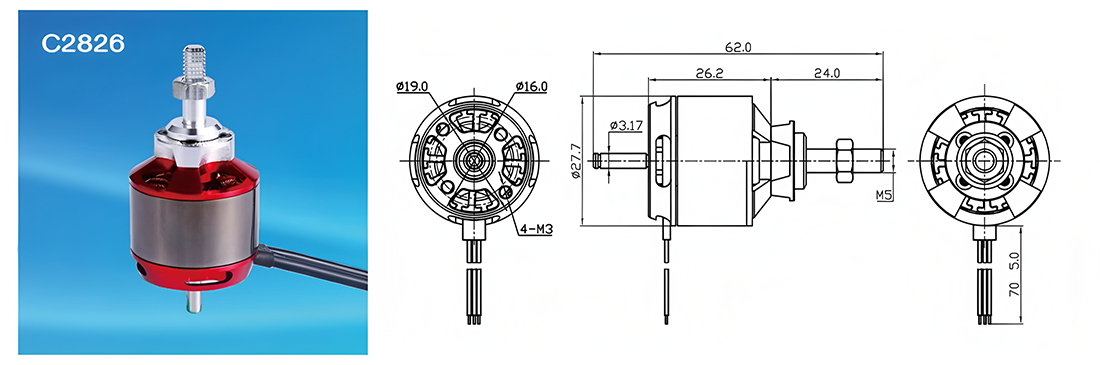

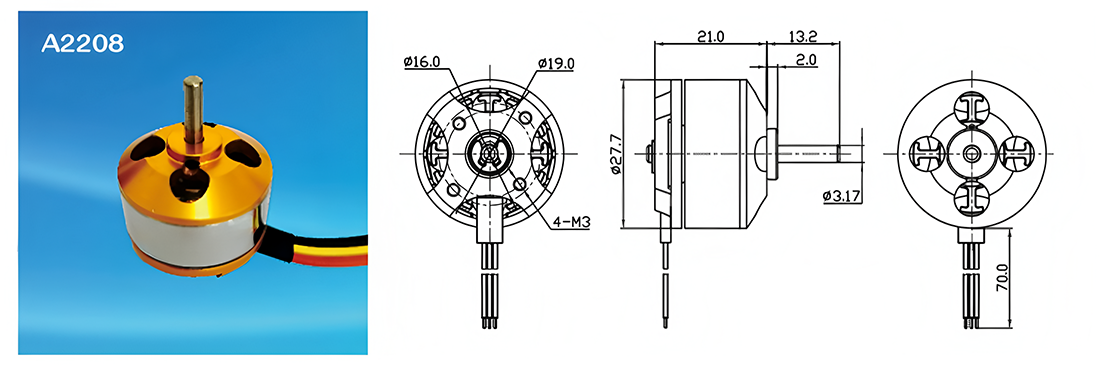

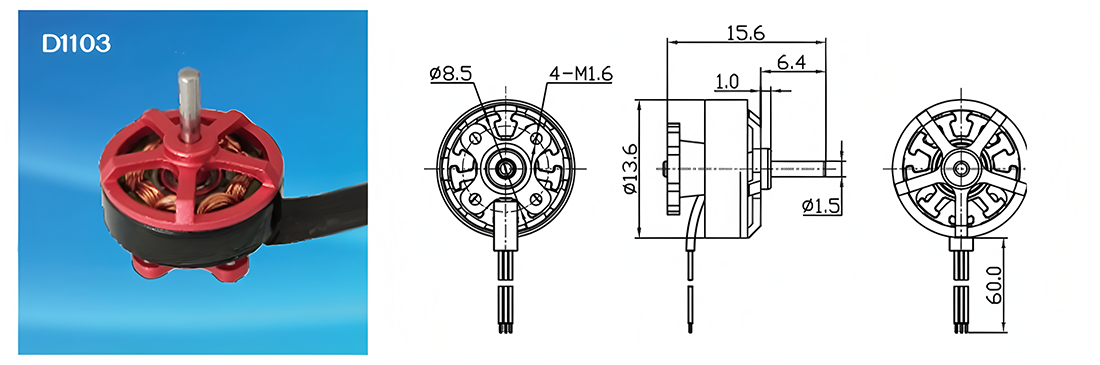

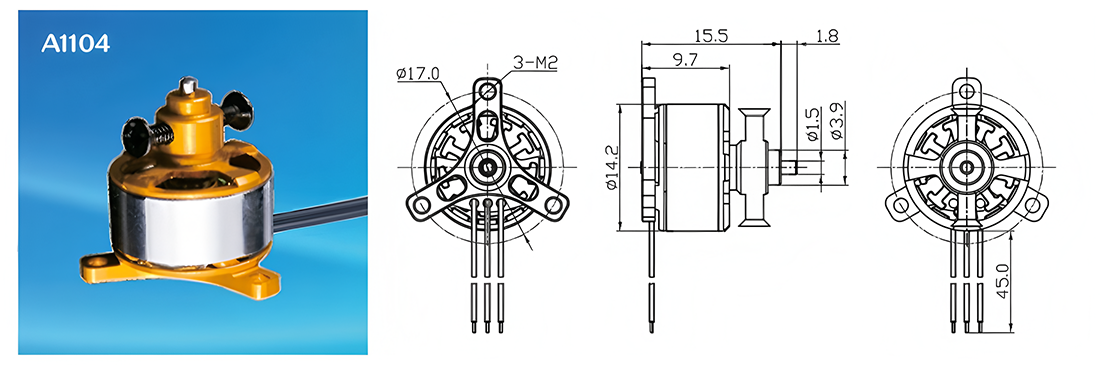

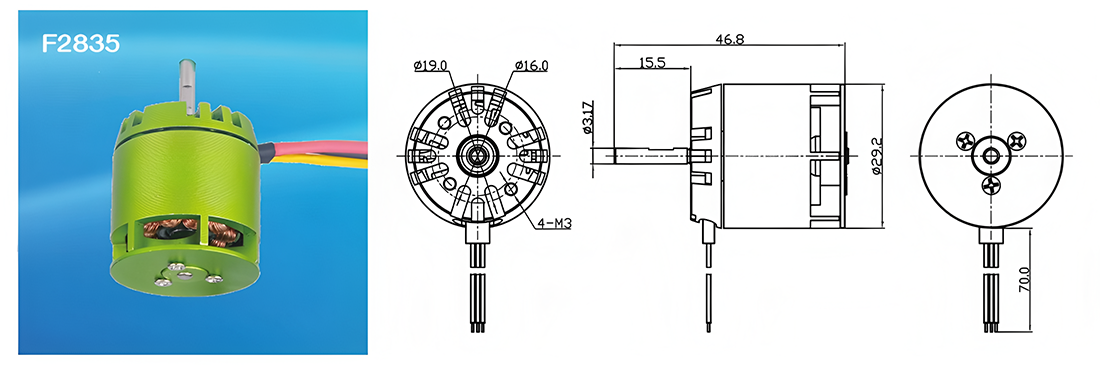

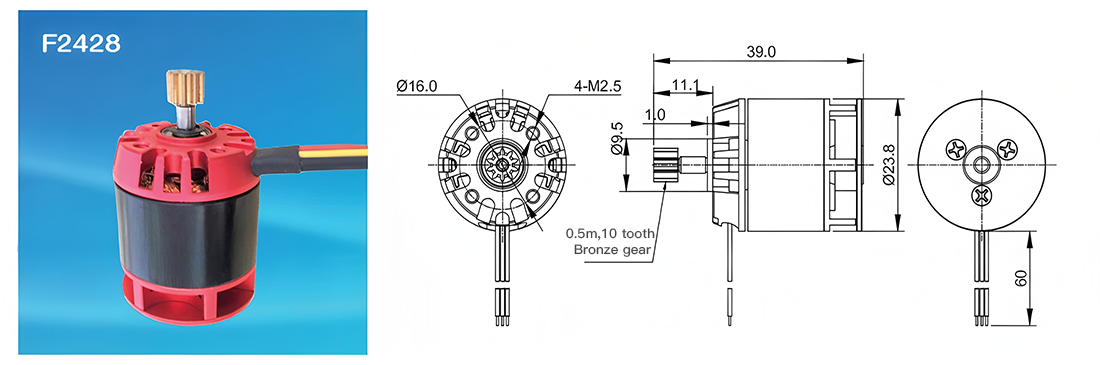

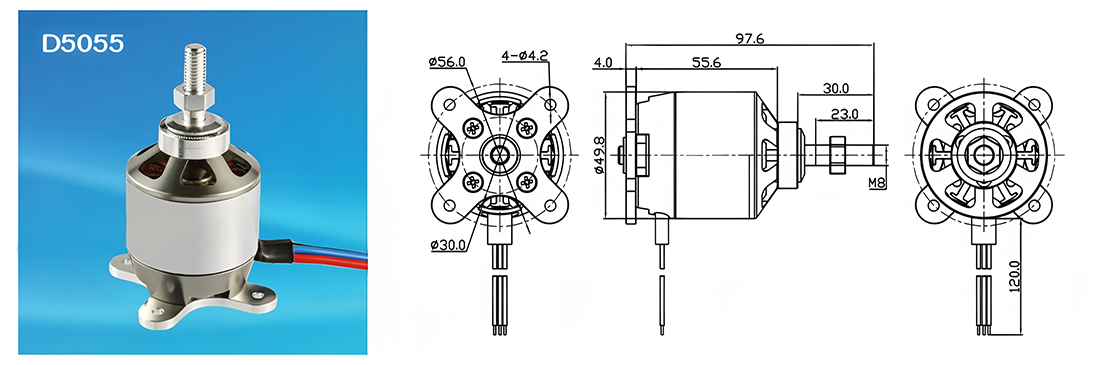

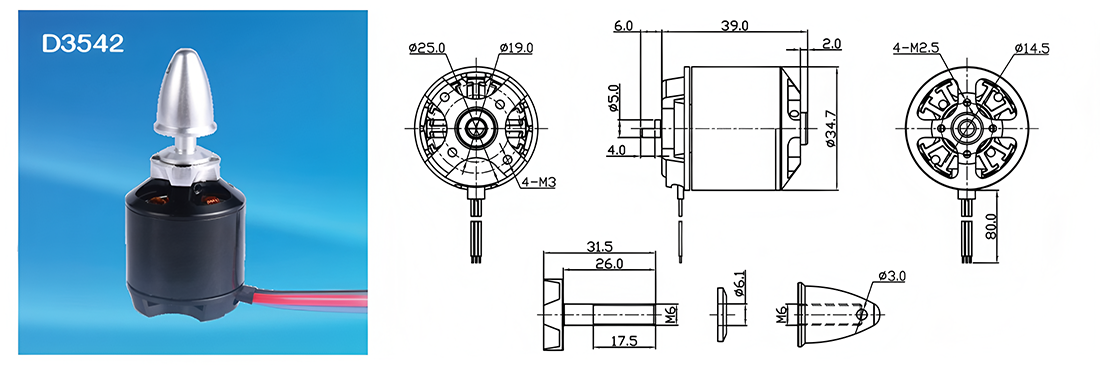

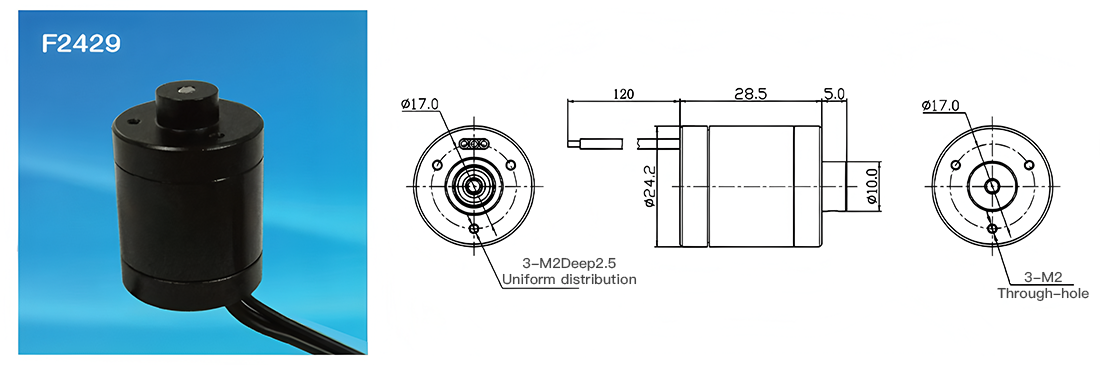

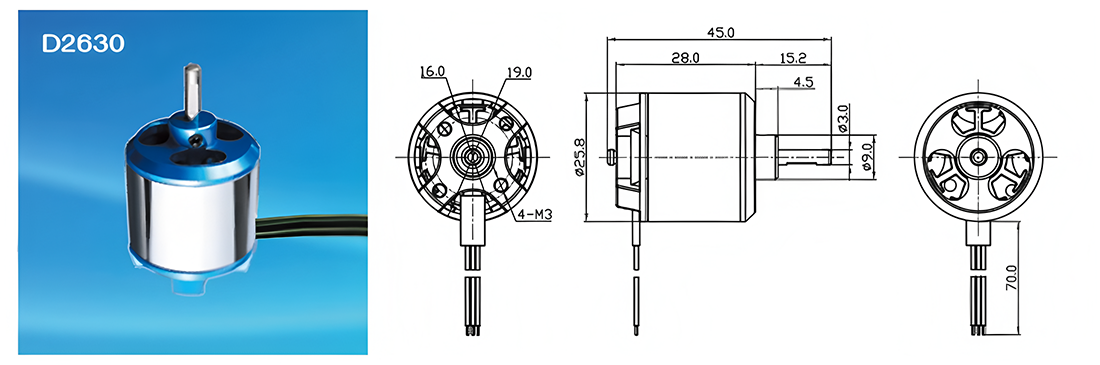

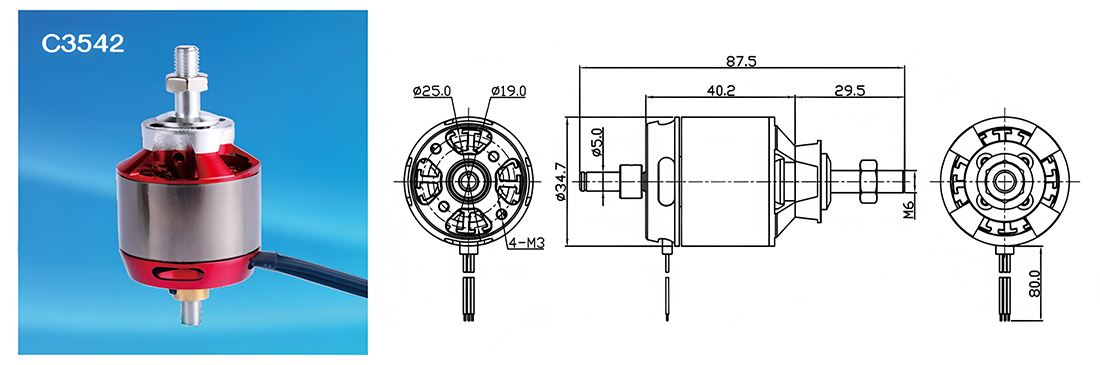

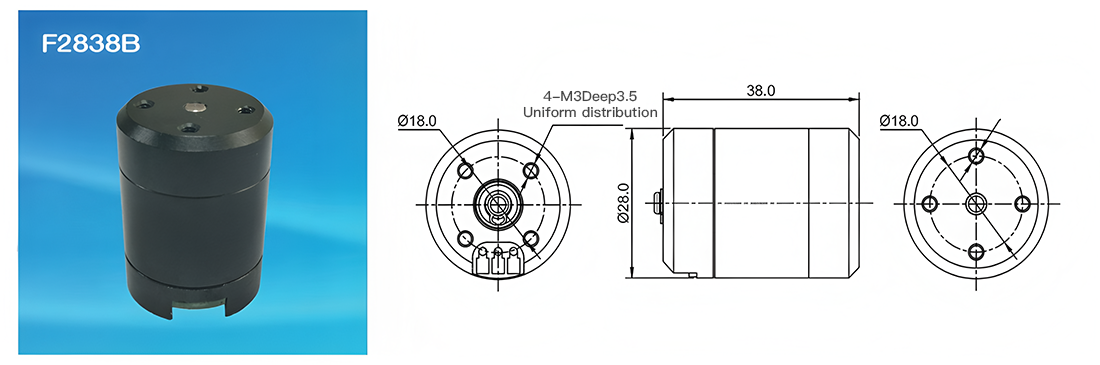

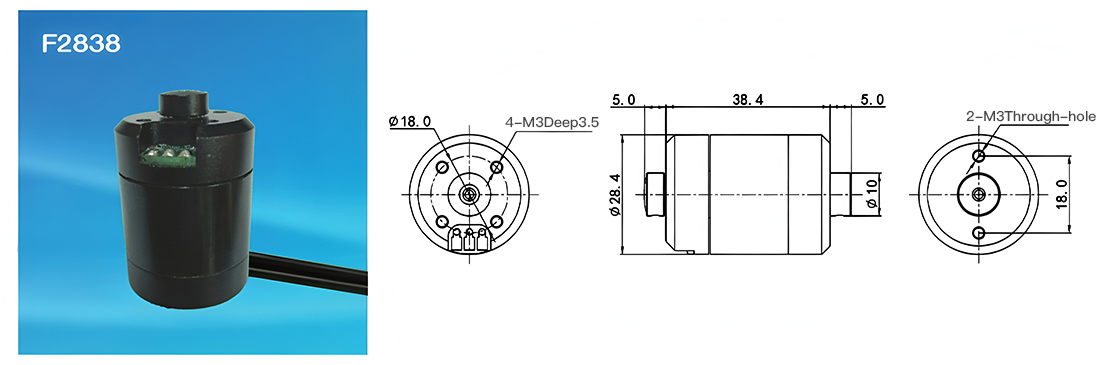

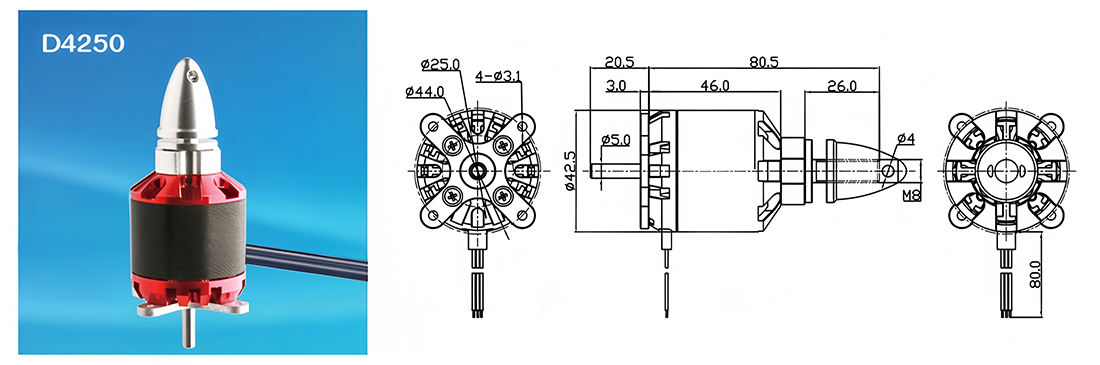

Dimensional drawing

Product parameters

MODEL

KV

Voltage

Prop

Load Current

Pull

Power

Efficiency

Lipo

Weight

(rpm/V)

(V)

(A)

(g)

(W)

(g/W)

Cell

(g)Approx

D1103

6500

7.4

3020

2.8

48

20.5

2.3

1-2S

3.3

8000

3.7

3020

1.8

26

6.7

3.9

7.4

2520

3.1

55

22.3

2.5

10000

3.7

3020

2.8

31

10.4

3.7

7.4

2520

3.7

58

27.4

2.1

A1104

4300

3.7

4040

2.1

35

7.6

4.6

1-2S

5

4530

2.3

48

8.5

5.6

5030

2.8

55

10.4

5.3

A1504

2300

7.4

4545

4.2

123

31

4

1-3S

9

5030

5.3

140

39

3.6

2700

7.4

5030

5

130

37

3.5

5043

5.8

145

43

3.4

A2208

1100

11.1

9050

10.8

610

120

5.1

2-4S

39

1400

11.1

8040

11.5

630

128

4.9

1800

7.4

7060

11.2

430

83

5.2

2-3S

2600

7.4

6×4

15.2

465

112

4.2

11.1

26.8

790

298

2.7

A2212

930

11.1

1060

9.8

660

109

6.1

2-4S

52

1000

1047

15.6

885

173

5.1

1400

9050

19

910

210

4.3

1800

8060

20.8

805

231

3.5

2200

6030

21.5

732

239

3.1

2-3S

2450

6×3

25.2

815

280

2.9

D2630

1100

11.1

9047

13.5

810

150

5.4

2-4S

55

1500

8043

17.8

880

198

4.4

D2814

1000

11.1

12×6

35.5

2120

394

5.4

3-4S

106

14.8

11×7

42

2160

622

3.5

1400

11.1

9×6

47.5

1950

522

3.7

14.8

8×5

58

2300

858

2.7

C2826

920

11.1

8045

7.3

465

81

5.7

2-4S

51

1045

9.5

642

105

6.1

1290

11.1

9045

13.8

800

153

5.2

1047

16.6

1065

184

5.8

D2830

750

11.1

1260

15.5

880

172

5.1

2-4S

60.5

14.8

9050

19

960

280

3.4

1000

11.1

1045

15

820

166

4.9

14.8

20.5

1020

303

3.4

1300

11.1

9050

21.5

1130

238

4.7

14.8

1045

29

1310

429

3.1

C3536

920

11.1

11×8

25

1050

275

3.8

2-4S

110

1150

10×6

33

1220

365

3.3

D3536

900

11.1

11×5

26

1360

289

4.7

2-4S

115

1200

10×6

35

1580

388

4.1

C3542

920

11.1

12×6

40

2030

444

4.6

2-4S

140

1250

11×5

48

2250

533

4.2

D3542

920

11.1

12×6

40

2030

444

4.6

2-4S

135

1250

11×5

48

2250

533

4.2

D4250

710

22.2

12×5

45

3120

1000

3.1

3-7S

210

800

18.5

11×5.5

48

2850

890

3.2

D5052

410

29.6

14×8

46

4200

1360

3.1

4-12S

285

D5055

570

22.2

16×6

72

5250

1600

3.2

4-10S

360

MODEL

KV

Voltage

No Load Current

NoLoadSpeed

MAXCurrent

MAXPower

Lipo

Weight

(rpm/V)

(V)

(A)

(rpm)

(A)

(W)

Cell

(g)Approx

D2622

1950

11.1V

1.2

22100

18

200

1-3S

40

4500

2.1

50000

29

320

D2808

280

24V

0.18

6780

8.5

200

4-8S

78

650

24V

0.7

15600

18

430

H3748

350

30V

0.3

10600

21

630

4-8S

184

1700

11.1V

2.9

11700

65

1850

2-4S

F2429

800

11.1V

0.45

8900

9

100

2-4S

49

F2838

350

11.1V

0.25

3950

7.5

83

3-6S

80

14.8V

0.3

5200

10

150

F2838B

350

11.1V

0.22

3930

7.5

83

3-6S

82

14.8V

0.28

5220

10

150

500

11.1V

0.32

5540

11

120

MODEL

KV

Voltage

No Load

Max Current

Max Power

Applicable Gear

Lipo

Weight

(rpm/V)

(V)

Current(A)

(A)

(W)

Cell

(g)Approx

F2428

2700

7.4

0.6

28

208

10T

2-3S

40

F2835

3600

11.1V

0.3

35

380

11T/12T/13T

2-4S

65

4000

0.4

44

470

Application

Aerial photography: A professional aerial photography team uses fixed-wing aircraft models equipped

 with brushless motors to conduct terrain mapping and ecological environment monitoring in mountainous areas.

The powerful and stable power of the brushless motor enables the model aircraft to maintain stable flight in complex airflow,

successfully complete long-term and large-scale shooting tasks, and obtain high-definition and stable image data.

Competitive occasion: In the national fixed-wing model airplane competition, many players choose this brushless motor.

Its excellent speed regulation performance helps players to accurately control the aircraft model to complete difficult actions such as

high-speed diving and rapid pulling up in the specified movement display and racing link, and stands out with its speed and flexibility advantages.

Popular science education activities: A number of primary and secondary schools carry out interest courses on model aircraft, using fixed-wing

 model aircraft equipped with brushless motors for teaching. Brushless motor operation is simple, reliable power, so that students can quickly get started,

in practice to understand aviation knowledge, stimulate the love of science and technology.

After-sale guarantee

If the motor fails, our after-sales team will respond in the first time, and quickly arrange professional and technical personnel to communicate with you to understand the details of the fault. We will provide you with remote technical guidance to help you solve the problem according to the specific situation. At the same time, we also provide you with regular return visit service, understand the use of the motor, collect your comments and suggestions, in order to continuously optimize products and services. When the product is upgraded, we will also notify you in time to provide you with the corresponding technical support and solutions, so that your equipment always maintains good performance.
