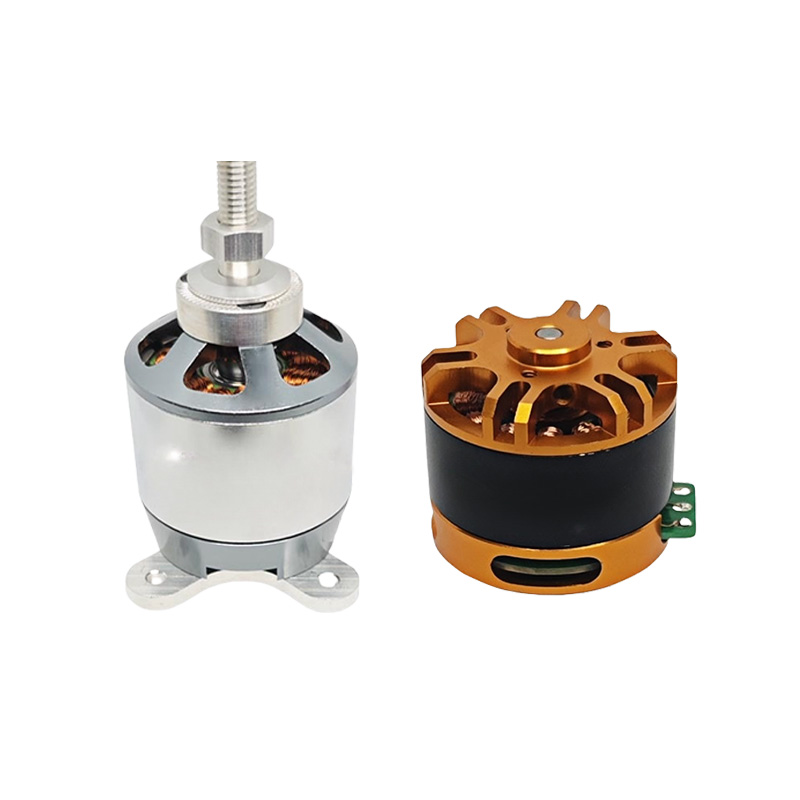

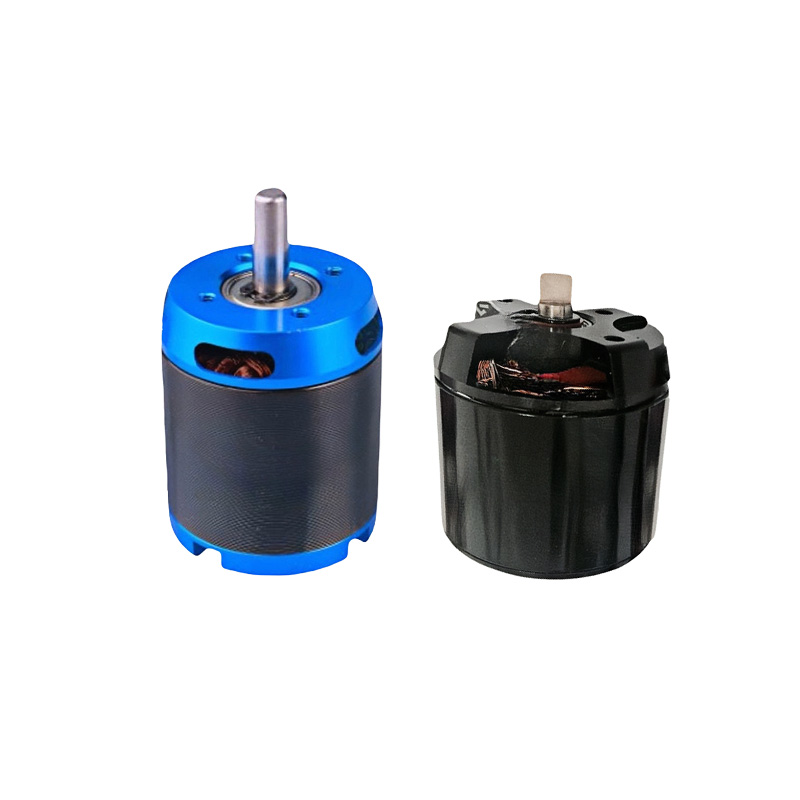

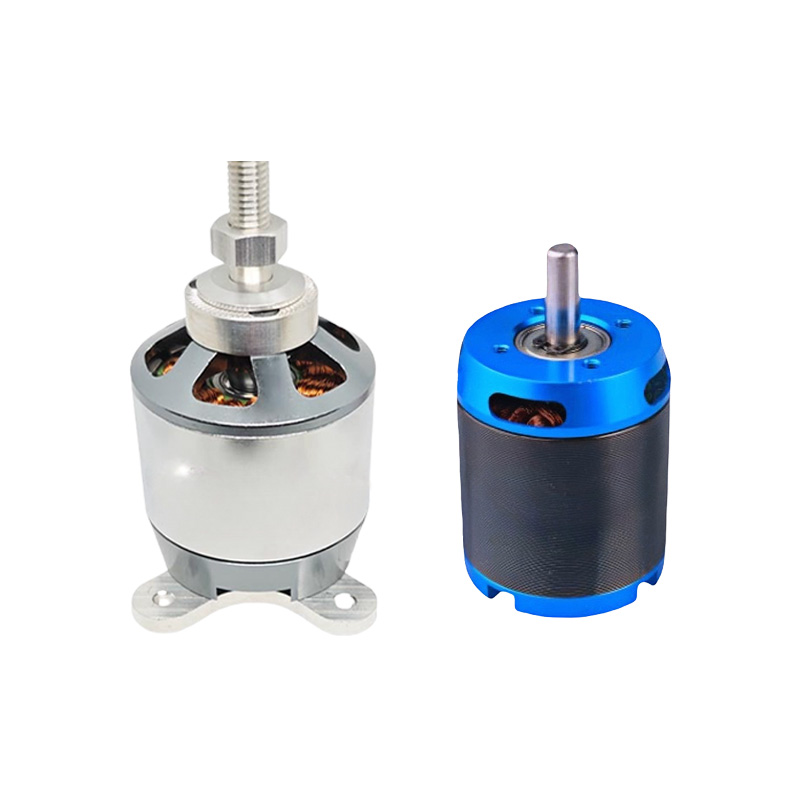

F3130-H5065 fixed-wing series aircraft model brushless motor

Small UAV model brushless motor Multi-axis aircraft motor high-speed brushless model motor

  • voltage:14.8-36V
  • MAXCurrent:25-38A
  • KV:70-3300rpm/V
  • MAXPower:12-2500W
  • Weight:33-965g

USD: 6-38

ablity:Monthly Output8000

contact shop

Product Description

Fixed wing series aircraft model brushless motor The motor is made of high-quality materials, strong and durable, and can adapt to various flight environments. Unique brushless design, reduce friction loss, efficiency than the traditional brush motor has been greatly improved, powerful power, instant burst of powerful thrust, to help the aircraft model easy to take off, high-speed flight. It also has accurate speed regulation performance, with professional electrical adjustment, can achieve delicate control, whether it is smooth cruise or flexible steering, can respond accurately. The lightweight fuselage design reduces weight while ensuring power, making the model flight more flexible and light.

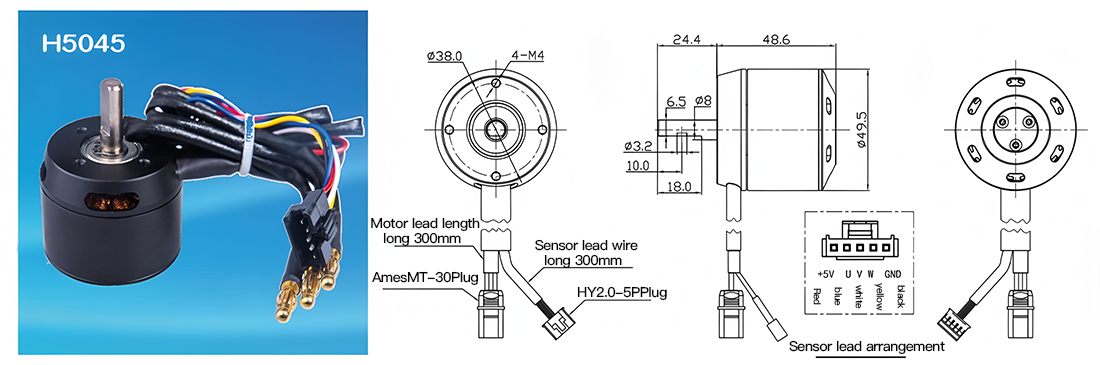

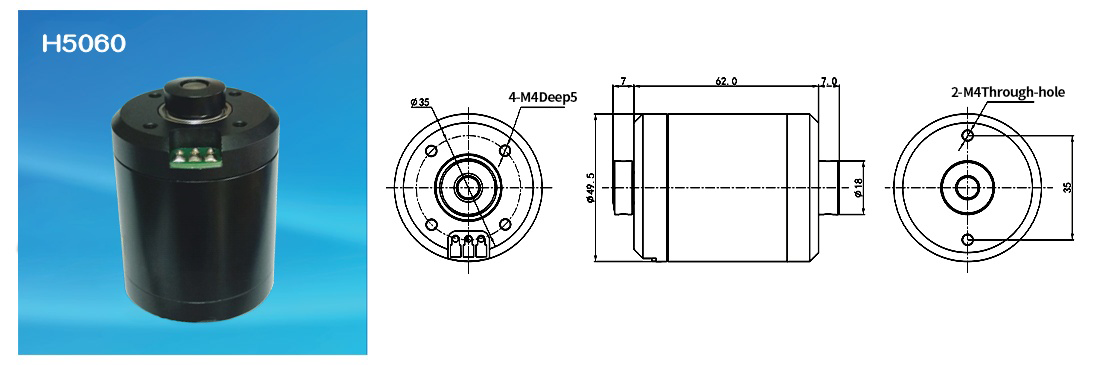

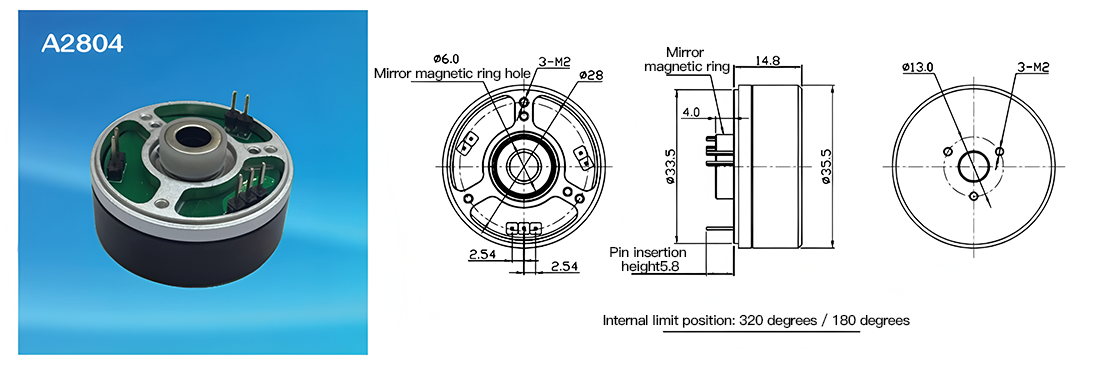

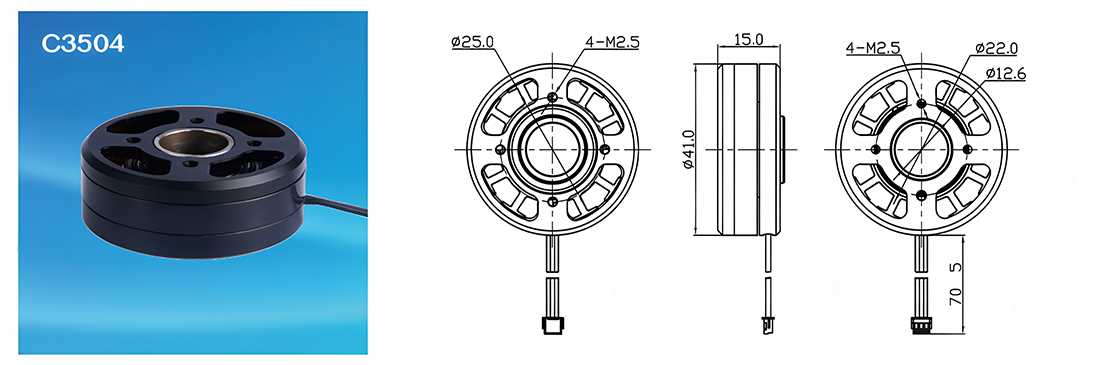

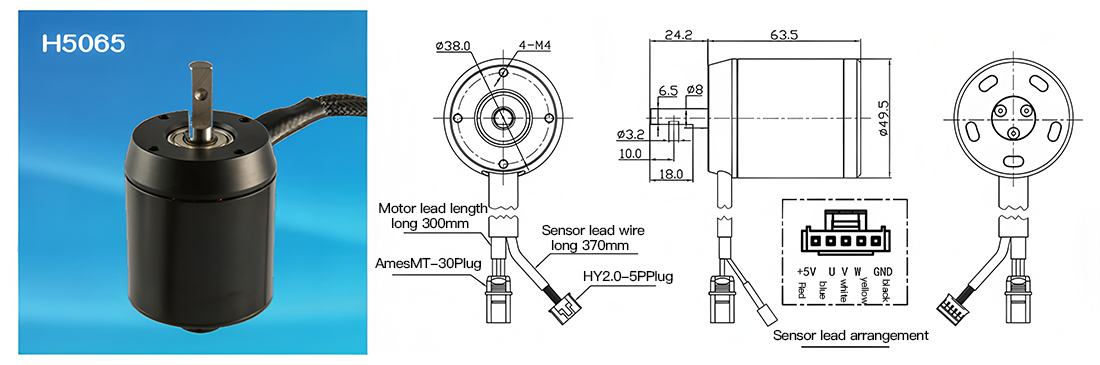

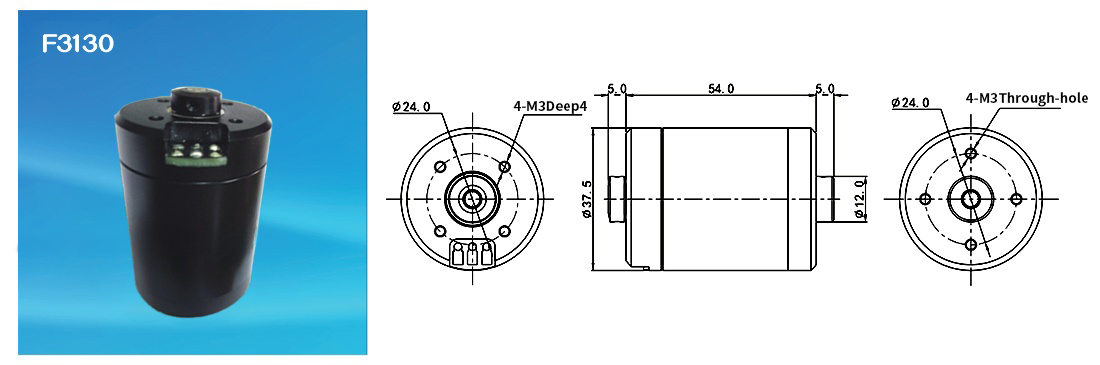

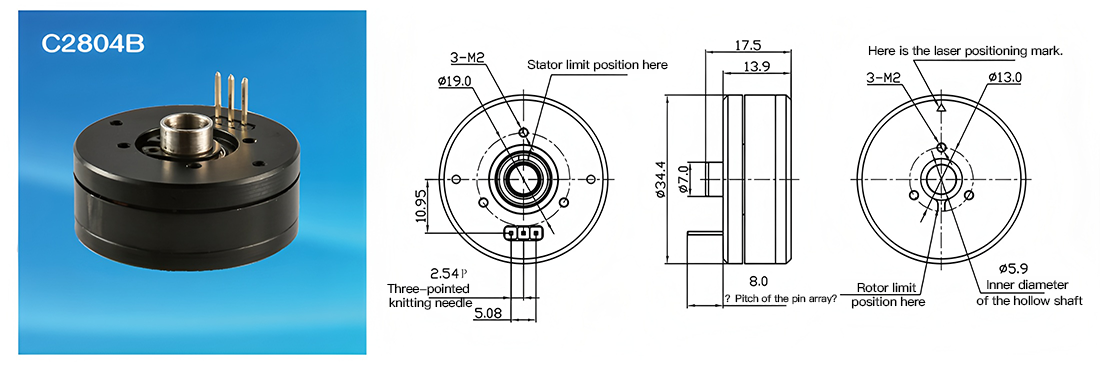

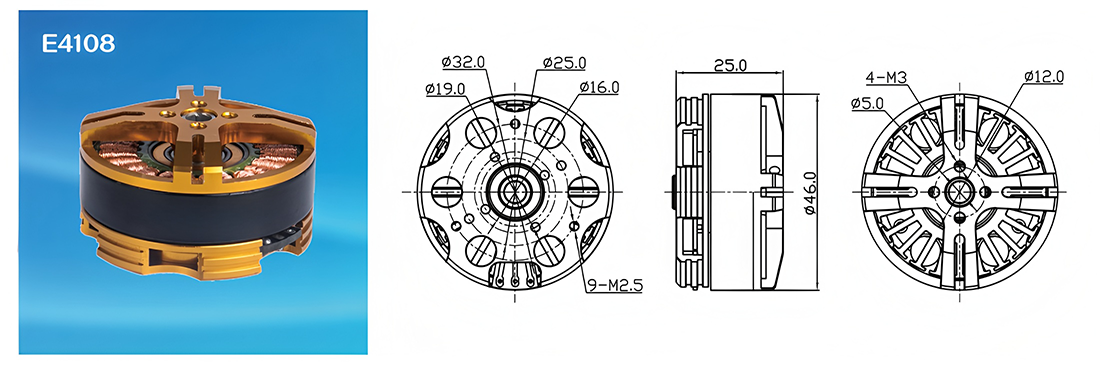

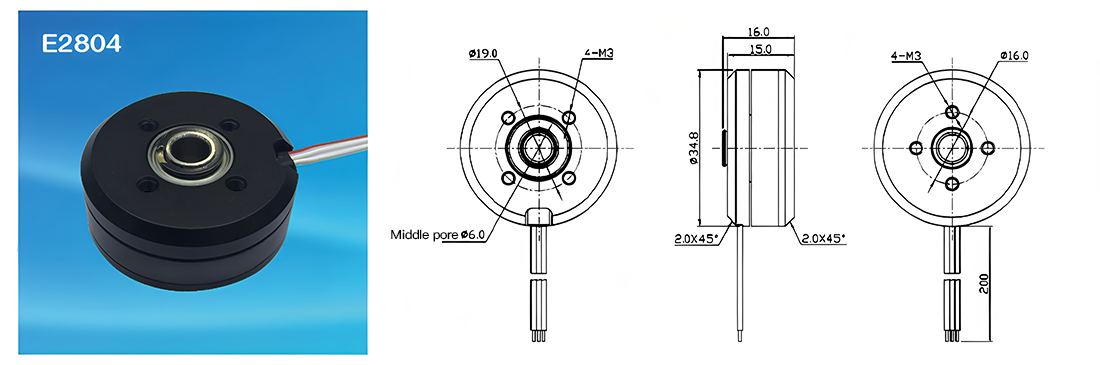

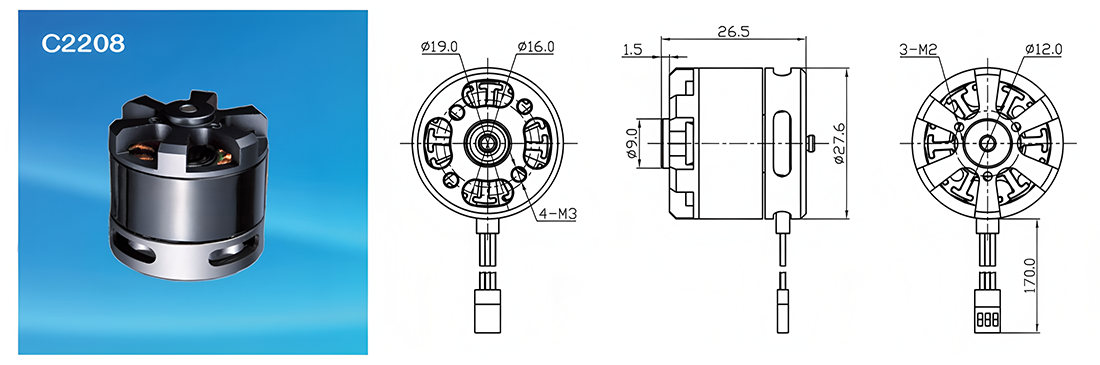

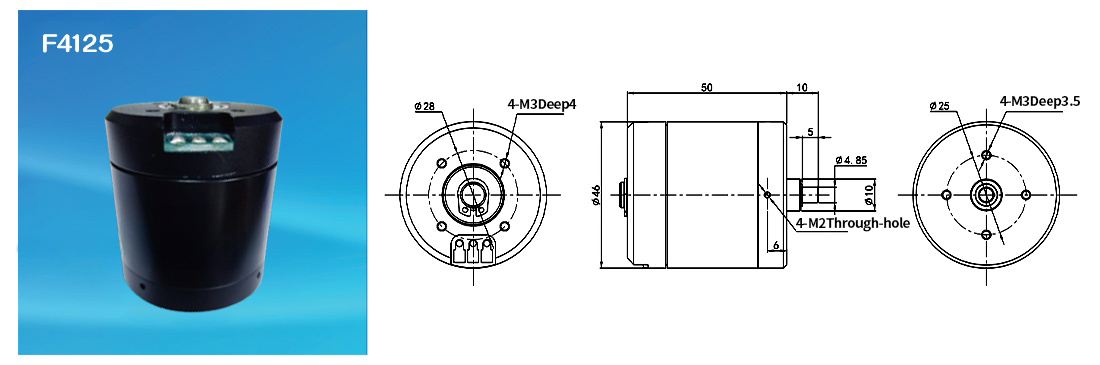

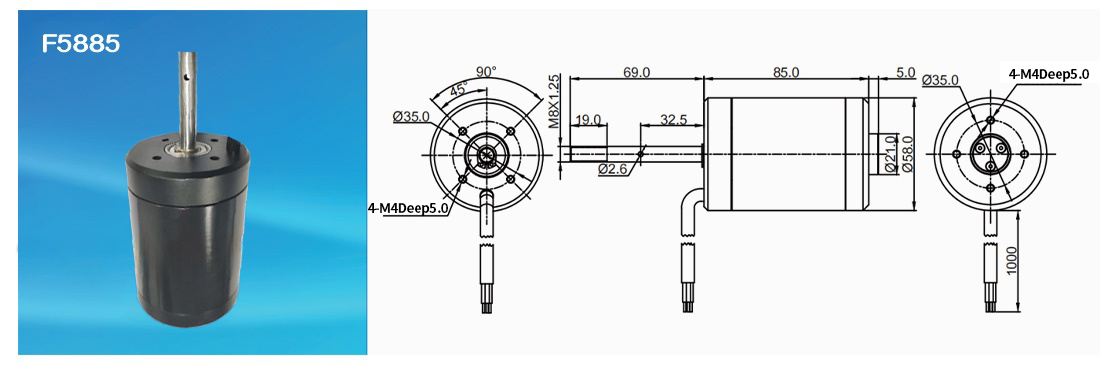

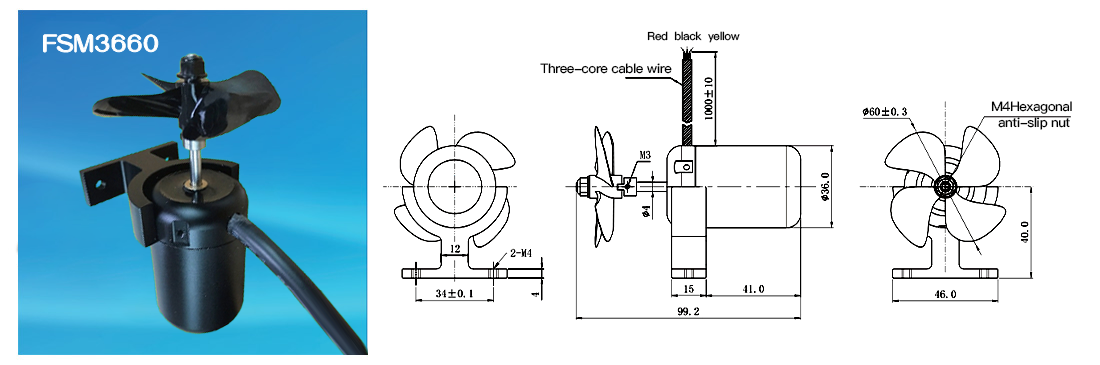

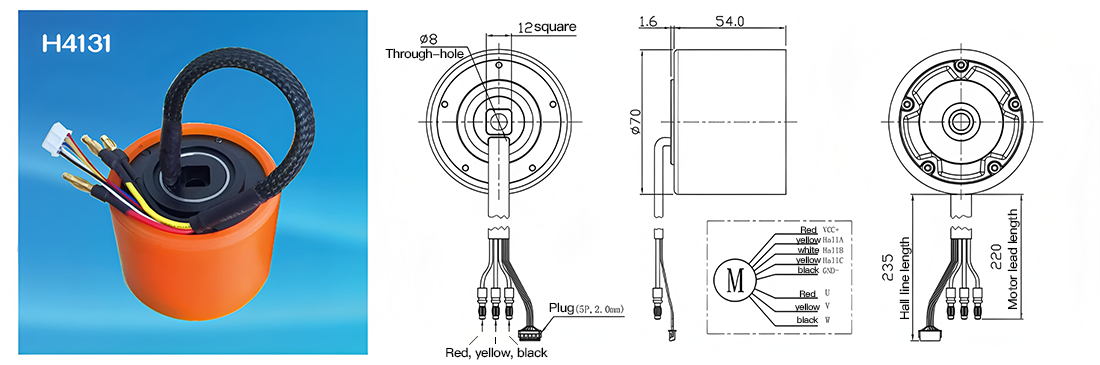

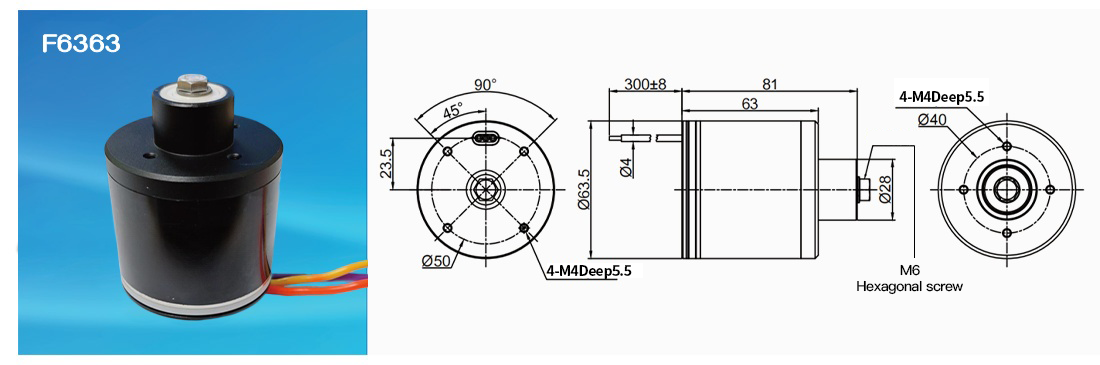

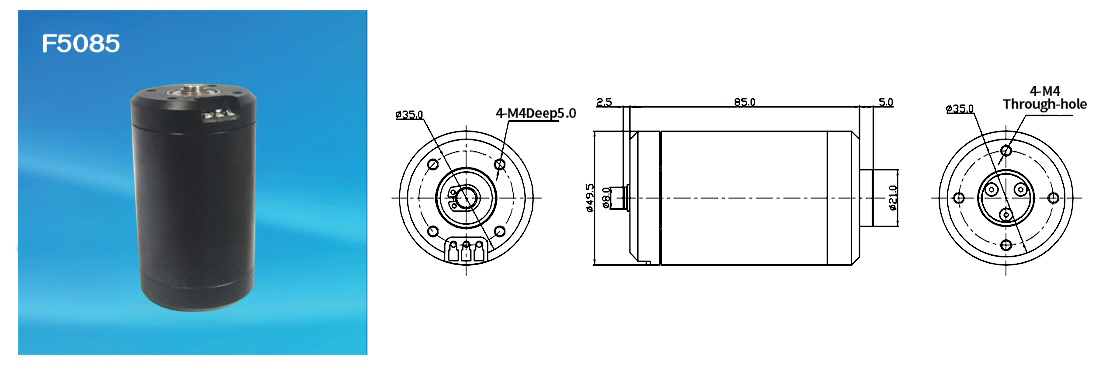

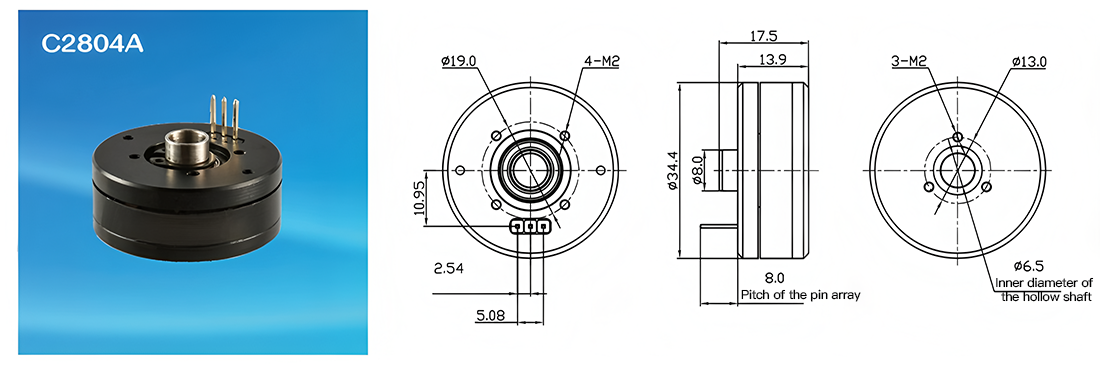

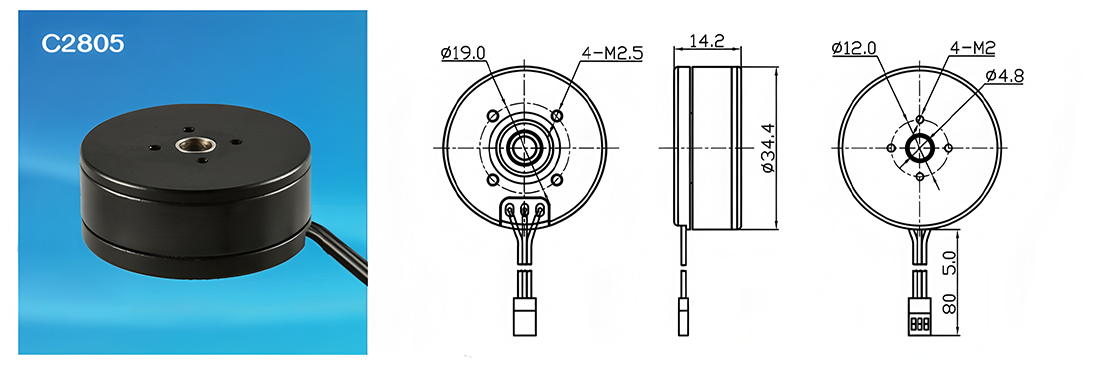

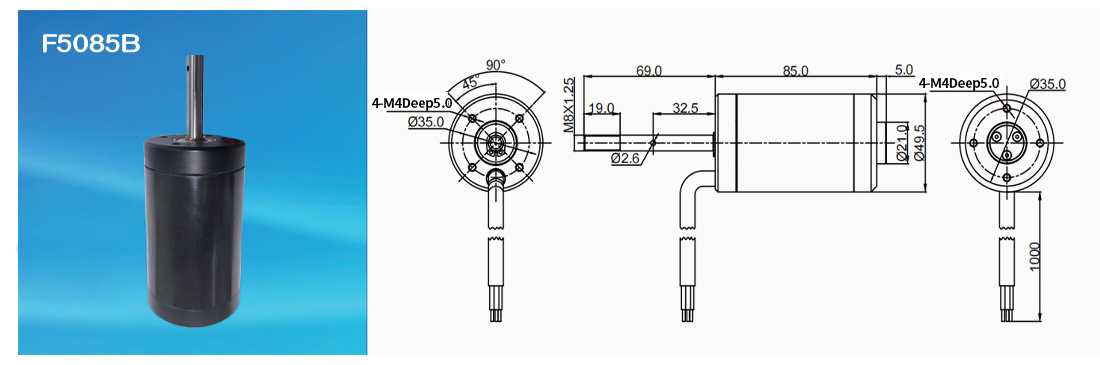

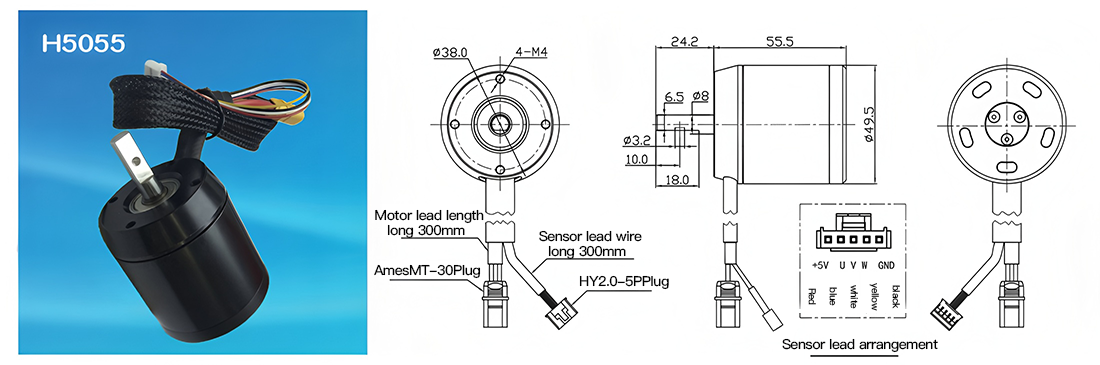

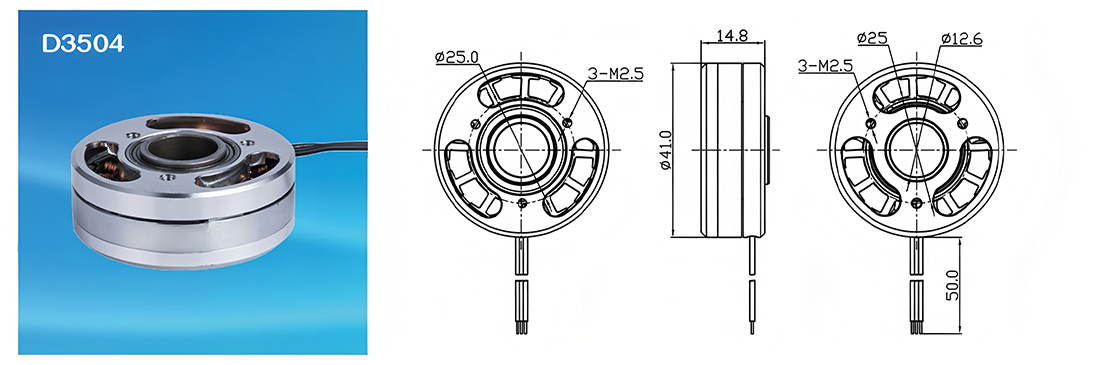

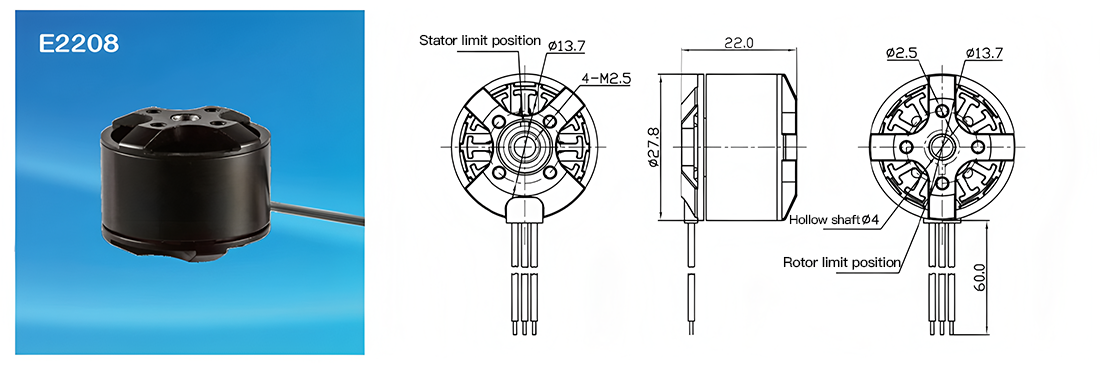

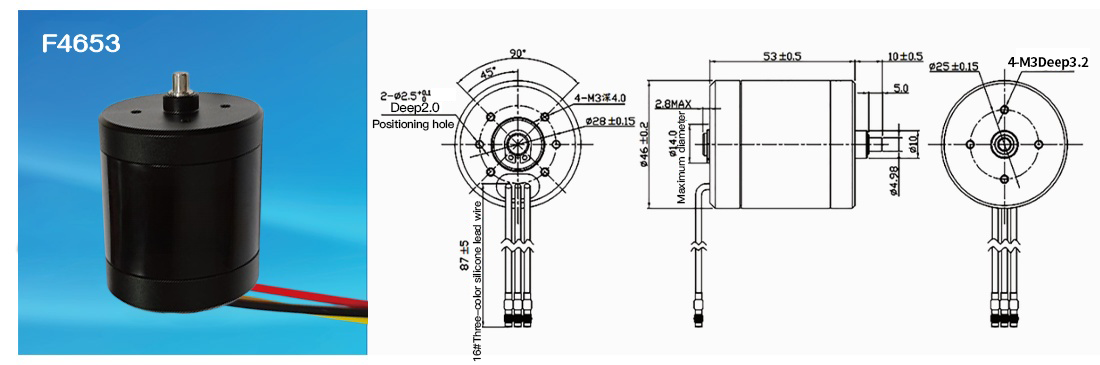

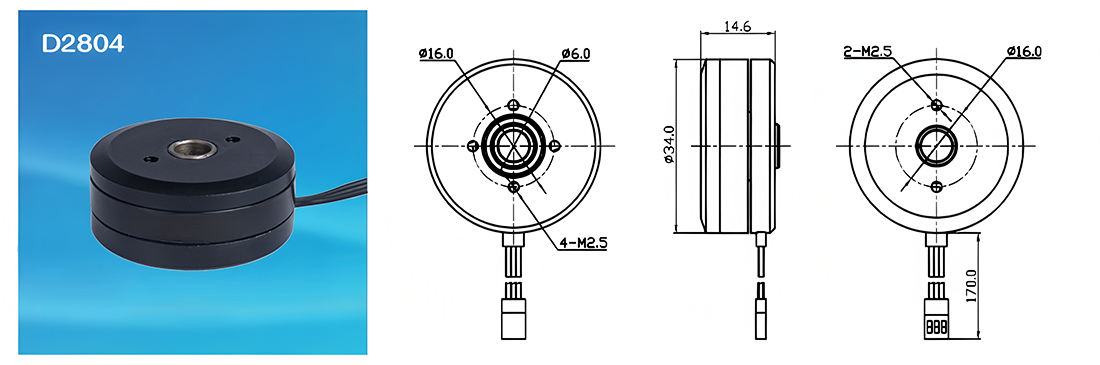

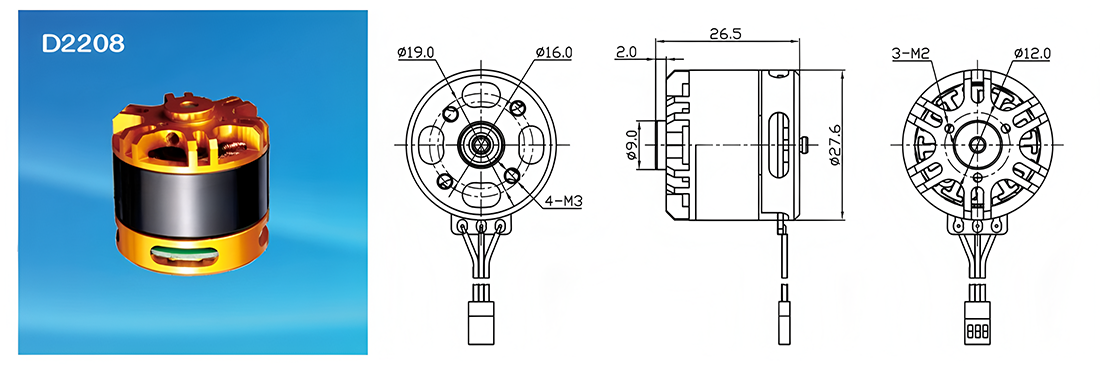

Dimensional drawing

Product parameters

MODEL

Turns

Voltage

Wire(mm)

Uses

Poles

Slots

Ri

Lipo

Weight

(V)

(Ω)

Cell

(g)Approx

C2208

70

11.1

0.16

Gopro

14

12

11.1

2-4S

38

100

11.1

0.14

14

12

21.2

D2208

70

11.1

0.16

Gopro

14

12

11.1

2-4S

38

100

11.1

0.14

14

12

21.2

A2804

75

11.1

0.23

Three-axis hand-held platfor

14

12

5

2-4S

36

D2804

100

11.1

0.19

Gopro

14

12

9.8

2-4S

36

E2208

90

11.1

0.16

Handheld

14

12

15.3

2-4S

33

platform

E2804

110

11.1

0.2

Three-axis hand-held platfor

14

12

9.3

2-4S

43

C2804A

80

11.1

0.22

Three-axis hand-held platfor

14

12

5.8

2-4S

38

C2804B

80

11.1

0.22

Three-axis hand-held platfor

14

12

5.8

2-4S

38

C2805

100

11.1

0.16

Gopro4

14

12

13.5

3-6S

38

130

14.8

0.14

14

12

22

C3504

90

11.1

0.16

Gopro4/Similar

14

12

10.4

2-4S

44

D3504

90

11.1

0.16

Gopro4/Similar

14

12

10.4

2-4S

44

E4108

130

22.2

0.15

Nex6/Similar

22

24

17

3-6S

90

MODEL

KV

Voltage

No Load Current

NoLoadSpeed

MAXCurrent

MAXPower

Lipo

Weight

(rpm/V)

(V)

(A)

(rpm)

(A)

(W)

Cell

(g)Approx

F3130

170

14.8V

0.25

2480

10.5

136

4-10S

214

22.2V

0.28

3600

15.2

298

220

14.8V

0.4

3200

13.5

175

F4125

300

14.8V

1.3

4350

30.8

323

3-6S

310

22.2V

1.5

6480

48.2

760

350

22.2V

1.9

7250

58.5

922

F4653

290

14.8V

1.3

4300

12.5

185

3-6S

345

22.2V

1.5

6420

19.2

426

H5060

160

22.2V

0.55

3520

52

980

4-10S

485

200

22.2V

0.75

4570

61

1150

F5085

100

24.0V

0.7

2400

25.5

550

4-10S

680

36.0V

1

3620

37

1190

F5085B

140

24V

0.8

3450

31.5

750

4-10S

700

280

24V

1.8

6720

45

1080

F5885

240

24V

1.9

5800

46

1100

4-10S

965

H5045

140

36V

0.3

5250

23

828

6-12S

340

200

0.4

7280

32

1150

H5055

140

36V

0.55

5050

28

1000

6-12S

475

200

36V

0.95

7220

39

1380

280

36V

1.4

10000

53

1900

D5060

280

36V

1.4

10000

52

1850

4-12S

458

490

24V

2.5

11700

60

1400

H5065

140

36V

0.6

5200

34

1200

6-12S

480

200

0.9

7220

46

1650

MODEL

KV

Voltage

No Load

No Load

Load

Pull

Power

Lipo

Weight

(rpm/V)

(V)

Current(A)

Speed(rpm)

Current(A)

(g)

(W)

Cell

(g)Approx

FSM3660

360

12V

0.5

4250

6.5

1300

72

3-6S

260

16V

0.55

5680

8.0

1520

120

24V

0.65

8450

11.6

2500

265

MODEL

KV

Voltage

No Load

Load

Power

Max

Max Power

Lipo

Weight

(rpm/V)

(V)

Speed(rpm)

Current(A)

(W)

Current(A)

(W)

Cell

(g)Approx

F6363

170

24V

4080

25

600

63

1500

4-12S

860

36V

6120

38

1360

82

2950

MODEL

KV

Voltage

Load Current

Load Speed

Torque

Power

StallCurrent

StallTorque

MaxPower

Weight

(rpm/V)

(V)

(A)

(rpm)

(kg.cm)

(W)

(A)

(kg.cm)

(W)

(g)Approx

H4131

90

24V

4.2

1780

3

86

19.5

28

400

560

58

36V

3

1850

3.8

95

17.2

35

530

Application

Aerial photography: A professional aerial photography team uses fixed-wing aircraft models equipped

 with brushless motors to conduct terrain mapping and ecological environment monitoring in mountainous areas.

The powerful and stable power of the brushless motor enables the model aircraft to maintain stable flight in complex airflow,

successfully complete long-term and large-scale shooting tasks, and obtain high-definition and stable image data.

Competitive occasion: In the national fixed-wing model airplane competition, many players choose this brushless motor.

Its excellent speed regulation performance helps players to accurately control the aircraft model to complete difficult actions such as

high-speed diving and rapid pulling up in the specified movement display and racing link, and stands out with its speed and flexibility advantages.

Popular science education activities: A number of primary and secondary schools carry out interest courses on model aircraft, using fixed-wing

 model aircraft equipped with brushless motors for teaching. Brushless motor operation is simple, reliable power, so that students can quickly get started,

in practice to understand aviation knowledge, stimulate the love of science and technology.

After-sale guarantee

If the motor fails, our after-sales team will respond in the first time, and quickly arrange professional and technical personnel to communicate with you to understand the details of the fault. We will provide you with remote technical guidance to help you solve the problem according to the specific situation. At the same time, we also provide you with regular return visit service, understand the use of the motor, collect your comments and suggestions, in order to continuously optimize products and services. When the product is upgraded, we will also notify you in time to provide you with the corresponding technical support and solutions, so that your equipment always maintains good performance.
