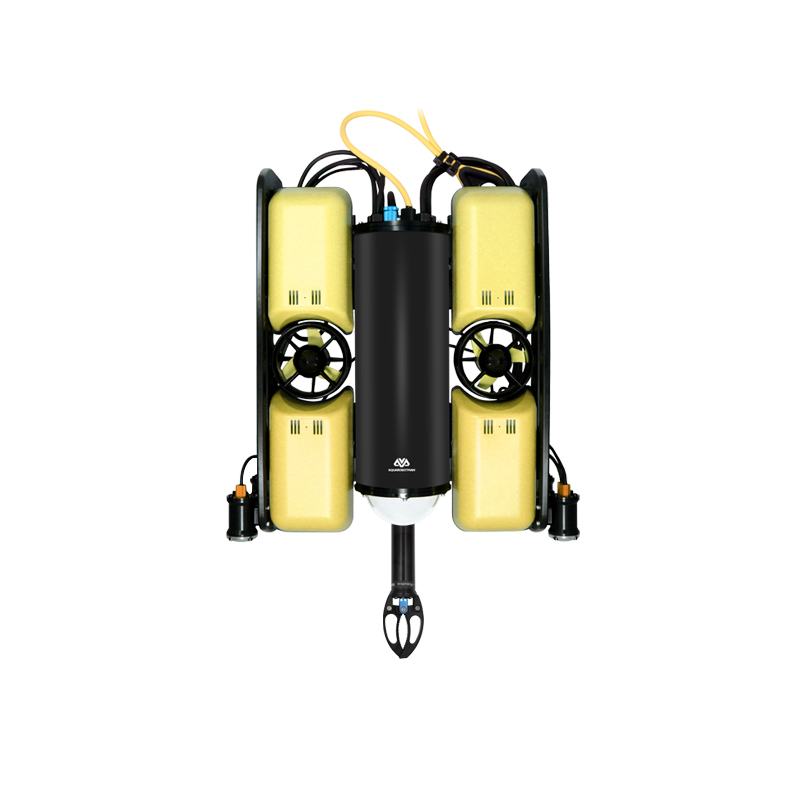

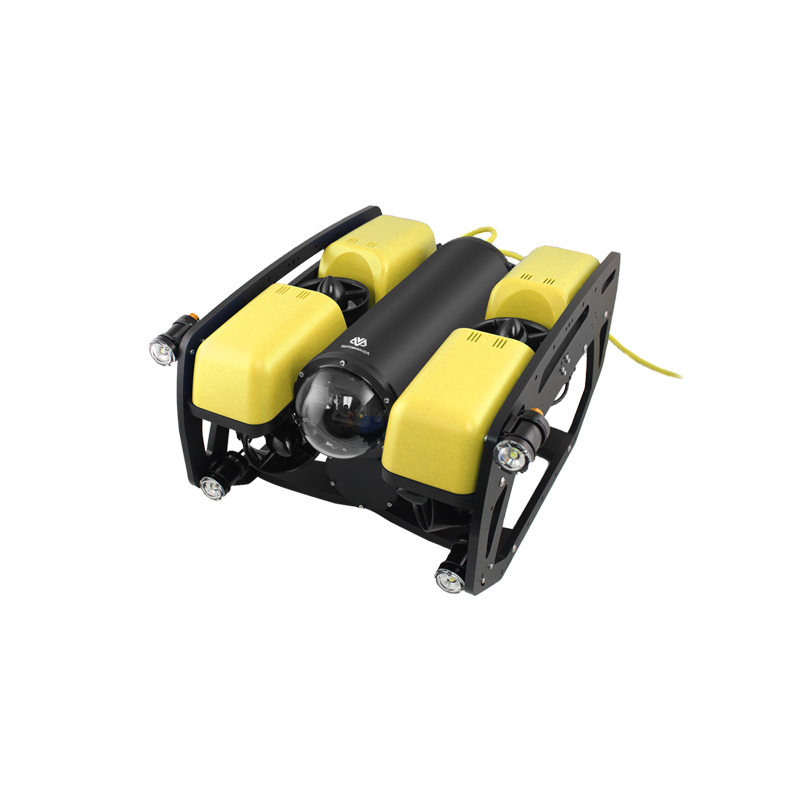

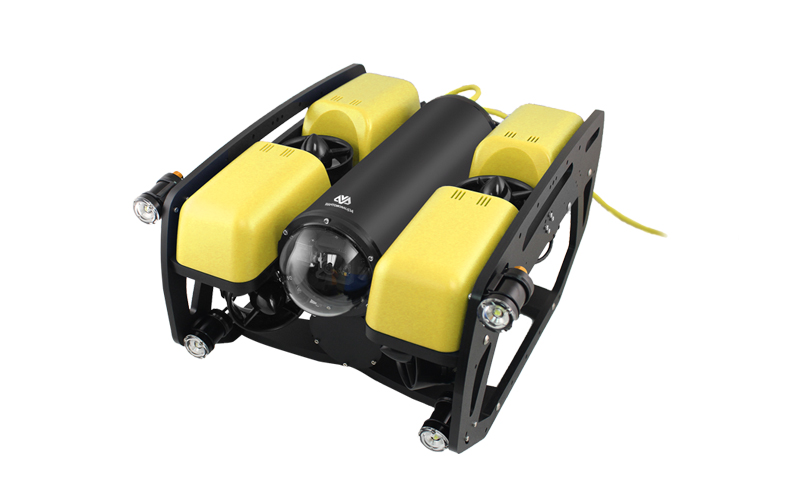

AQUA-B2 underwater robot

Aquaman AQUA-B2 underwater robot high-definition shooting professional-grade intelligent underwater unmanned robot

  • Volume:400mmx400mmx265mm
  • Weight in air:16kg
  • Structure:Frame type
  • Pressure-resistant depth:500m

USD: 44100-441100

ablity:Monthly Output200

contact shop
  • Product Description
  • Product Params

Product Description

AQUA-B2 underwater robot


AQUA B2 is a 6-channel underwater robot for industrial applications. It can be equipped with multiple modules such as robotic arms, ultra-high-definition cameras, sonar, and lasers. It has strong power and can carry out underwater detection and monitoring, dam maintenance, ship bottom inspection, underwater rescue and other underwater work in complex waters.

It has 6 degrees of freedom motion control technology and can remain stable in flowing water. The overall structure of the product adopts a "modular" design, and the camera, lighting, overall size, weight, and external equipment can all be customized according to requirements.


Product Features

—— -

HD camera



Limited space operations, underwater high-definition shooting, and long battery life.



Strong anti-interference



Adaptive stability adjustment to resist external disturbances
Strong, remote control distance is long.



Fixed depth hover



The equipment can be controlled with full degrees of freedom.
Achieve fixed-depth hovering in complex waters.




Muddy Waters Photography



Equipped with a professional fill-in light system to compensate for the attenuation effect of different water bodies on light. The equipment can shoot in muddy water environments, reducing users’ water quality requirements for underwater monitoring.


Product parameters

—— -

Main body

Weight in air
16kg
Volume
400mmx400mmx265mm
Structure
Frame type
Pressure-resistant depth
500m
Thruster
6 thrusters (4 horizontal, 2 vertical)



Front camera & lighting

Resolution
1920*1080
Zoom
4x optical zoom
Focus
Auto focus
Focal length
2.8mm~12mm
Pitch range
±60°
Light
Headlight 2*3500LM; small light 2*1500LM



Cable

Length
Standard 100m
Diameter
11.6mm
Weight in water
Zero buoyancy



Sensor

Equipment that can be mounted

Single beam sonar P360, multi-beam sonar M750D, side scan sonar SS60

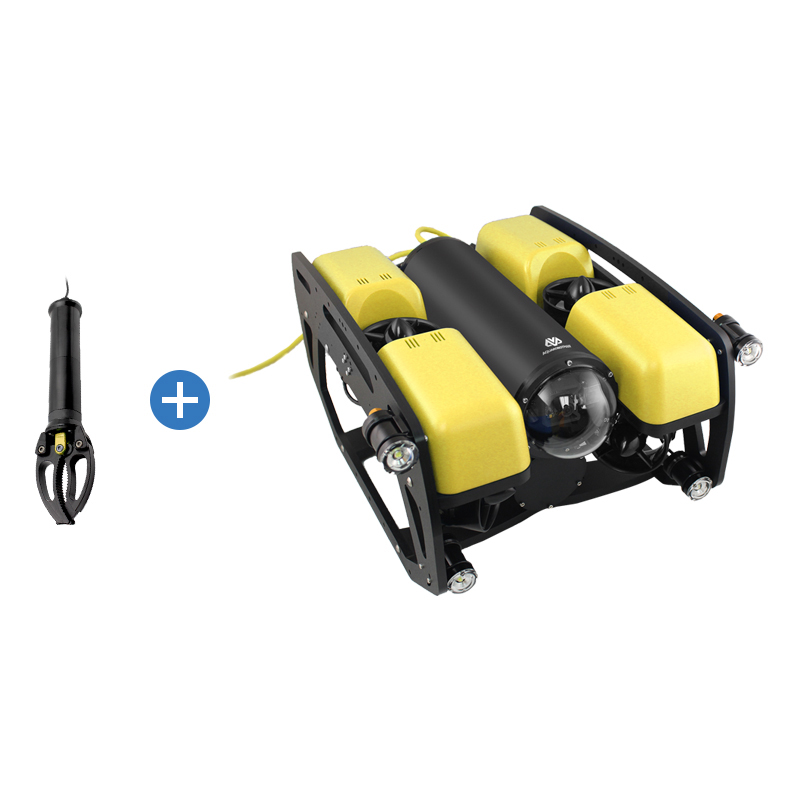

Single-degree-of-freedom robotic arm G300, five-degree-of-freedom robotic arm RV5

Multi-beam 1200ik, underwater three-dimensional laser USL-100


*Support customization! Please contact the merchant for details.
