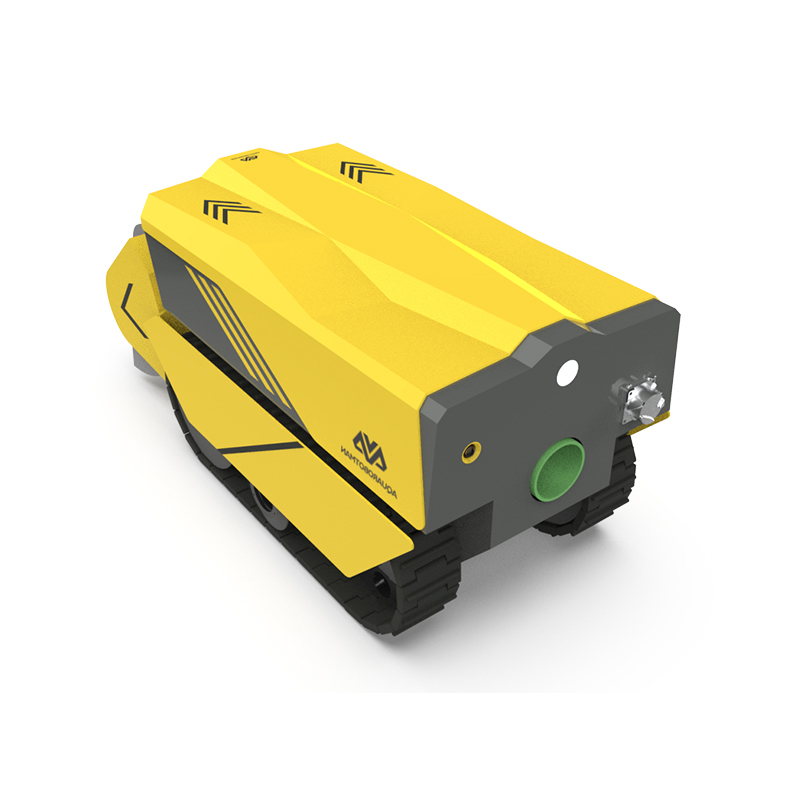

Smart-P2 pipeline desilting robot
Underwater pipeline desilting detection robot sewage suction and discharge sonar detection underwater sludge cleaning equipment
- Volume：475mmx998mm x440mm
- Weight：120kg
- Climbing angle：20°
- Operating temperature：-10°C~40°C
USD： 44100-441100
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

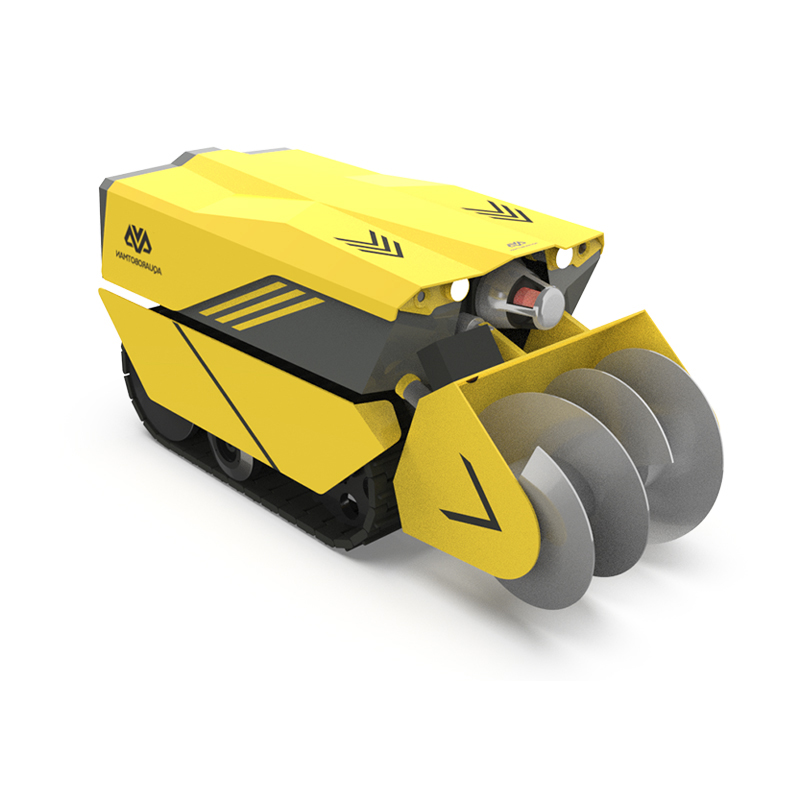

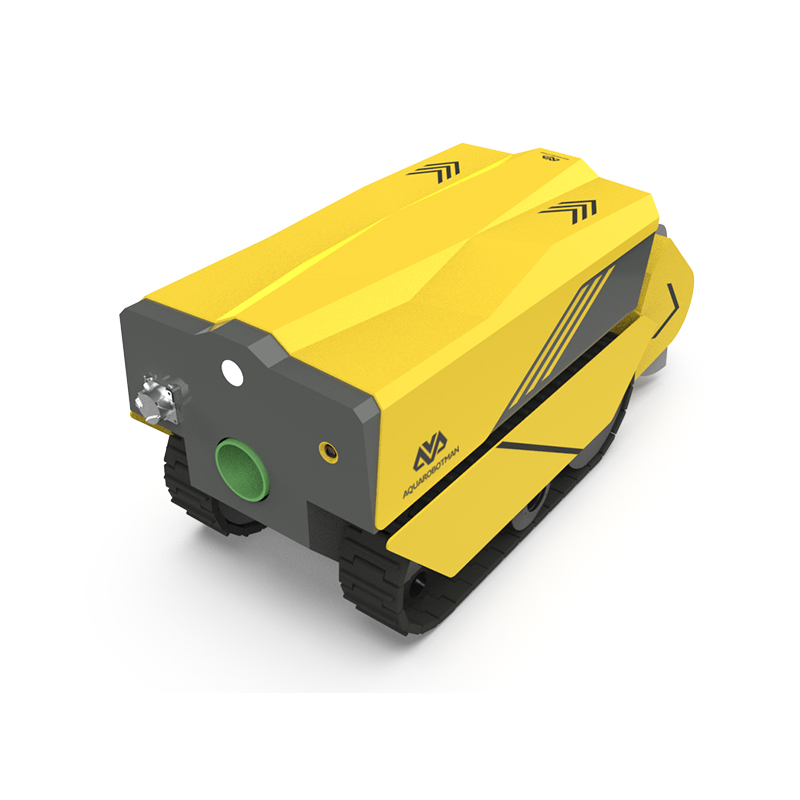

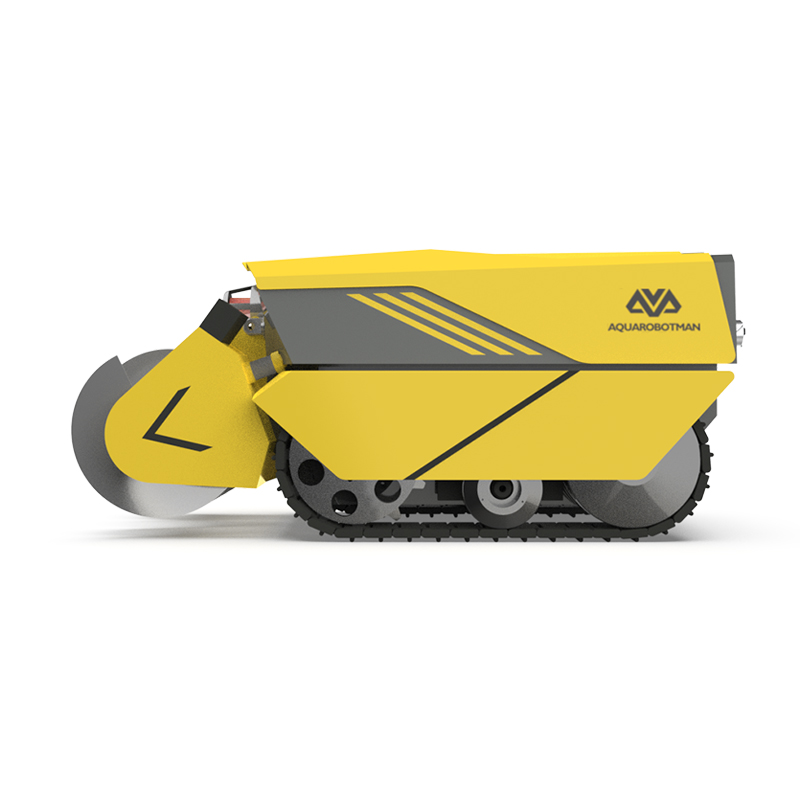

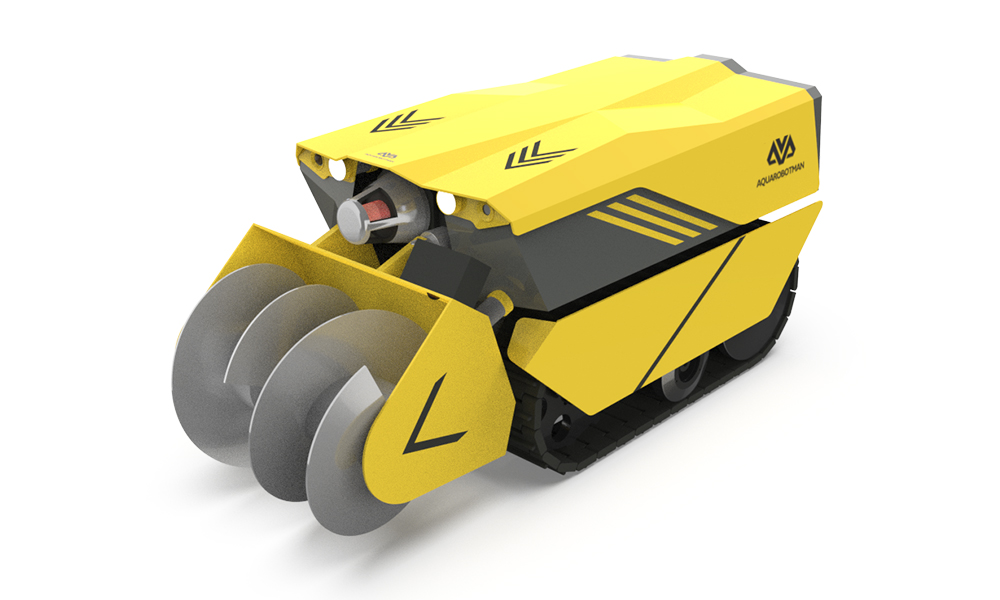

Smart-P2 pipeline desilting robot
Smart-P2 is a special underwater robot that integrates detection, desilting and sewage suction functions. It can be used for detection, desilting and sewage suction in urban pipe networks with pipe diameters ranging from 700mm to 3000mm.
This robot is equipped with three ultra-clear 4K detection cameras to monitor no dead ends in the pipeline and monitor the condition of the cutter suction device. Equipped with sonar and meter counting devices, it can accurately measure the thickness of underwater sludge and present the effect of desilting in real time. Location; Equipped with a detachable cutter suction device, the cleaned dirt can be discharged to the ground through the pump truck while dredging.

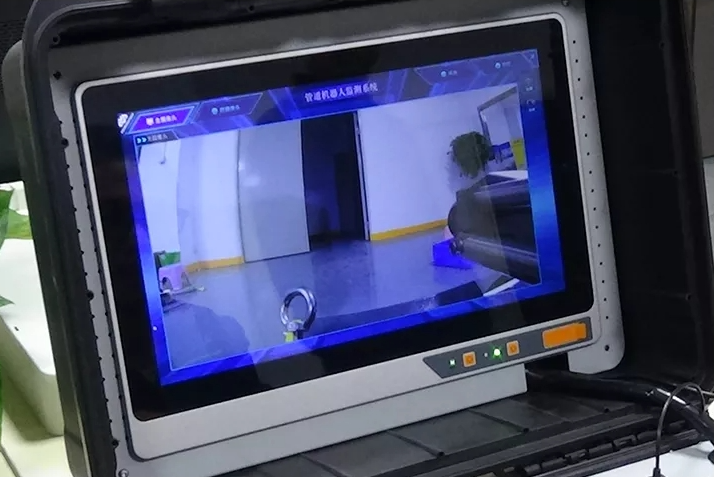

The equipment is controlled by a central control box or a mobile device, which is easy to carry and can monitor the robot's working status and dredging operations anytime and anywhere. The use of this equipment can greatly improve the work efficiency of pipe network dredging operators and the economic benefits of operating units, solve the problem of manual desilting being unable to be effective under complex working conditions, and eliminate personal casualties in high-risk operating environments.
Product Features
—— -
 | HD camera
Equipped with 3 high-definition cameras, located in the front, rear and dredging direction, which can monitor the working environment and dredging conditions in real time; equipped with high-power fill light. |

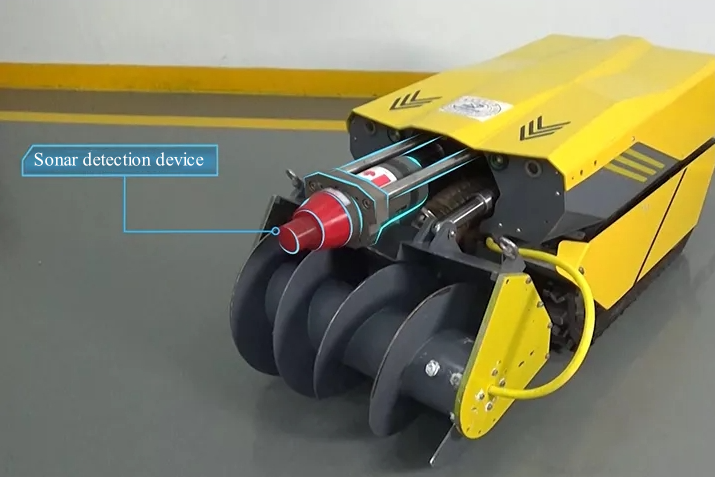

Sonar detection
Equipped with a high-precision sonar system, it can scan the working environment in real time in a dark environment, and clearly understand the conditions of pipelines, box culverts, etc. before and after work. |  |

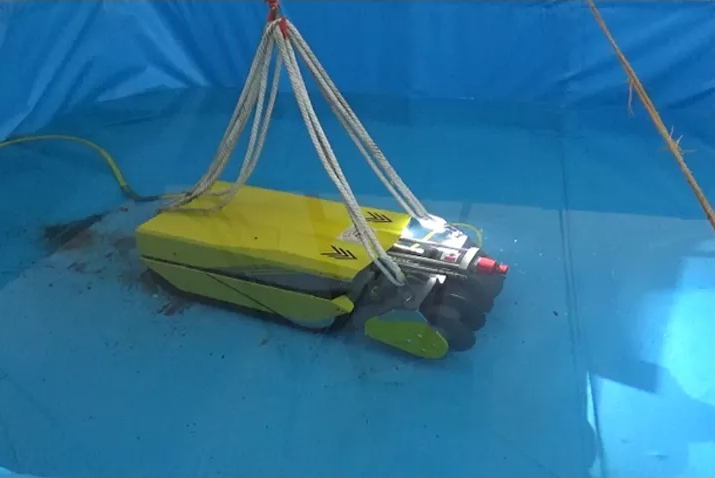

 | Pressure resistant and waterproof
The car body adopts a professional waterproof motor, and all parts have been strictly waterproofed, so that it can operate normally under water pressure of up to 30 meters. |

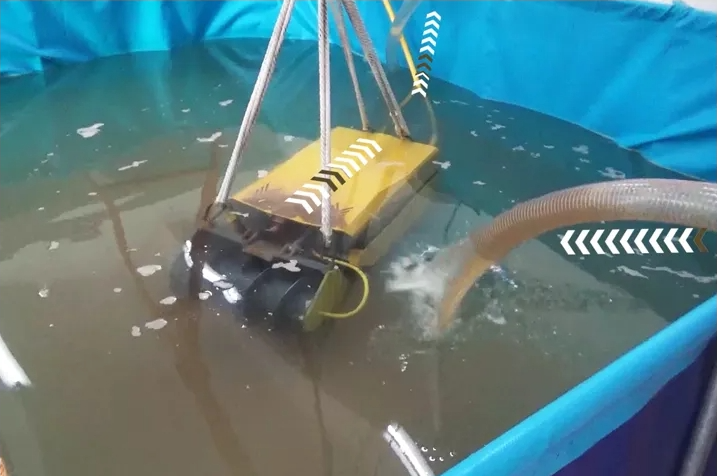

Sewage suction and discharge
The front of the car body is equipped with a detachable cutter suction device, which can discharge the cleaned dirt to the ground through the pump truck while desilting. |  |
Product parameters
—— -
| Weight | 120kg |
| Volume | 475mmx998mm x440mm |
| Climbing angle | 20° |
| Material | Made of 316 stainless steel, waterproof and anti-corrosion design |
| Operating temperature | -10°C~40°C |
| Working depth | Deepest up to 30m |
| Applicable pipe diameter | Suitable for 700~3000mm diameter pipes |
| Traction | Two 600W waterproof motors, the maximum traction force can reach 100kgf |
| Dirt suction capacity | The high-power cutter suction head is matched with the sewage suction pump, the suction distance can reach 9m, and the sludge suction capacity can reach 50m³/hr. |
| Communication | The communication cable has a tensile strength of 500kgf, enabling safe and reliable communication. |
| HD camera | Ultra-clear 4K detection camera to achieve real-time detection |
| Meter counting device | Centimeter-level high-precision meter counting device can accurately locate the robot's position in the pipeline |
| Sonar | 360-degree circumferential scanning sonar can accurately measure the thickness of underwater silt and present the effect of dredging in real time. |
| Equipped with modules | Sonar, camera, cutter suction module, crushing module, cutter push module |
*Support customization! Please contact the merchant for details.
