Product Description

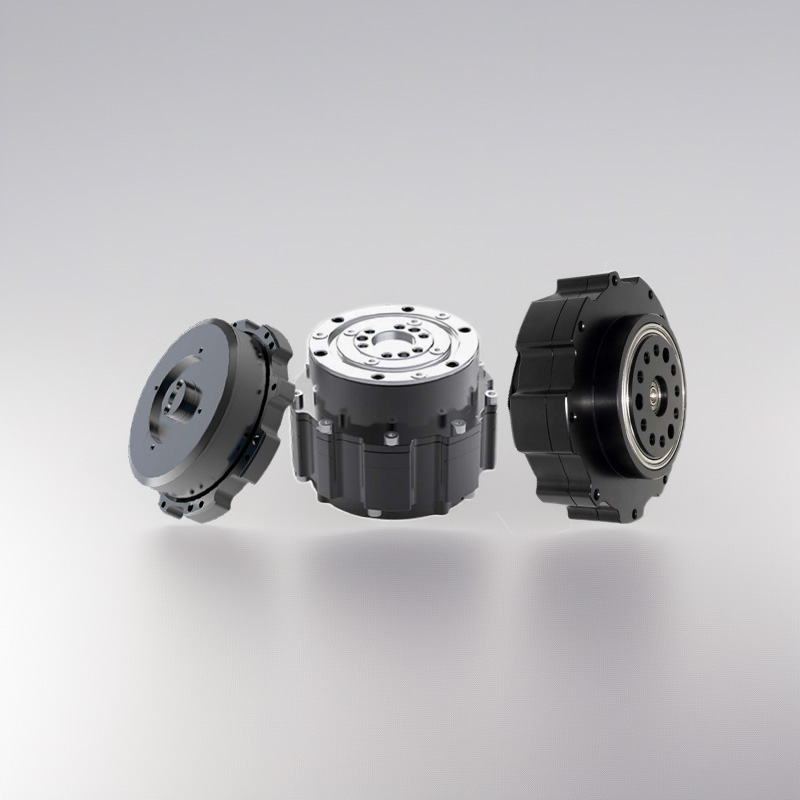

SG series robot joint deceleration motor module, enabling robot flexible joint movement
Custom range Structure: Built-in motor Outside diameter :35-120mm Torque :<2000N·m
Functional Features

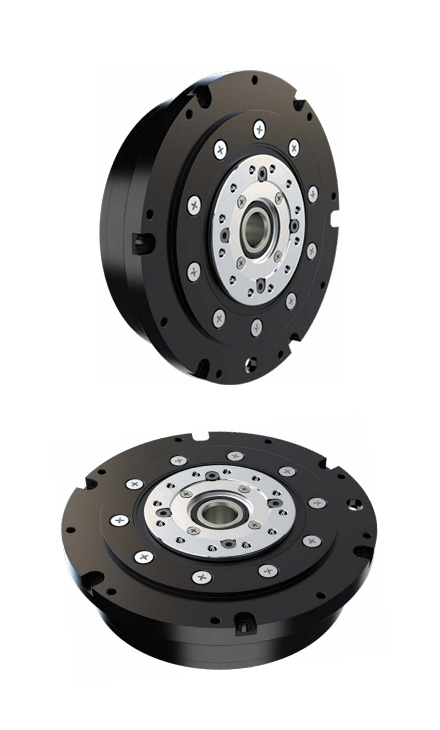

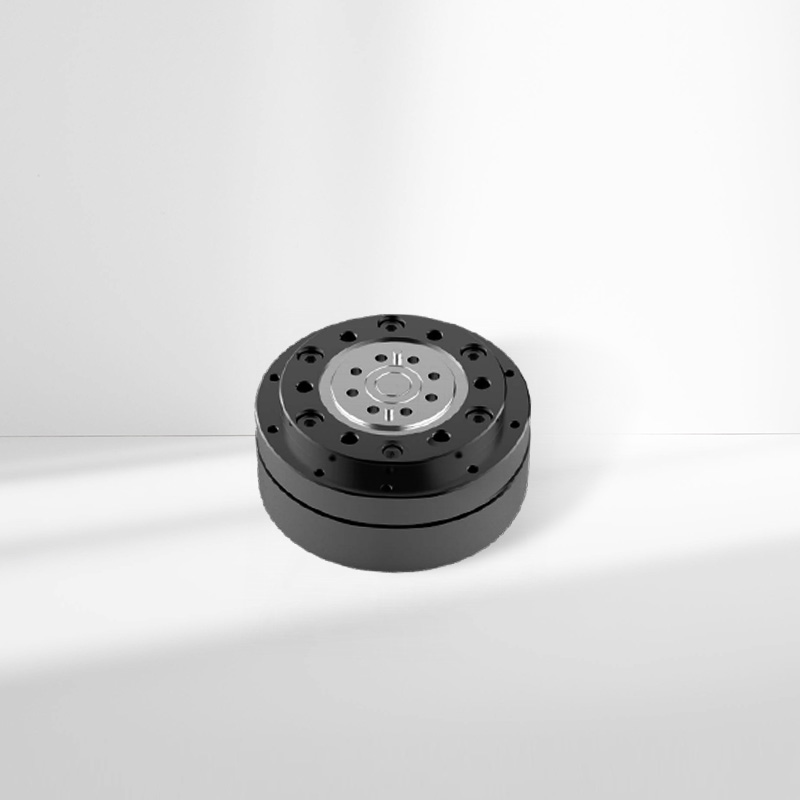

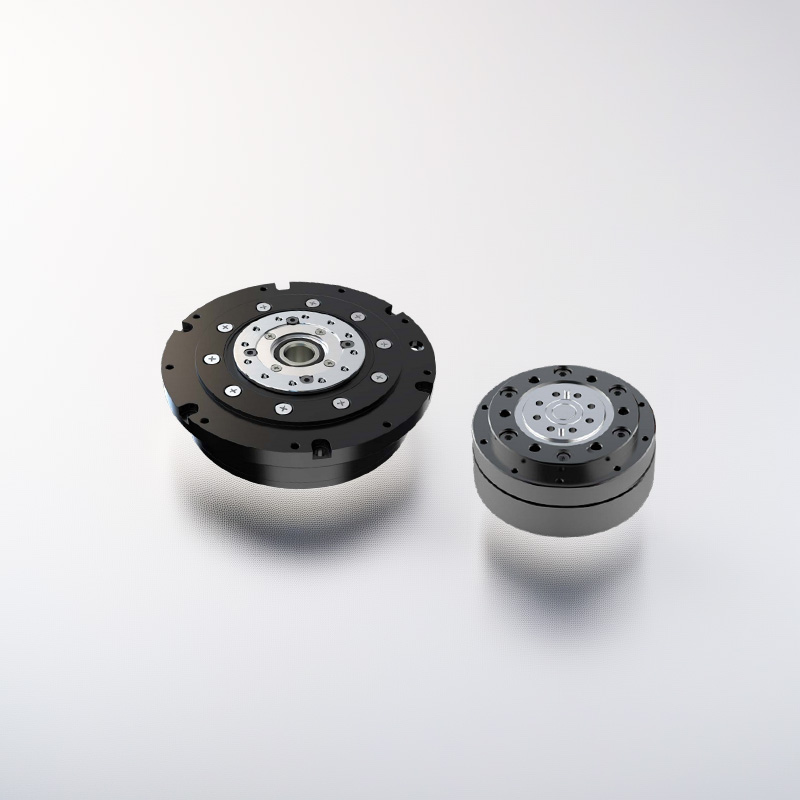

Flat structure

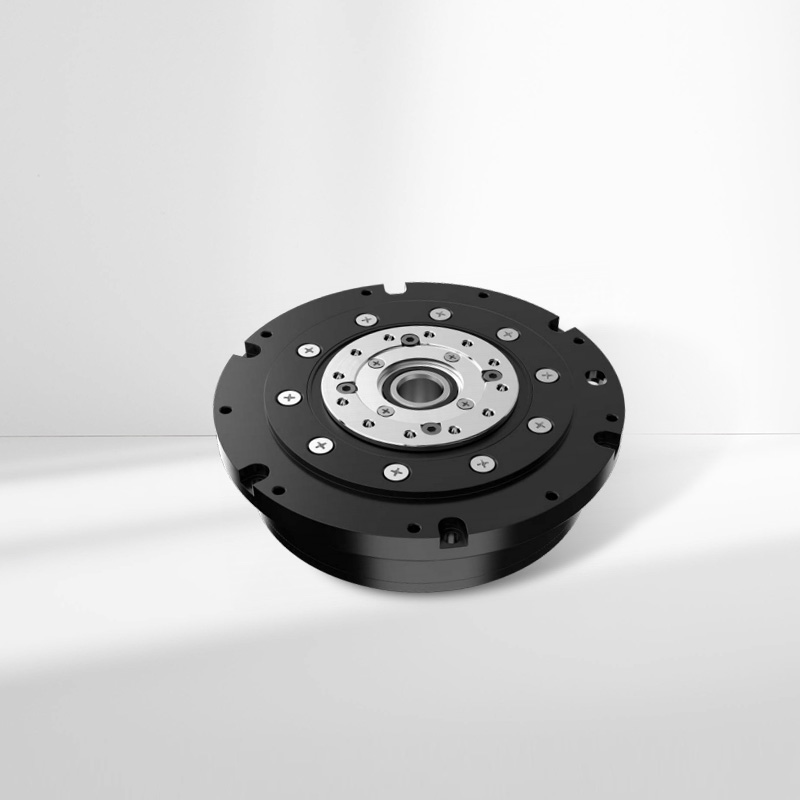

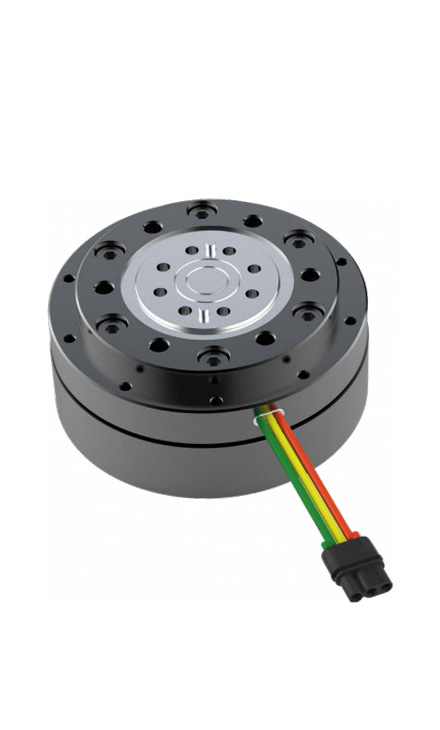

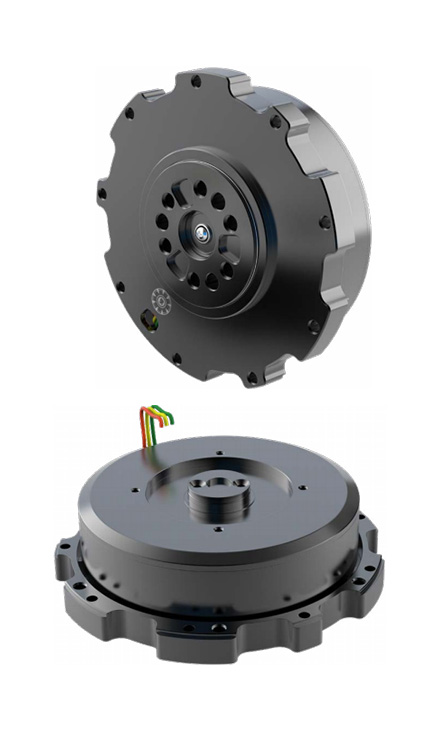

Flat robot joint decelerating motor module
Intelligent machine application
Robotic exoskeletons, robotic joints, bionic robotic dogs

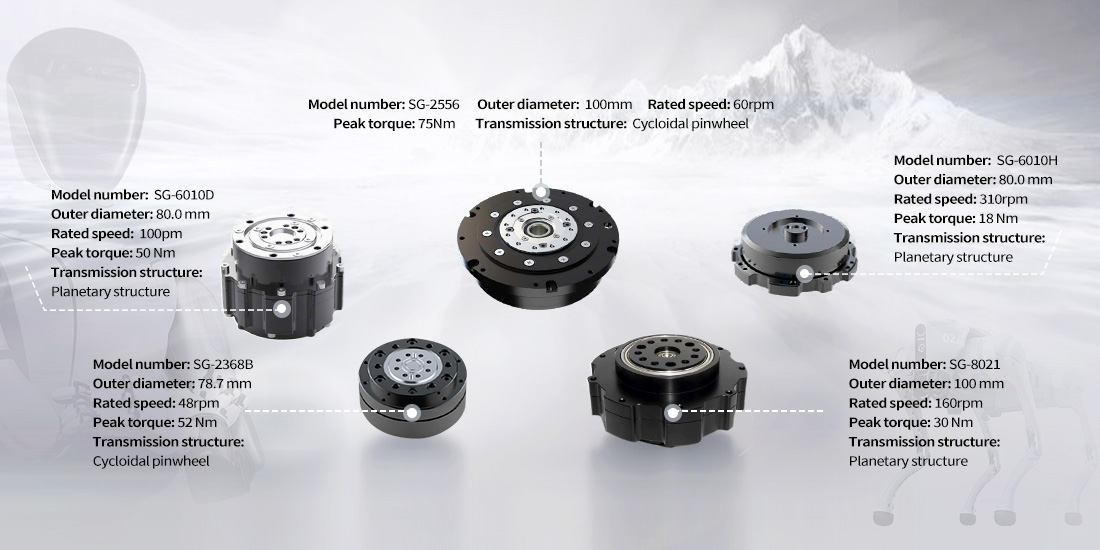

Product parameters

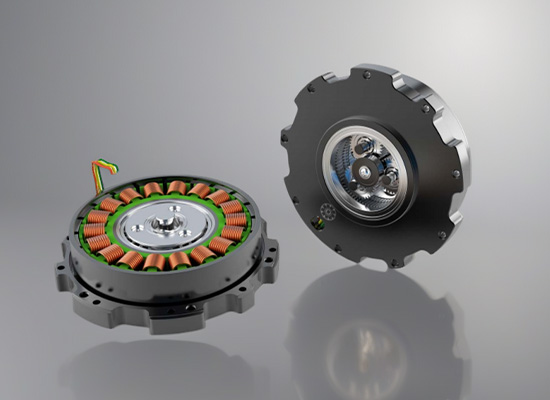

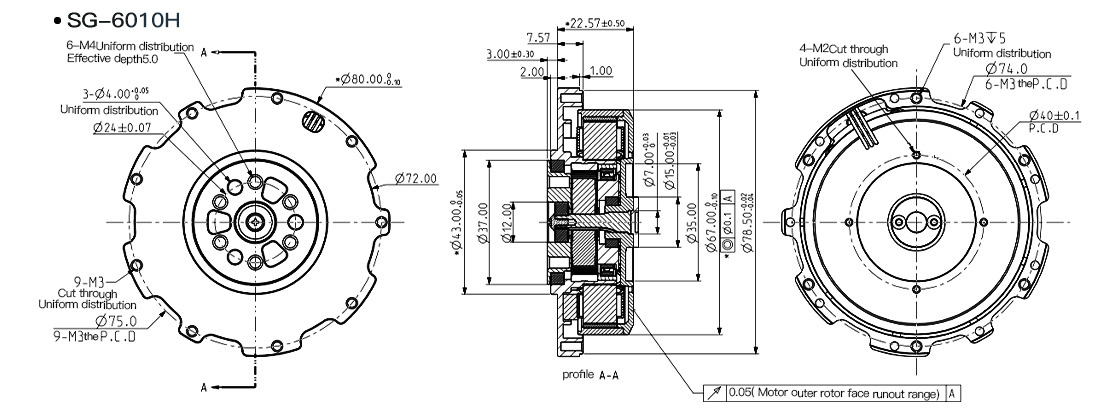

Built-in planetary gearbox joint motor |

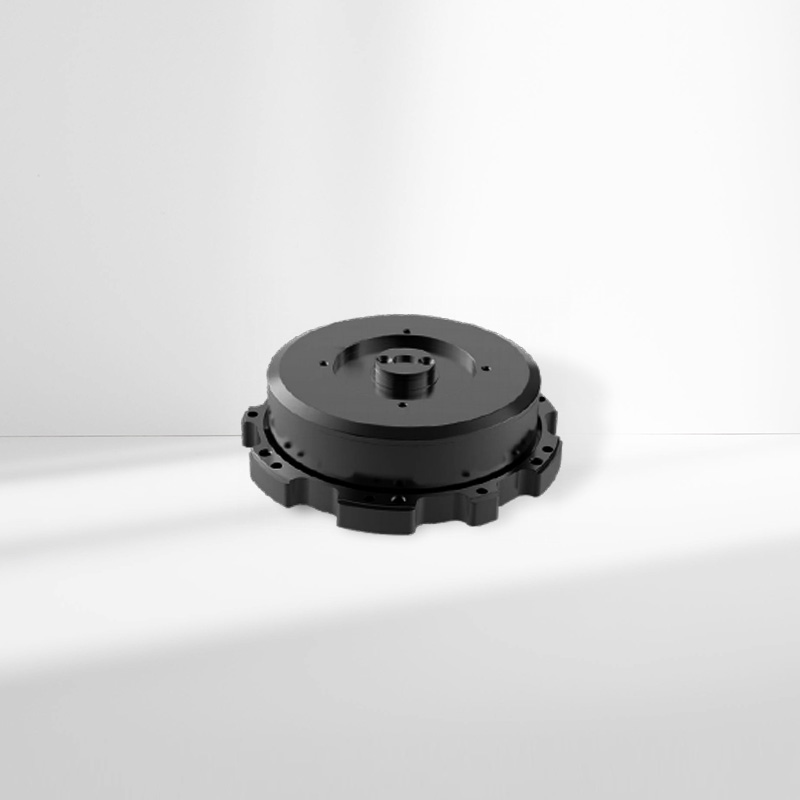

Model number | SG-6010H |
|
Transmission structure | Planetary structure | |
Outer diameter | 80.0 mm | |
Thickness | 25.6 mm | |
Reduction ratio | i=9.67 | |
Backlash | 15-20 arcmin | |
Motor Power | 328W | |
Rated Voltage | 24-48 V | |
Rated Speed | 310 rpm | |
Rated Torque | 6 Nm | |
Peak Torque | 18 Nm | |
No-load speed | 400 rpm | |
Phase damping | 224 uΩ | |
Phase inductance | 235 uH | |
Phase current full scale | 33 A | |
Rated bus current | 12 A | |
Static working bus current | 0.08 A | |
Motor structure | 18N20P | |
Thermistor | 10kB3435 %1 | |
B value of ntc | 3435 | |
Back electromotive force constant | 0.0727Vs/Rad | |
Motor KV value | 104 kv | |
Weight | 305 g |

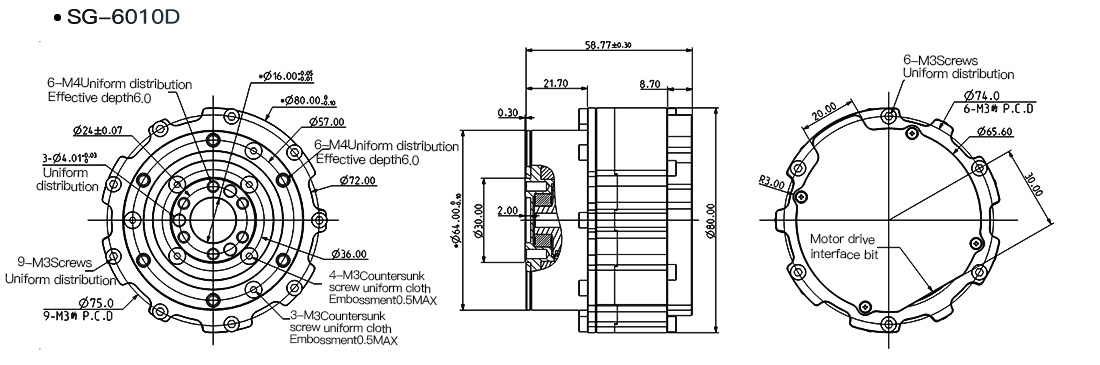

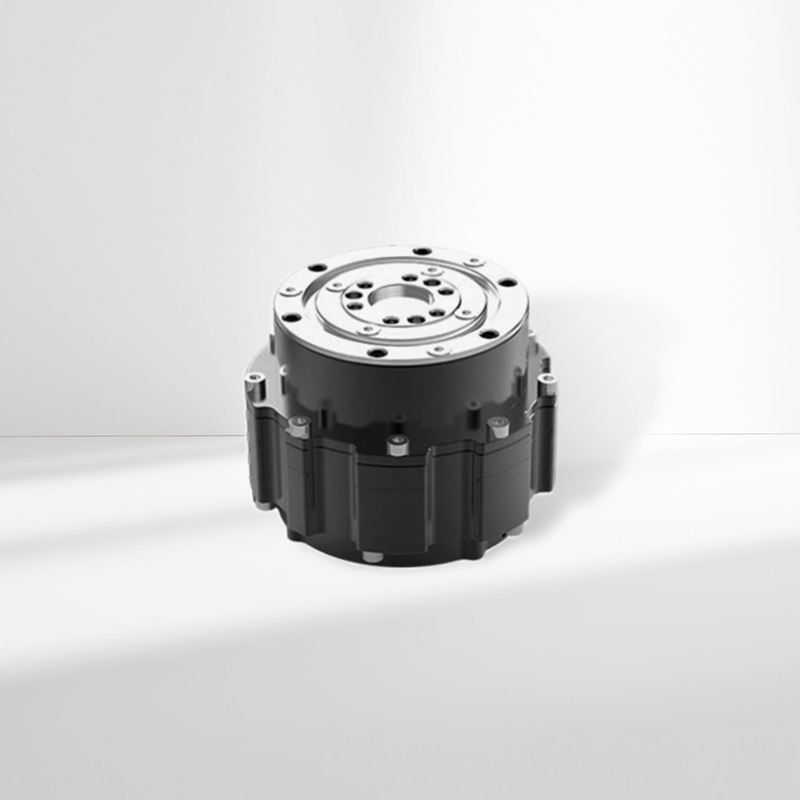

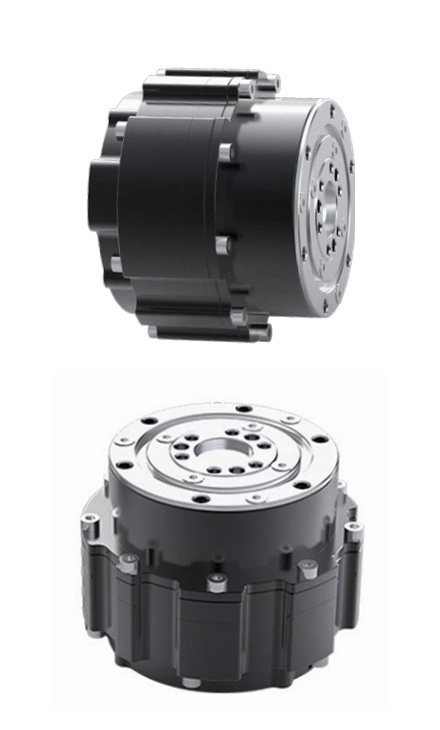

Model number | SG-6010D |
|

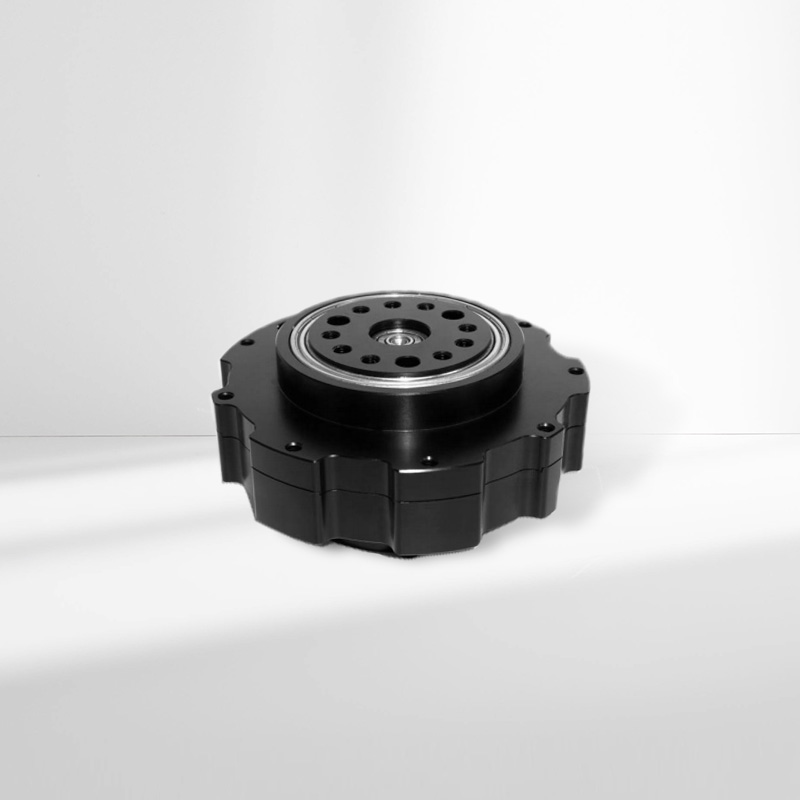

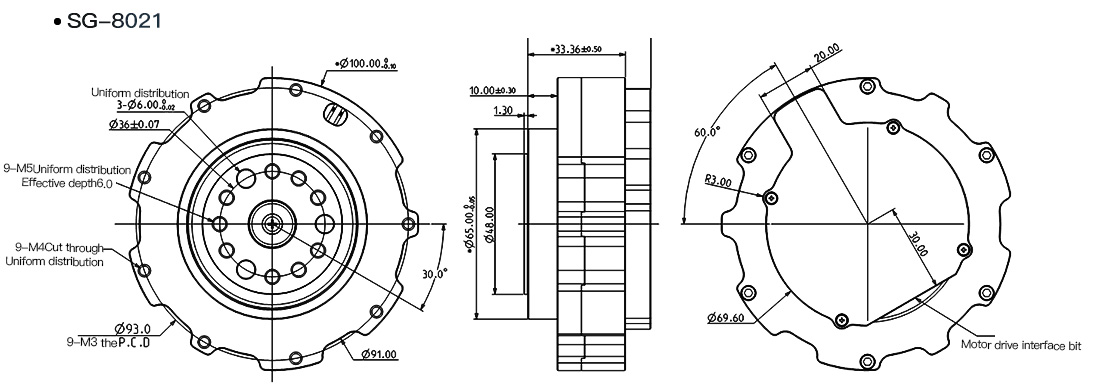

Transmission structure | Planetary structure | |
Outer diameter | 80.0 mm | |
Thickness | 58.77 mm | |
Reduction ratio | i=28.13 | |
Backlash | 15-30 arcmin | |
Motor Power | 328 W | |
Rated Voltage | 24-48 V | |
Rated Speed | 100 rpm | |
Rated Torque | 16 Nm | |
Peak Torque | 50 Nm | |
No-load speed | 170 rpm | |
Phase damping | 224 uΩ | |
Phase inductance | 235 uH | |
Phase current full scale | 33 A | |
Rated bus current | 12 A | |
Static working bus current | 0.08 A | |
Motor structure | 18N20P | |
Thermistor | 10kB3435 %1 | |
B value of ntc | 3435 | |
Back electromotive force constant | 0.0727Vs/Rad | |
Motor KV value | 104 kv | |
Weight | 791 g |
Model number | SG-8021 |
|
Transmission structure | Planetary structure | |
Outer diameter | 100 mm | |
Thickness | 42.6 mm | |
Reduction ratio | i=9.25 | |
Backlash | 15-20 arcmin | |
Motor Power | 213 W | |
Rated Voltage | 24-48 V | |
Rated Speed | 160 rpm | |
Rated Torque | 10 Nm | |
Peak Torque | 30 Nm | |
No-load speed | 240 rpm | |
Phase inductance | 290 uH | |
Phase current full scale | 33 A | |
Rated bus current | 12 A | |
Static working bus current | 0.08 A | |
Motor structure | 21 opposites(Antipodes) | |
Thermistor | 10kB3435 %1 | |
B value of ntc | 3435 | |
Back electromotive force constant | 0.143Vs/Rad | |
Motor KV value | 63 kv | |
Weight | 671 g | |
Allowable radial force | 1300 N | |
Allowable axial force | 550 N |

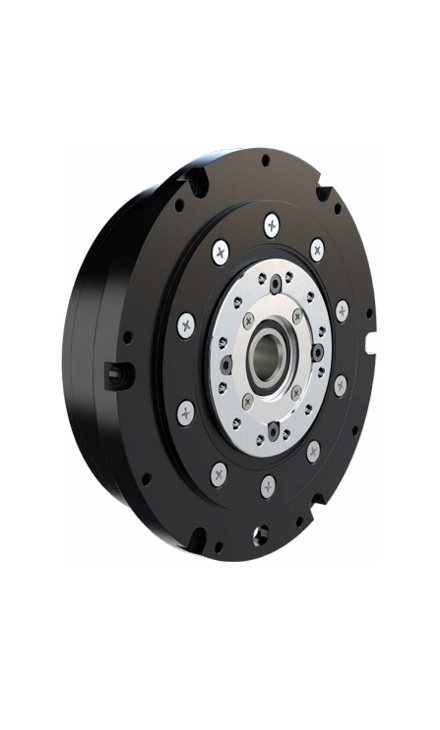

Built-in cycloidal pin wheel structure reducer |

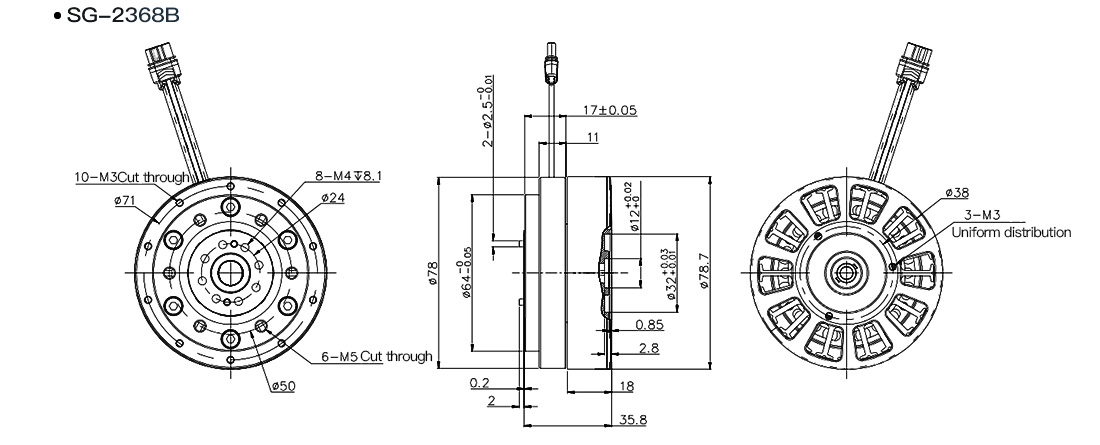

Model number | SG-2368B |
|
Material | Steel | |
Outer diameter | 78.7mm | |
Thickness | 35.8mm | |
Weight | 600g | |
Reduction ratio | 39 | |
Backlash | 2.73arcmin | |
Voltage | 36V | |
Rated power | 200W | |
Rated speed | 48RPM | |
No-load speed | 54RPM | |
Rated torque | 20NM | |
Peak torque | 52NM | |
Hall angle | 120° | |
Phase resistance | 0.225Ω | |
Phase inductance | 425uH | |
Maximum phase current | 13A | |
Rated bus current | 5A | |
Static working bus | 0.1A | |
Motor structure | 28P24N | |
Transmission structure | Cycloidal pinwheel | |
Sense of warmth | Model number Model number MF52B | |
Reaction potential constant | 0.149V/rad |

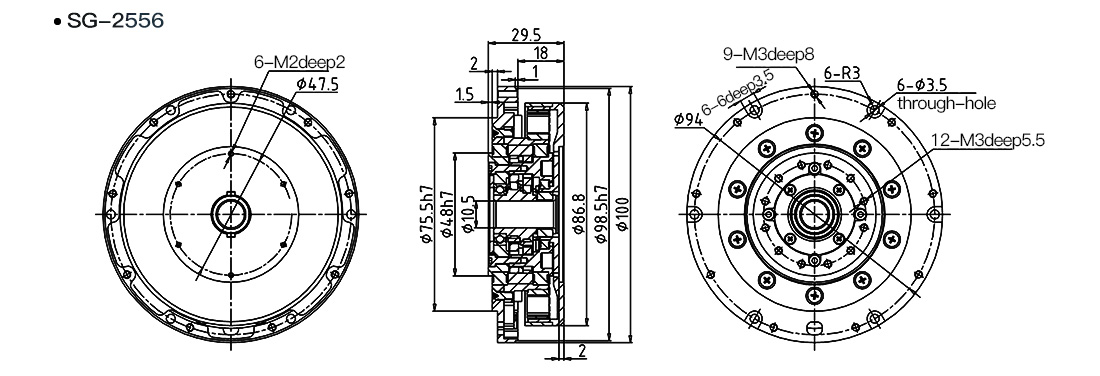

Model number | SG-2556 |
|
Material | Steel | |
Outer diameter | 100MM | |
Thickness | 29.5MM | |
Backlash | 5-10arcmin | |
Reduction ratio | 25 | |
Voltage | 24V-48V | |
Rated power | 213W | |
Rated speed | 60RPM | |
No-load speed | 90RPM | |
Rated torque | 25NM | |
Peak torque | 75NM | |
Motor KV value | 63kv | |
Thermistor | 10KB3435%1 | |
Phase inductance | 290uH | |
Phase current full scale | 33A | |
Rated bus current | 15A | |
Static working bus | 0.08A | |
Motor structure | 21 opposites(Antipodes) | |
Weight | 822g | |
Transmission structure | Cycloidal pinwheel | |
Reaction potential constant | 0.143V/rad |
